Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

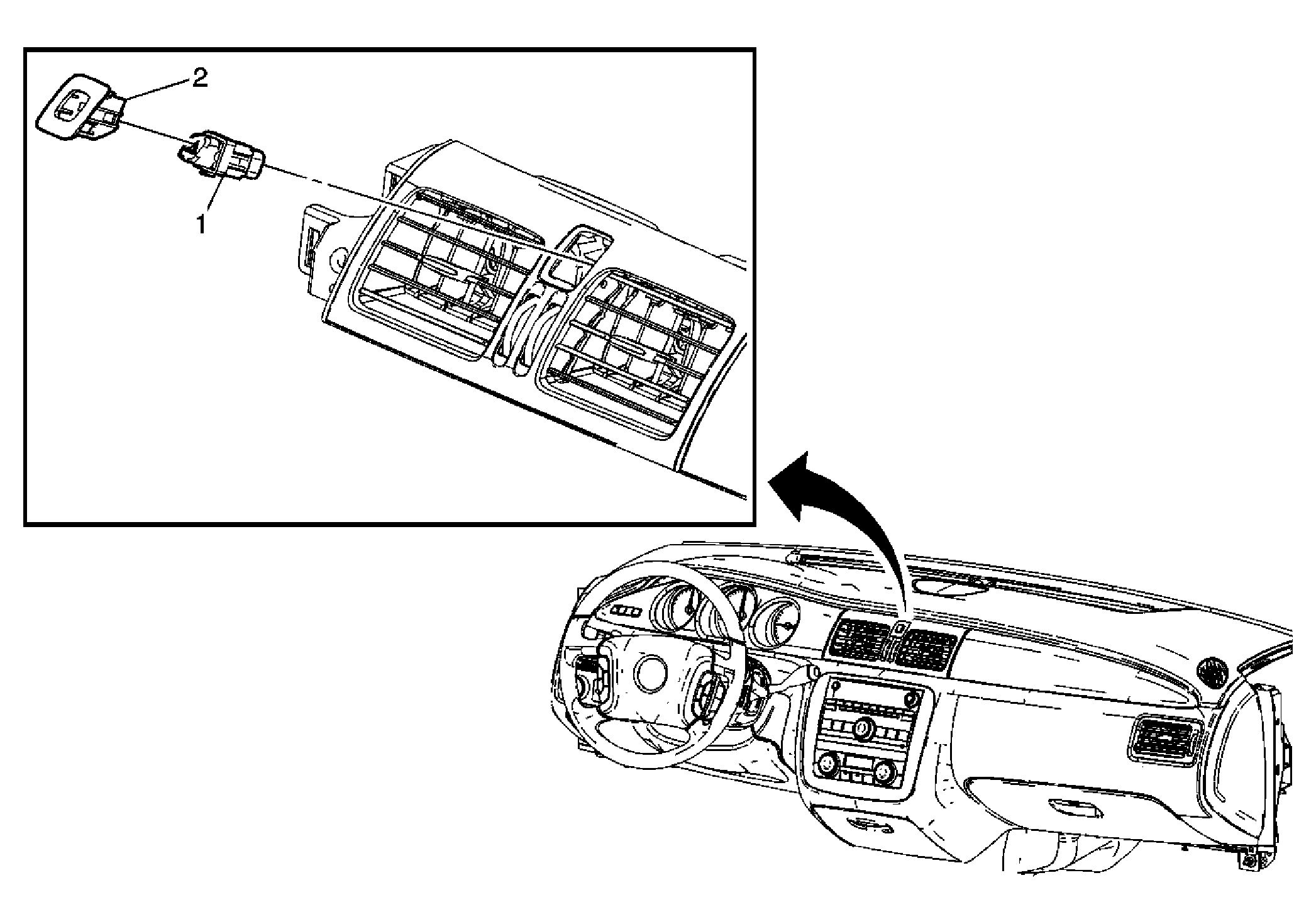

Fig 1: Locating Hazard Warning Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Hazard Warning Switch Tip: Use the J 42214 to remove the hazard warning switch and bezel. Insert the tool into the hole in the air outlet on each side of the switch to release the tabs. Disconnect the electrical connector.
2	Hazard Warning Switch Bezel
