License Lamp Bulb Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

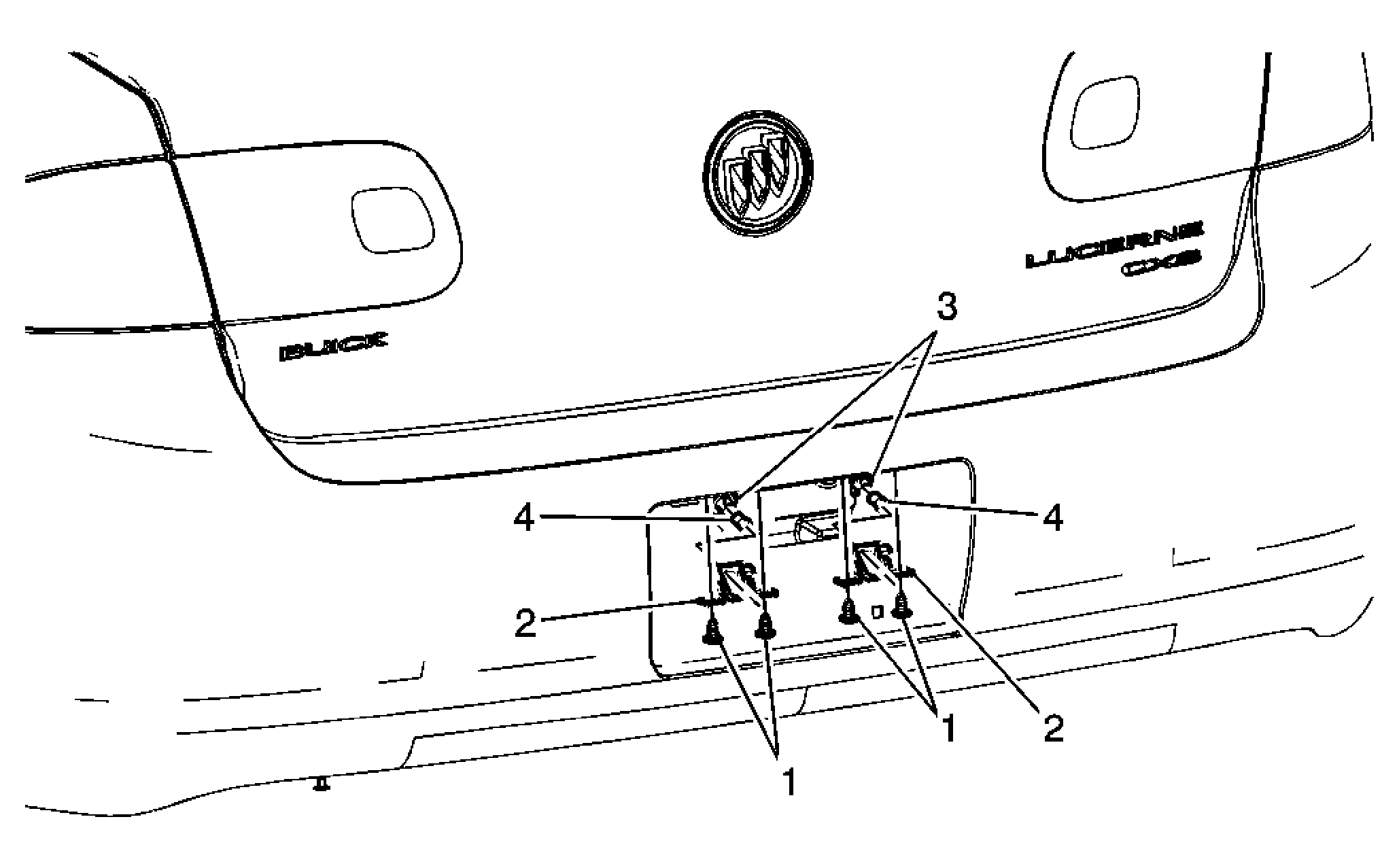

Fig 1: Removing/Installing License Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear License Plate Lamp Screws (Qty: 4) Tighten: 2 N.m(18 lb in)
2	Rear License Plate Lamp Lens (Qty: 2) Tip: Push the lens forward then pull outward from the rear bumper fascia opening.
3	License Plate Lamp Socket Tip: Twist the lamp socket electrical connector counterclockwise and remove from the lens.
4	Rear License Plate Lamp Bulb (Qty: 2) Tip: Pull the bulb straight from the socket.
