Child Restraint Tether Anchor Replacement

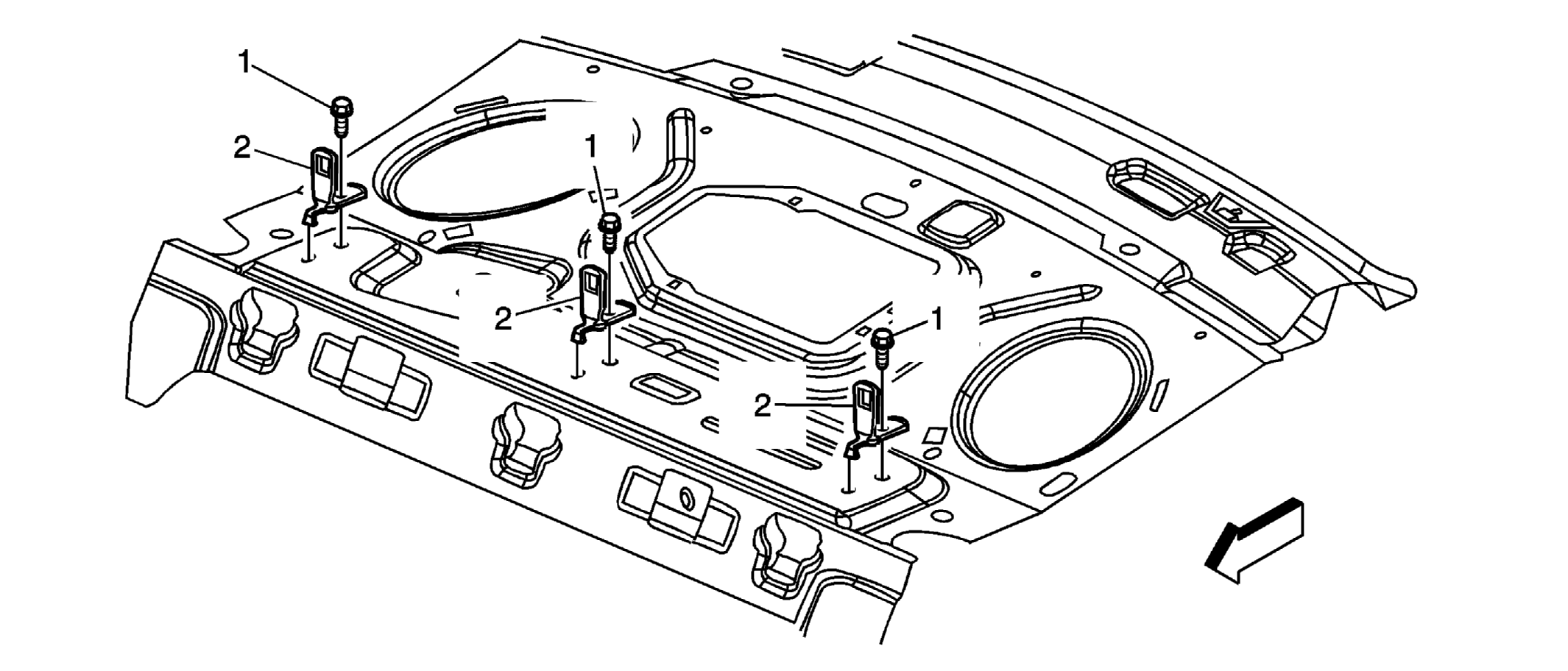

Fig 1: Replacing Child Restraint Tether Anchor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the trim panel, rear window shelf. Refer to Trim Panel Replacement - Rear Window Shelf .
1	Bolt, Child Seat Restraint System Bracket Tighten: 24 N.m (18 lb ft)
2	Bracket, Child Seat Restraint System
