Front Shoulder Belt Guide Adjuster Replacement

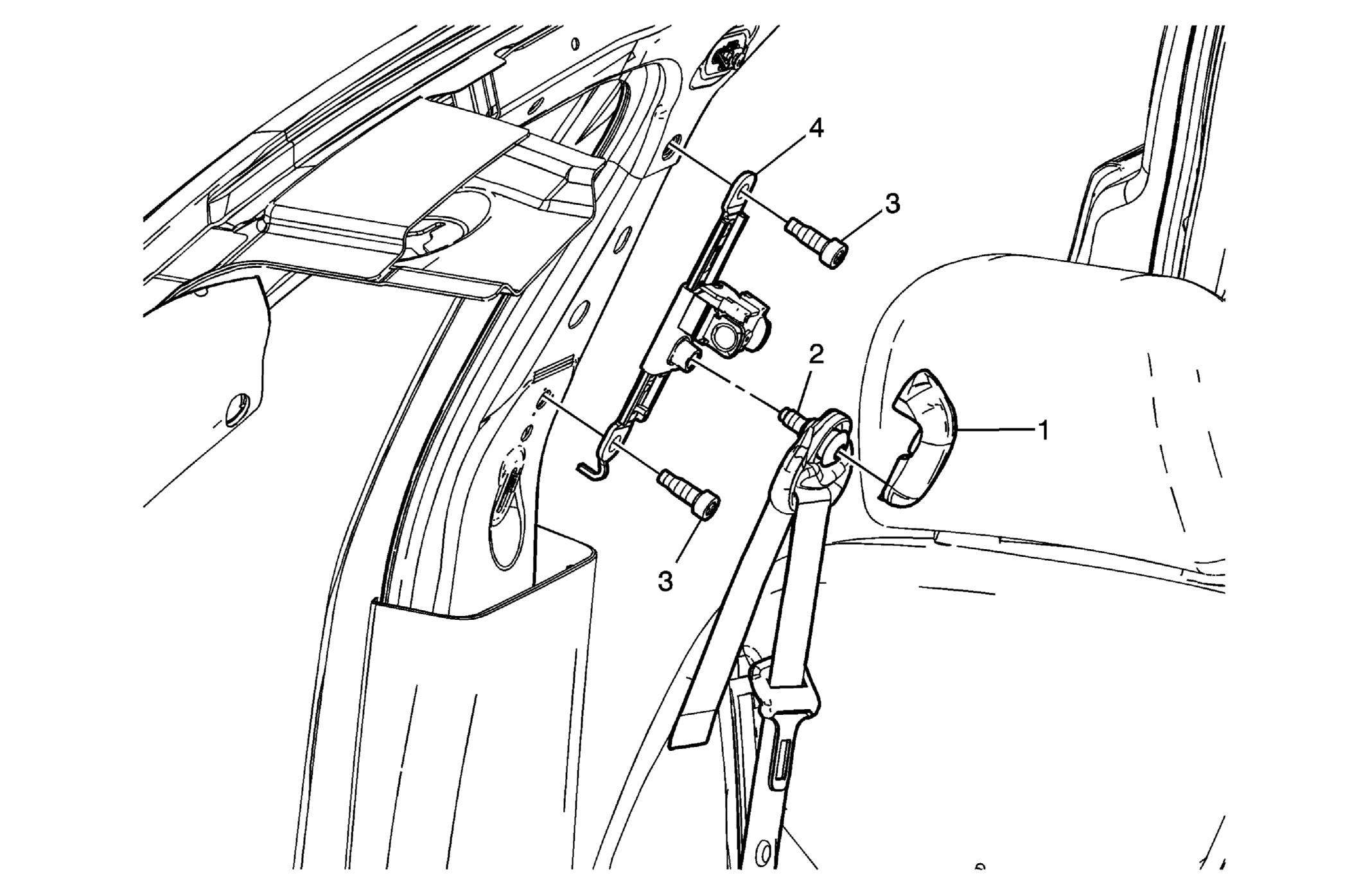

Fig 1: Replacing Front Shoulder Belt Guide Adjuster

Courtesy of GENERAL MOTORS CORP.

Shoulder Belt Guide Adjuster Replacement - Front

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the trim panel, upper center pillar. Refer to Trim Panel Replacement - Upper Center Pillar .
1	Cover, Shoulder Belt Guide Adjuster
2	Bolt, Shoulder Belt Guide Tighten: 42 N.m (31 lb ft)
3	Bolt, Shoulder Belt Guide Adjuster Assembly Tighten: 42 N.m (31 lb ft)
4	Adjuster Assembly, Shoulder Belt Guide
