Engine Controls Schematics

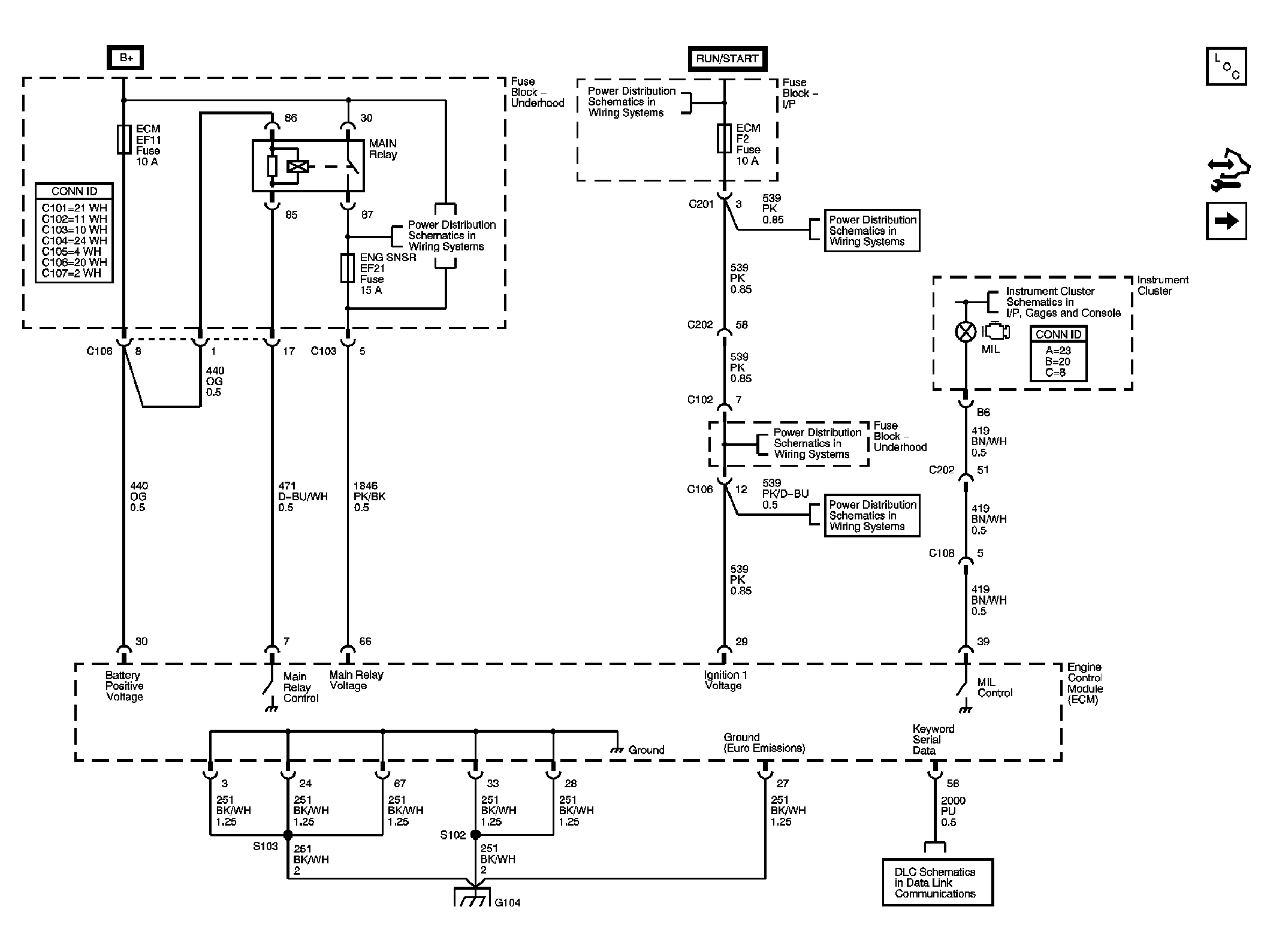

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL) Schematics

Courtesy of GENERAL MOTORS CORP.

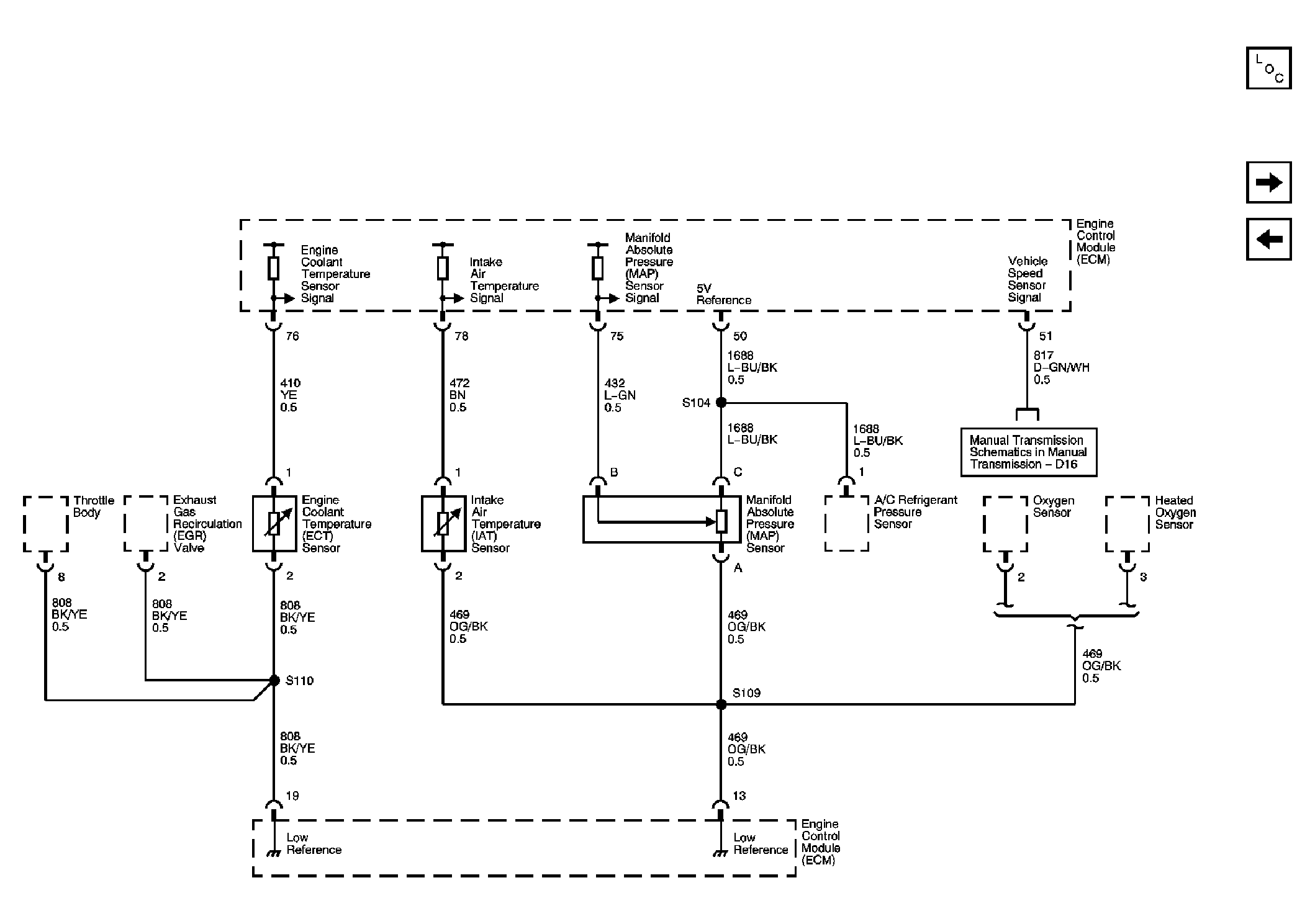

Fig 2: Engine Data Sensors - Pressure and Temperature Schematics

Courtesy of GENERAL MOTORS CORP.

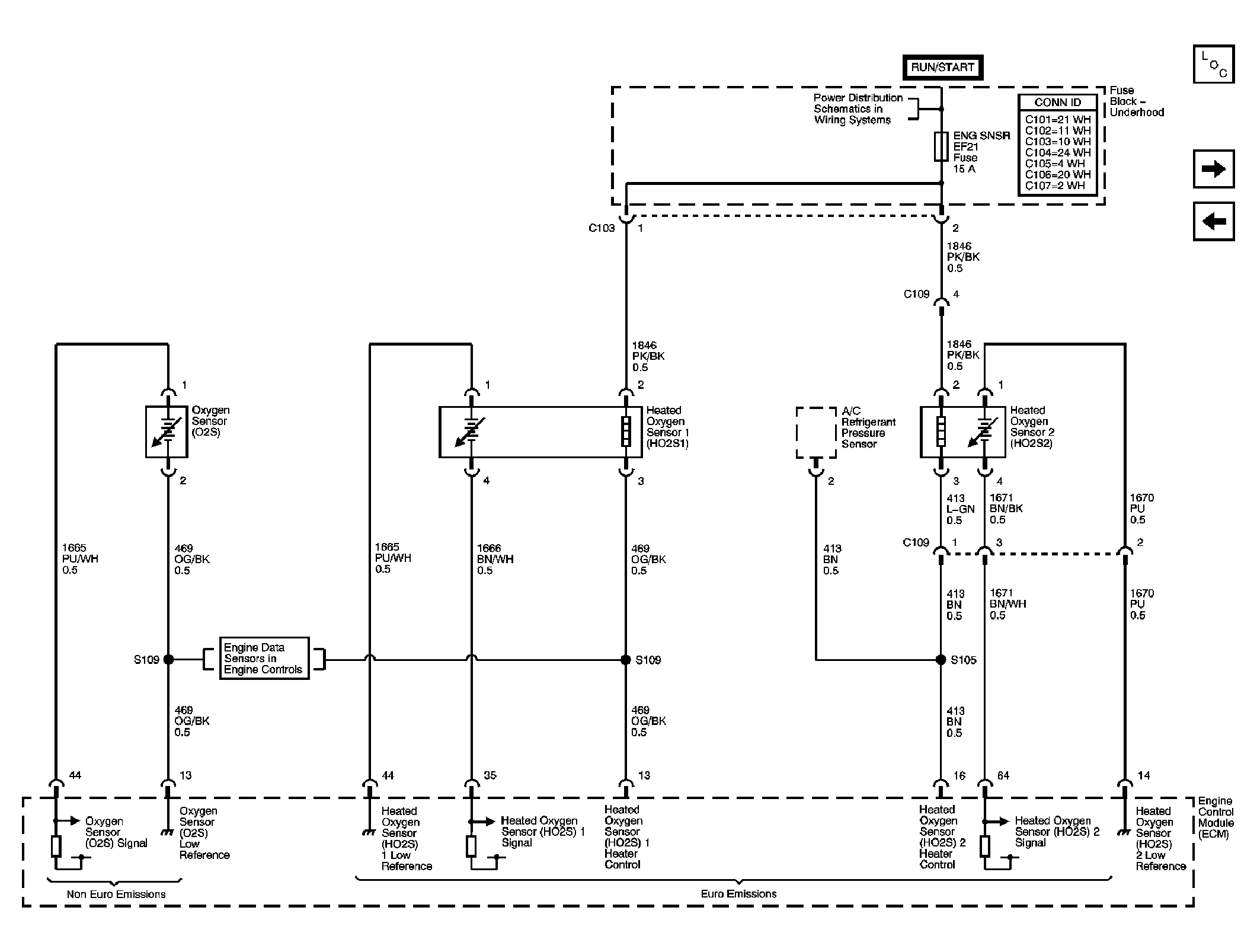

Fig 3: Engine Data Sensors - Oxygen Sensors (O2S) Schematics

Courtesy of GENERAL MOTORS CORP.

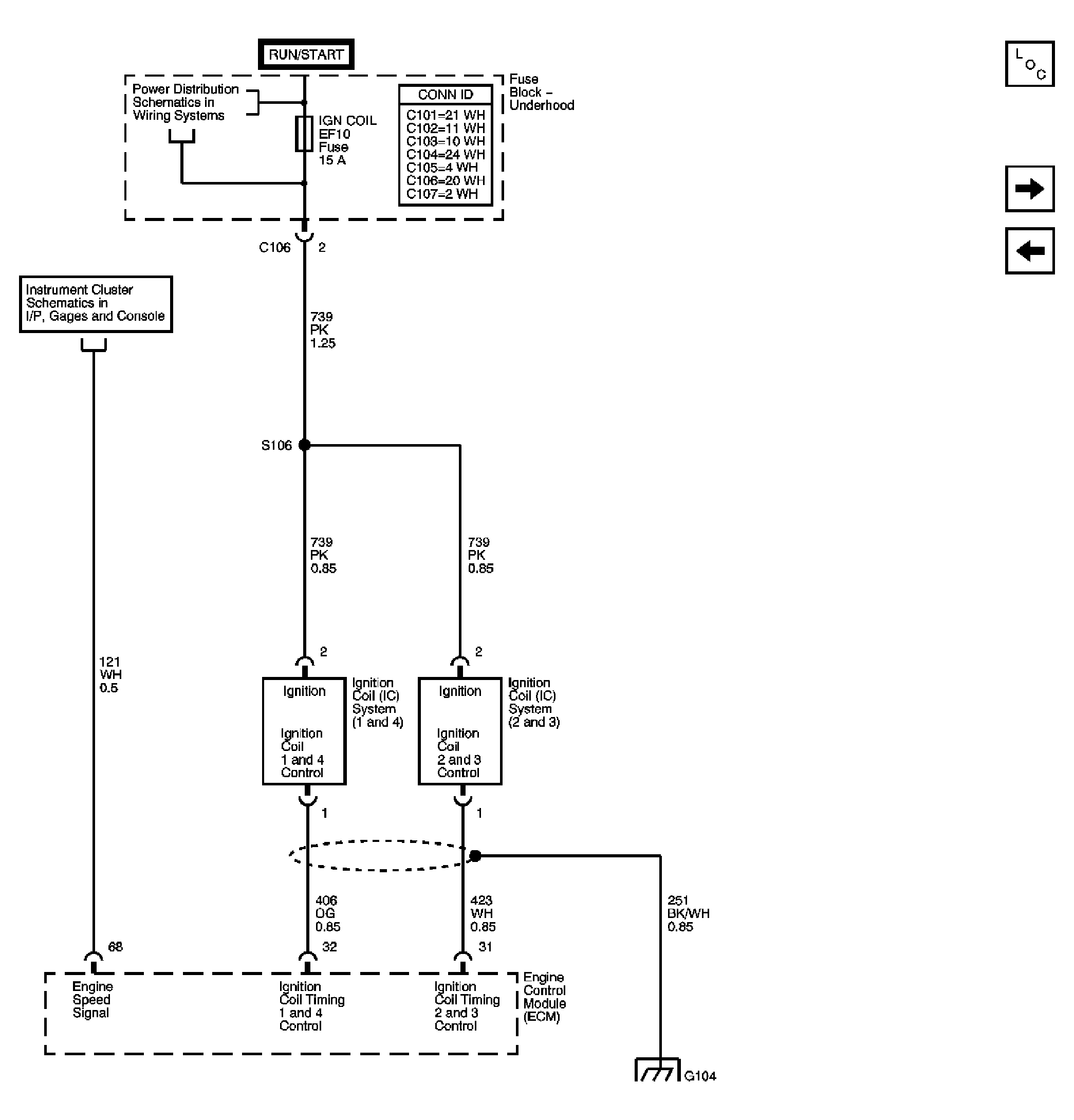

Fig 4: Ignition Controls - Ignition System Schematics

Courtesy of GENERAL MOTORS CORP.

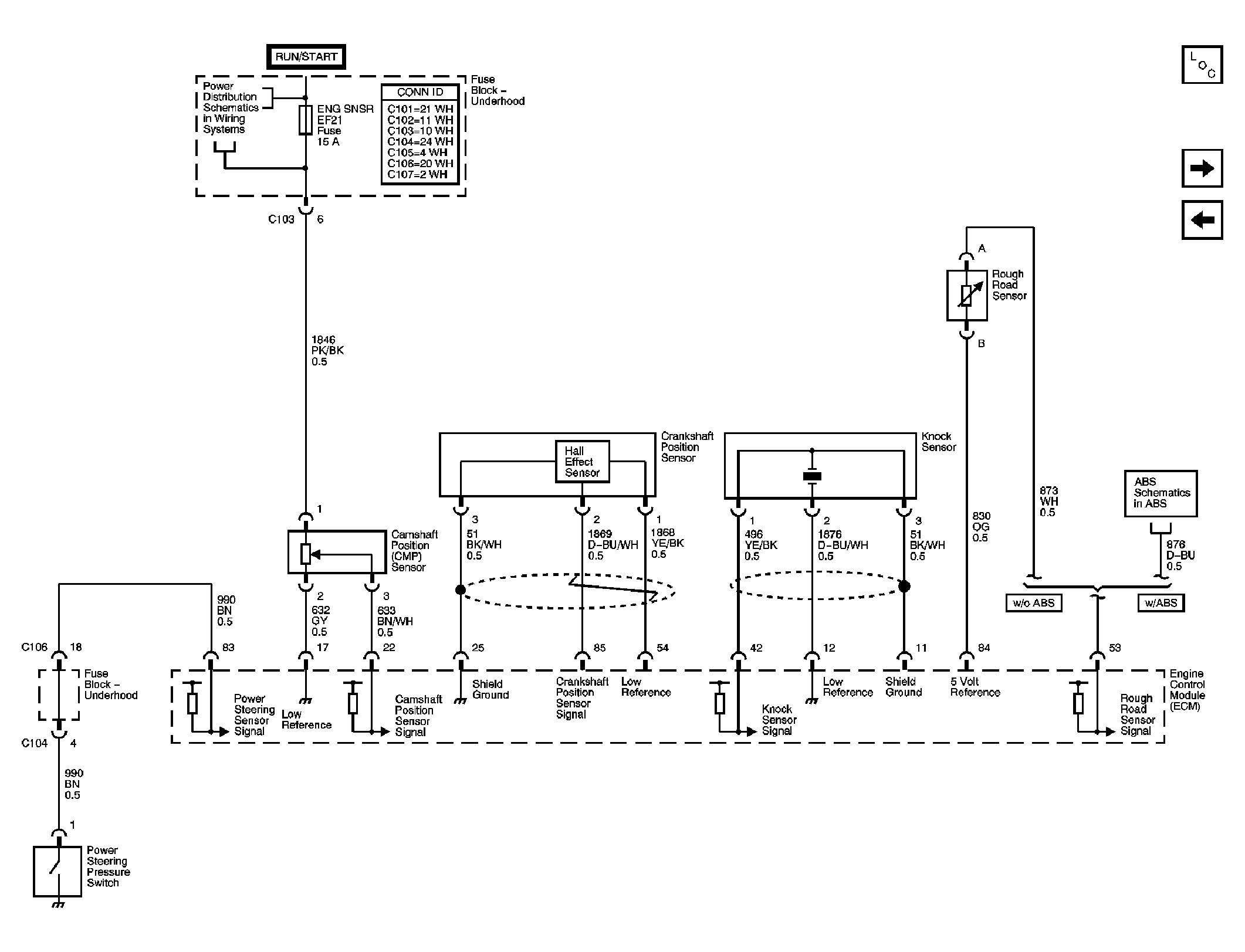

Fig 5: CMP, CKP, Knock, Rough Road Sensors, Power Steering Pressure Switch Schematic

Courtesy of GENERAL MOTORS CORP.

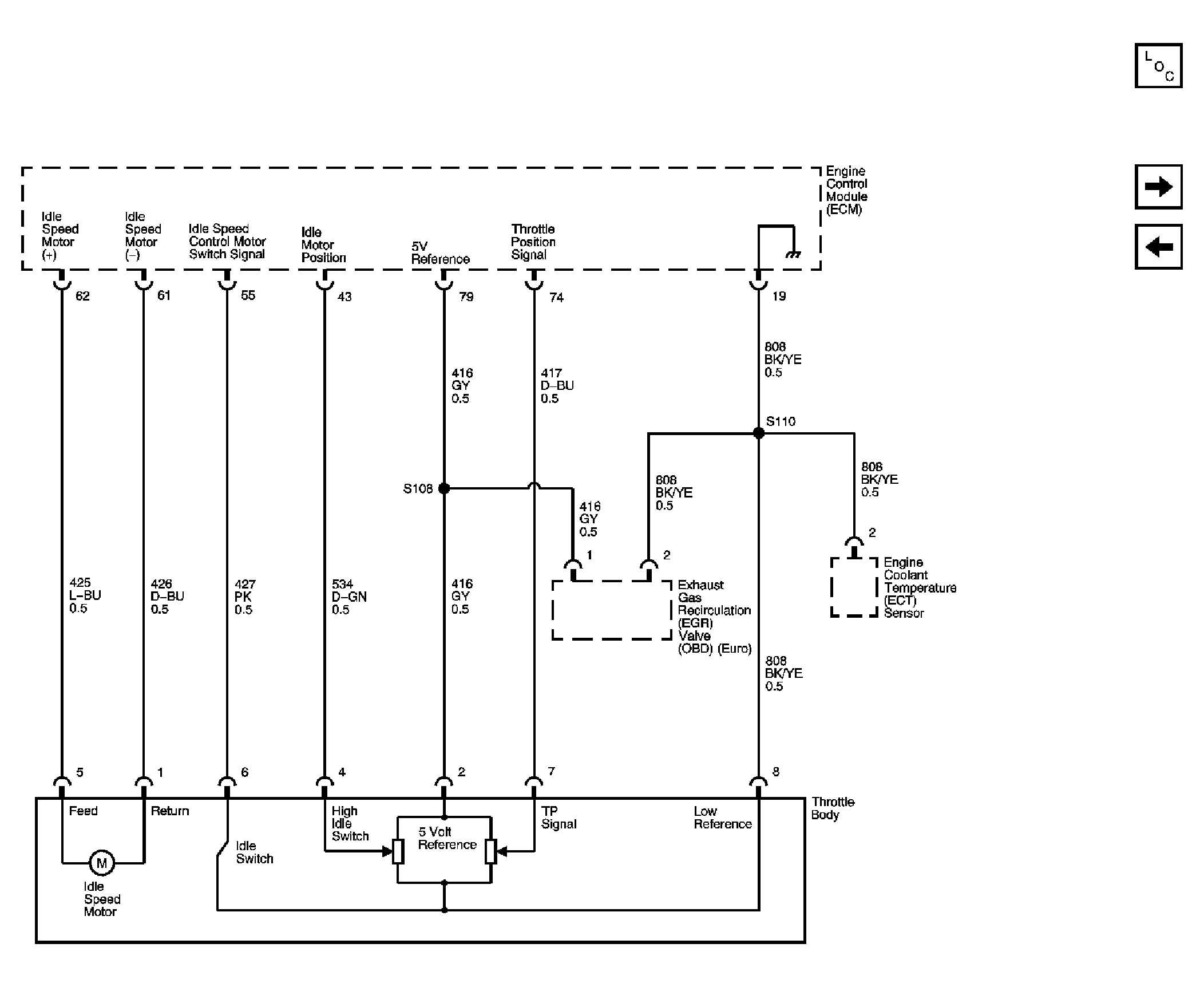

Fig 6: Engine Data Sensors - Main Throttle Intake Actuator (MTIA) Schematics

Courtesy of GENERAL MOTORS CORP.

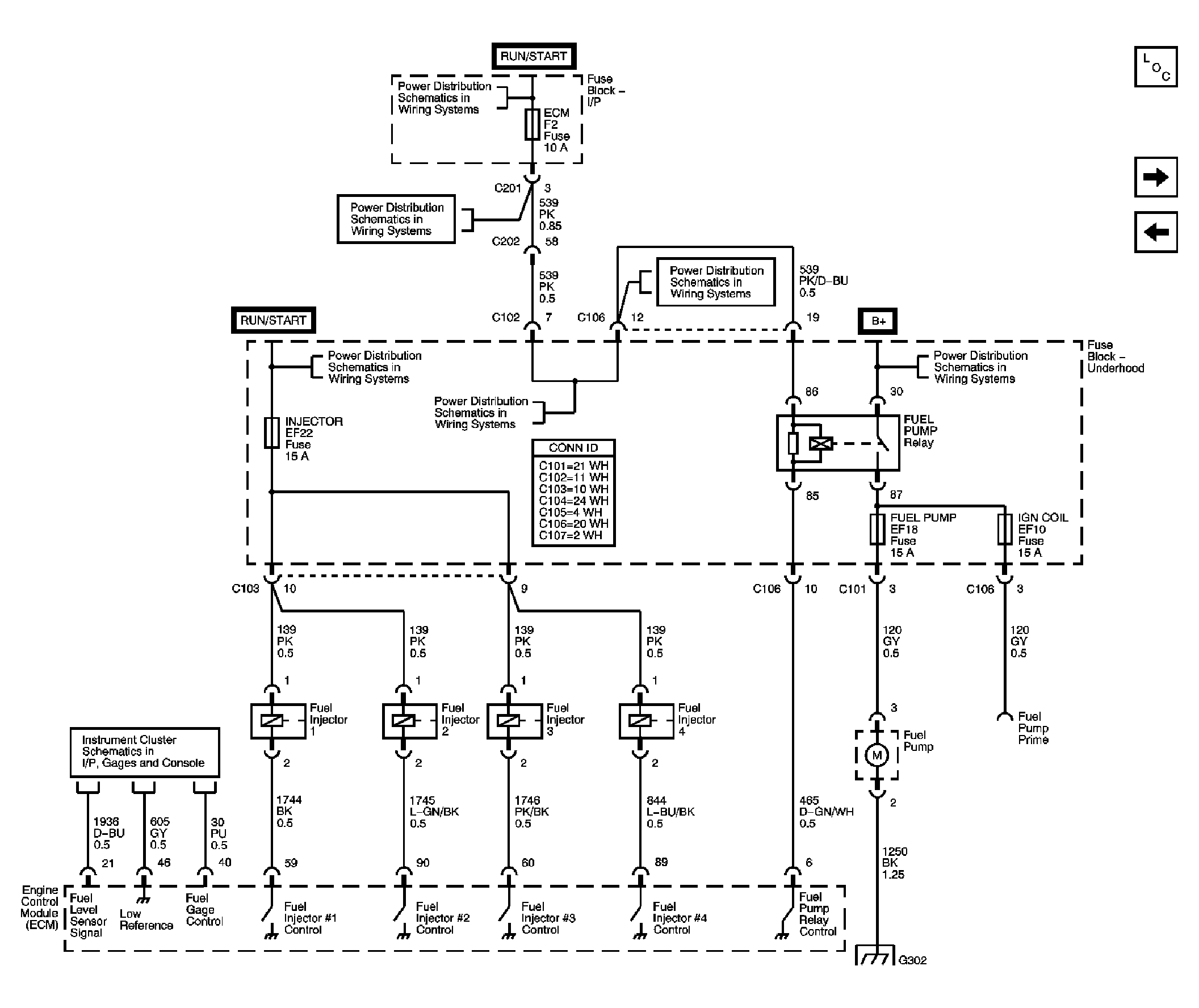

Fig 7: Fuel Controls - Fuel Pump Controls and Fuel Injectors Schematics

Courtesy of GENERAL MOTORS CORP.

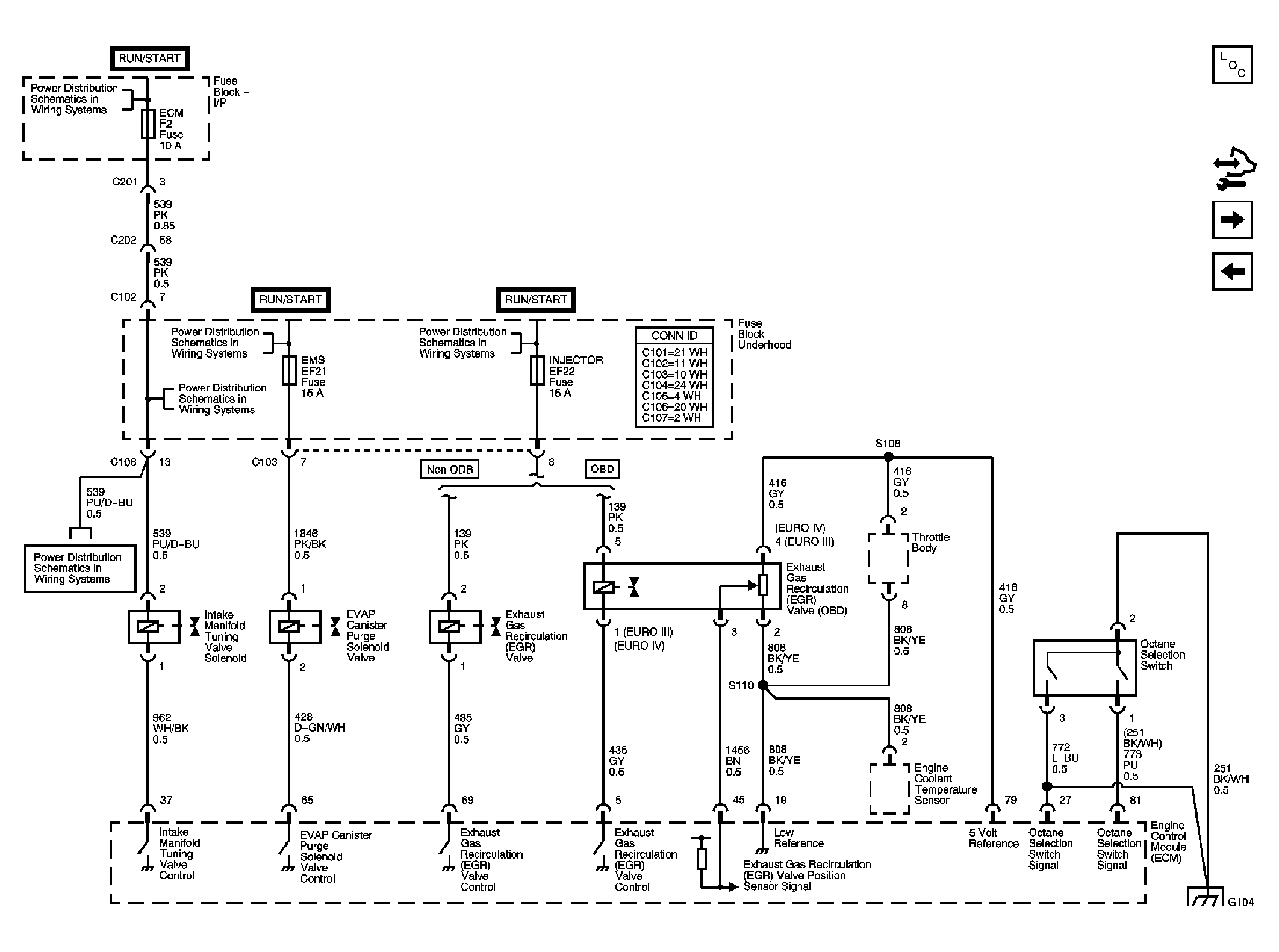

Fig 8: Intake Manifold Tuning Valve, EVAP, EGR, Octane Selection Switch Schematic

Courtesy of GENERAL MOTORS CORP.

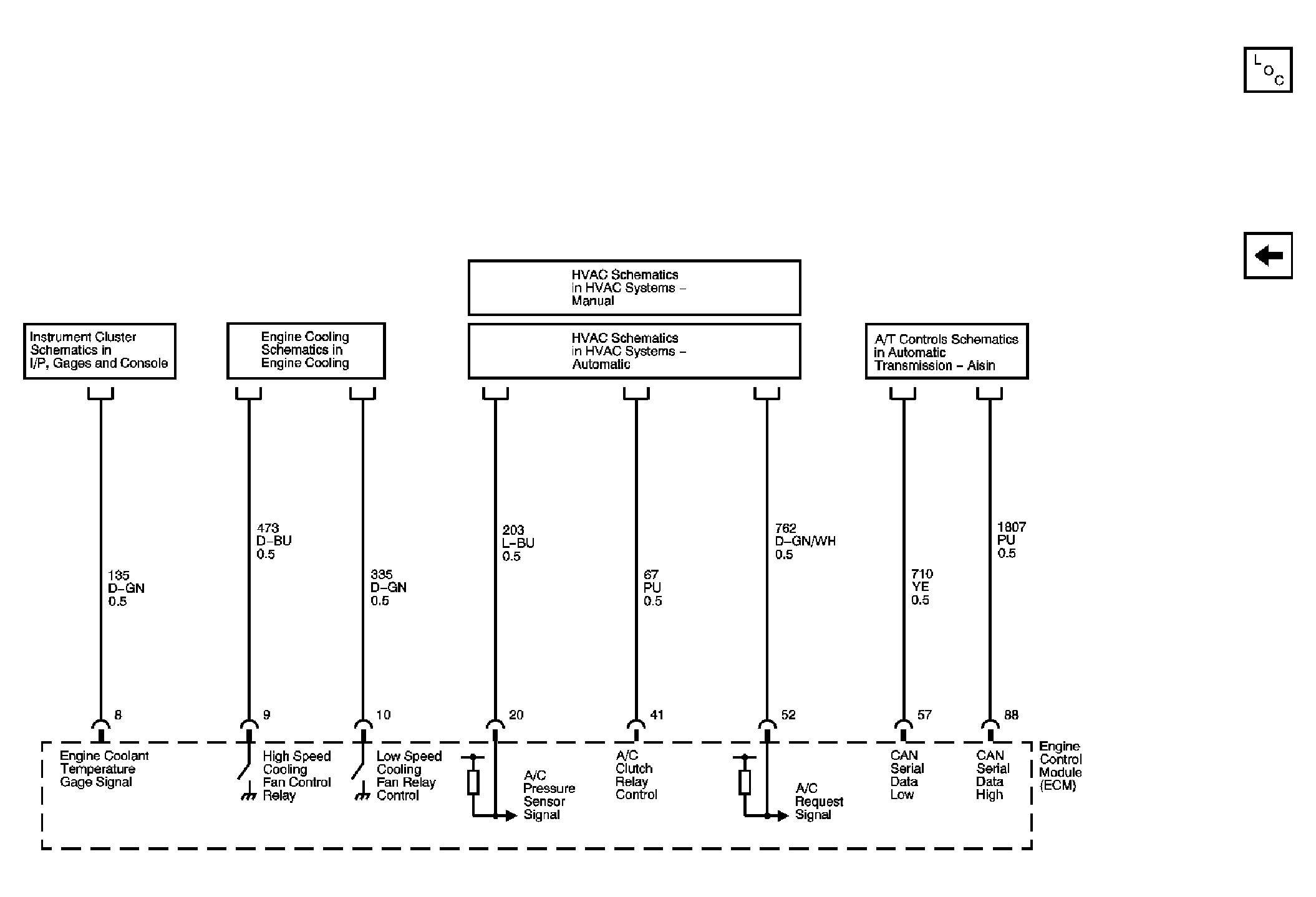

Fig 9: Controlled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.
