Remote Function Component Views

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Sunshade Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener

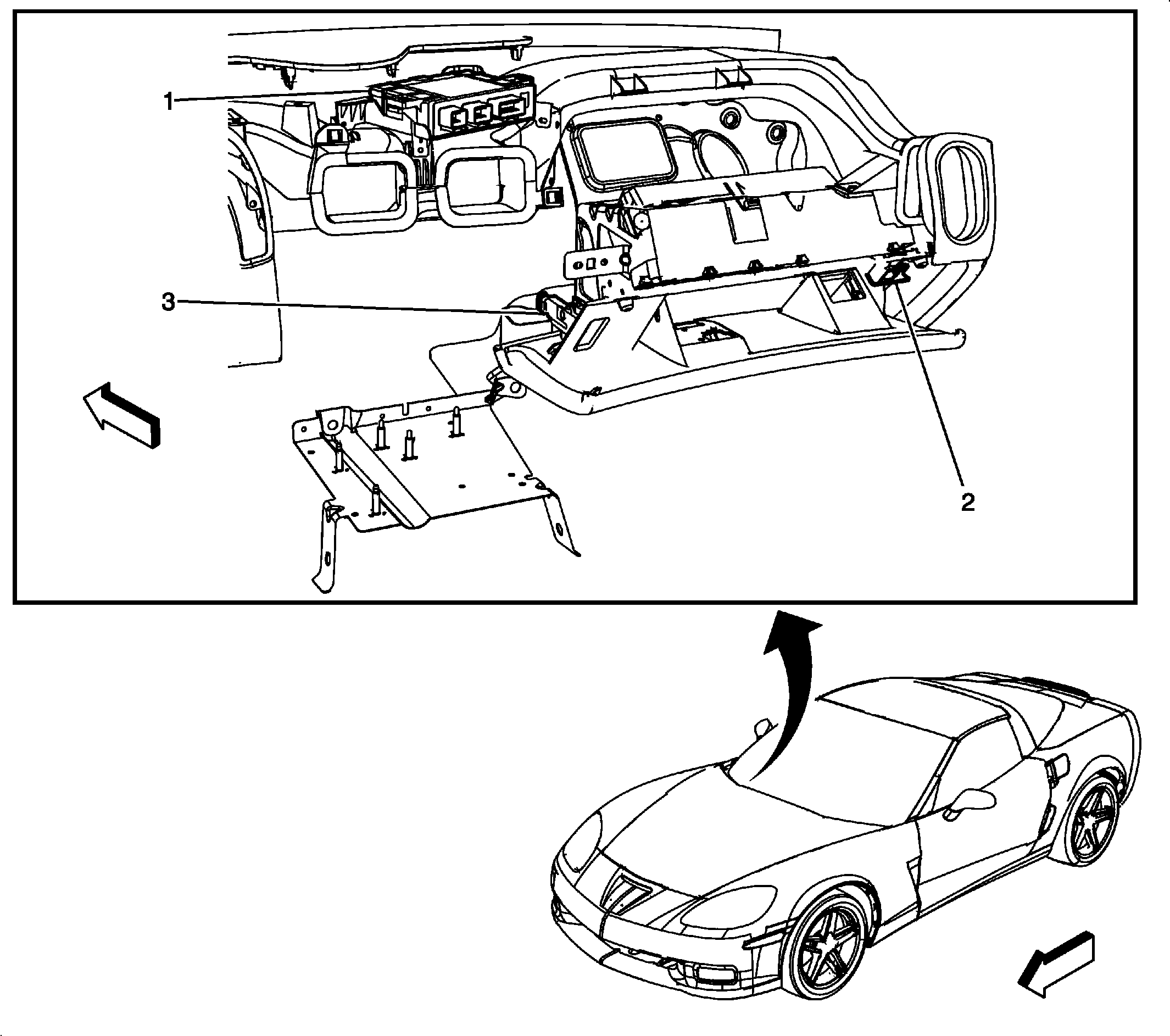

Fig 2: Right I/P Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	I/P Compartment
3	Keyless Entry Antenna-Back Up

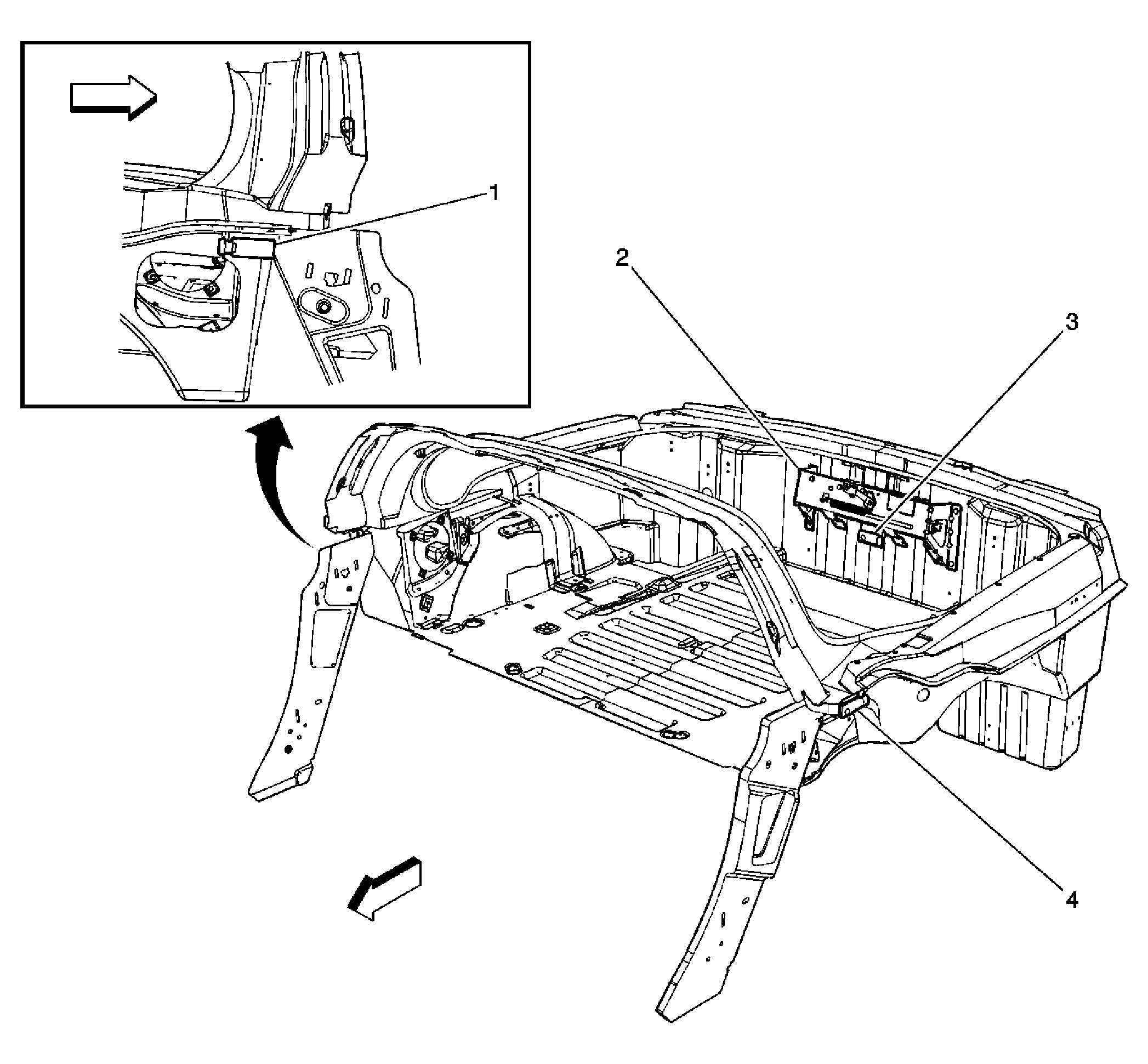

Fig 3: Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Keyless Entry Antenna-Right
2	Rear Compartment Lid Latch Assembly
3	Keyless Entry Antenna-Rear Compartment
4	Keyless Entry Antenna-Left
