Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

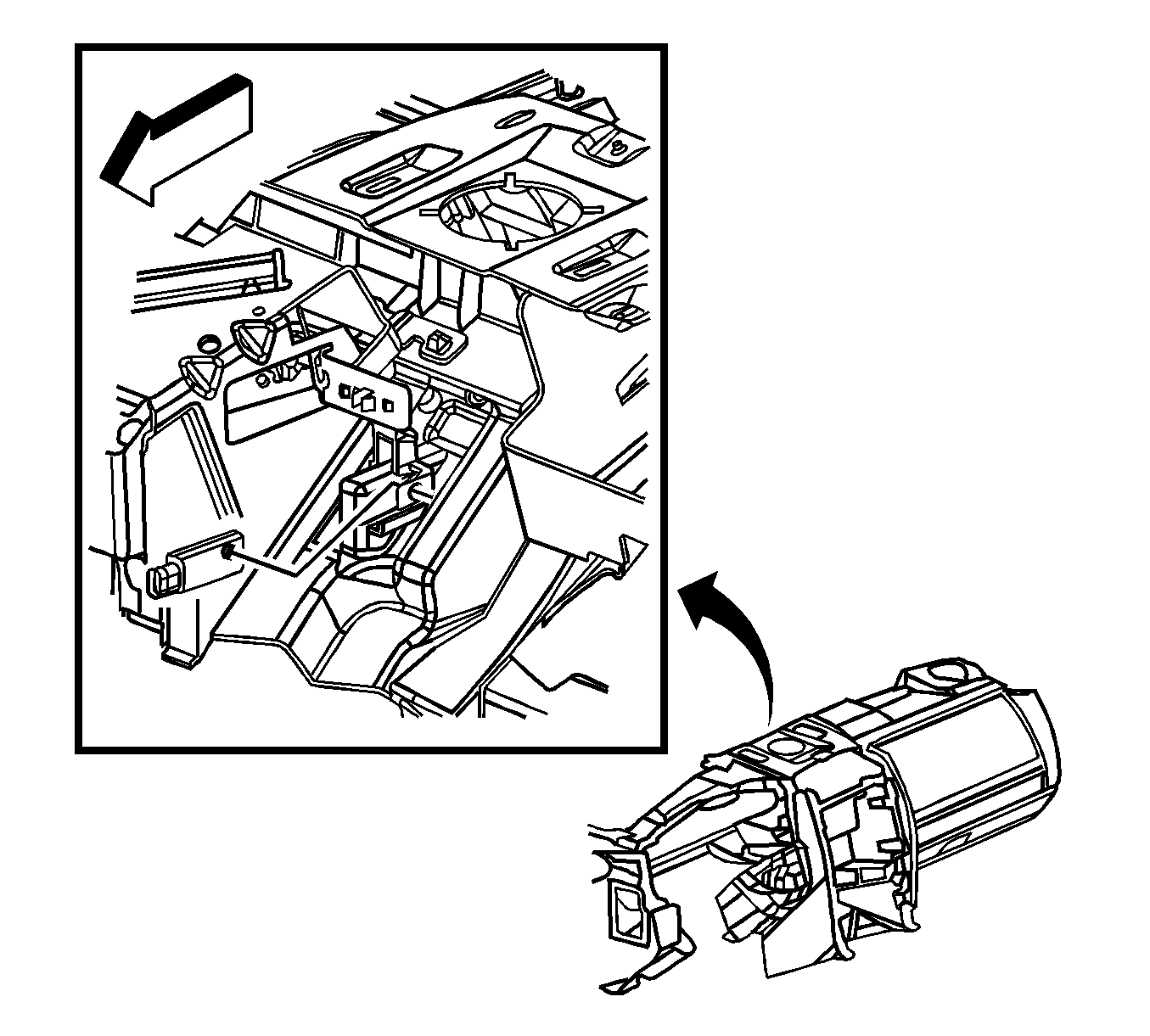

    Fig 1: View Of Antenna Wire Harness, Retaining Bracket & Lead Connector
    GM1231039Courtesy of GENERAL MOTORS CORP.
  1. Position the antenna to the I/P carrier.
  2. Connect the wire harness lead to the antenna.
  3. Push on the antenna to install the antenna to the retaining bracket.
  4. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
  5. Close the I/P compartment door.
