Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

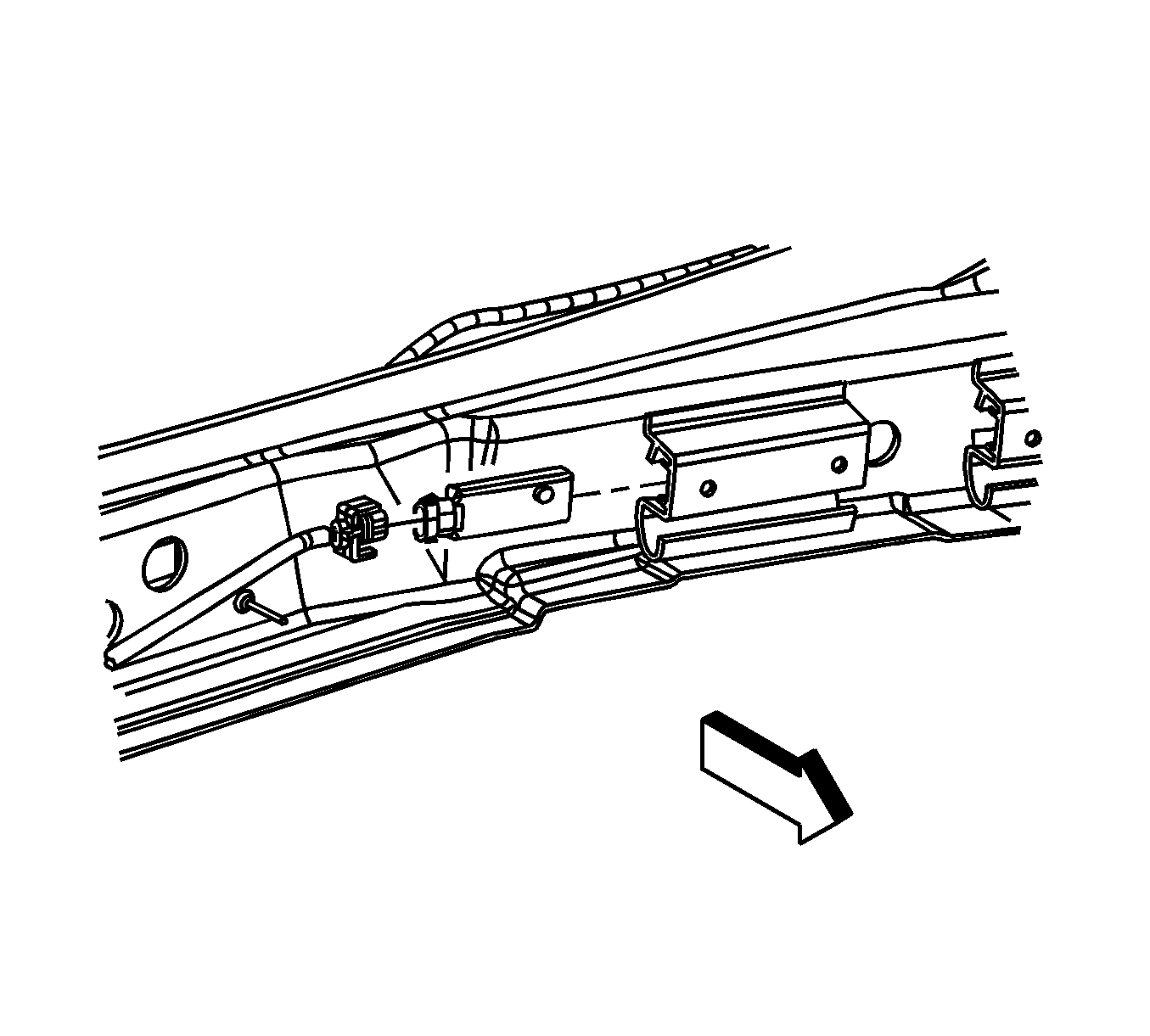

    Fig 1: View Of Rear Compartment Antenna & Bracket
    GM1231054Courtesy of GENERAL MOTORS CORP.
  1. Push on the antenna to engage the antenna to the retaining bracket.
  2. Connect the wire lead to the transmitter antenna.
  3. Install the center trim panel carpet. Refer to Rear Compartment Rear Center Trim Panel Carpet Replacement .
  4. Close the rear compartment.
