Installation Procedure

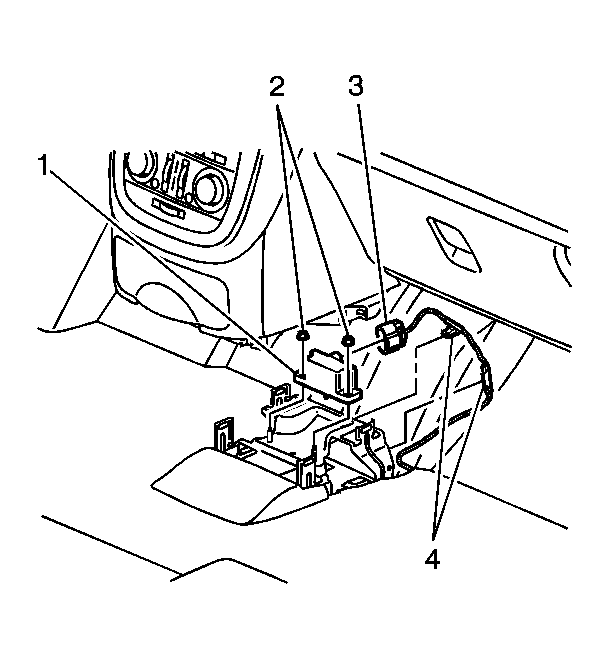

Fig 1: Identifying Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the nuts (2) retaining the yaw rate sensor.
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Connect the electrical connector (3) to the yaw rate sensor.
Install the front floor console reinforcement. Refer to Bracket, Reinforcement, Side Trim Panel Replacement - Front Floor Console in Instrument Panel, Gages and Console.
