Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Accessory AC/DC Power Control Module | Behind right rear interior body panel. See Figure . |
| Blower Motor Control Module - Auxiliary | In rear HVAC module, behind left rear interior body panel. See Figure . |
| Body Control Module (BCM) | Below left side of dash, left of steering column. See Figure . |
| Digital Radio Receiver | Behind left side of dash. See Figure . |
| Electronic Brake Control Module (EBCM) | Lower left side of engine compartment, on left strut tower. See Figure . |
| HVAC Control Module | In dash center trim panel, beneath radio. See Figure . |

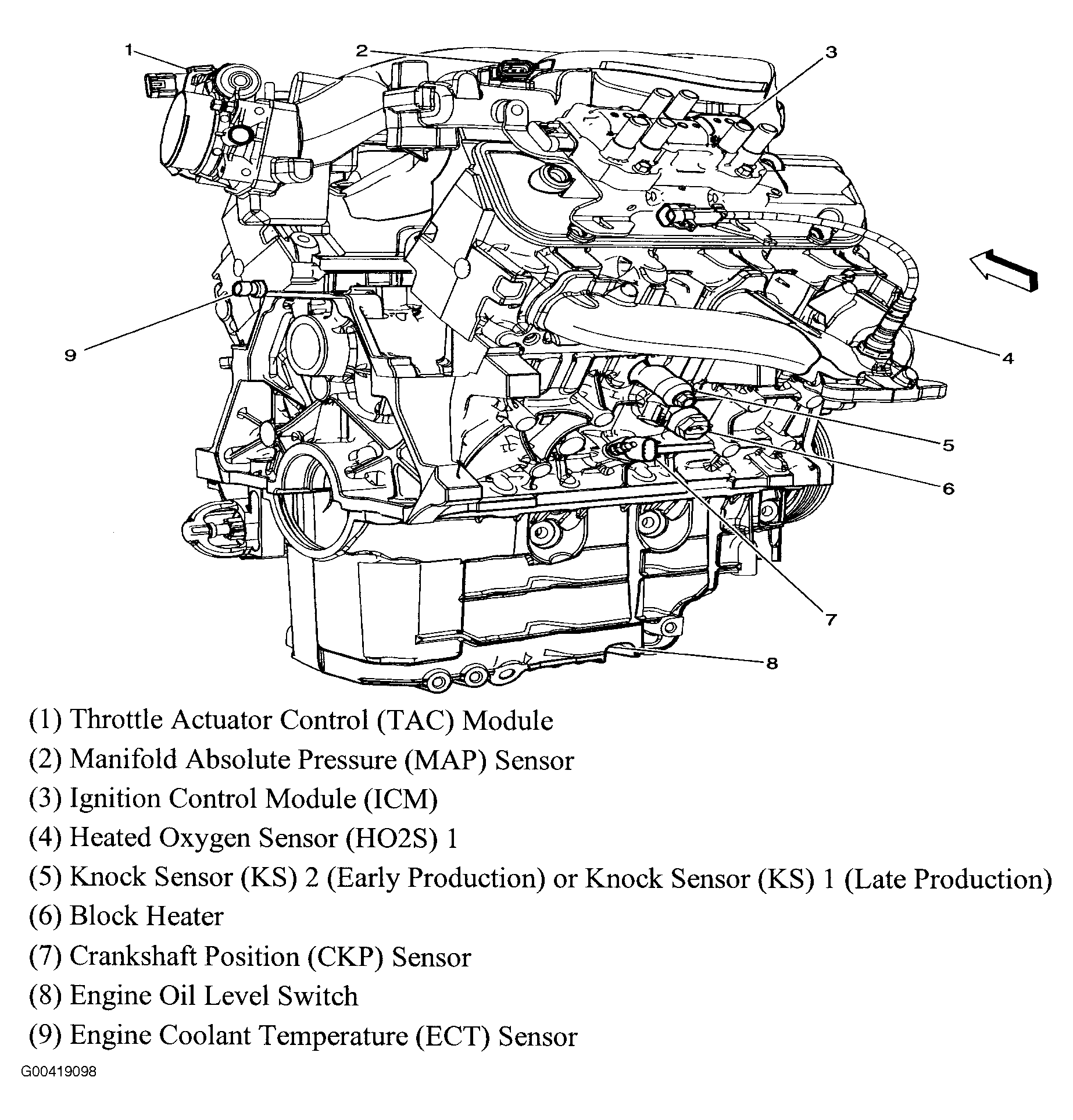

| Ignition Control Module (ICM) (3.5L) | On top rear of engine. See Figure . |
| Ignition Control Module (ICM) (3.9L) | Top of valve cover. See Figure . |
| Inflatable Restraint Front Passenger Presence System (PPS) Module | Under passenger seat |
| Inflatable Restraint I/P Module | Above dash compartment. |
| Inflatable Restraint Sensing And Diagnostic Module (SDM) | On floor below passenger seat. See Figure . |
| Inflatable Restraint Side Impact Module - Left | In left front seat back. See Figure . |
| Inflatable Restraint Side Impact Module - Right | In right front seat back. See Figure . |
| Inflatable Restraint Side Impact Sensing Module (SISM) - Left | In left "B" pillar. See Figure . |
| Inflatable Restraint Side Impact Sensing Module (SISM) - Right | In right "B" pillar. |
| Inflatable Restraint Steering Wheel Module | In center hub of steering wheel. |
| Inflatable Restraint Steering Wheel Module Coil | In steering column. |
| Left Sliding Door Module (LSDM) | Behind left rear interior body panel. See Figure . |
| Memory Seat Module - Driver (AG0) | Under driver seat. See Figure . |
| Powertrain Control Module (PCM) | Left side of engine compartment, in air cleaner assembly. See Figure . |
| Rear Object Sensor Control Module | Behind right rear interior body panel. See Figure . |
| Remote Control Door Lock Receiver (RCDLR) | Behind top left side of dash. See Figure . |
| Right Sliding Door Module (RSDM) | Behind right rear interior body panel. See Figure . |
| Sit-N-Lift(R) Seat Module | In Sit-N-Lift(R) seat base. |
| Theft Deterrent Exciter Module | In steering column surrounding lock cylinder. See Figure . |
| Throttle Actuator Control (TAC) Module (3.5L) | Left side of intake. See Figure . |

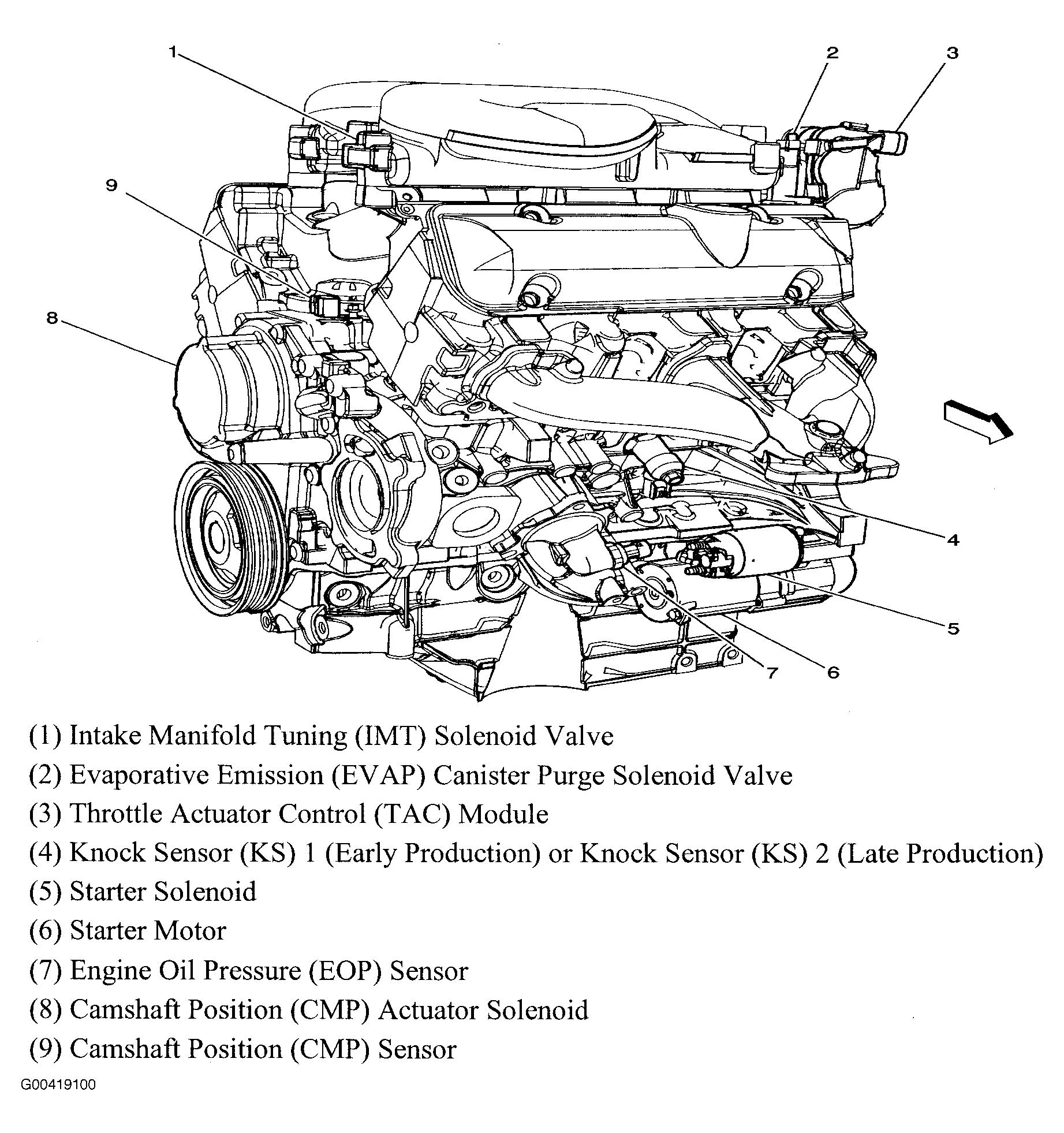

| Throttle Actuator Control (TAC) Module (3.9L) | Rear of engine, on throttle body assembly. See Figure . |
| Torque Converter Clutch (TCC) Release Switch | Inside automatic transmission. |
| Vehicle Communication Unit (VCU) | Behind upper left side of dash, to left of steering column. See Figure . |
