Body Control Module (BCM) C5

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

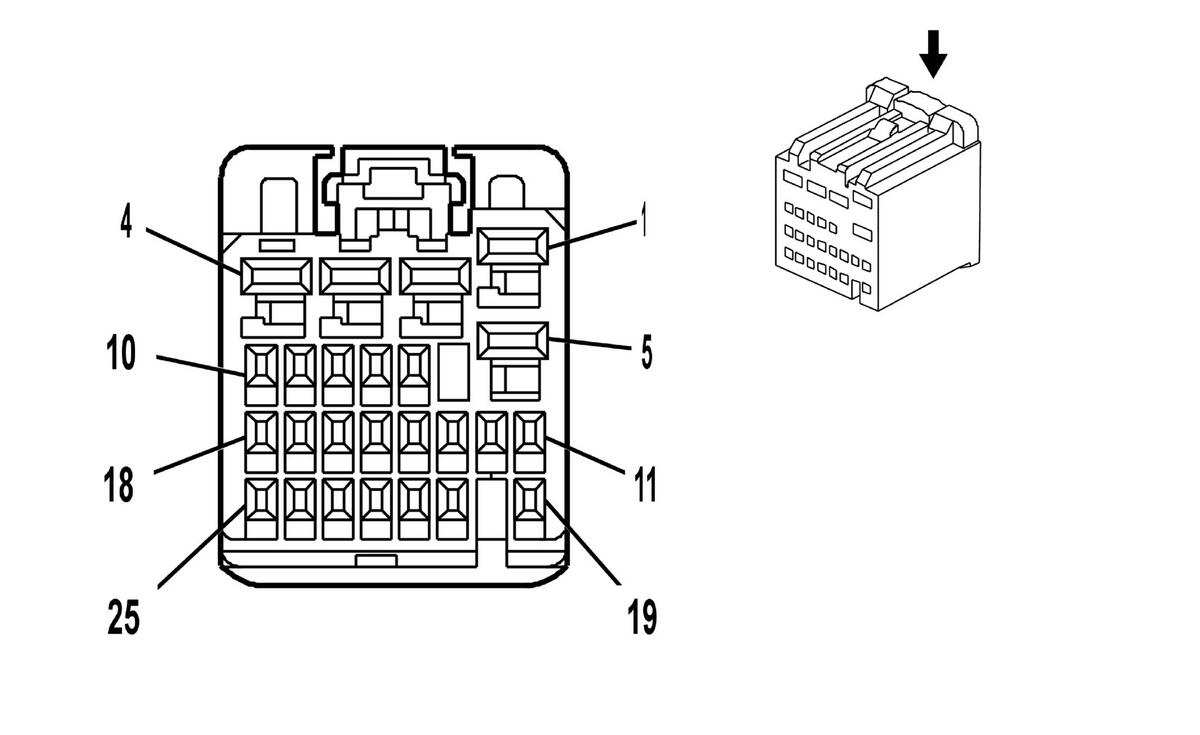

Fig 1: Body Control Module C5 Connector End Views

Courtesy of GENERAL MOTORS CORP.

Computer/Integrating Systems Connector End Views

Connector Part Information

OEM: 15480179
Service: See Catalog
Description: 25-Way F Receptacle 0.64 2.8

Terminal Part Information

Pins: 1, 2, 4, 5
Terminal/Tray: SNAC-A061T-M2.8/20
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-4A (PU)

Pins: 6, 8, 9, 10, 11, 15, 18, 19, 20, 21, 23, 24
Terminal/Tray: SNAC3-A021T-M0.64/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64A (L-BU)

Body Control Module (BCM) C5

Pin	Wire Color	Circuit No.	Function
1	YE	18	Left Rear Stop/Turn Lamp Supply Voltage
2	D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
3	-	-	Not Used
4	L-BU/WH	1314	Left Front Turn Signal Lamp Supply Voltage
5	L-BU	1320	CHMSL Supply Voltage
6	WH	17	Stop Lamp Switch Signal
7	-	-	Not Used
8	PK	5076	Current Sensor Supply Voltage
9	WH	5075	Current Sensor Signal
10	BN	5077	Low Reference
11	TN	707	RAP Relay Coil Supply Voltage
12-14	-	-	Not Used
15	PU	5531	Hood Closed Switch Signal (AP3, AP8)
16-17	-	-	Not Used
18	TN	28	Horn Relay Control
19	YE/BK	5810	Park Enable Signal (6J1)
20	GY	91	Windshield Wiper Switch Signal 2
21	TN	860	Front Windshield Wiper Switch High Signal
22	-	-	Not Used
23	PK/WH	1970	Headlamp Low Beam Relay Control
24	WH	1080	Park Lamp Relay Control
25	-	-	Not Used
