Body Control Module (BCM) C6

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

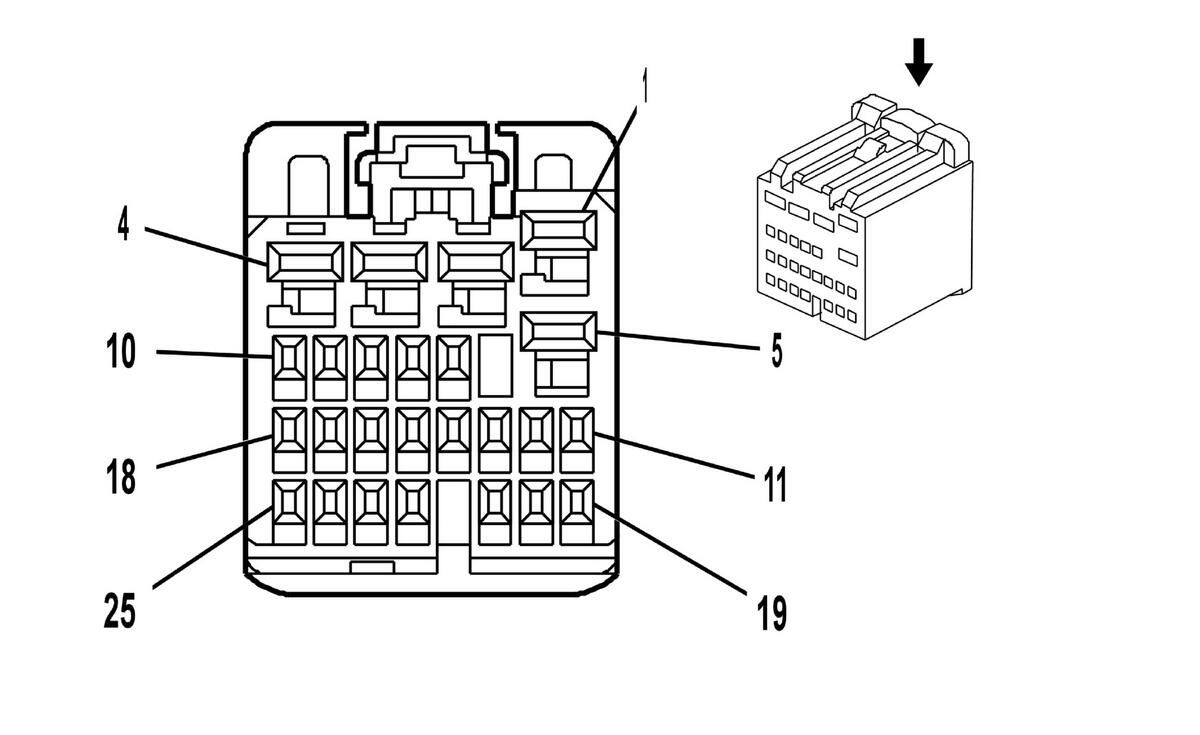

Fig 1: Body Control Module C6 Connector End Views

Courtesy of GENERAL MOTORS CORP.

Computer/Integrating Systems Connector End Views

Connector Part Information

OEM: 15482793
Service: See Catalog
Description: 25-Way F Receptacle 0.64 2.8

Terminal Part Information

Pins: 8, 9, 10, 12, 14, 15, 16, 18, 20, 22
Terminal/Tray: SNAC3-A021T-M0.64/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64A (L-BU)

Pins: 1, 2, 3
Terminal/Tray: SNAC-A061T-M2.8/20
Core/Insulation Crimp: Pins 1, 2 - E/A
Core/Insulation Crimp: Pins 3 - See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-4A (PU)

Body Control Module (BCM) C6

Pin	Wire Color	Circuit No.	Function
1	GY/BK	690	Courtesy Lamp Low Control
2	L-GN	24	Backup Lamp Supply Voltage
3	GY	8	Instrument Panel Lamp Supply Voltage
4-7	-	-	Not Used
8	TN/WH	746	Right Front Door Ajar Switch Signal
9	D-BU	245	Passenger Door Lock Switch Unlock [Control or Supply Voltage]
10	GY/BK	745	Left Front Door Ajar Switch Signal
11	-	-	Not Used
12	OG/BK	744	Rear Compartment Lid Ajar Switch Signal
13	-	-	Not Used
14	L-GN/BK	748	Right Rear Door Ajar Switch Signal
15	L-BU/BK	747	Left Rear Door Ajar Switch Signal
16	OG	5922	Passenger Door Open Switch Signal
17	-	-	Not Used
18	L-BU	244	Passenger Door Lock Switch Lock [Control or Supply Voltage]
19	-	-	Not Used
20	PU	1124	Door Lock Key Switch Unlock Signal
21	-	-	Not Used
22	OG/BK	233	Park Brake Switch Signal
23-25	-	-	Not Used
