Radio Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

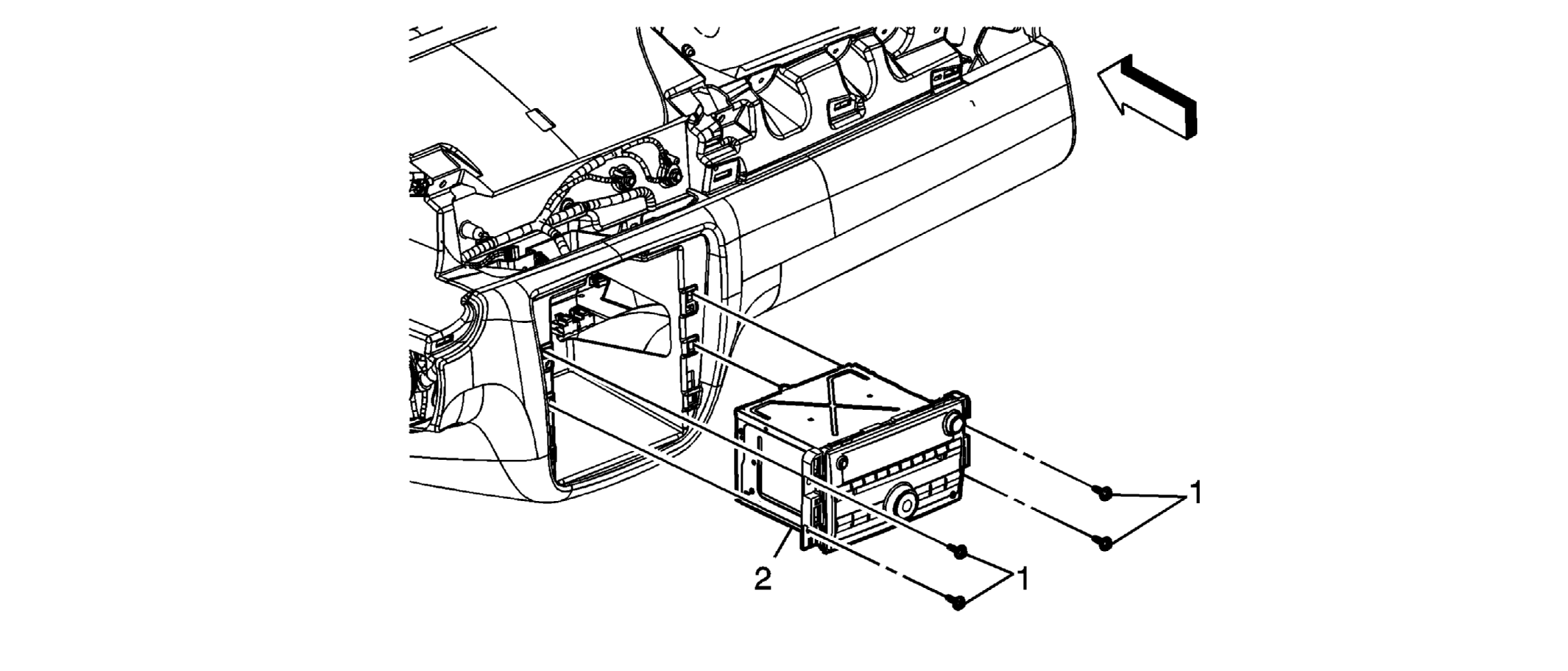

Fig 1: Replacing Radio

Courtesy of GENERAL MOTORS CORP.

Radio Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the Instrument panel accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Impala) or Trim Plate Replacement - Instrument Panel (I/P) Accessory (Monte Carlo) . Program the radio after replacement. Refer to Control Module References .
1	Bolt/Screw, Radio (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Radio, AM/FM Stereo

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the Instrument panel accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Impala) or Trim Plate Replacement - Instrument Panel (I/P) Accessory (Monte Carlo) .
Program the radio after replacement. Refer to Control Module References .

Bolt/Screw, Radio (Qty: 4)

Tighten: 2 N.m (18 lb in)

Radio, AM/FM Stereo
