Seat Belt Component Views

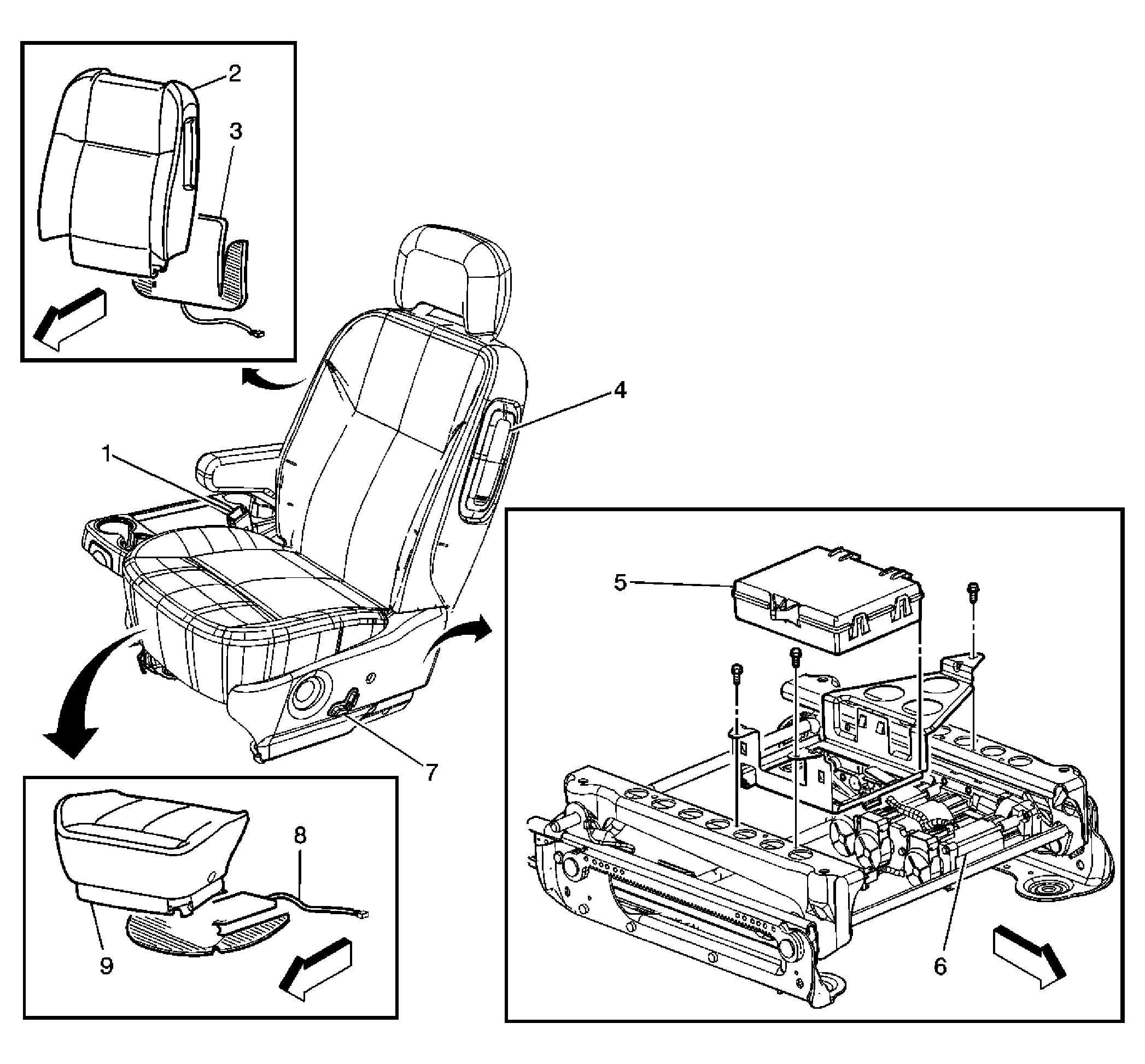

| Callout | Component Name |
|---|---|
| 1 | Seat Belt Switch - Left |
| 2 | Seat Back Cover |
| 3 | Heated Seat Element - Driver Back (KA1) |
| 4 | Inflatable Restraint Side Impact Module - Left (AJ7) |
| 5 | Memory Seat Module - Driver (AG0) |
| 6 | Seat Adjuster Motor Assembly - Driver (AG0 or AG1) |
| 7 | Seat Adjuster Switch - Driver (AG0 or AG1) (Typical) |
| 8 | Heated Seat Element - Driver Cushion (KA1) |
| 9 | Seat Cushion Cover |

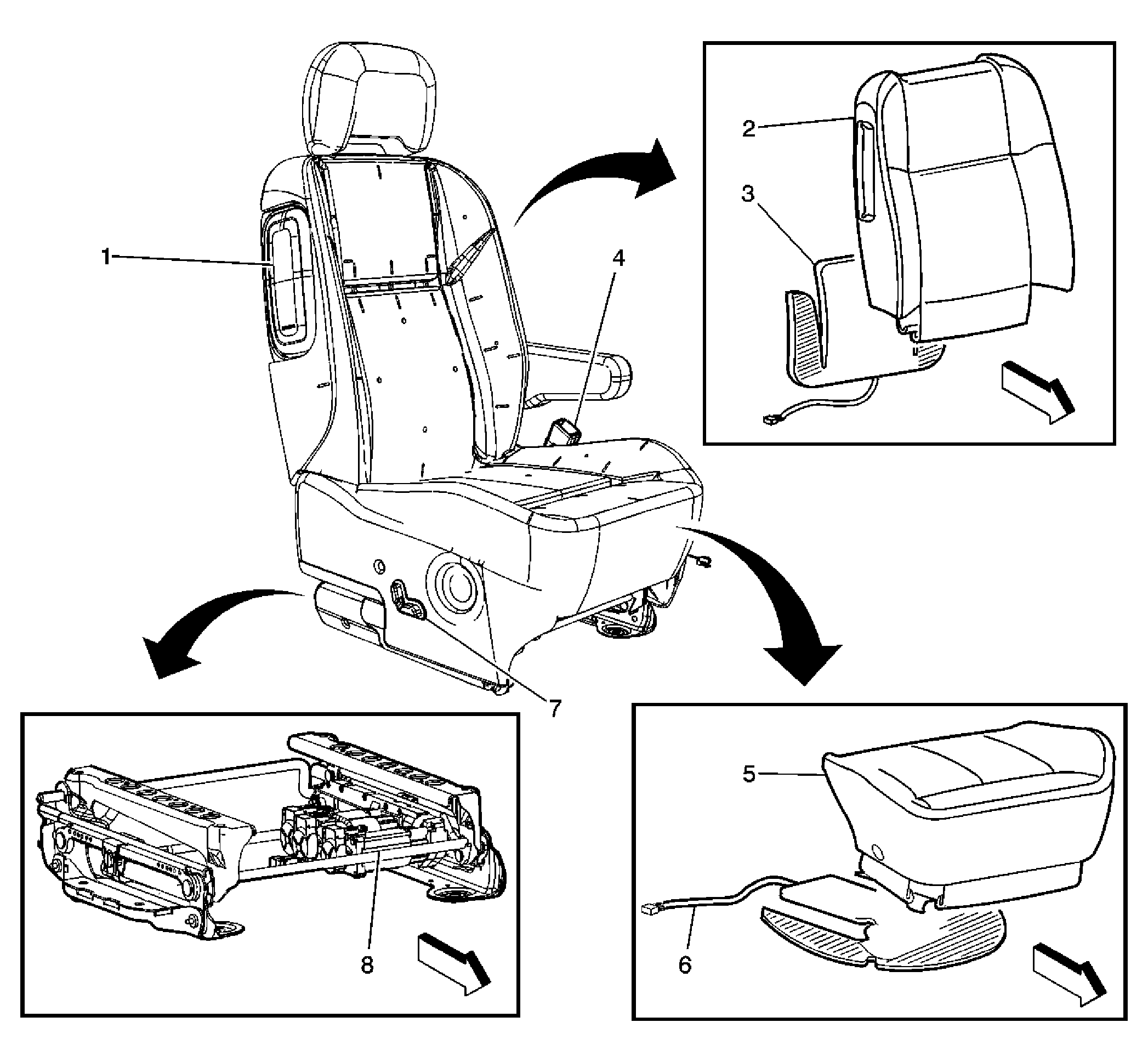

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Side Impact Module - Right (AJ7) |
| 2 | Seat Back Cover |
| 3 | Heated Seat Element - Passenger Back (KA1) |
| 4 | Seat Belt Switch - Right |
| 5 | Seat Cushion Cover |
| 6 | Heated Seat Element - Passenger Cushion (KA1) |
| 7 | Seat Adjuster Switch - Passenger (AG2 or AH8) |
| 8 | Seat Adjuster Motor Assembly - Passenger (AG2 or AH8) |
