Remote Function Connectors (Hatchback)

Hood Ajar Switch Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610392 2-Way F Series Sealed (WH)
Pin	Wire Color	Circuit No.	Function
1	BN/BK	109	Hood Ajar Switch Signal
2	OG	1440	Battery Positive Voltage

Lock Cylinder Switch Connector End View/Part Information/Terminal Identification - Rear Compartment

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610070 2-Way F 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function
1	D-BU	737	Rear Compartment Lid Ajar Switch Signal
2	BK	850	Ground

Remote Control Door Lock Receiver (RCDLR) Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 611336 26-Way F PCB Connector (WH)
Pin	Wire Color	Circuit No.	Function
1	D-GN/WH	261	Arm Alarm Signal
2	BK	650	Ground
3	-	-	Not Used
4	D-BU	49	Tamper Switch Signal (4-Door)
5	OG/BK	737	Rear Compartment Lid Ajar Switch Signal
6	-	-	Not Used
7	BN/BK	109	Hood Ajar Switch Signal
8	D-GN/WH	157	Courtesy Lamp Control
9	GY	195	Door Lock Control
10	GY/D-GN	355	Low Speed Cooling Fan Relay Control
11	YE/D-GN	356	Driver Door Lock Relay Unlock Control
12	D-BU	49	Tamper Switch Signal
13	D-BU	15	Right Turn Signal Lamps Supply Voltage
14	-	-	Not Used
15	PK	239	Ignition 1 Voltage
16	-	-	Not Used
17	BK/WH	2051	Serial Data
18	L-GN	80	Key In Ignition Switch Signal
19	YE	749	Security Indicator Control
20	D-BU	49	Tamper Switch Signal
21-24	-	-	Not Used
25	OG	1340	Battery Positive Voltage
26	L-BU	14	Left Turn Signal Lamps Supply Voltage

Theft Deterrent Alarm Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KUM PB 625-02027 2-Way F NMWP 04F-B Assembly (BK)
Pin	Wire Color	Circuit No.	Function
1	D-GN/WH	261	Arm Alarm Signal
2	BN	641	Ignition 3 Voltage

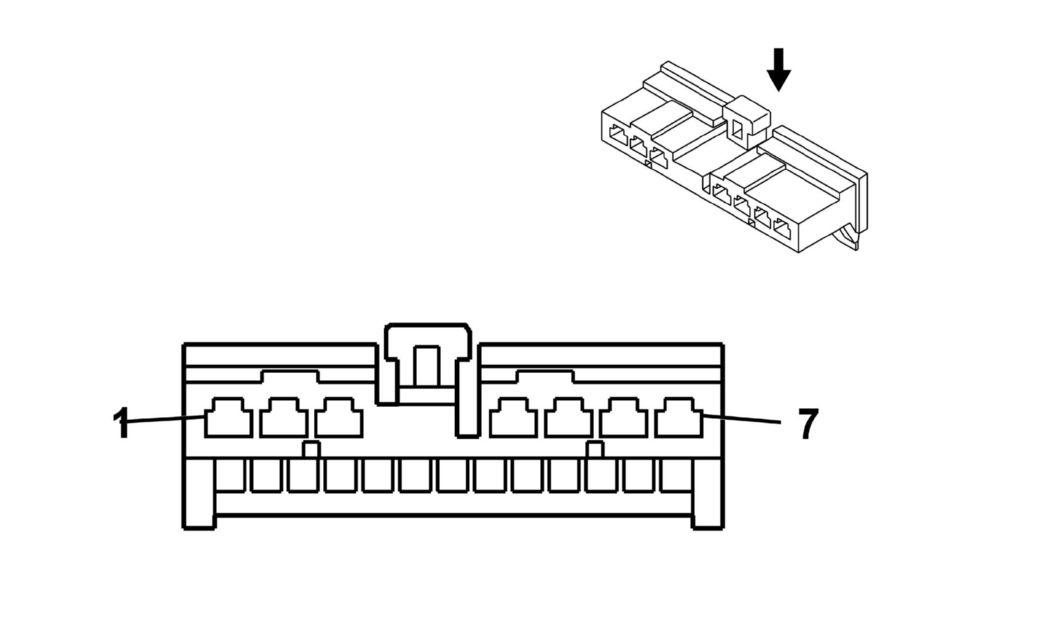

Theft Deterrent Control Module Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		SD 35508-0700 7-Way Connector F (WH)
Pin	Wire Color	Circuit No.	Function
1	PK	239	Ignition 1 Voltage
2	OG	240	Battery Positive Voltage
3	-	-	Not Used
4	BK	450	Ground
5	D-BU/WH	1800	Battery Positive Voltage
6	BK/WH	2051	Serial Data
7	YE	749	Security Indicator Control
