Remote Function Connectors (Notchback)

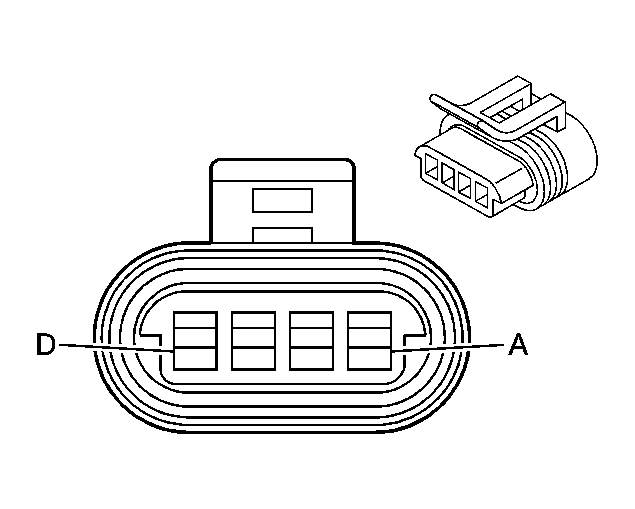

Door Handle Switch Connector End View/Part Information/Terminal Identification - Left

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK 32421 4-Way M (GY)
Pin	Wire Color	Circuit No.	Function
A	D-BU/RD	-	Door Latch Switch Signal
B	-	-	Not Used
C	BK	-	Ground
D	-	-	Not Used

Door Handle Switch Connector End View/Part Information/Terminal Identification - Right

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK 32421 4-Way M (GY)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	BK	-	Ground
C	-	-	Not Used
D	D-BU/RD	-	Door Latch Switch Signal

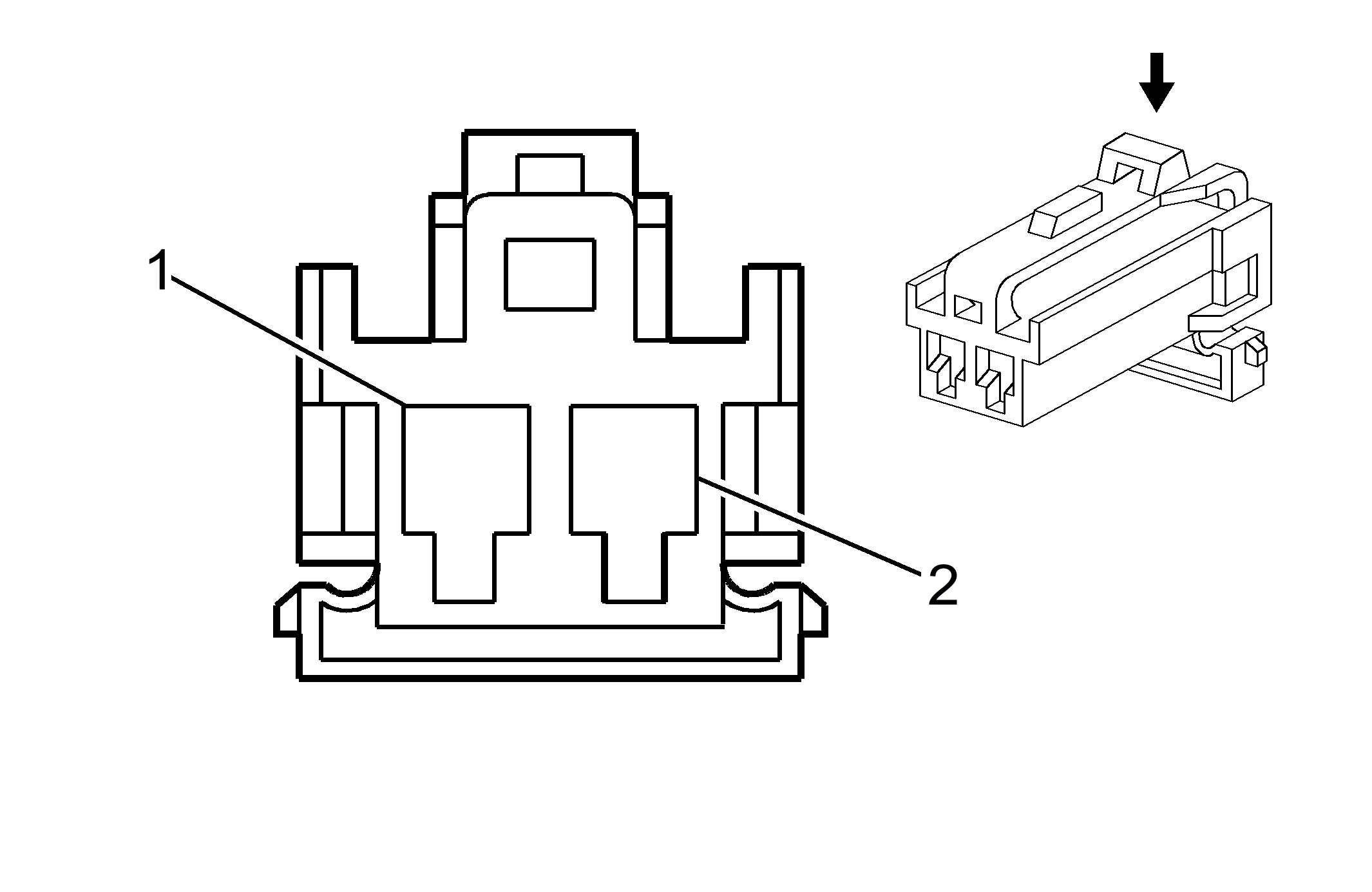

Hood Ajar Switch Connector End View/Part Information/Terminal Identification Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610392 2-Way F Series, Sealed (WH)
Pin	Wire Color	Circuit No.	Function
1	PK/D-BU	-	Hood Ajar Switch Signal
2	RD/WH	-	Battery Positive Voltage

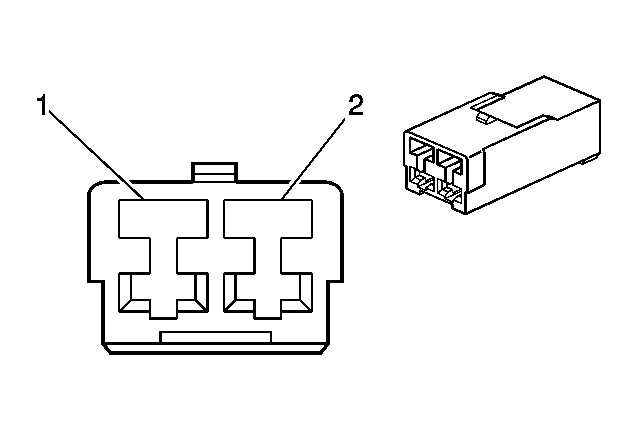

Rear Compartment Lid Tamper Switch Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610070 2-Way F 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function
1	PU	-	Rear Compartment Lid Switch Signal
2	BK	-	Ground

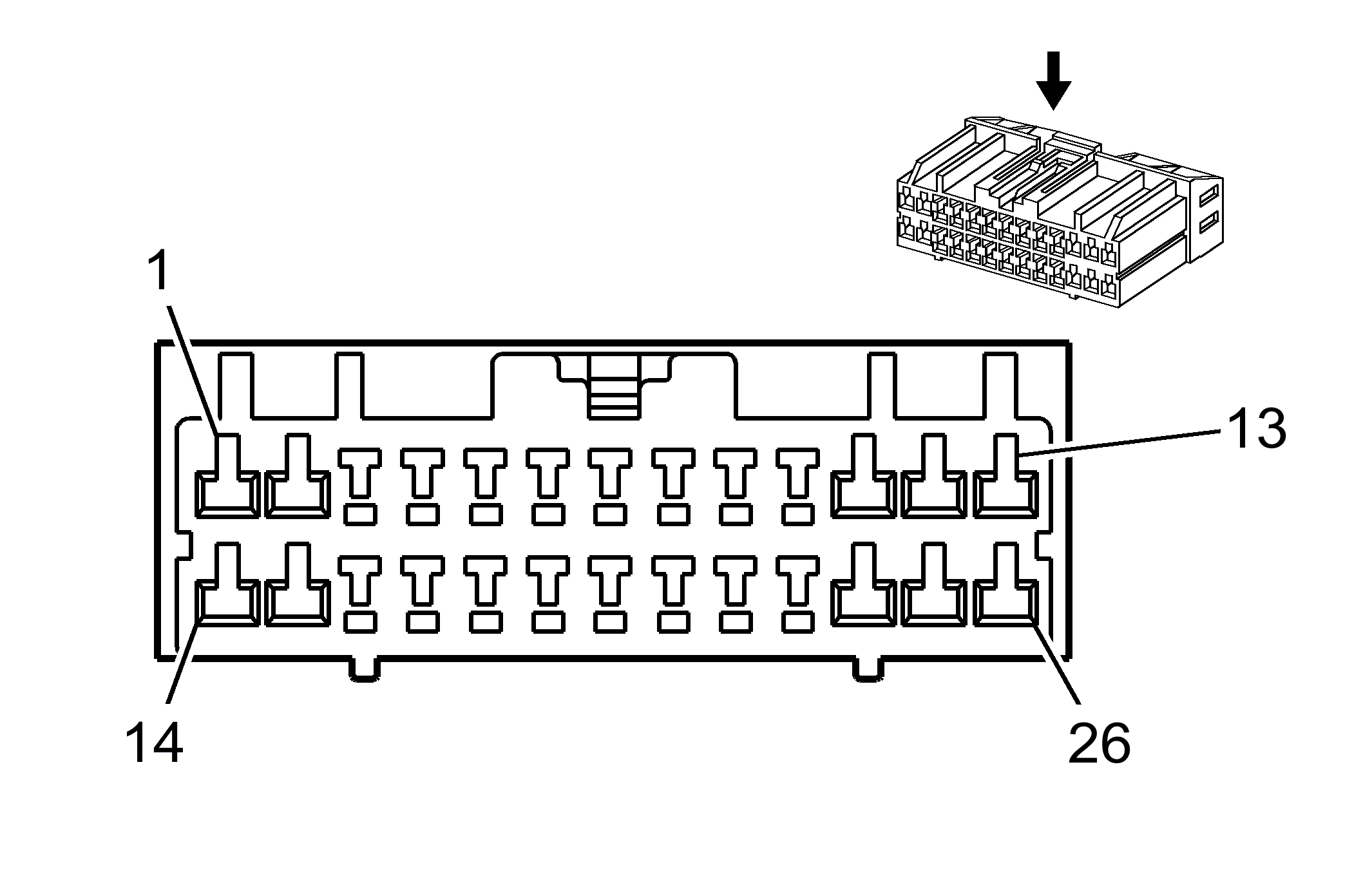

Remote Control Door Lock Receiver (RCDLR) Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 611336 26-Way F PCB Connector (WH)
Pin	Wire Color	Circuit No.	Function
1	YE	-	Arm Alarm Signal
2	BK	-	Ground
3	-	-	Not Used
4	PU	-	Rear Compartment Lid Switch Signal
5	OG/BK	-	Rear Compartment Lid Ajar Switch Signal
6	-	-	Not Used
7	PK/D-BU	-	Hood Ajar Switch Signal
8	WH	-	Door Ajar Signal
9	L-BU	-	Door Lock Control
10	GY/D-GN	-	Driver Door Lock Relay Lock Control
11	YE	-	Driver Door Lock Relay Unlock Control
12	PU	-	Door Latch Switch Signal
13	D-BU	-	Right Turn Signal Lamps Supply Voltage
14	BN	-	Rear Compartment Lid Switch Signal
15	PK	-	Ignition 1 Voltage
16	-	-	Not Used
17	BK/WH	-	Serial Data
18	L-GN	-	Key In Ignition Switch Signal
19	YE	-	Security Indicator Control
20	PU	-	Door Latch Switch Signal
21-24	-	-	Not Used
25	RD/WH	-	Battery Positive Voltage
26	L-BU	-	Left Turn Signal Lamps Supply Voltage

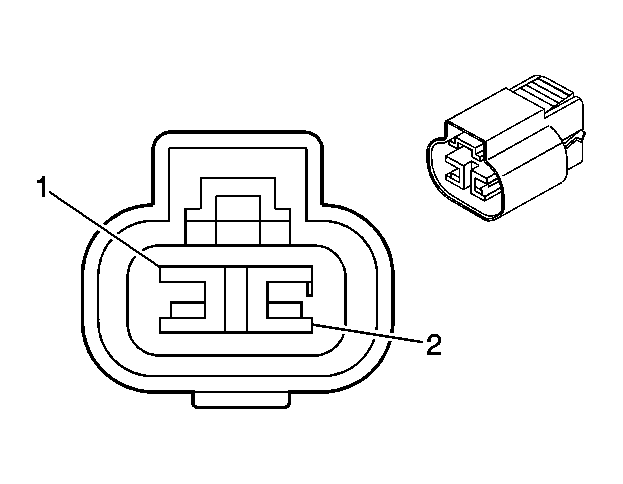

Theft Deterrent Alarm Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KUM PB 625-02027 2-Way F NMWP 04F-B Assembly (BK)
Pin	Wire Color	Circuit No.	Function
1	YE	-	Arm Alarm Signal
2	RD/WH	-	Battery Positive Voltage

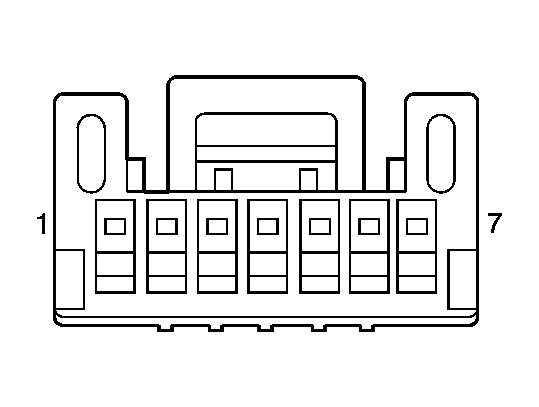

Theft Deterrent Control Module Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		SD35508-07D0 7-Way F (WH)
Pin	Wire Color	Circuit No.	Function
1	PK	-	Ignition 1 Voltage
2	RD/WH	-	Battery Positive Voltage
3	-	-	Not Used
4	BK	-	Ground
5	D-BU/WH	-	Serial Data
6	BN/WH	-	Serial Data
7	YE	-	Security Indicator Control
