Antilock Brake System Component Views (Notchback)

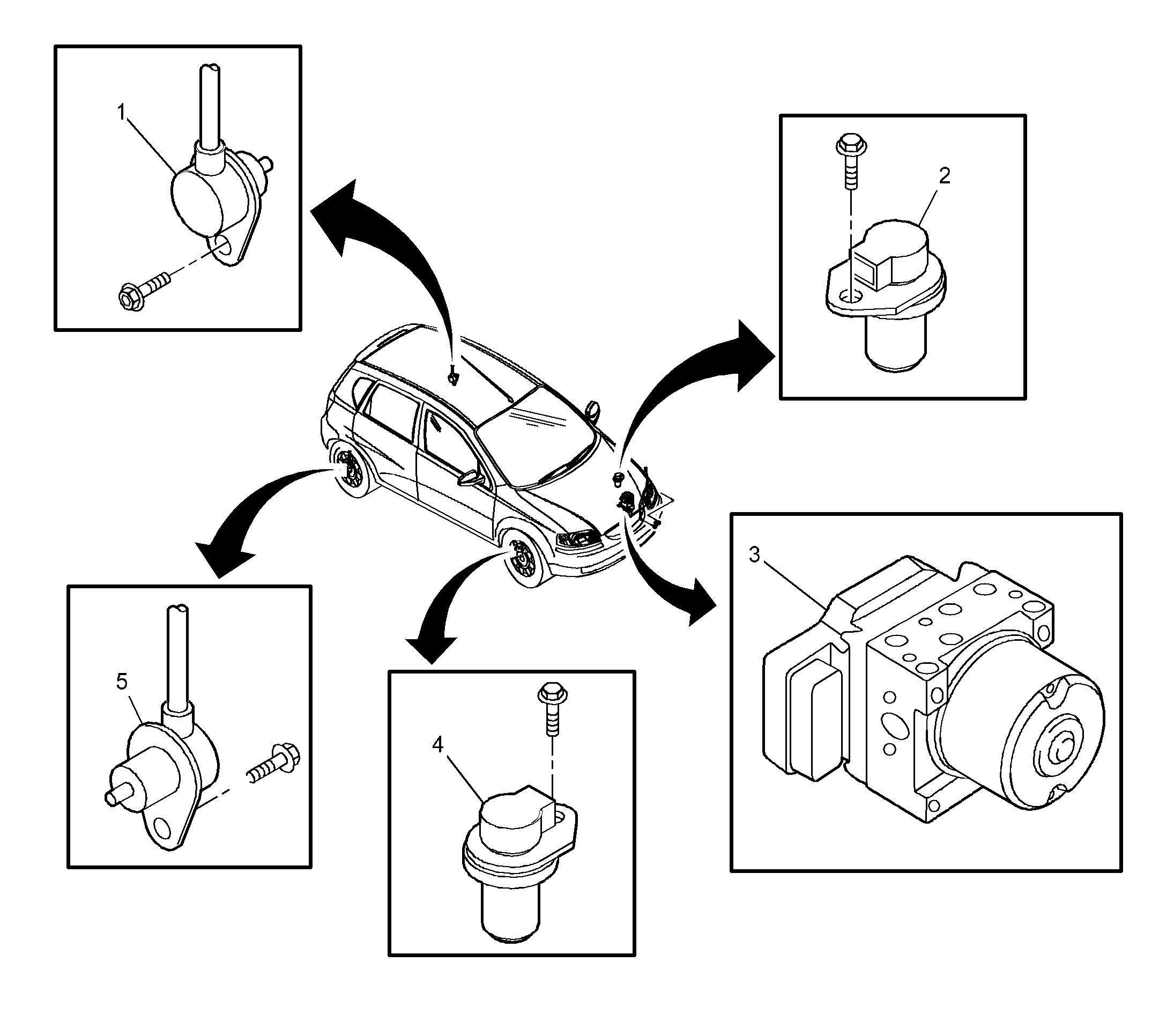

Fig 1: ABS Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wheel Speed Sensor - Left
2	Front Wheel Speed Sensor - Left
3	Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve (BPMV)
4	Front Wheel Speed Sensor - Right
5	Rear Wheel Speed Sensor - Right
