Installation Procedure

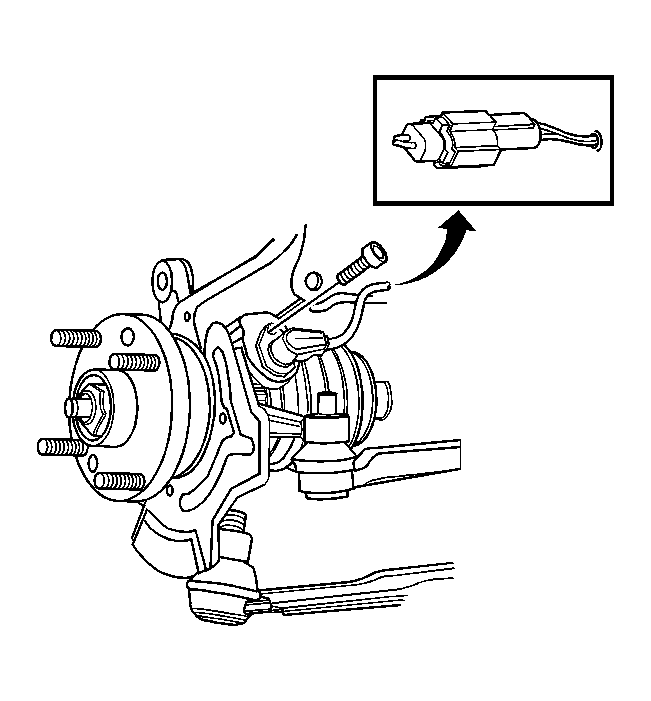

Fig 1: View of Front Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the bolt and front wheel speed sensor to the steering knuckle.
Tighten: Tighten the bolt to 9 N.m (80 lb in).
Connect the electrical connector to the front wheel speed sensor.
Lower the vehicle.
Connect the negative battery cable.
