Installation Procedure

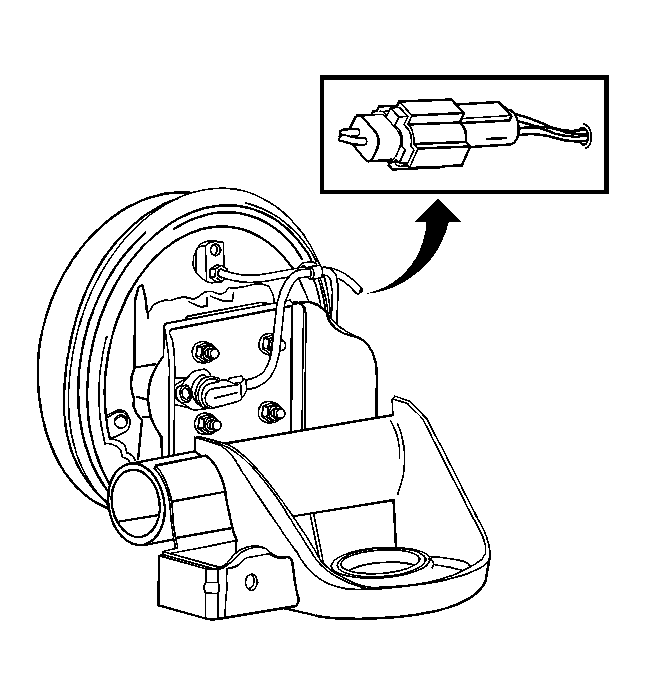

    Fig 1: Installing Rear Wheel Speed Sensor
    GM1245750Courtesy of GENERAL MOTORS CORP.
  1. Install the rear wheel speed sensor, and install the cable grommets.
    2. NOTE: Refer to Fastener Notice .
  2. Install the rear wheel sensor mounting bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  3. Connect the electrical connector for the rear wheel speed sensor to the rear axle.
  4. Lower the vehicle.
  5. Connect the negative battery cable.
