Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 2: Automatic Transmission Components
Courtesy of GENERAL MOTORS CORP.

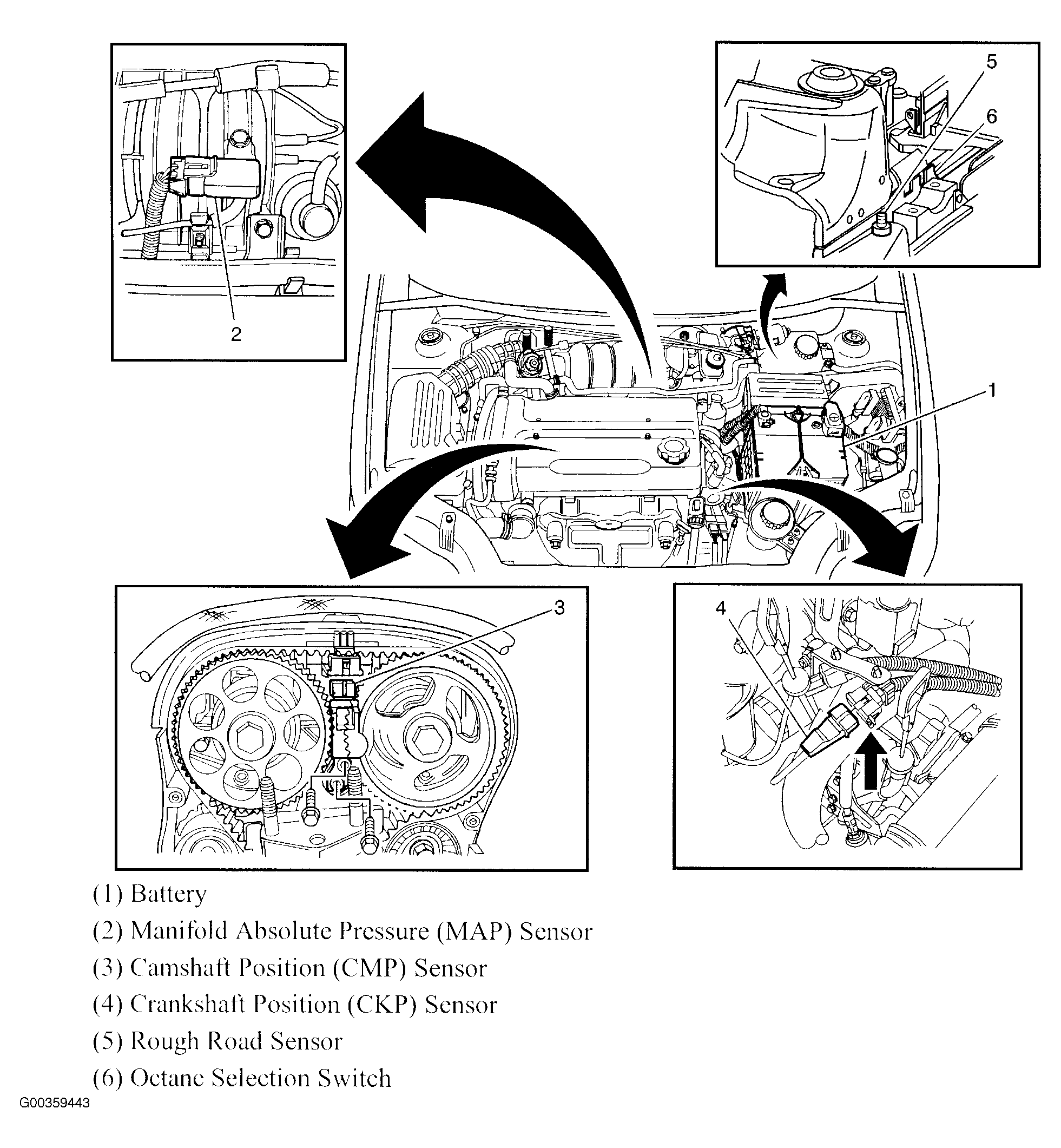

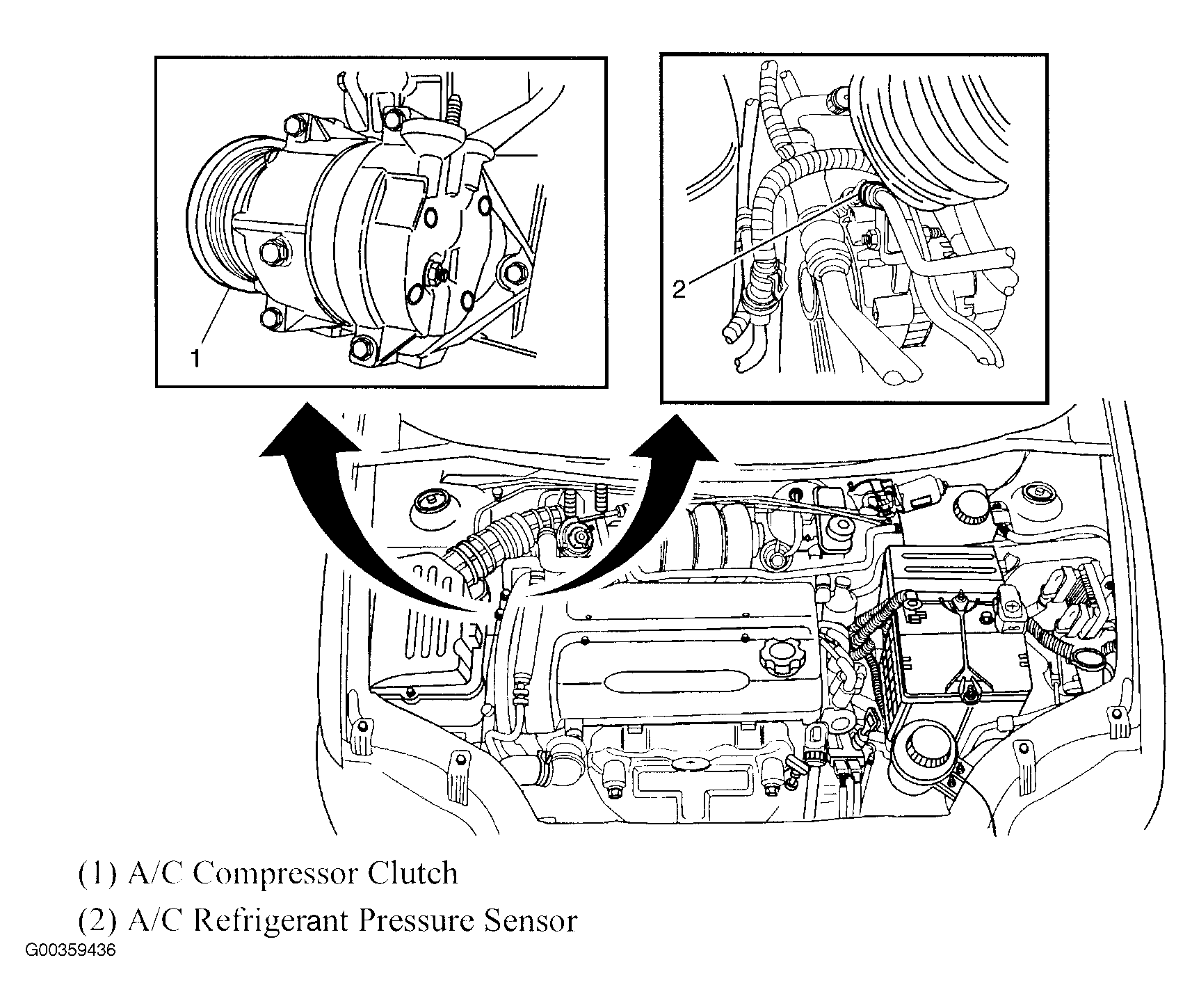

Fig 3: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

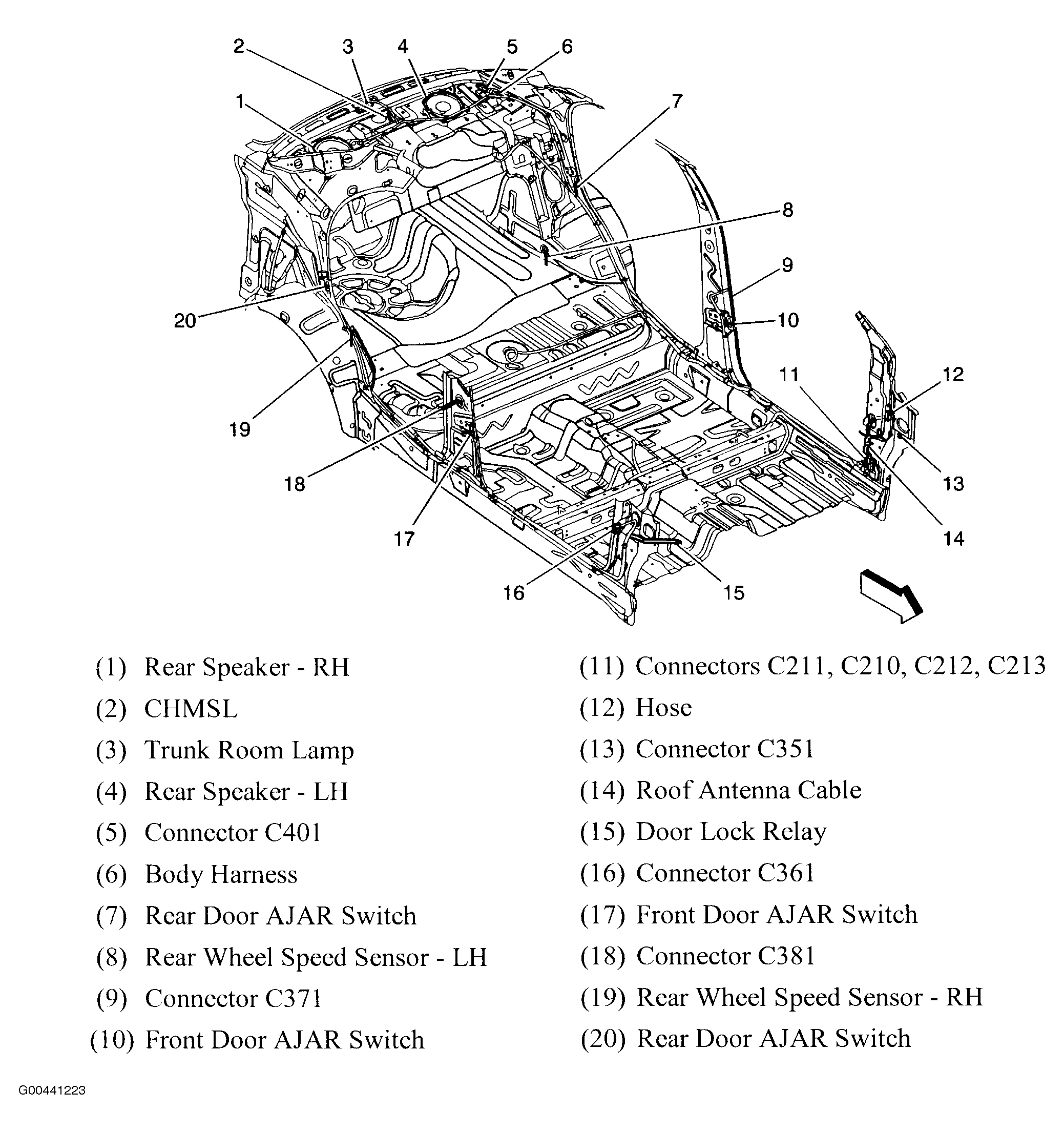

Fig 4: Floor View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

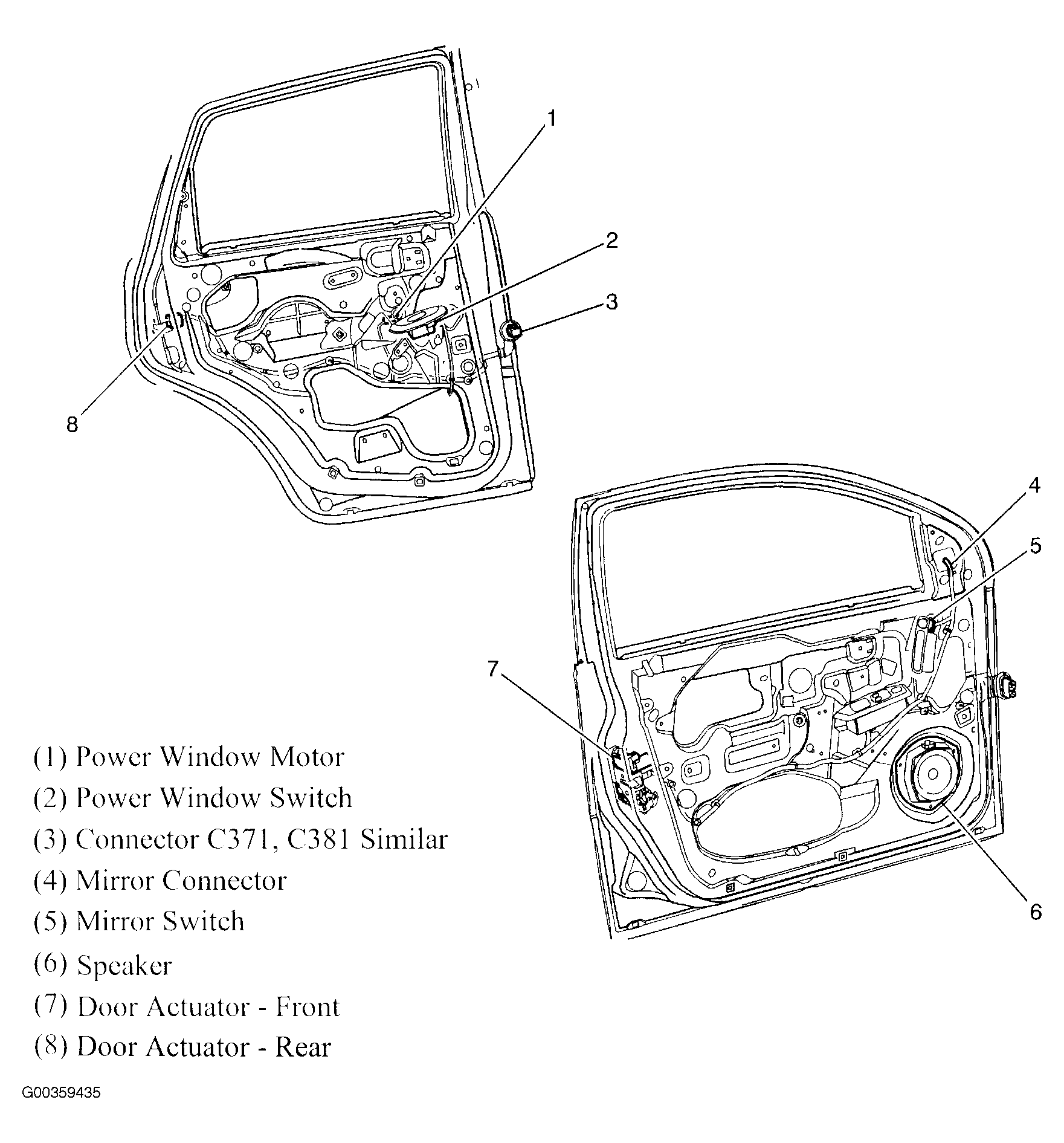

Fig 6: Doors
Courtesy of GENERAL MOTORS CORP.
Fig 7: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

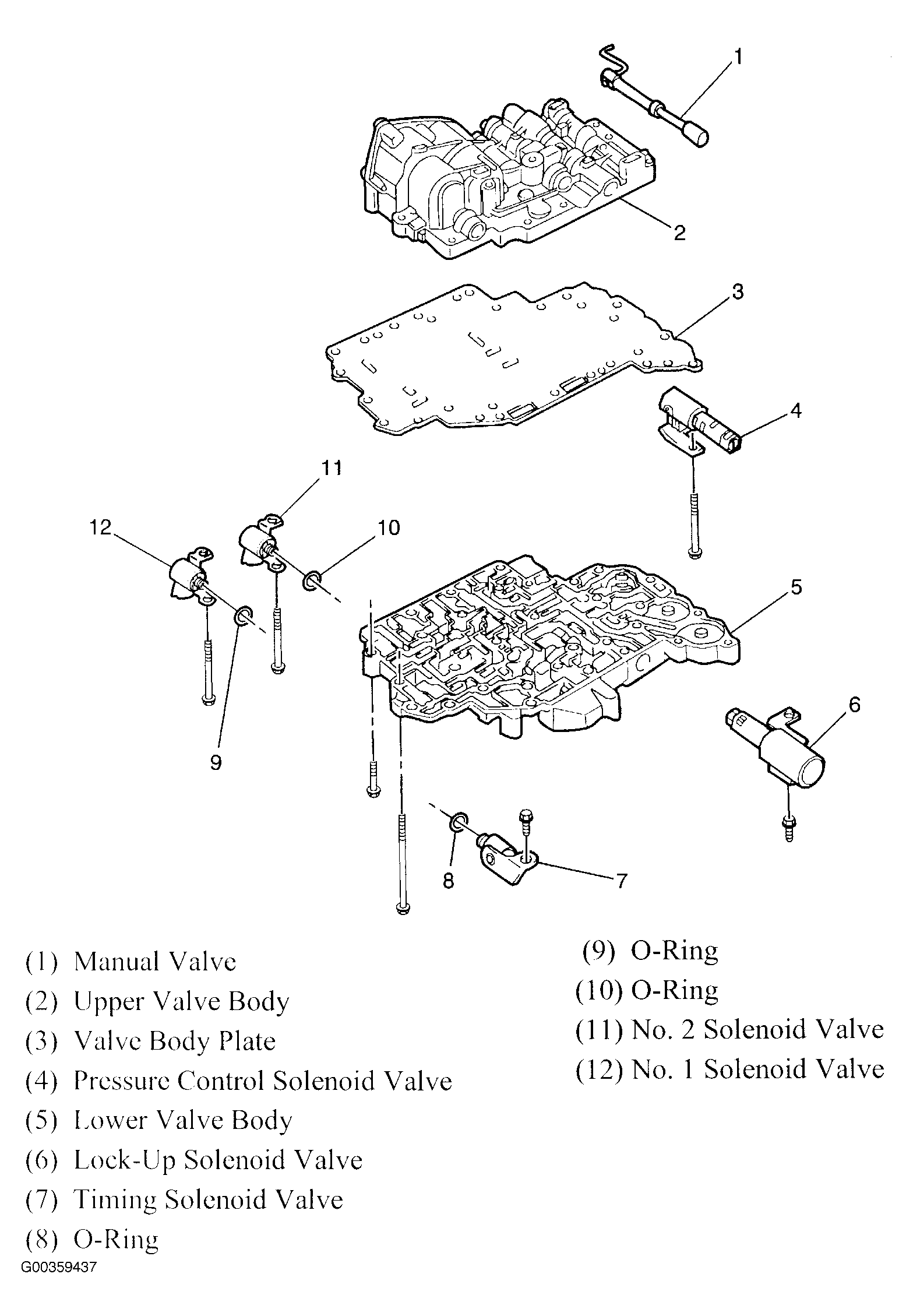

Fig 8: Transmission Valve Body
Courtesy of GENERAL MOTORS CORP.
Fig 9: Dash
Courtesy of GENERAL MOTORS CORP.

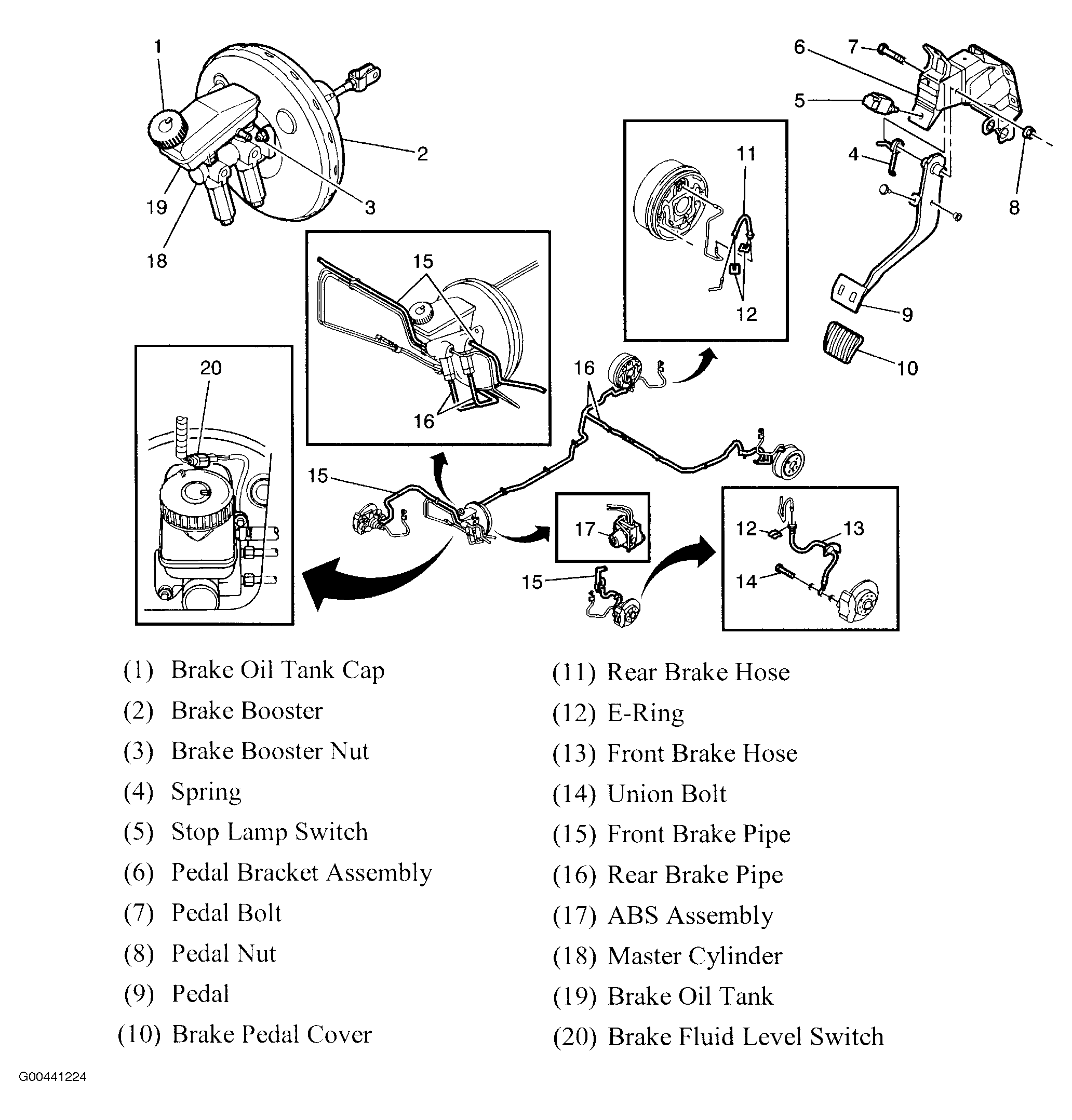

Fig 10: Hydraulic Brake System
Courtesy of GENERAL MOTORS CORP.
Fig 11: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

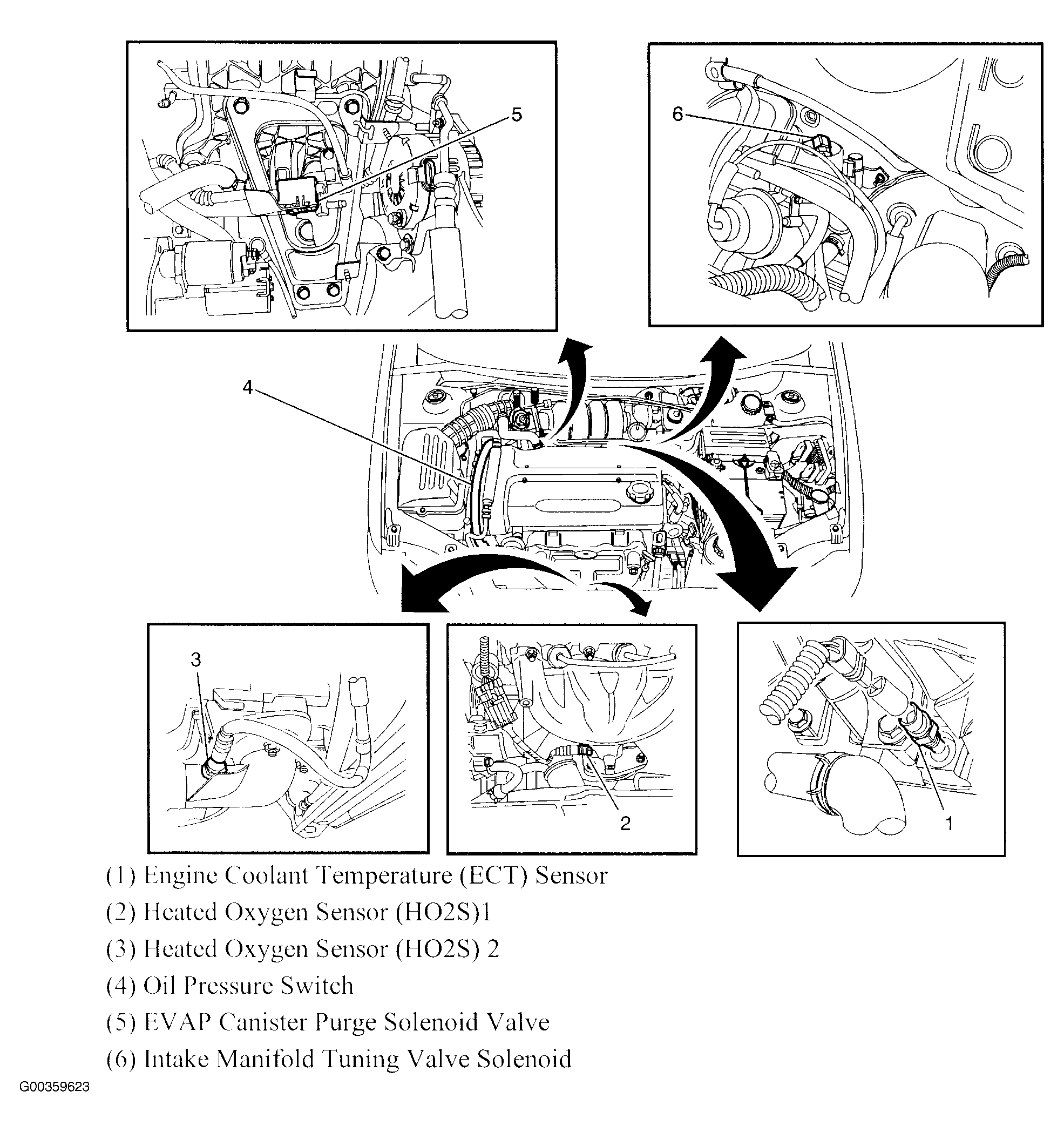

Fig 12: Engine Controls
Courtesy of GENERAL MOTORS CORP.

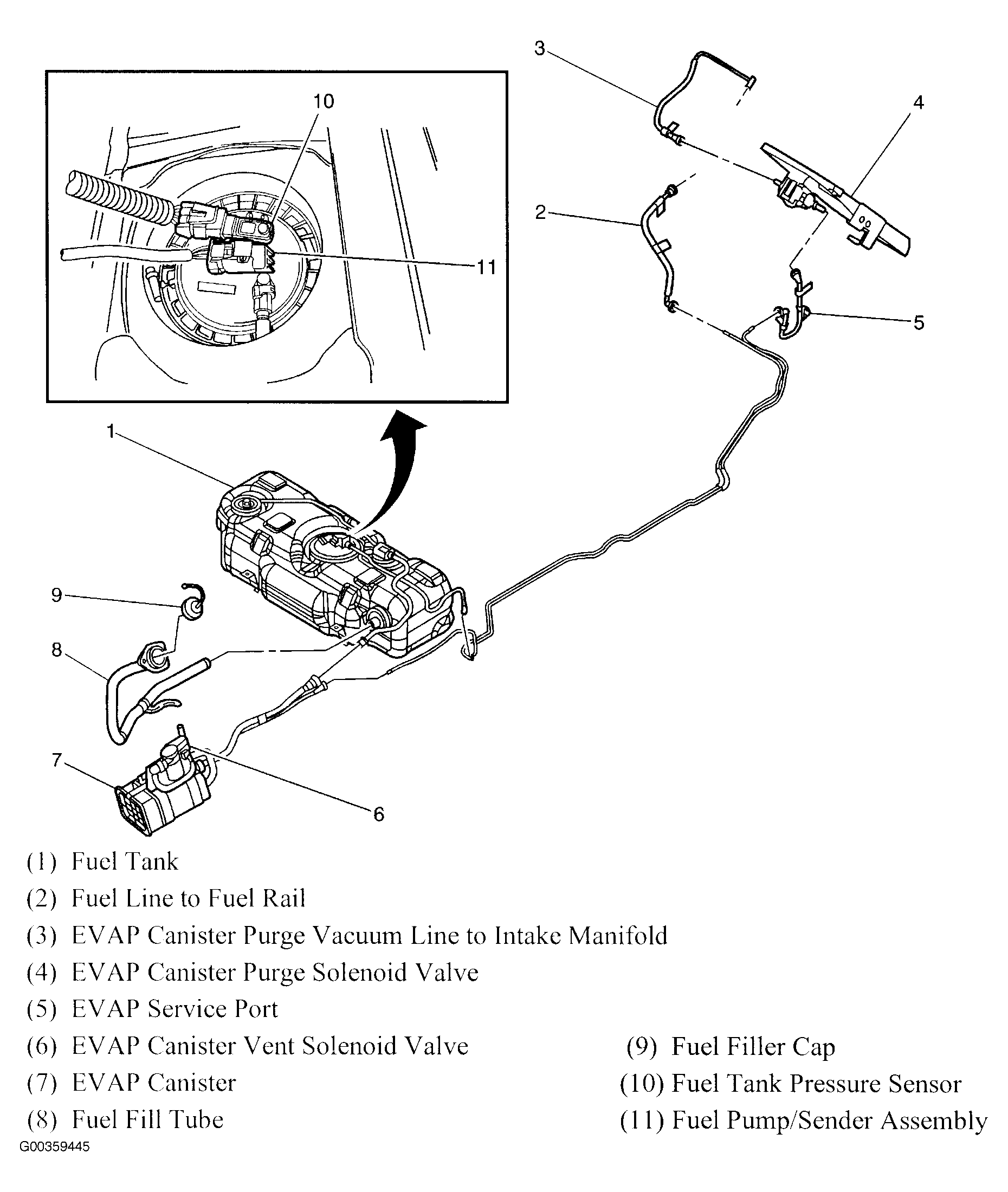

Fig 13: Fuel Vapor Recovery System
Courtesy of GENERAL MOTORS CORP.

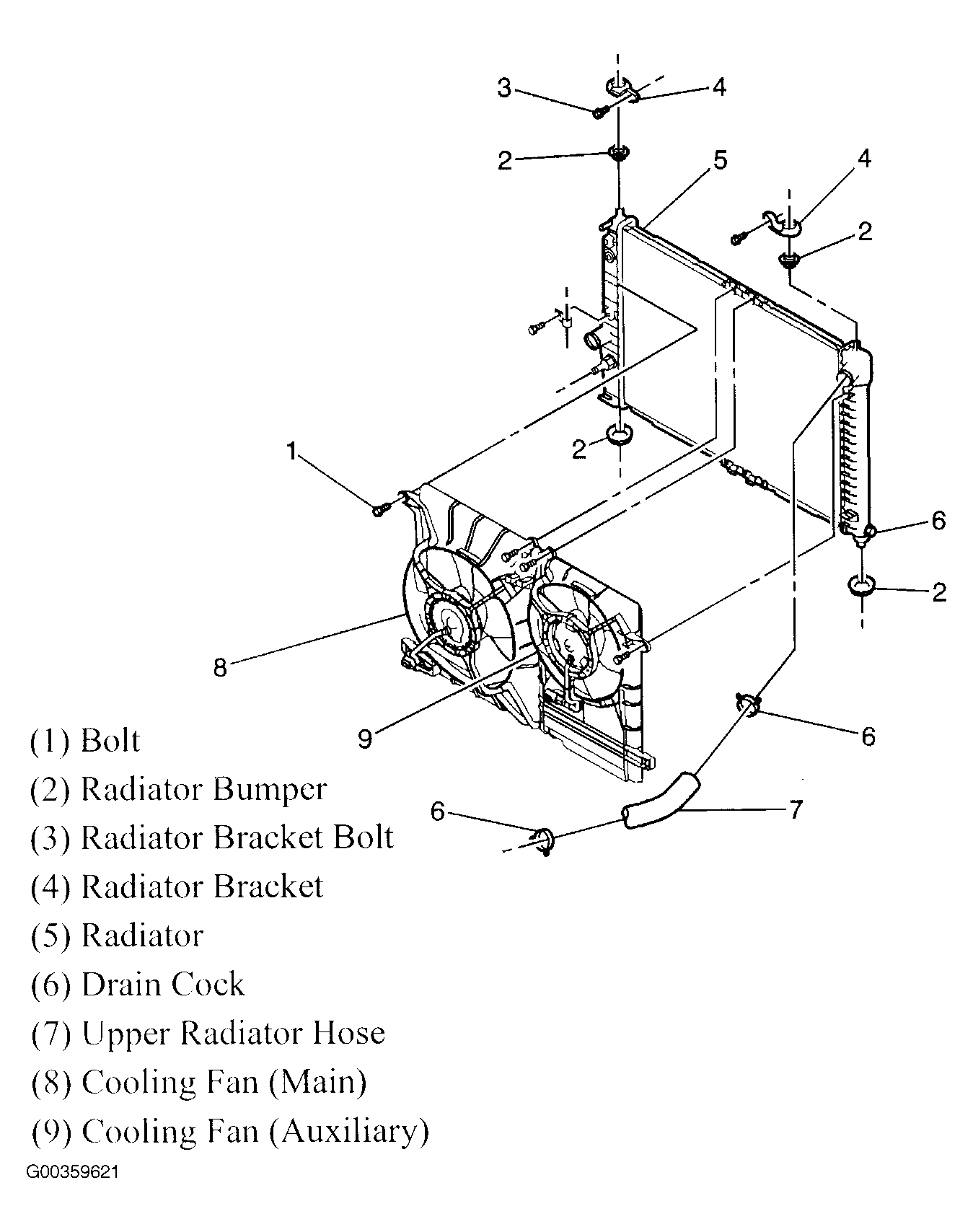

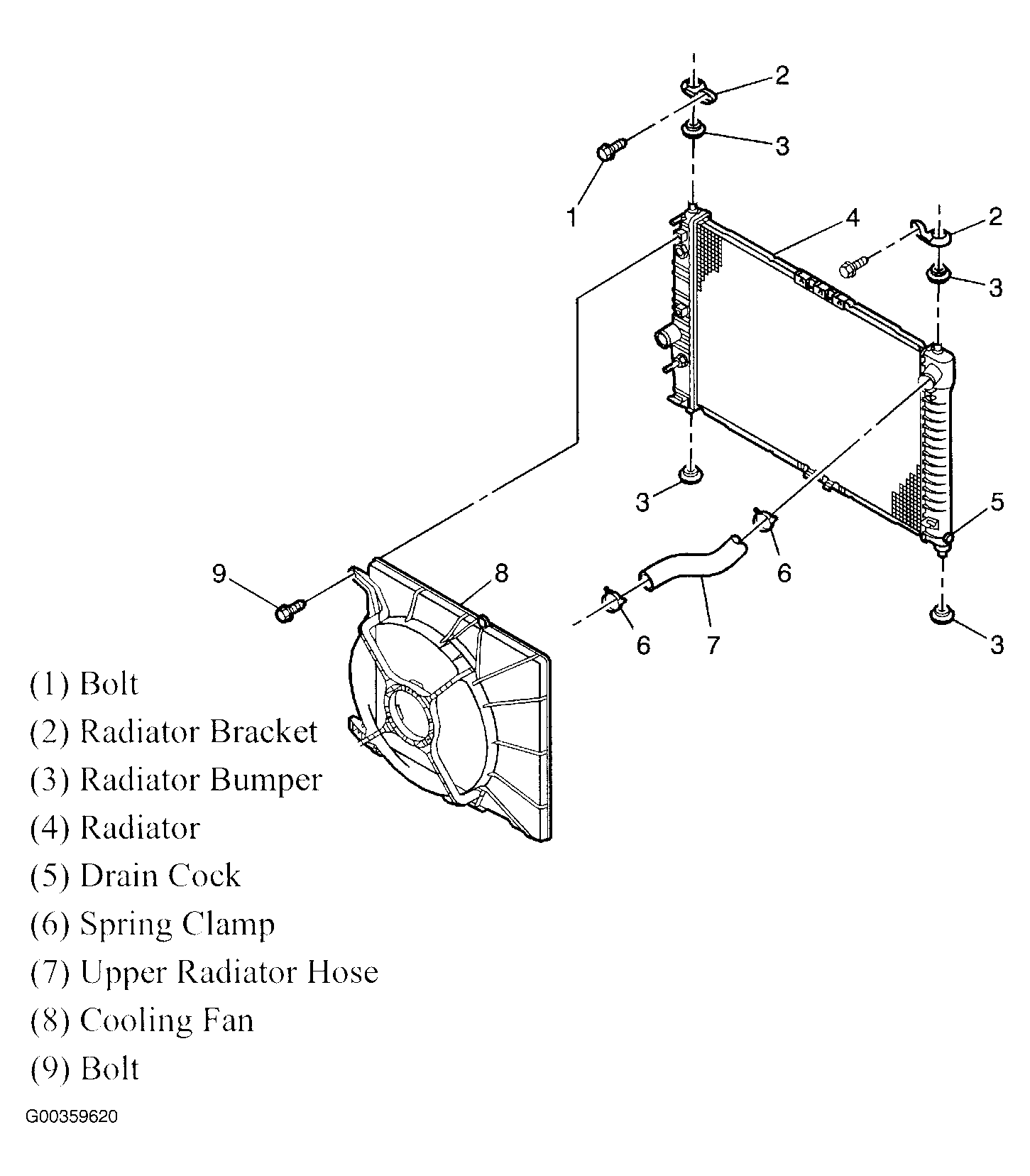

Fig 14: Behind Radiator (Single)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Behind Radiator (Dual)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 17: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 18: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

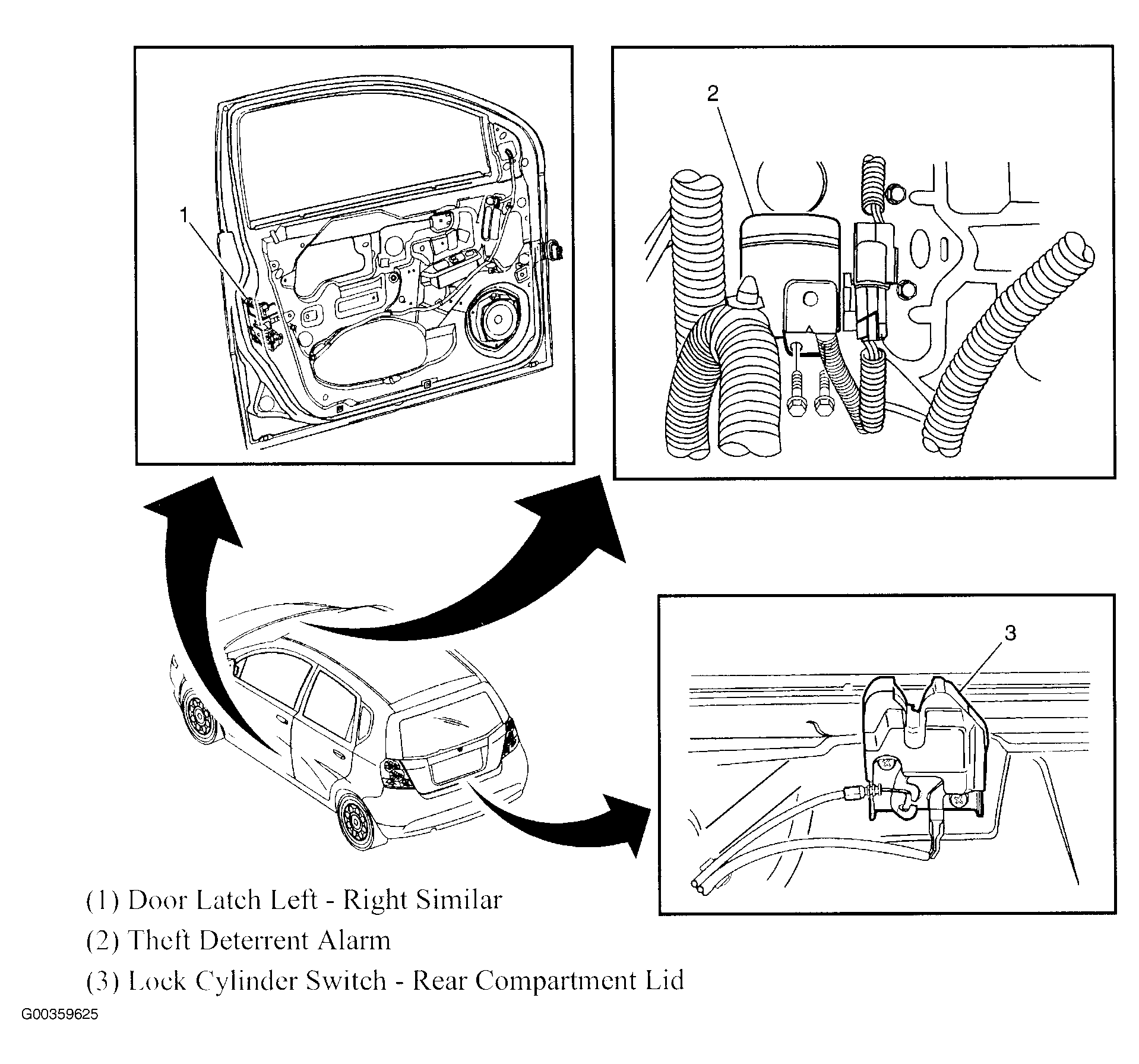

Fig 19: Vehicle Theft Deterrent System
Courtesy of GENERAL MOTORS CORP.

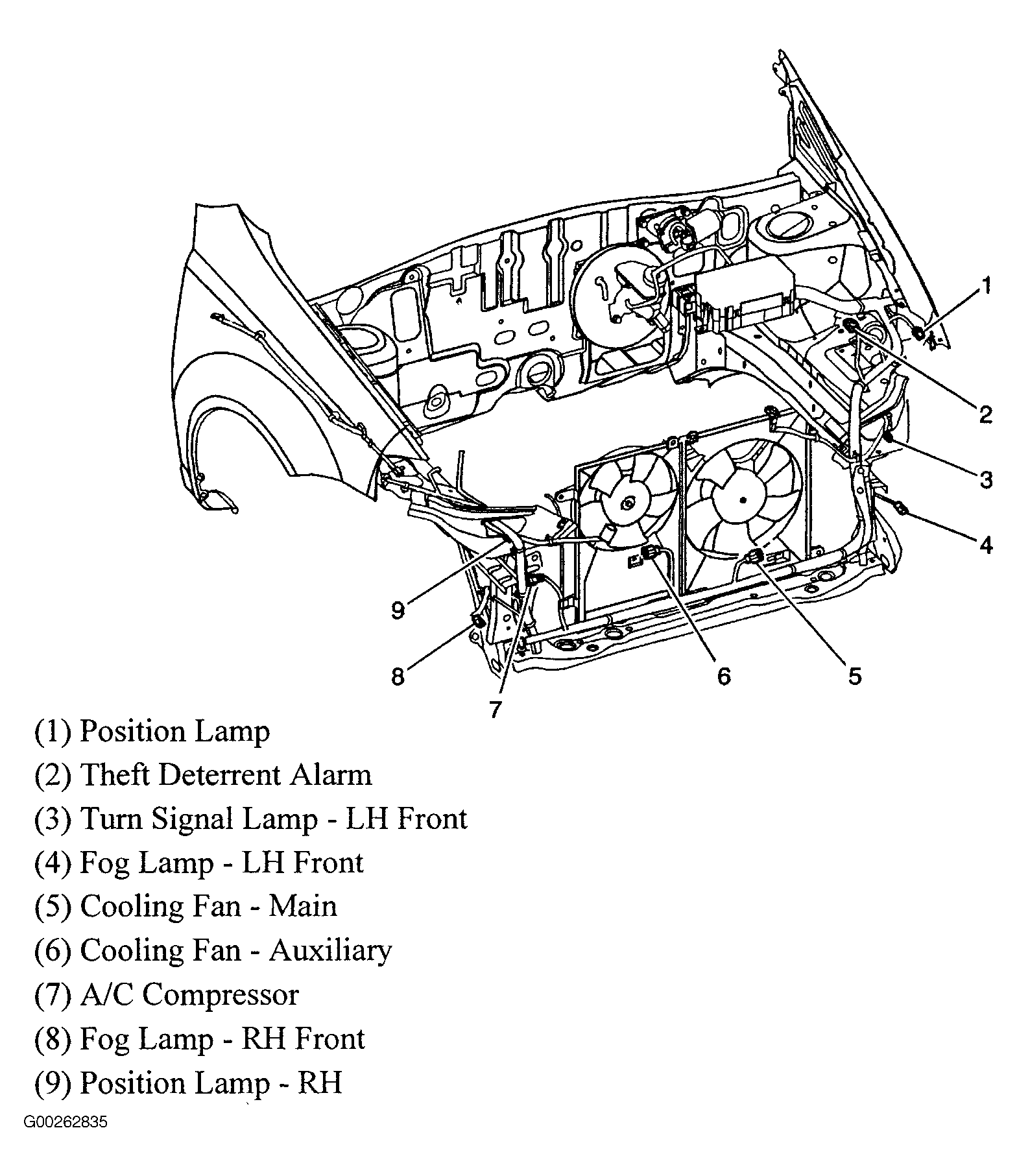

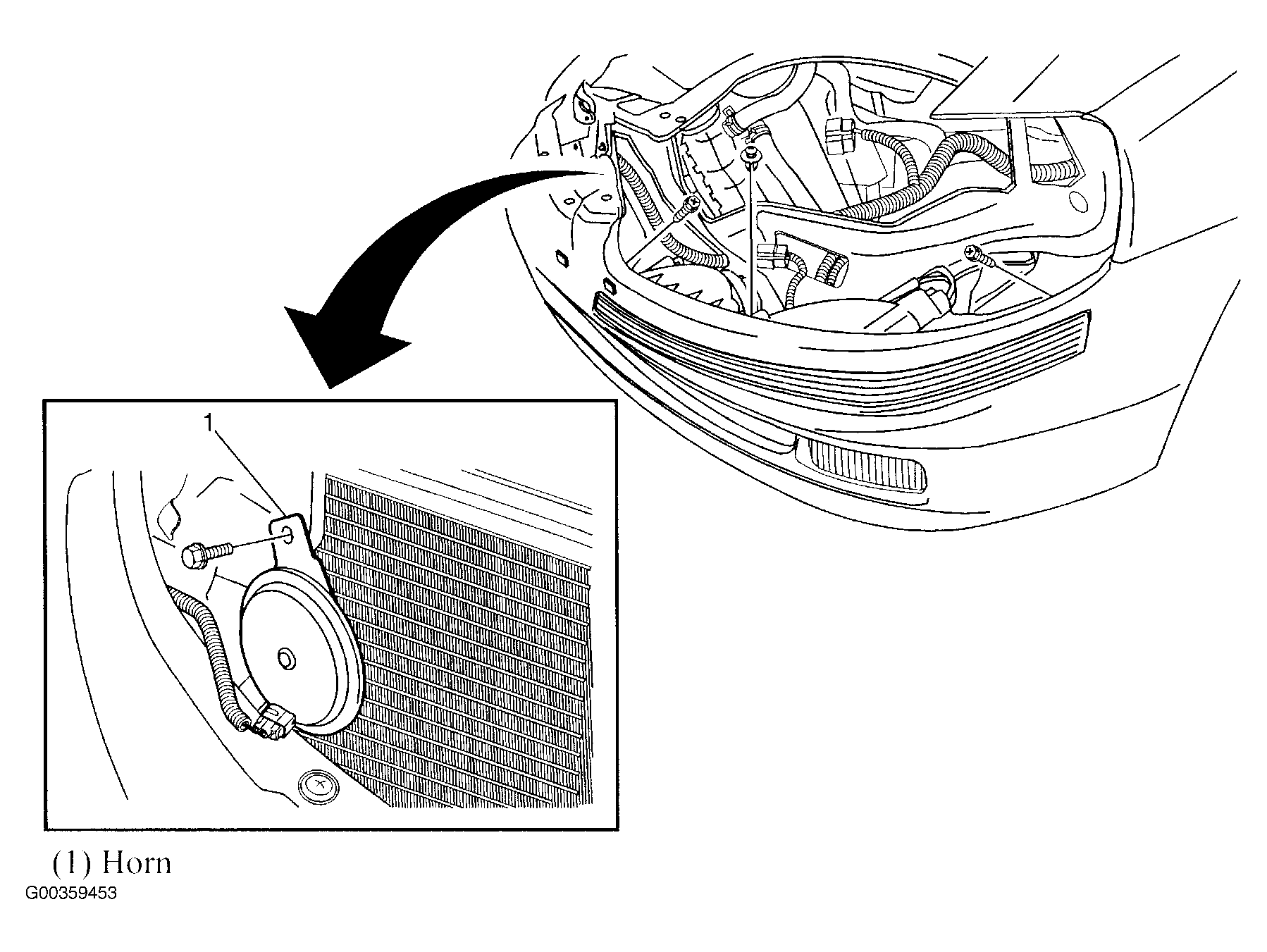

Fig 20: Behind Front Grille
Courtesy of GENERAL MOTORS CORP.

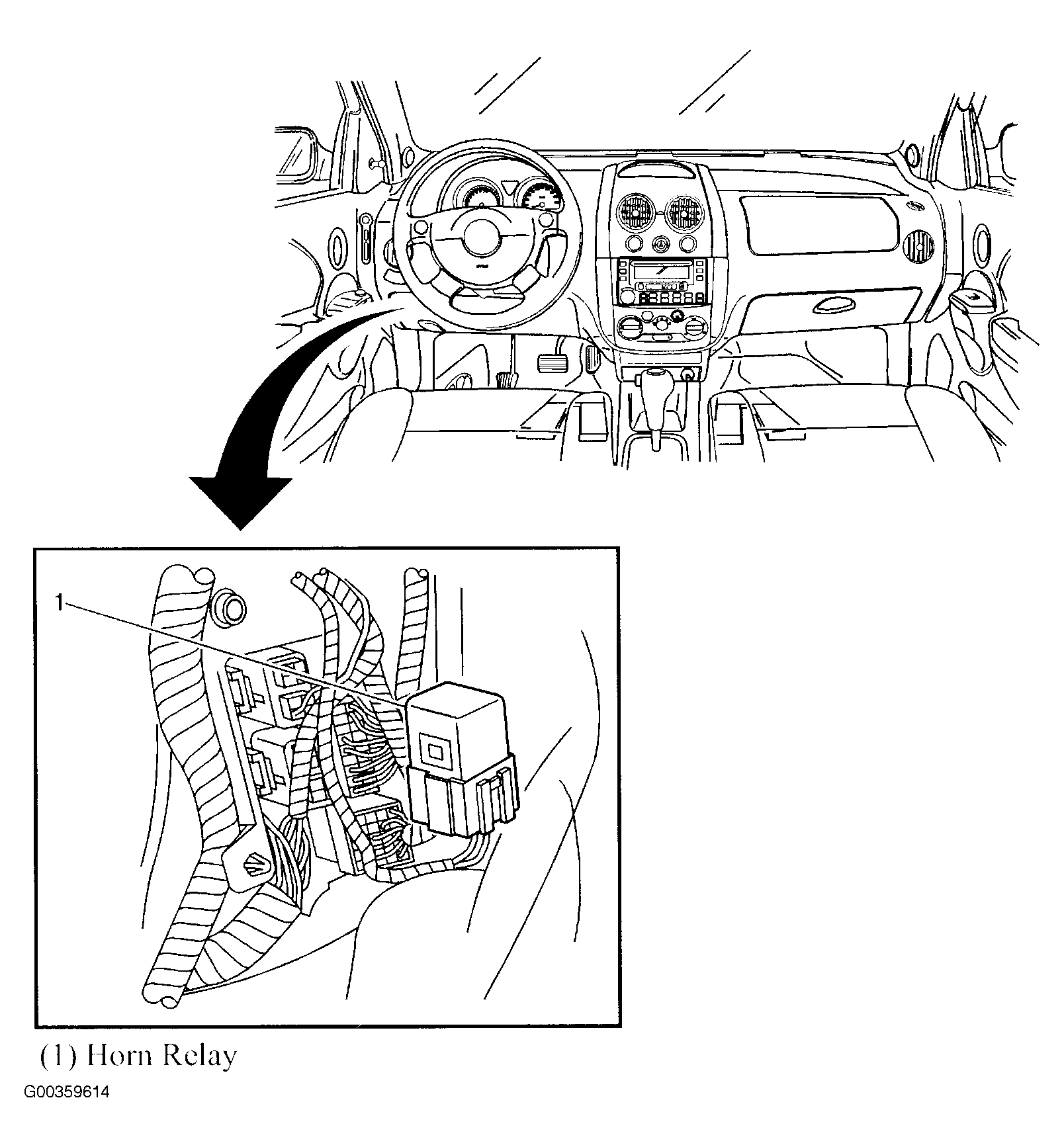

Fig 21: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Dash Panel
Courtesy of GENERAL MOTORS CORP.
Fig 23: Vehicle Theft Deterrent System
Courtesy of GENERAL MOTORS CORP.

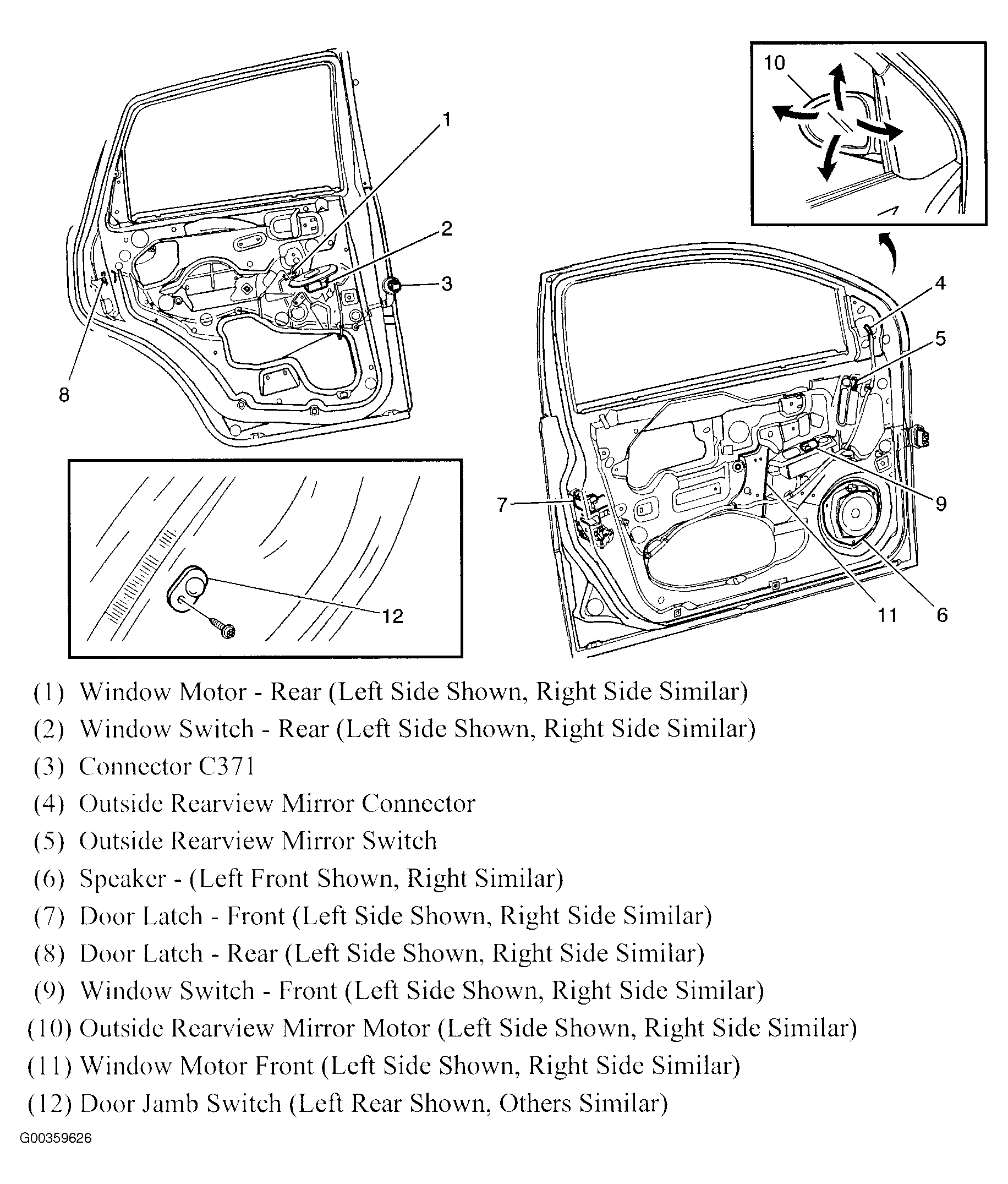

Fig 24: Doors
Courtesy of GENERAL MOTORS CORP.

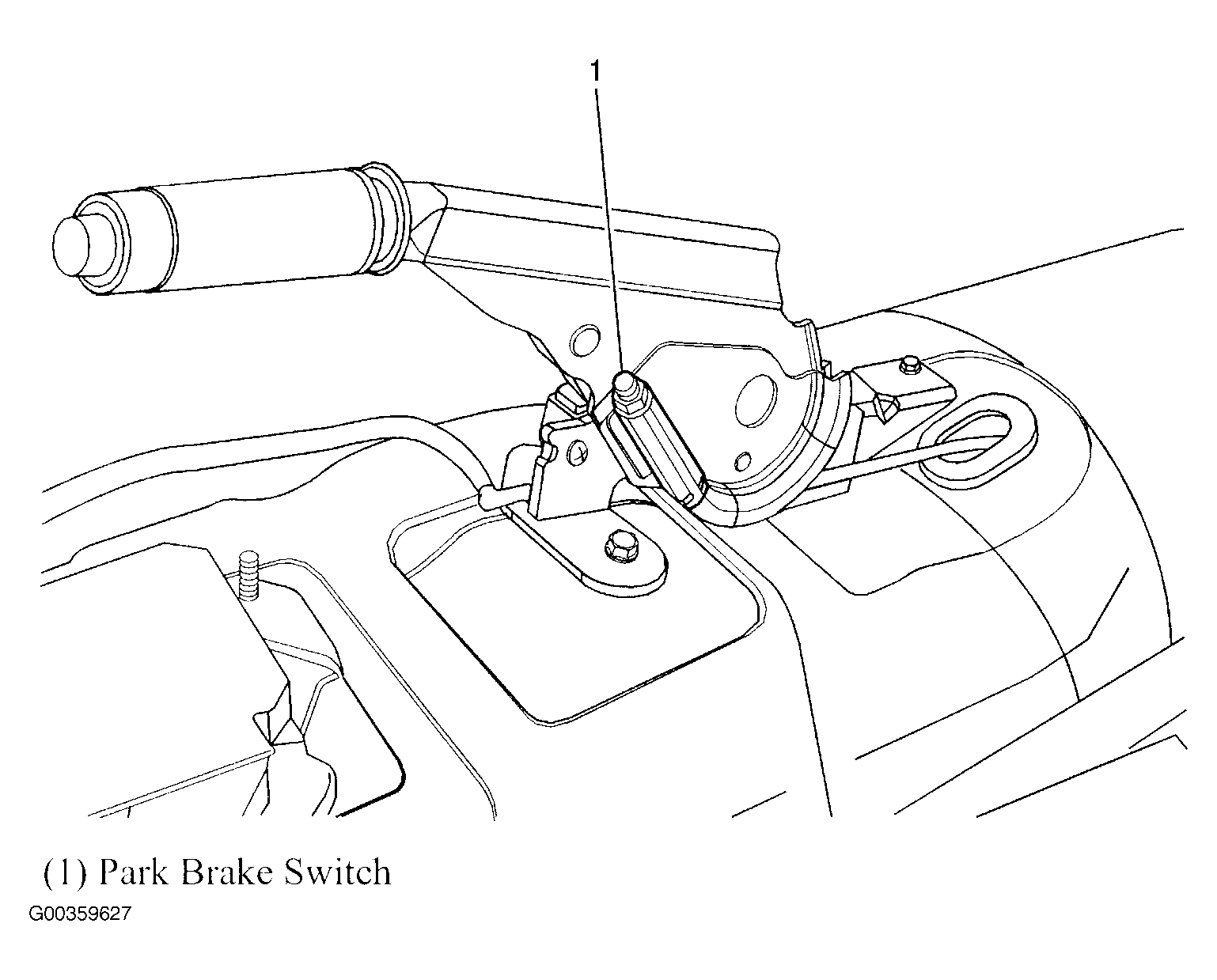

Fig 25: Parking Brake
Courtesy of GENERAL MOTORS CORP.

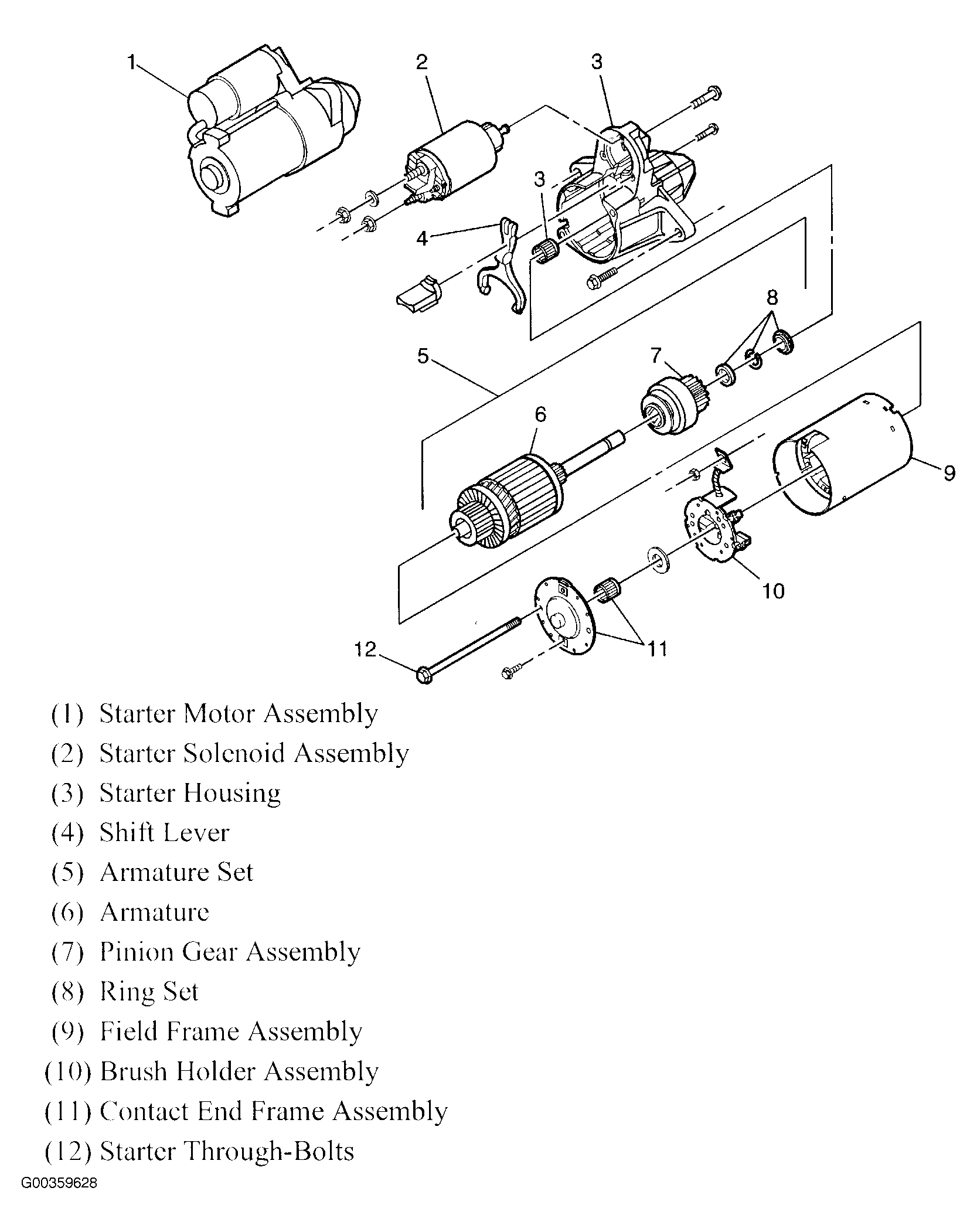

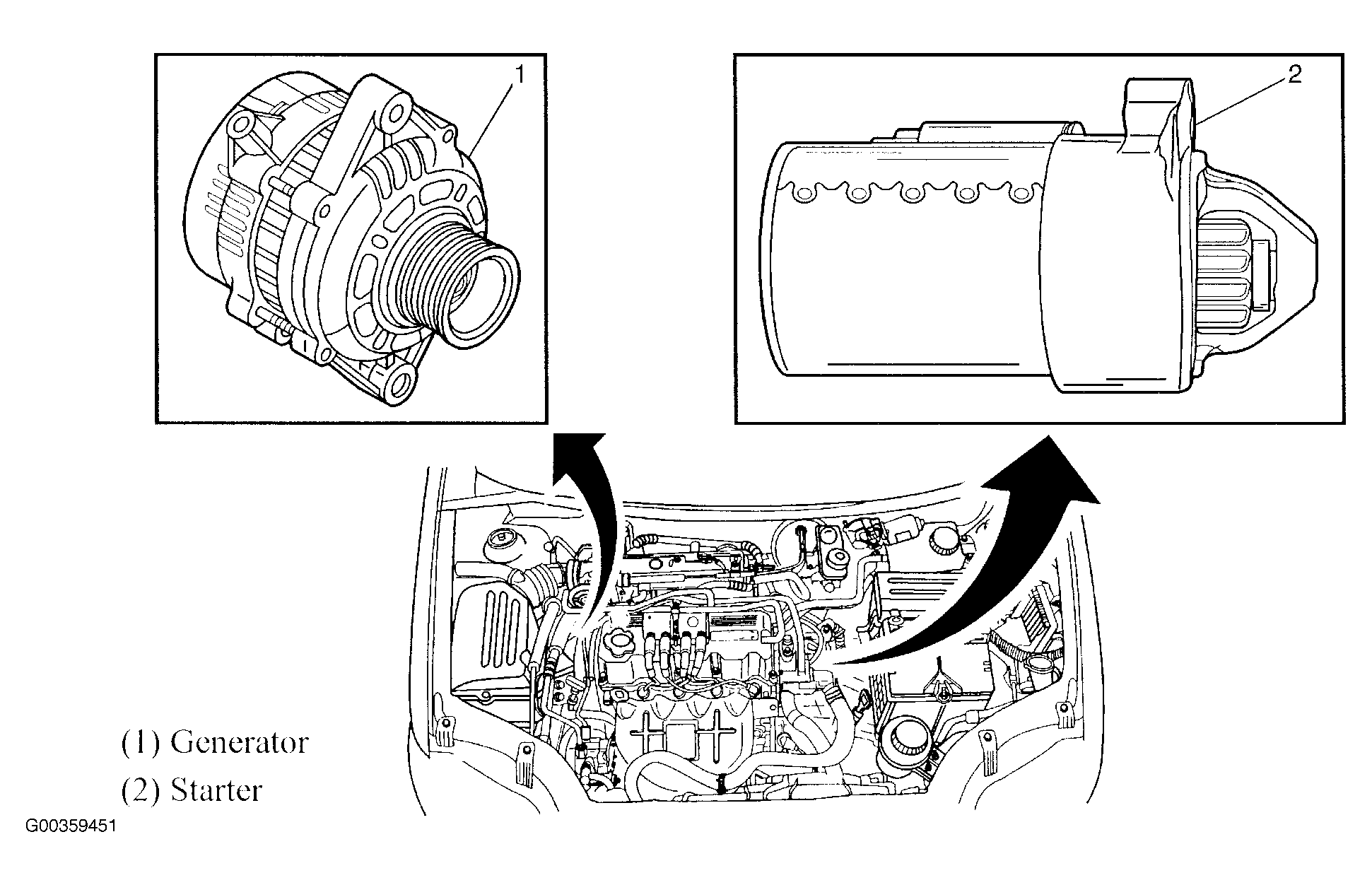

Fig 26: Starter Motor
Courtesy of GENERAL MOTORS CORP.

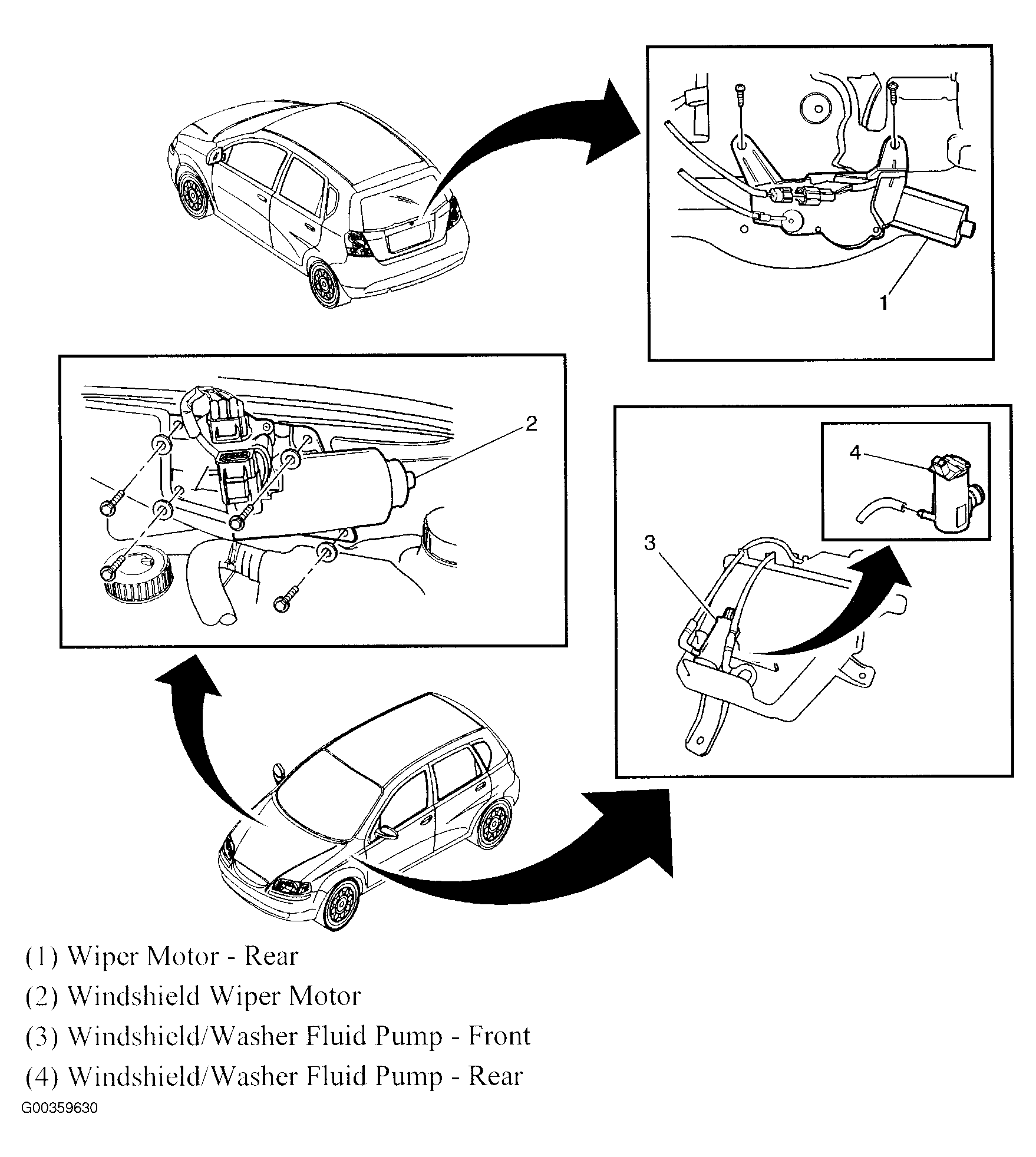

Fig 27: Washers & Wipers
Courtesy of GENERAL MOTORS CORP.
Fig 28: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 29: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 30: Roof
Courtesy of GENERAL MOTORS CORP.

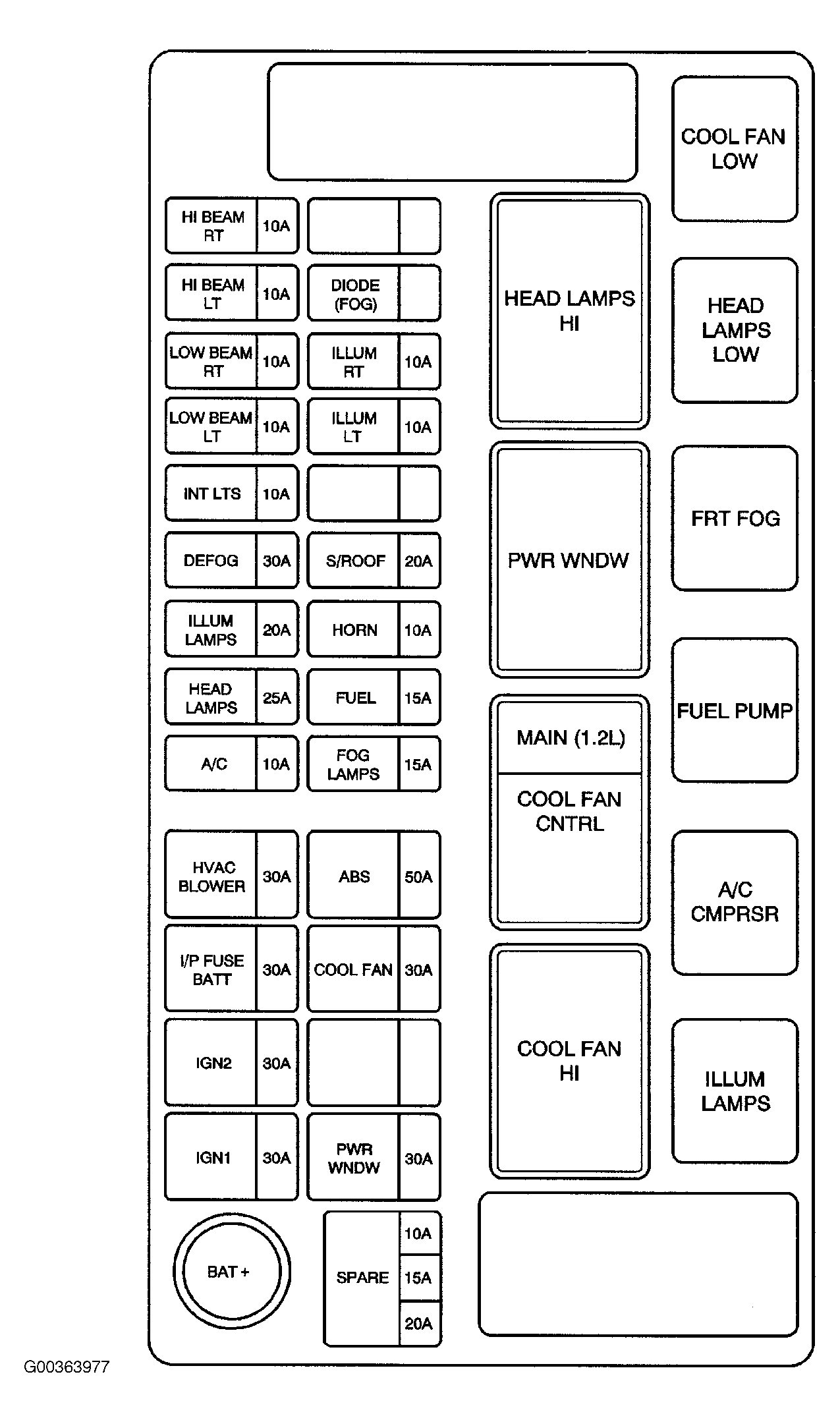

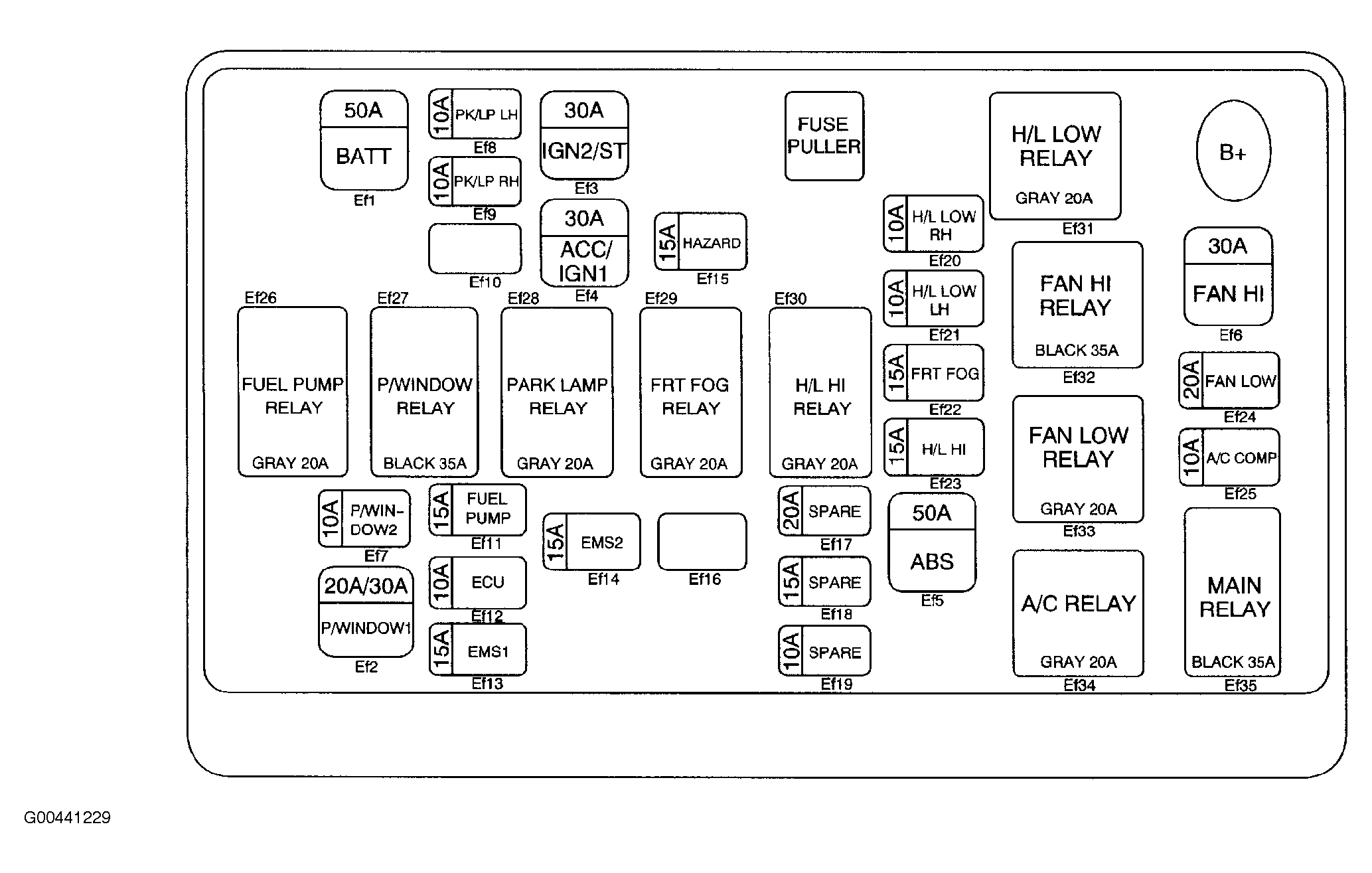

Fig 31: Underhood Fuse Block (Hatchback)
Courtesy of GENERAL MOTORS CORP.

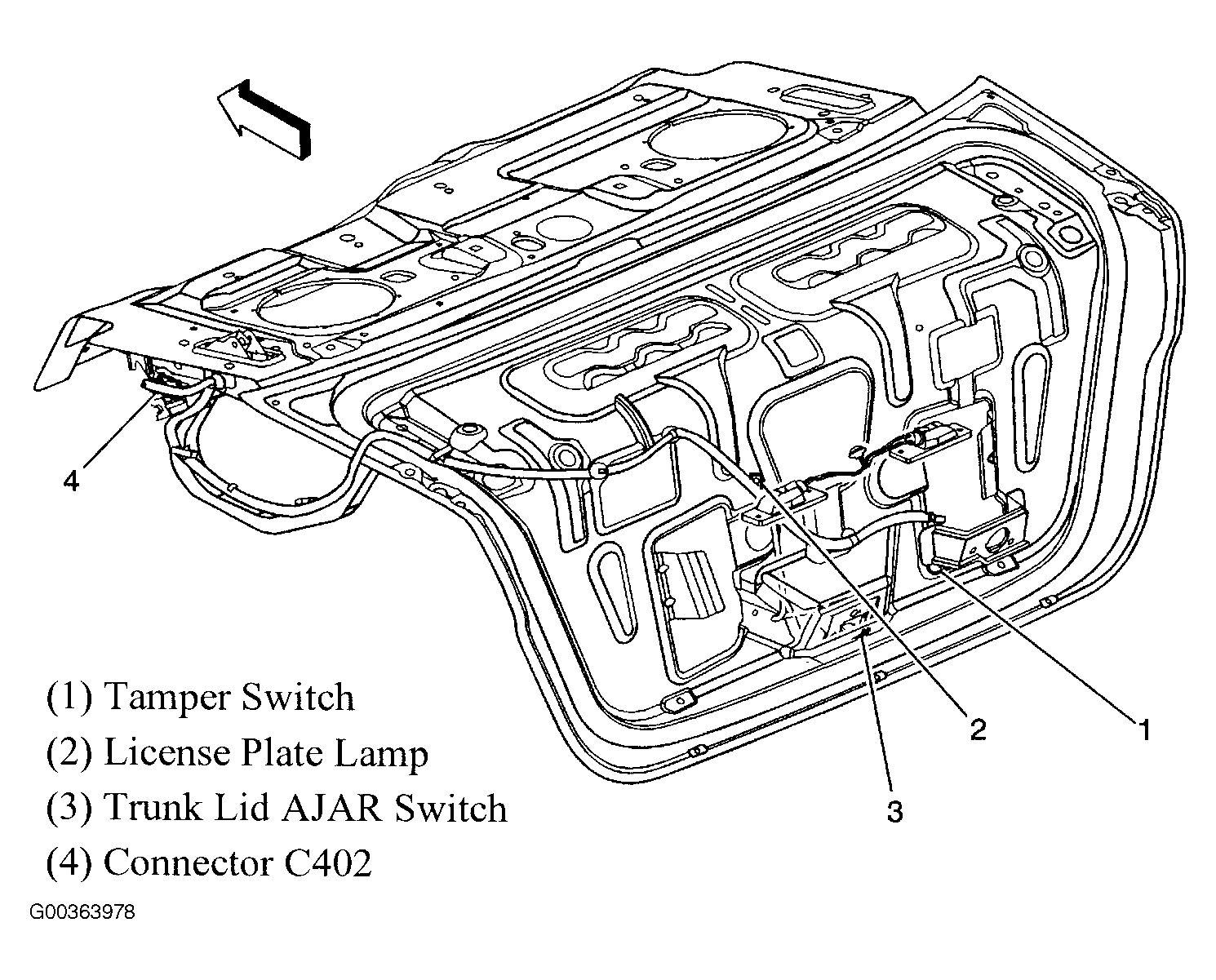

Fig 32: Trunk Lid
Courtesy of GENERAL MOTORS CORP.

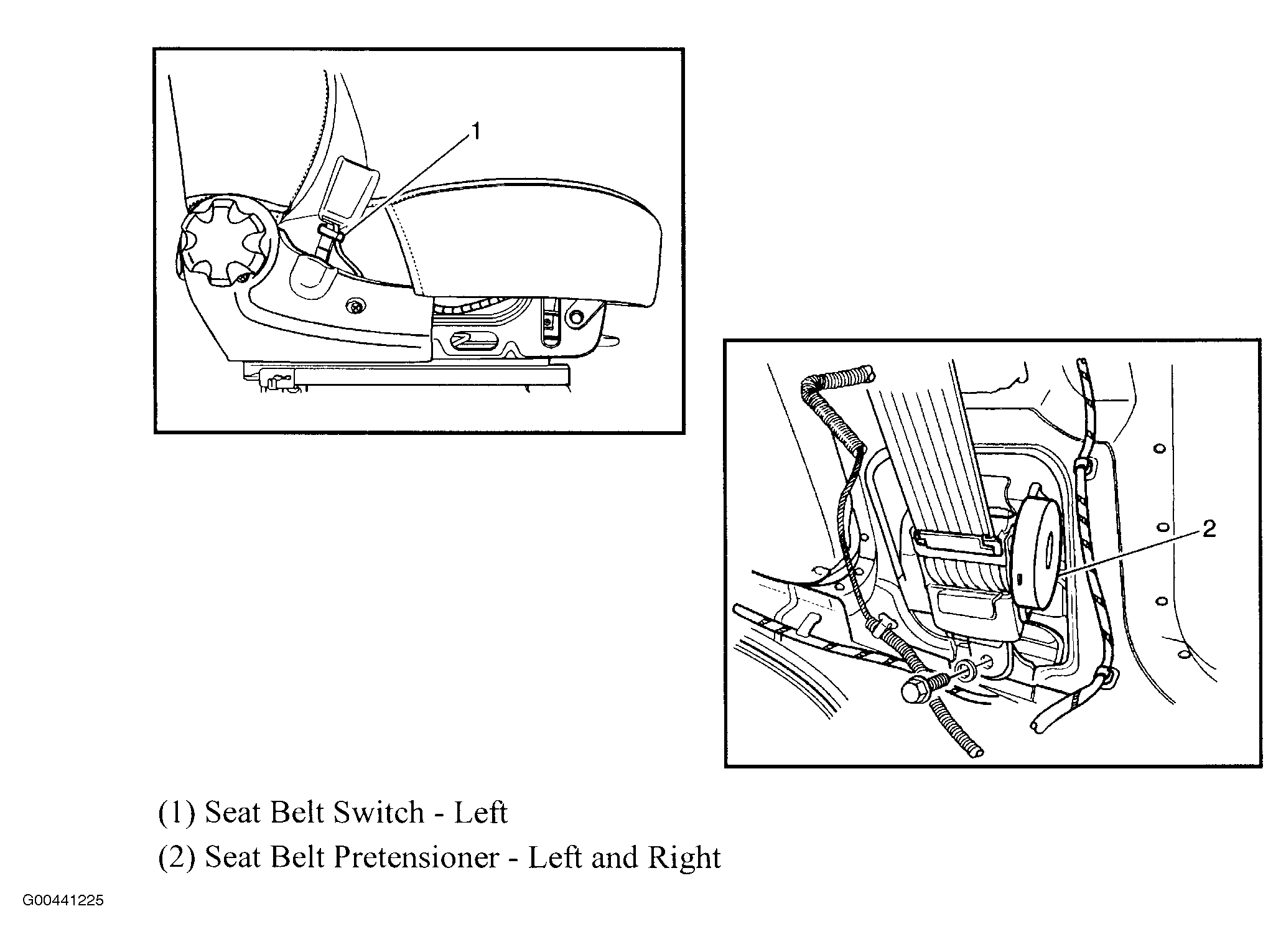

Fig 33: Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 34: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 35: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 36: Underhood Fuse Block (Notchback)
Courtesy of GENERAL MOTORS CORP.

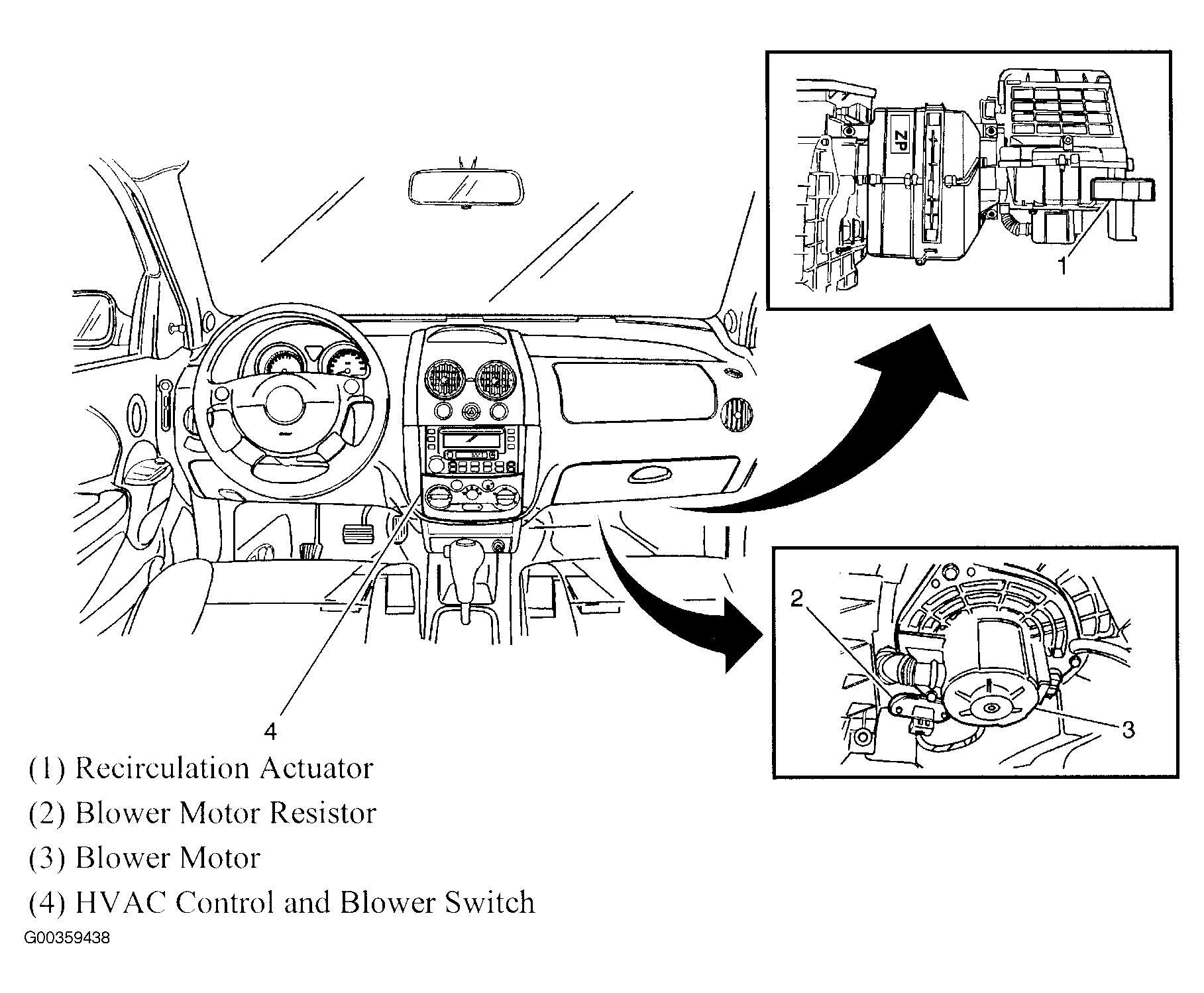

Fig 37: HVAC module
Courtesy of GENERAL MOTORS CORP.
