Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

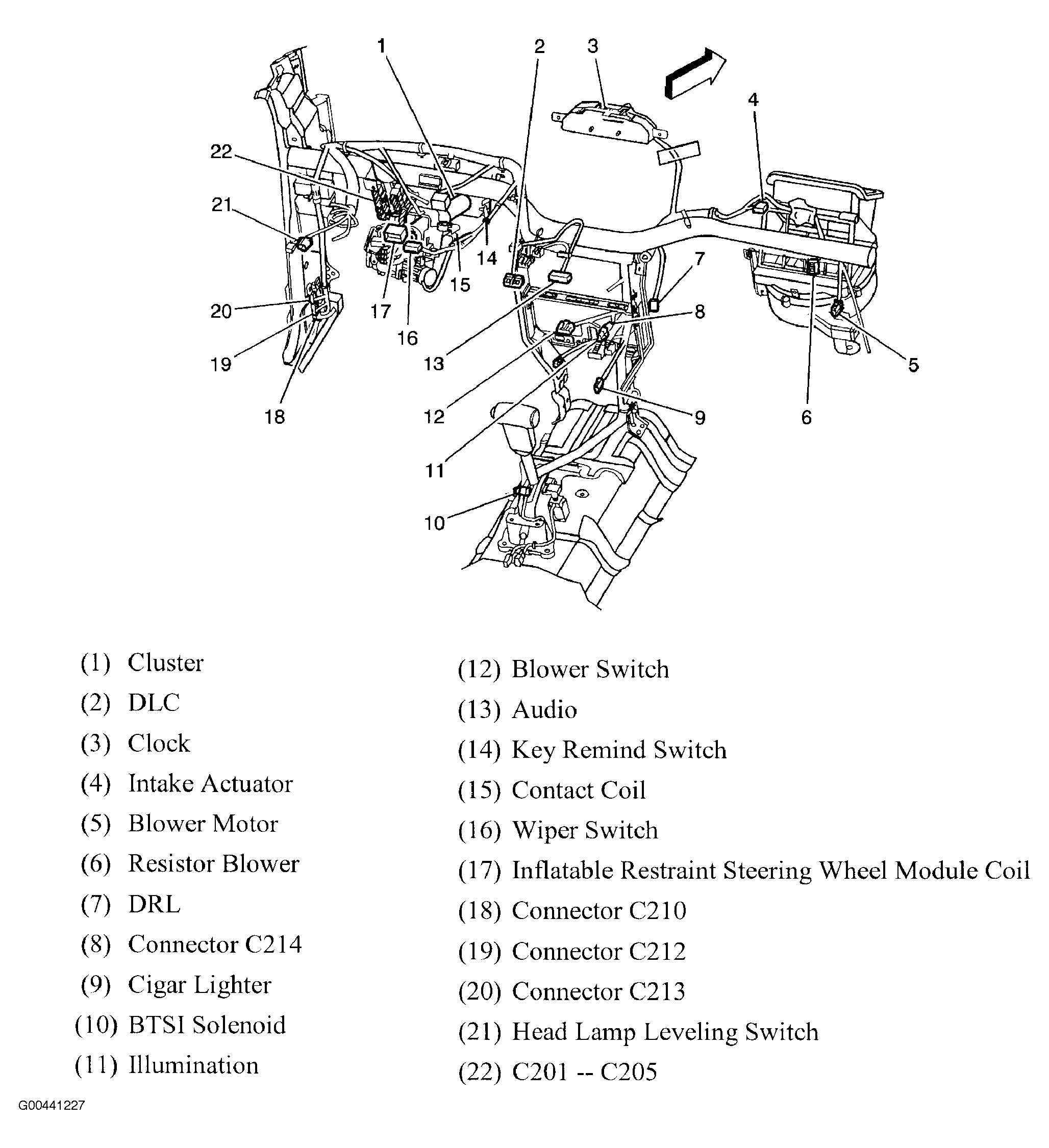

| DRL | Behind dash, right of center console. See Figure. |

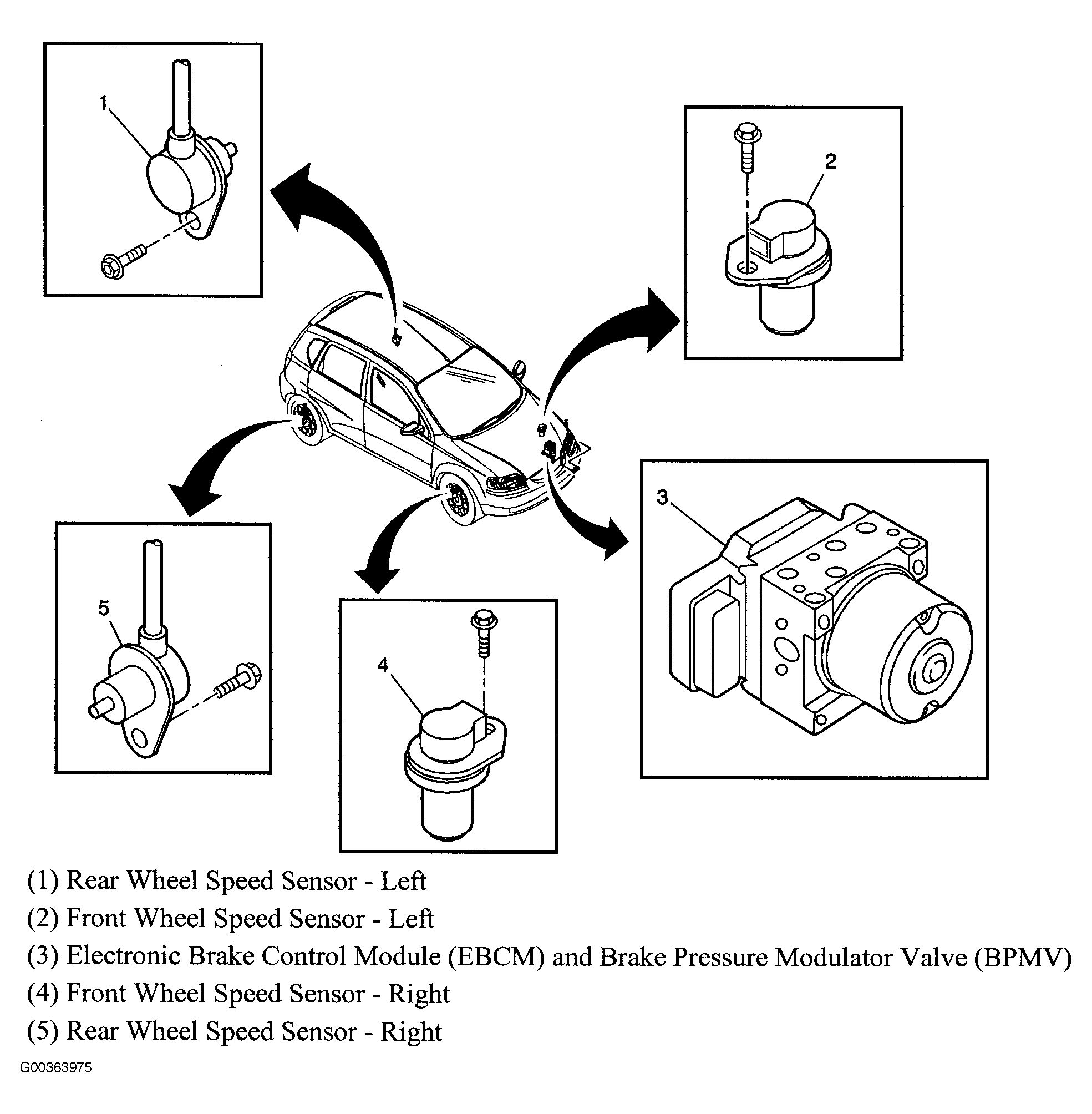

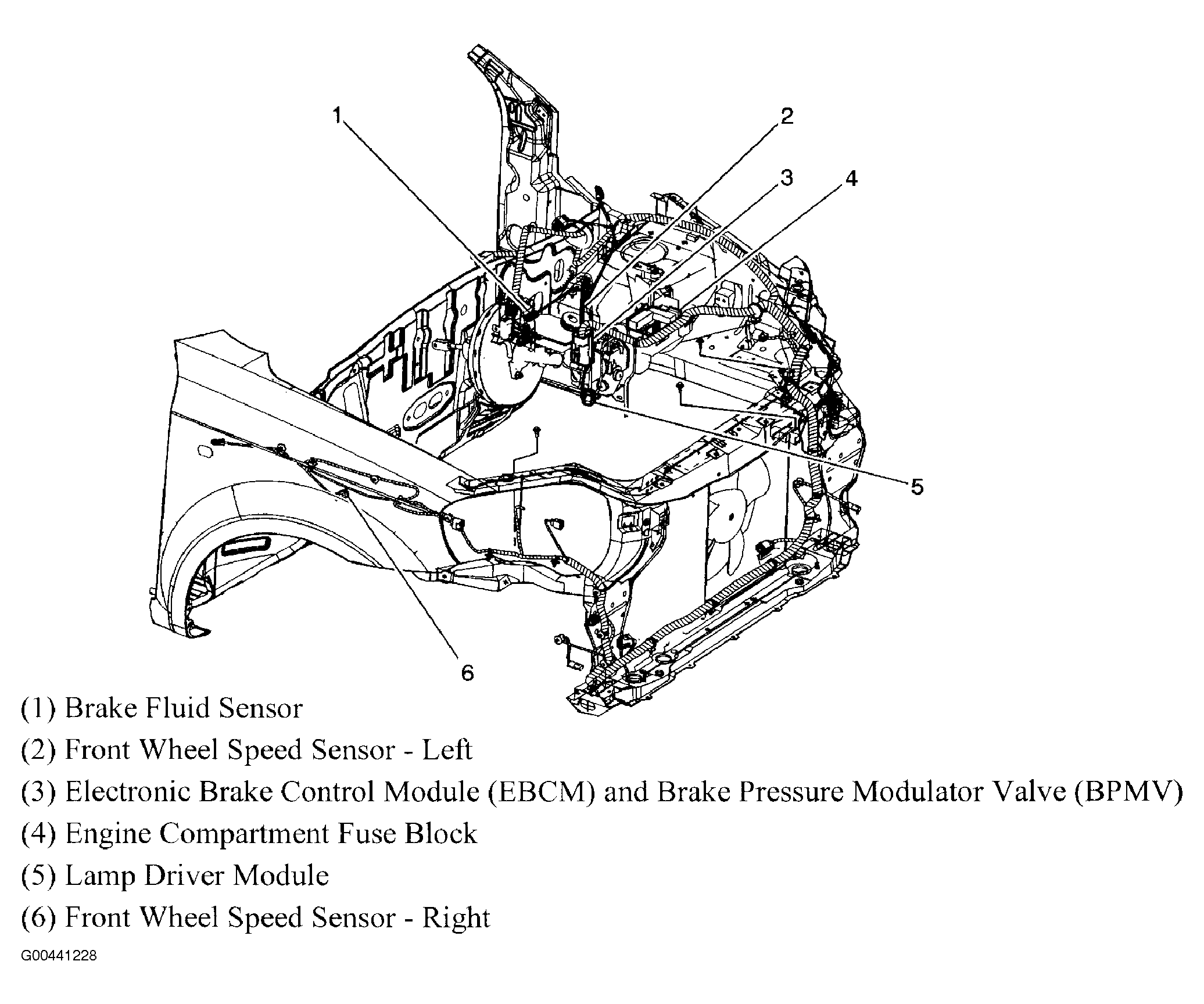

| Electronic Brake Control Module (EBCM) | Left side of engine compartment. See Figure. |

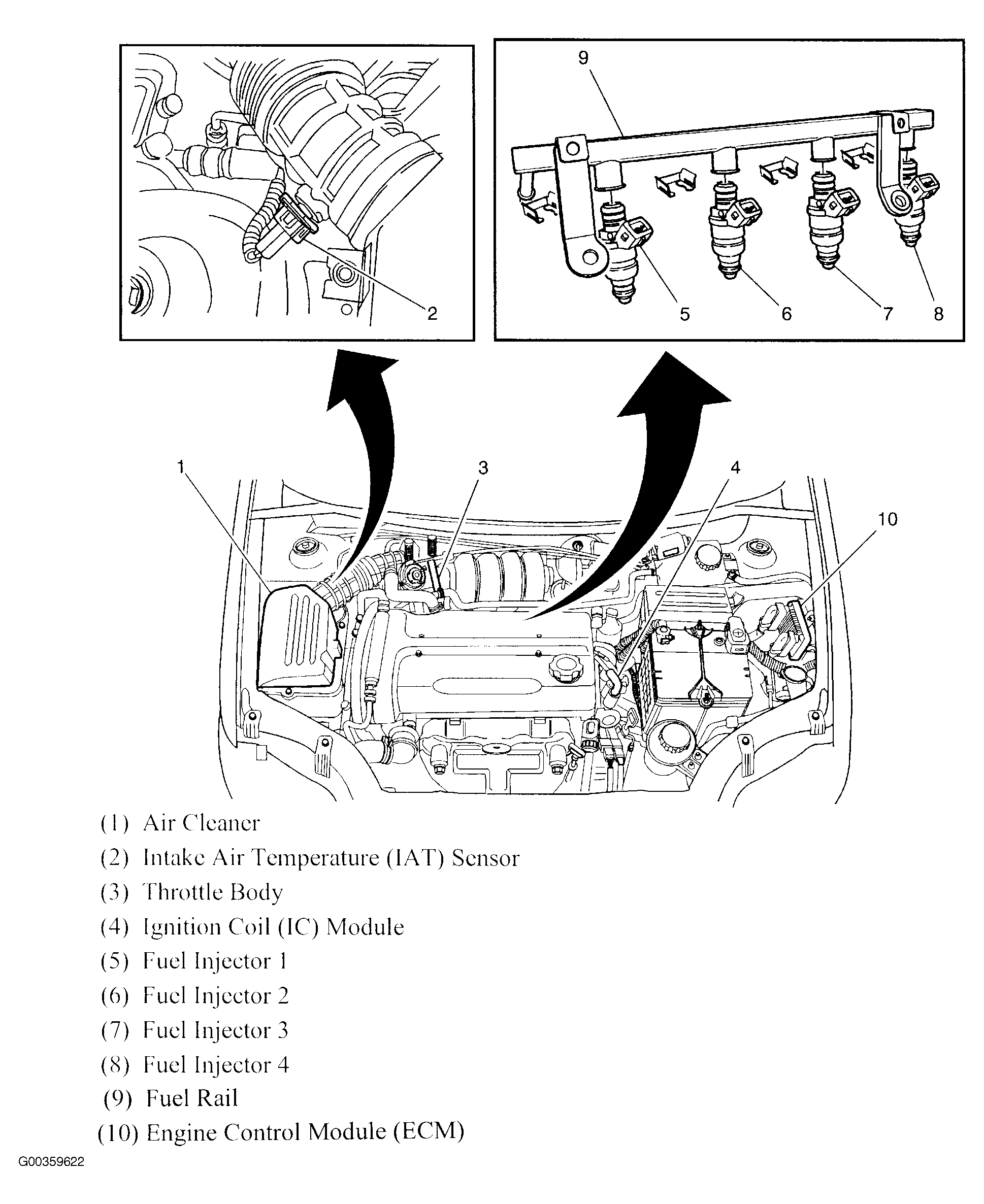

| Engine Control Module (ECM) | Left front fender, near the battery. See Figure. |
| Ignition Coil (IC) Module | Top of valve cover. See Figure. |

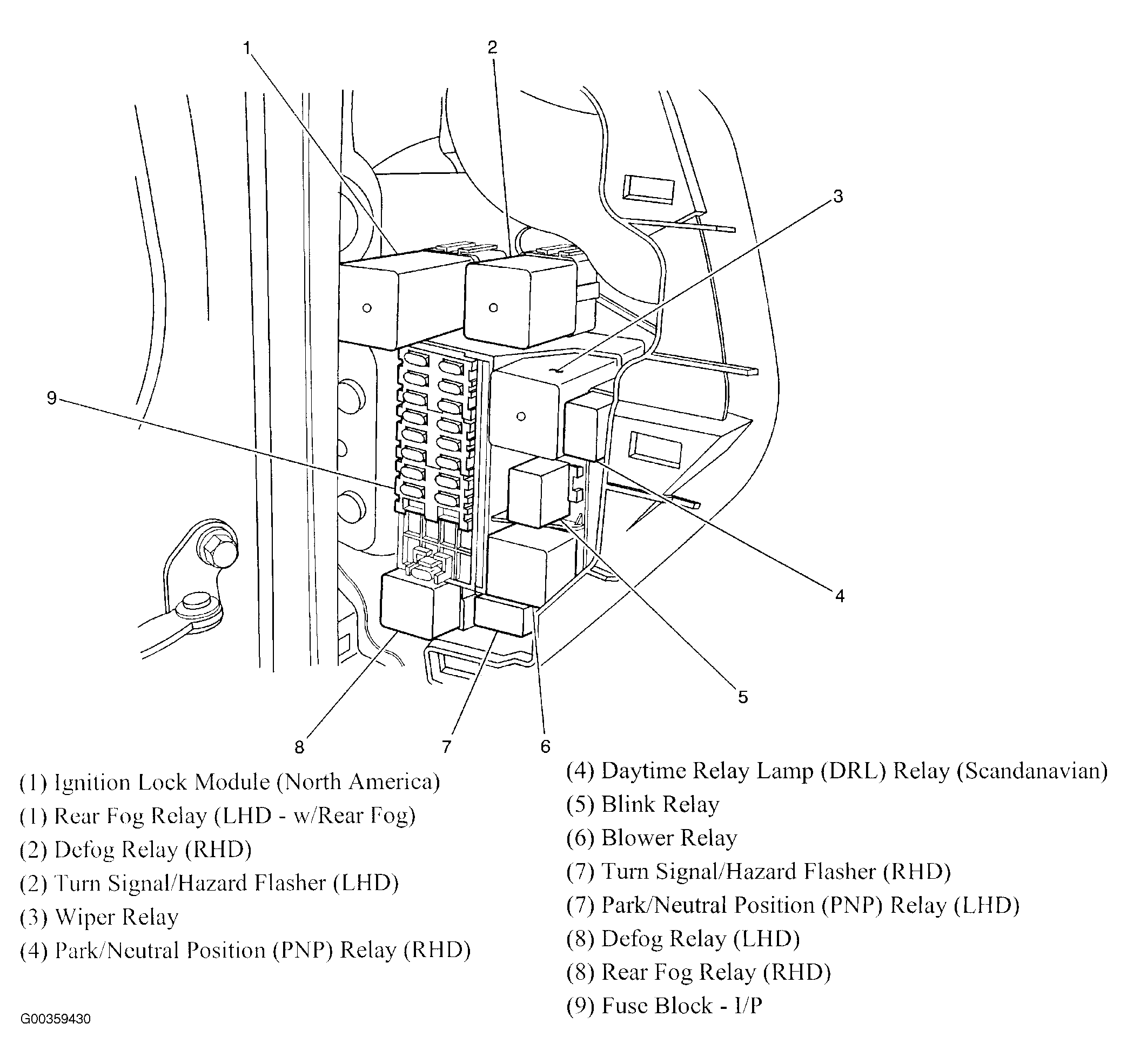

| Ignition Lock Module | In I/P fuse block. See Figure. |

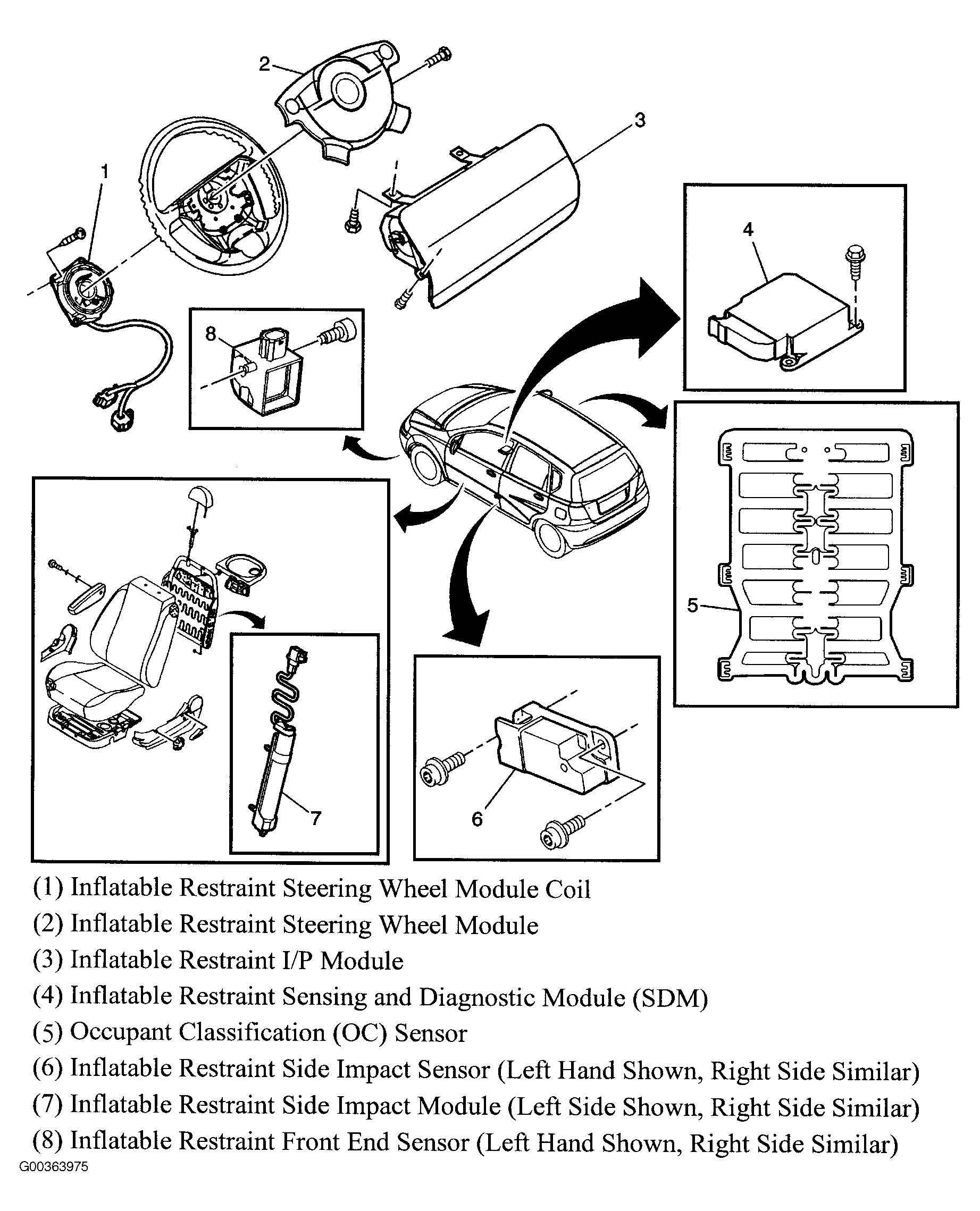

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below center console. See Figure. |
| Lamp Driver Module | Lower left rear of engine compartment. See Figure. |

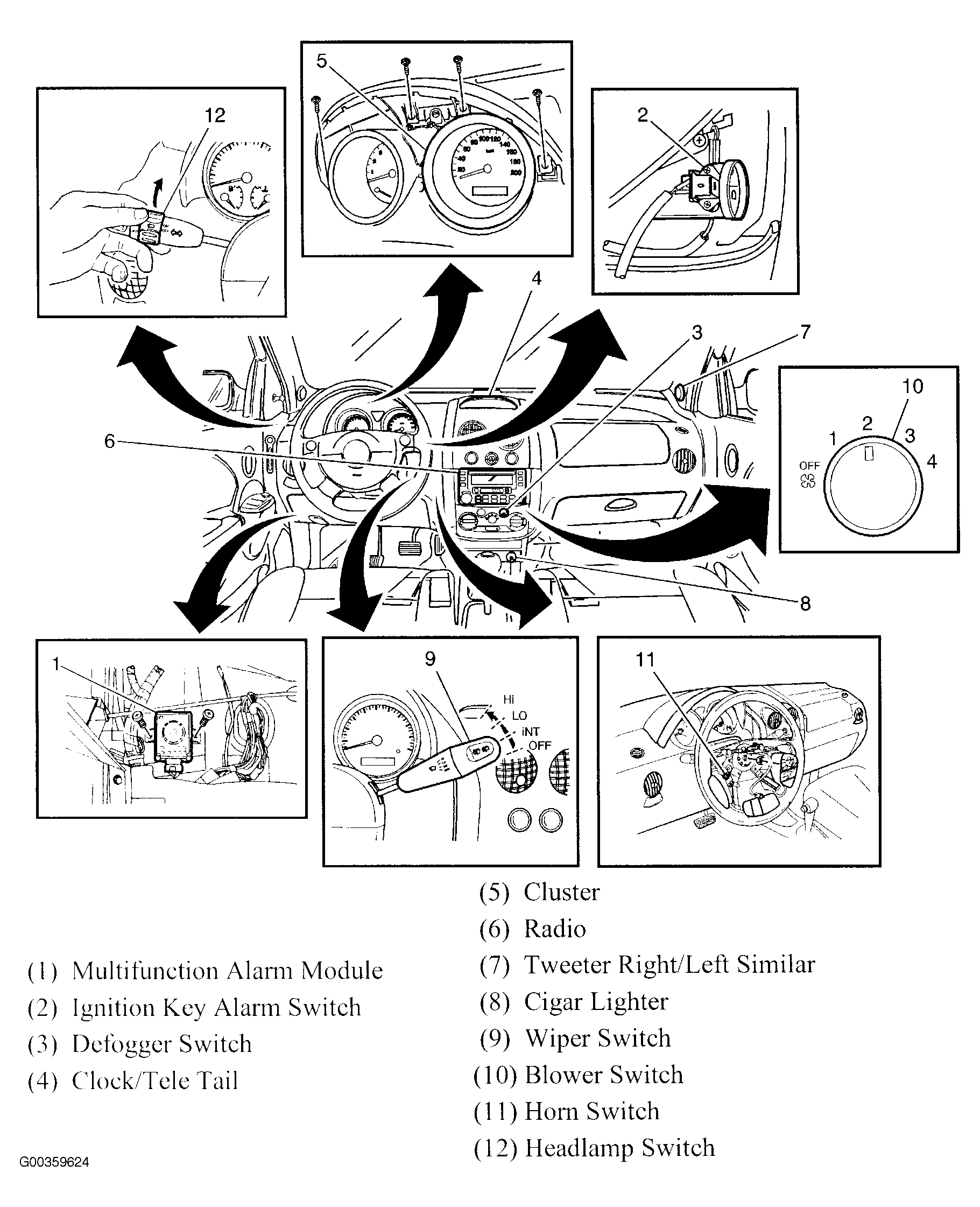

| Multifunction Alarm Module | Under dash, right of steering column. See Figure. |

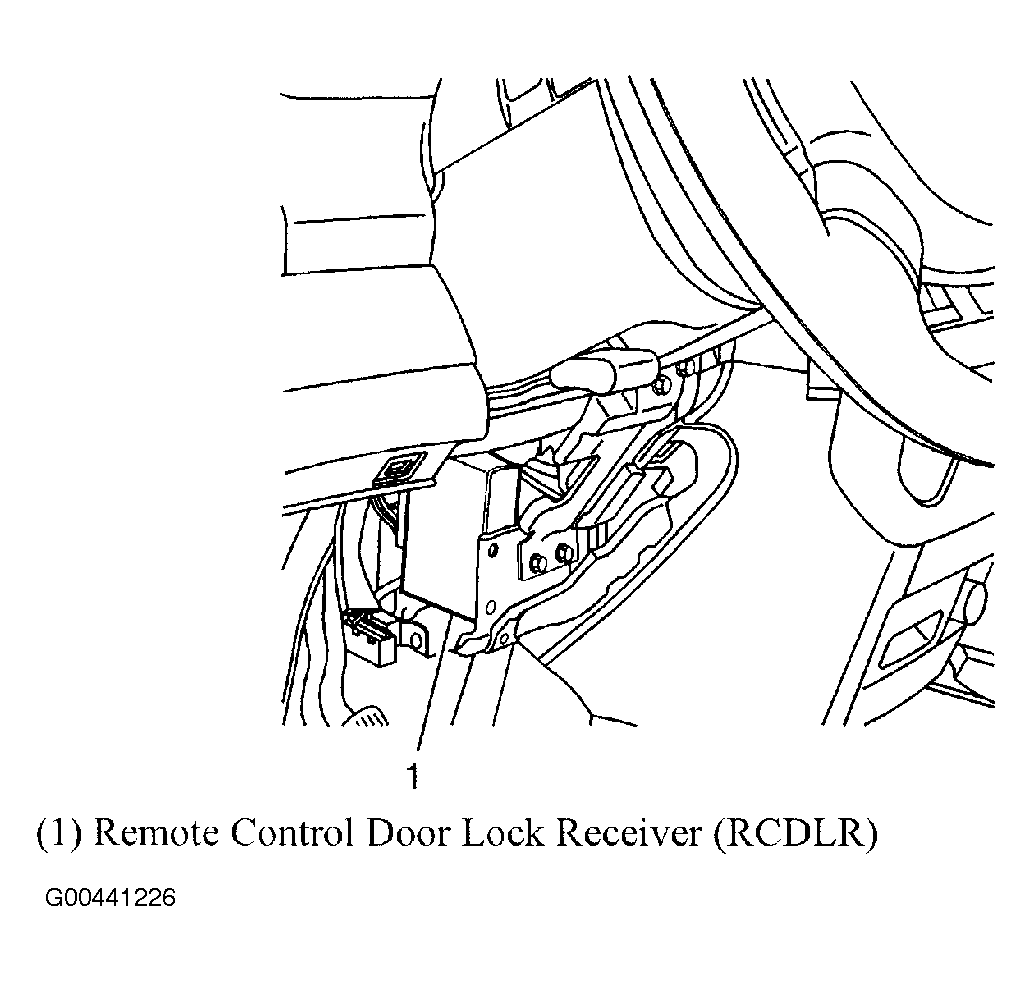

| Remote Control Door Lock Receiver (RCDLR) | Under left side of dash. See Figure. |

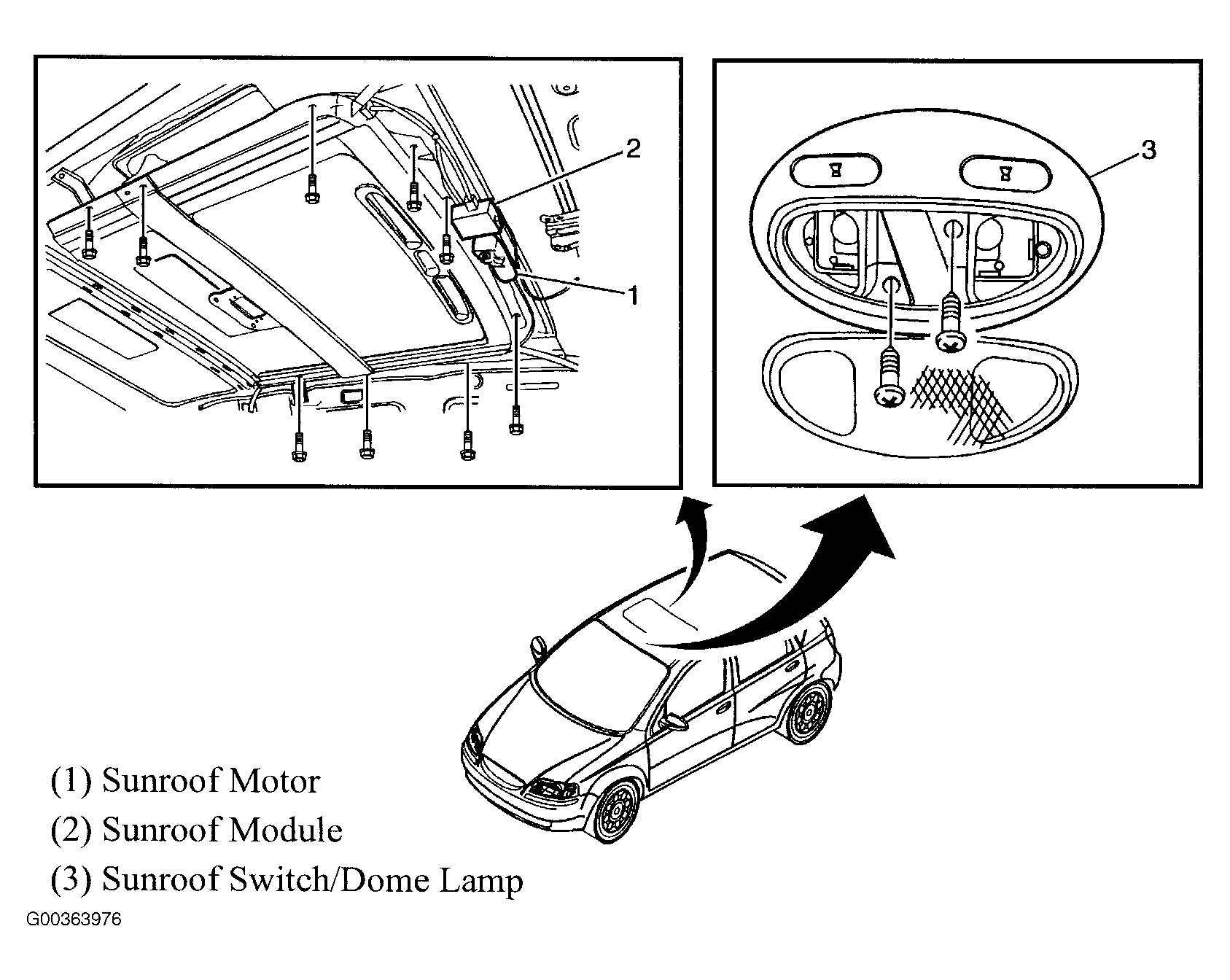

| Sunroof Module | In roof panel. See Figure. |
| TCM | On driver's side of vehicle, above brake pedal assembly. See Figure. |

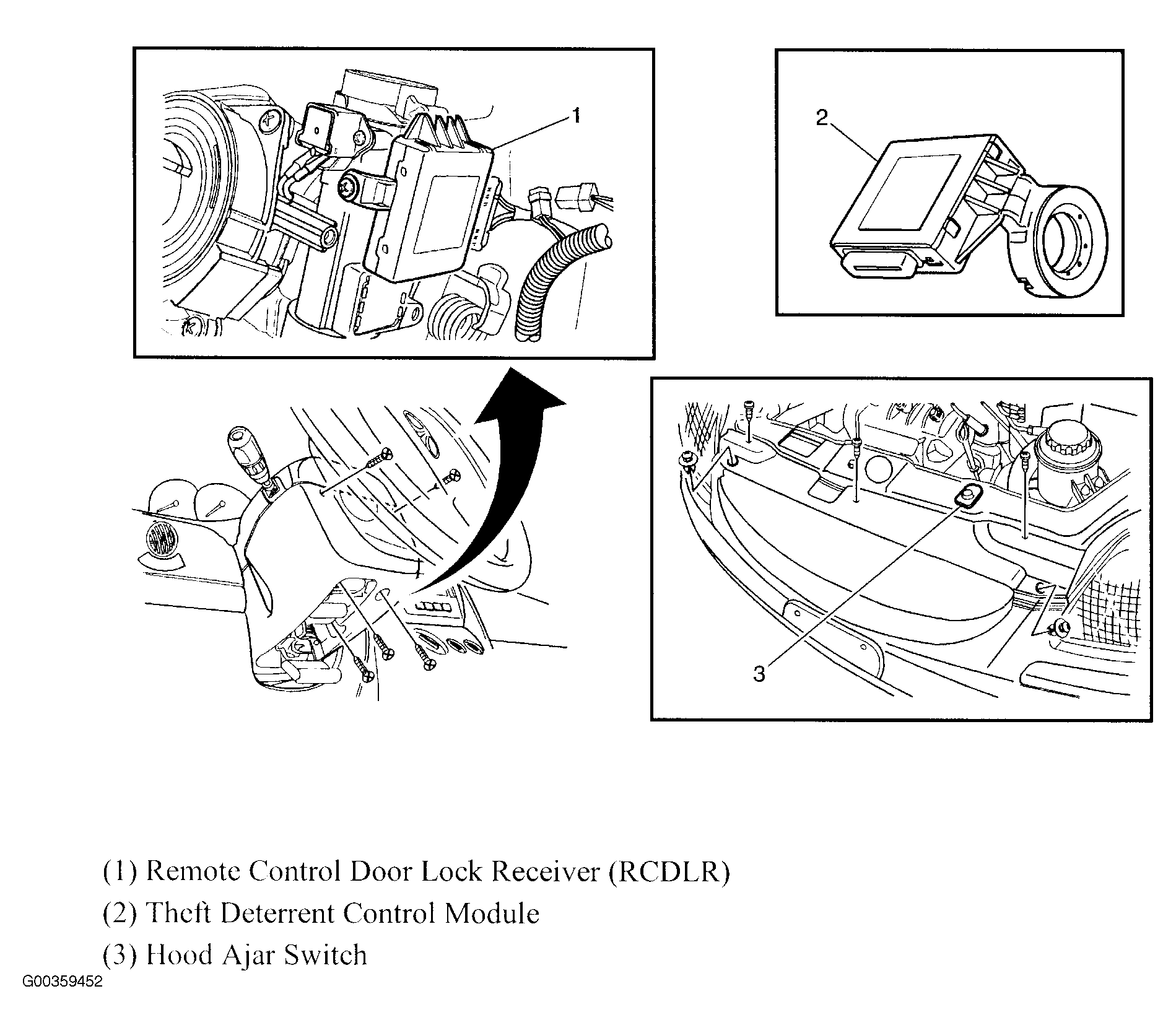

| Theft Deterrent Control Module | Near the ignition switch. See Figure. |

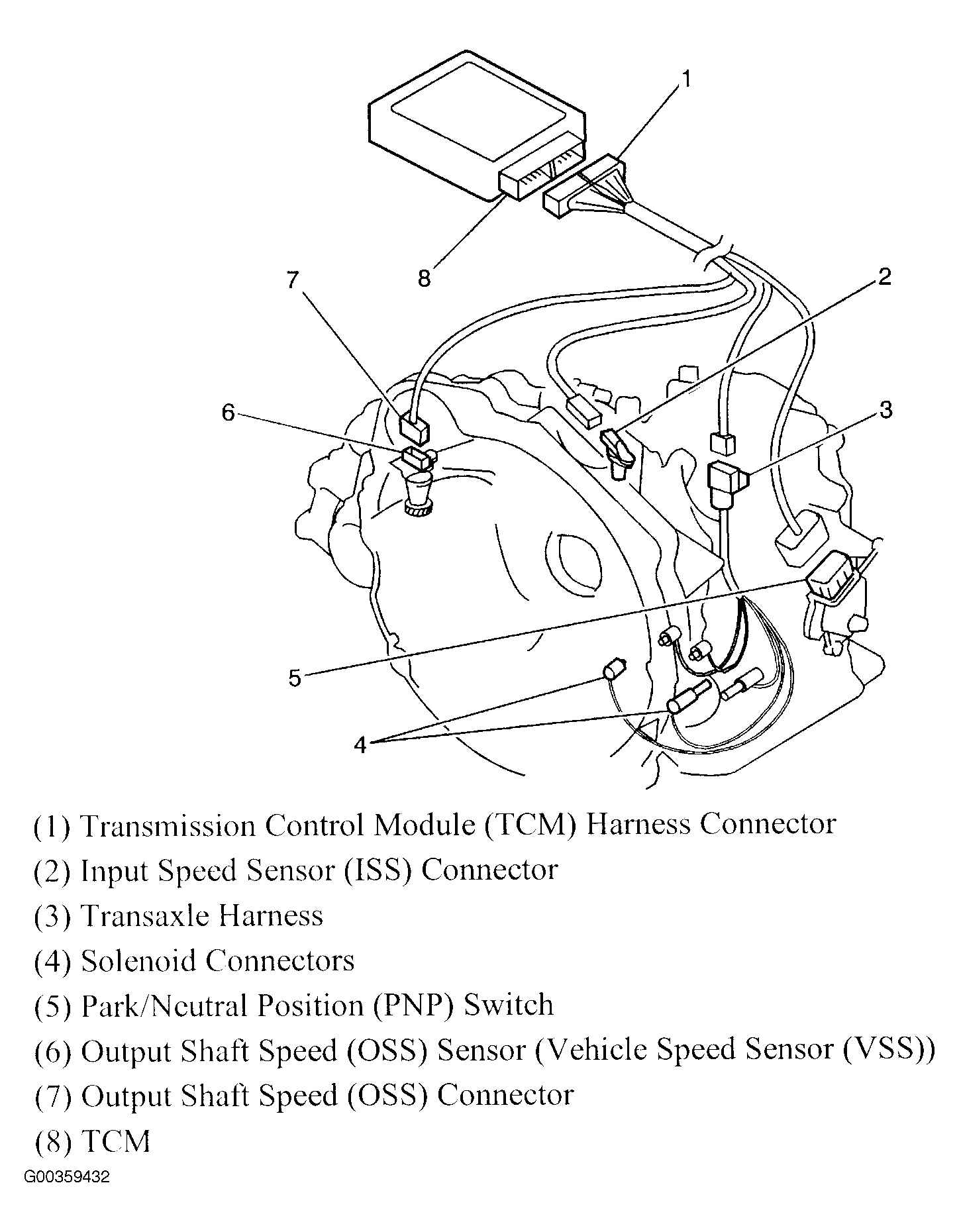

| Transmission Control Module (TCM) Harness Connector | On transmission control module. See Figure. |
