Installation Procedure

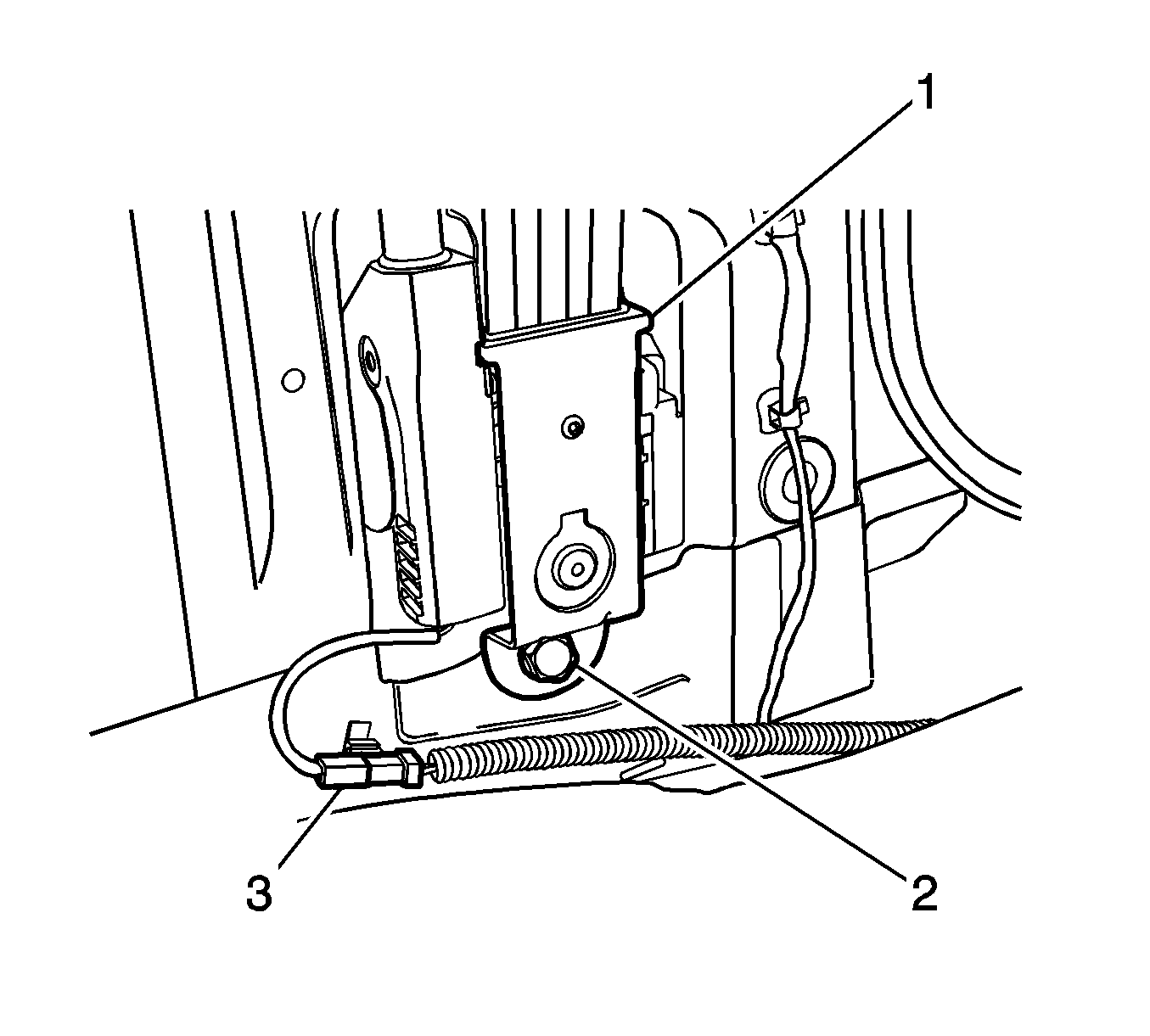

Fig 1: Seat Belt Retractor & Pretensioner

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the seat belt retractor (1) with the bolt (2).
Tighten: Tighten the seat belt retractor bolt to 38 N.m (28 lb ft).
Connect the pretensioner connector (3).

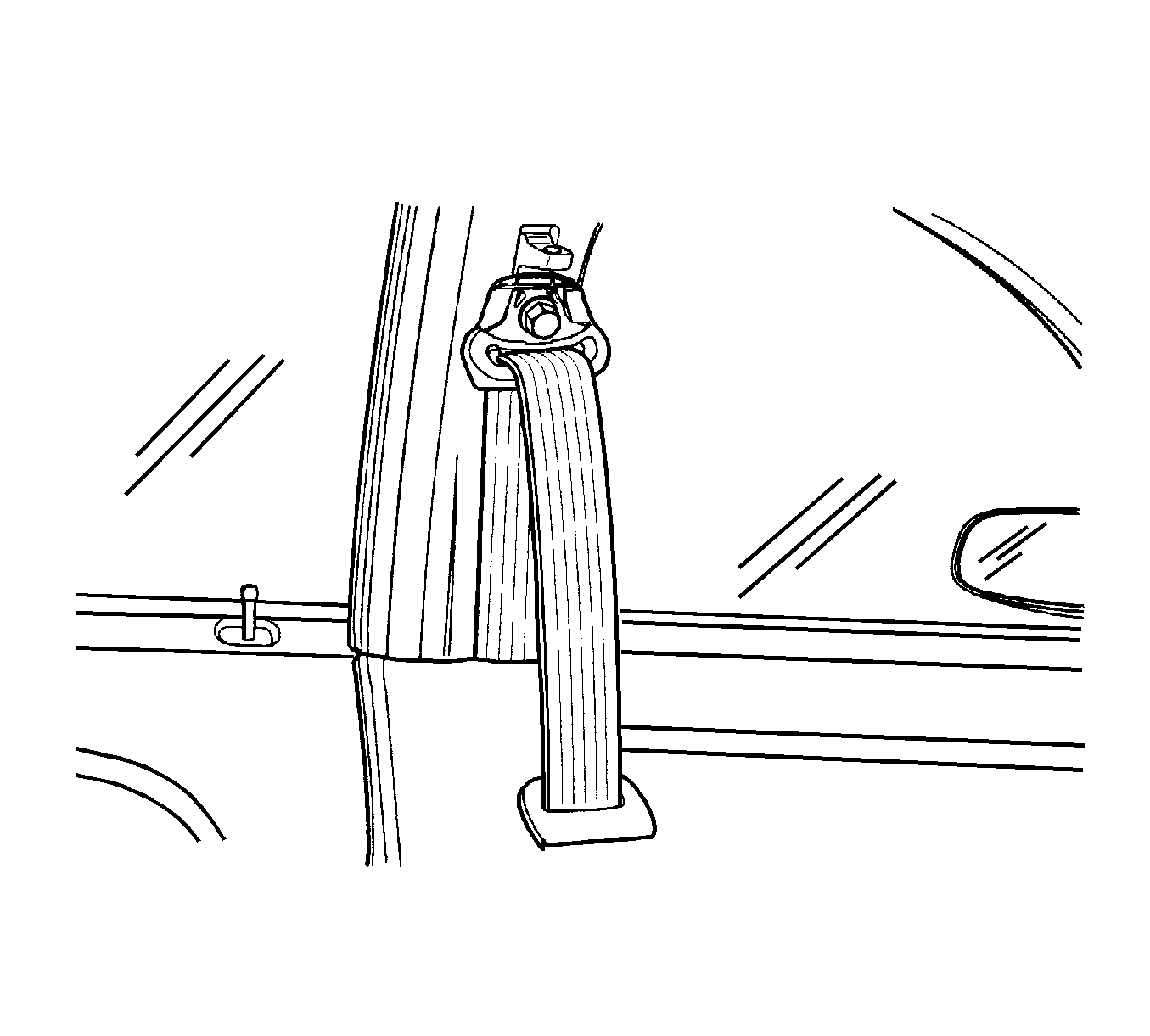

Fig 2: Seat Belt Anchor & Upper Center Pillar

Courtesy of GENERAL MOTORS CORP.

Install the seat belt anchor to the upper center pillar with the bolt.
Tighten: Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).

Fig 3: Seat Belt Anchor, Lower Center Pillar & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
Install the seat belt anchor to the lower center pillar with the bolt.
Tighten: Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
