Front Toe Adjustment

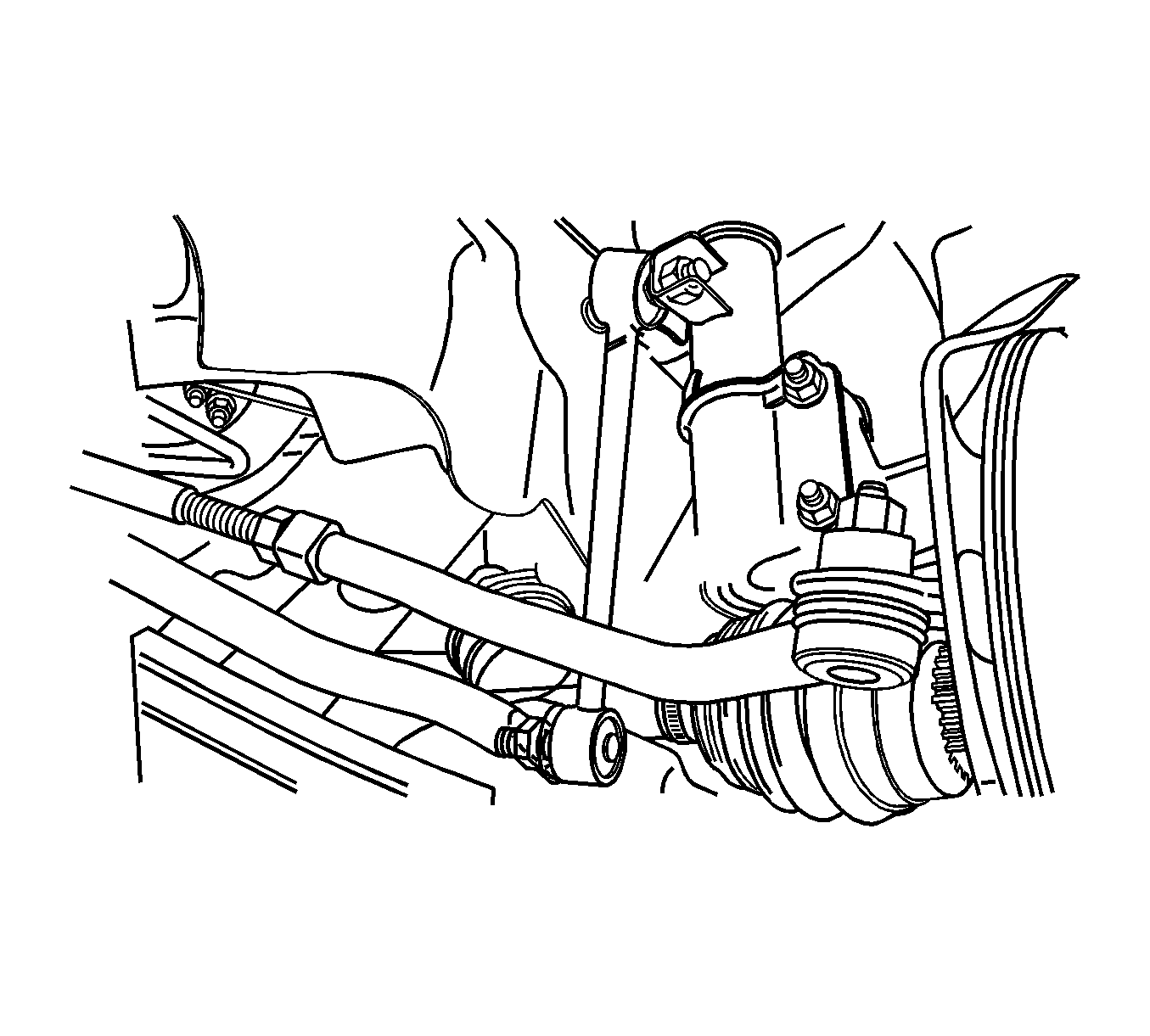

- Loosen the right and the left rod lock bolts.
- Turn the right and the left tie rod adjusters to align the toe to 0 degrees ±10 minutes.
- Tighten the tie rod lock bolts.
Tighten: Tighten the tie rod lock bolts to 64 N.m (47 lb ft).
IMPORTANT:
In this adjustment, the right and left tie rods must be equal in length.
