Ignition Control Module

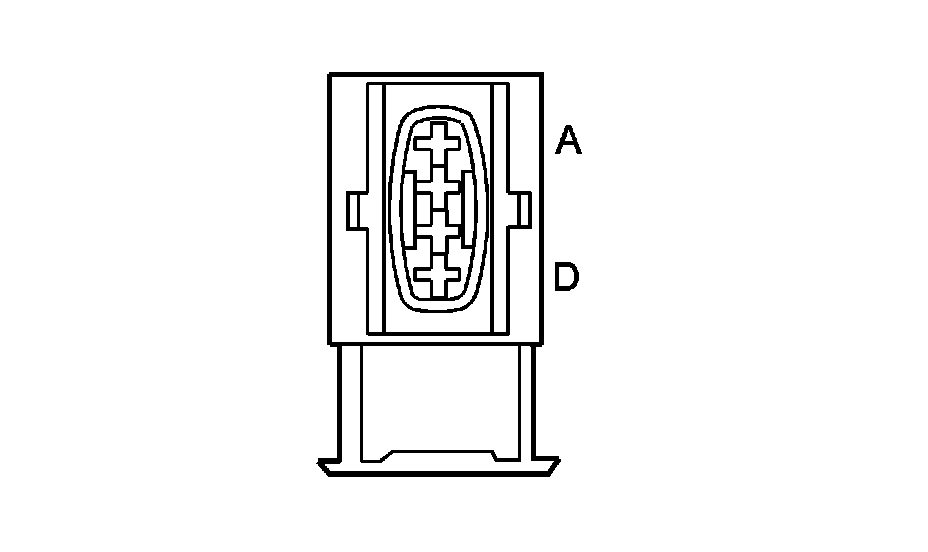

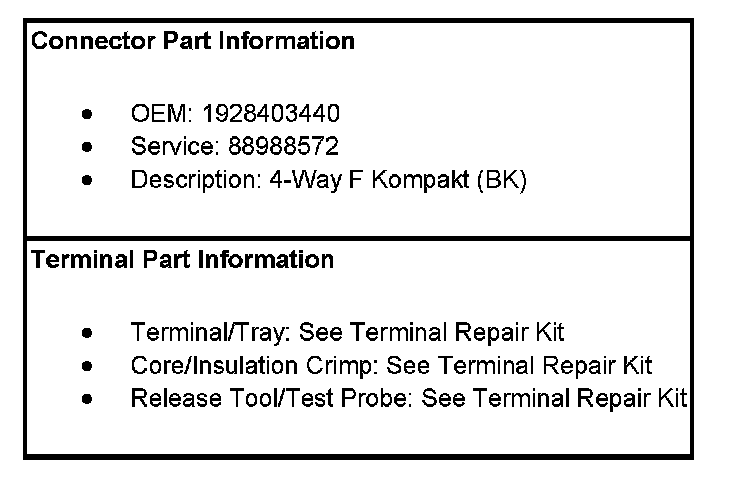

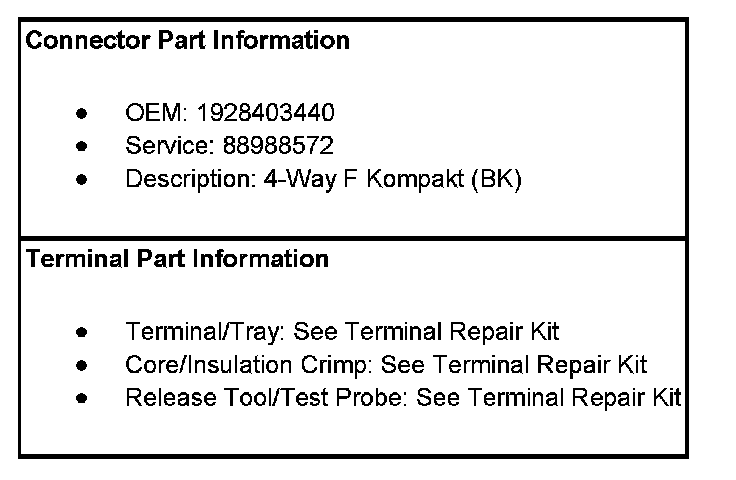

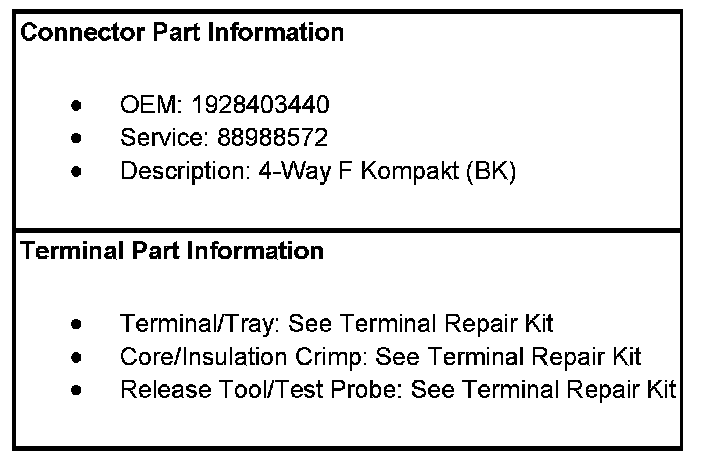

Engine Controls Connector End Views

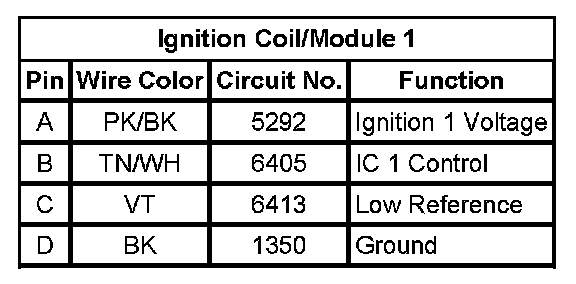

Ignition Coil/Module 1

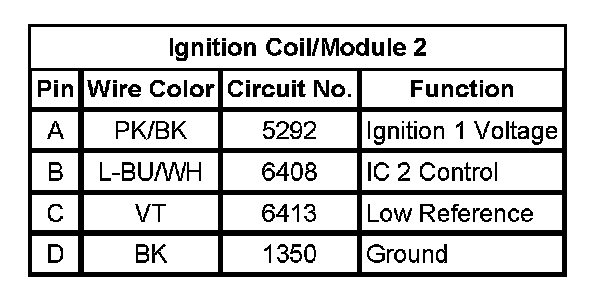

Ignition Coil/Module 2

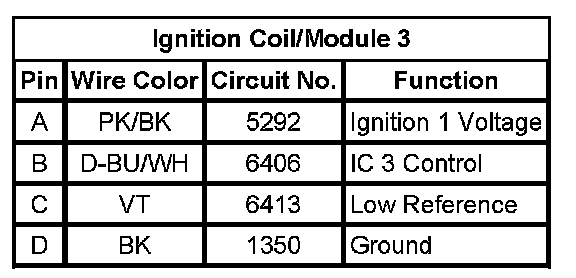

Ignition Coil/Module 3

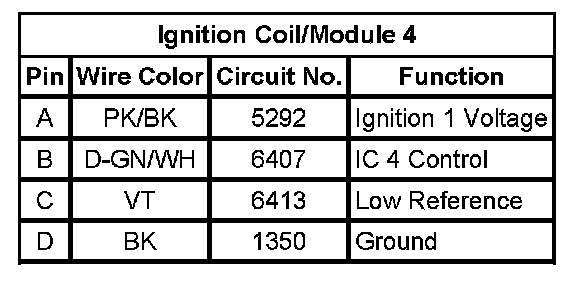

Ignition Coil/Module 4
