System Diagram

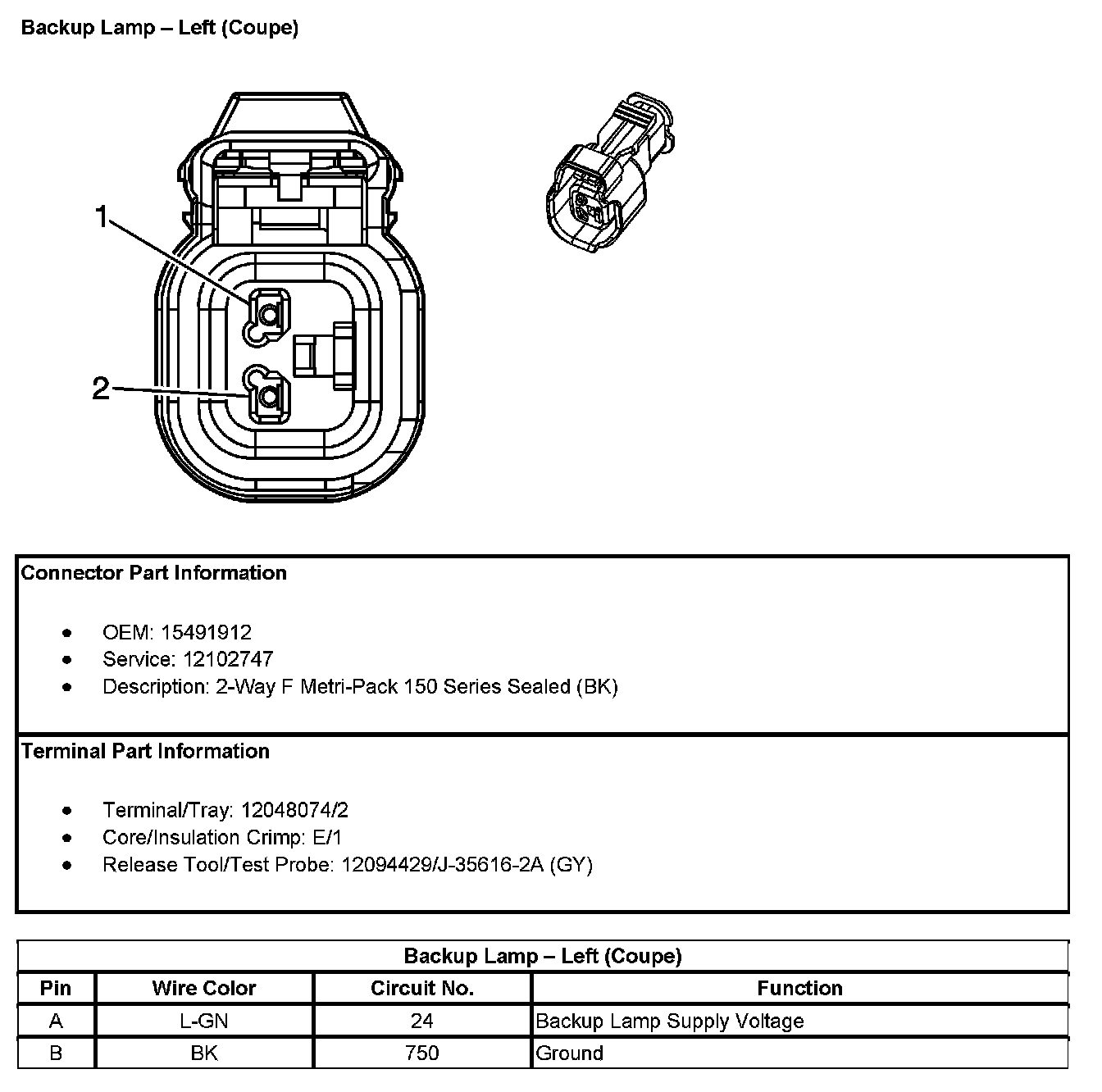

Backup Lamp - Left (Coupe):

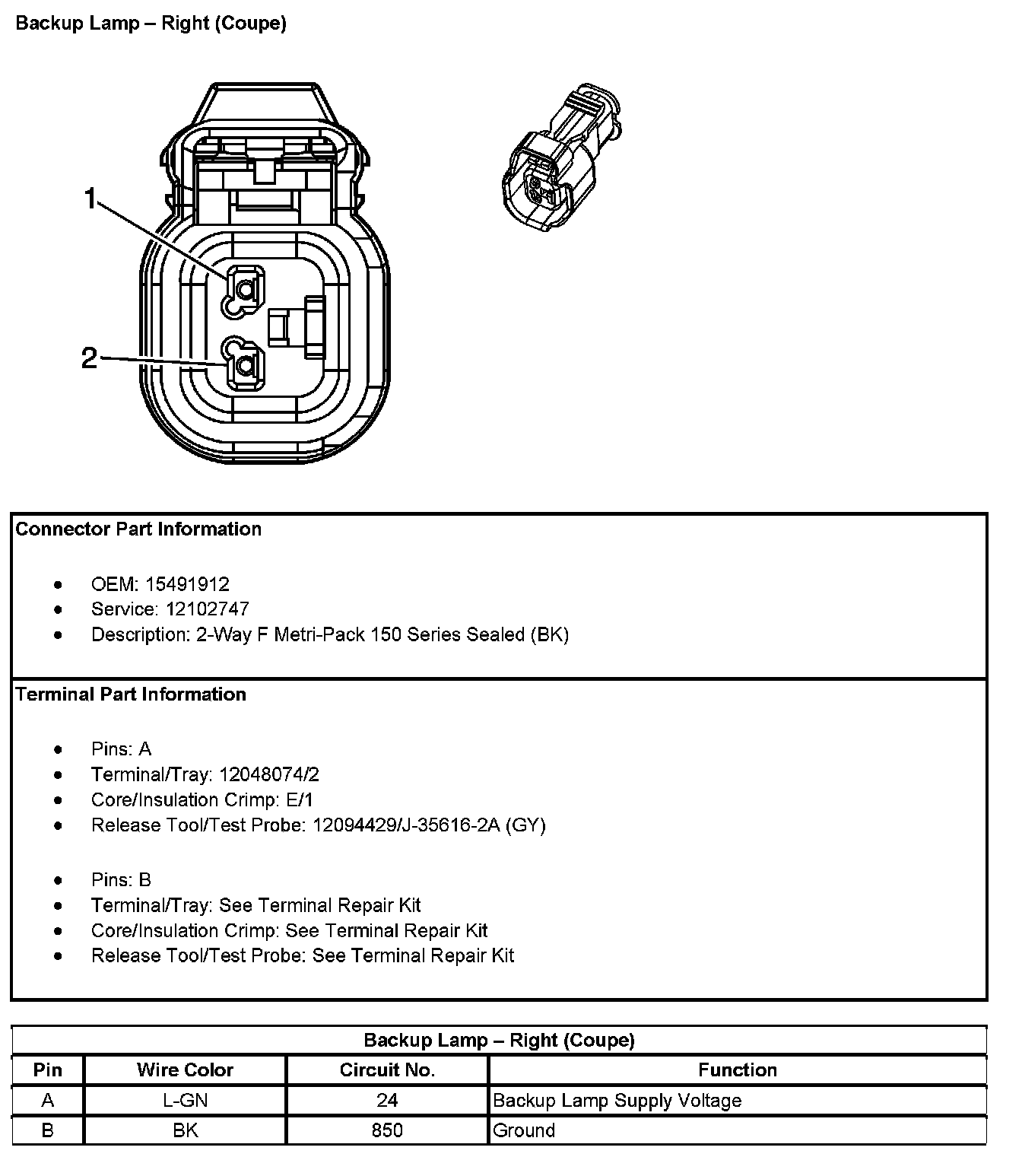

Backup Lamp - Right (Coupe):

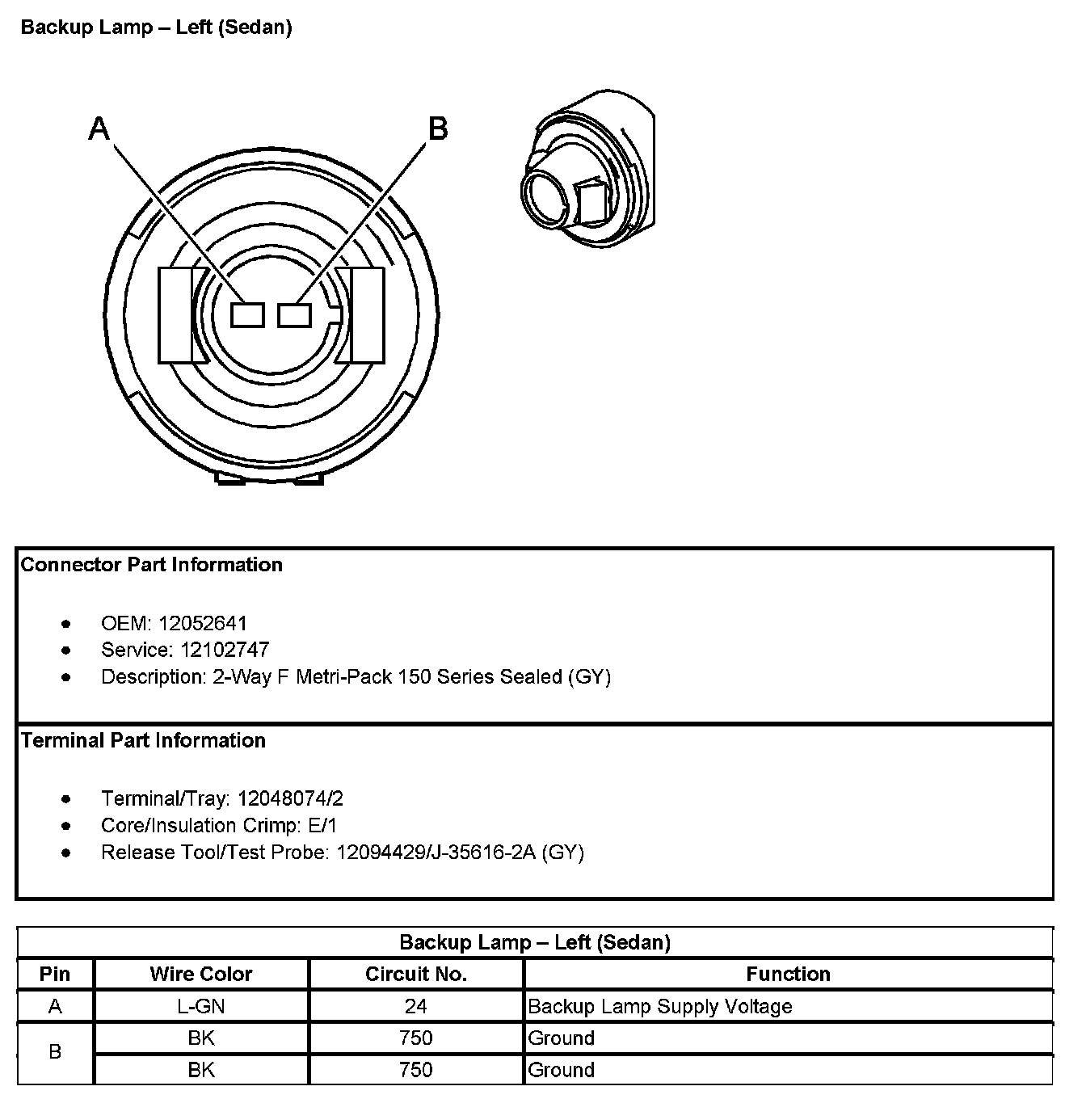

Backup Lamp - Left (Sedan):

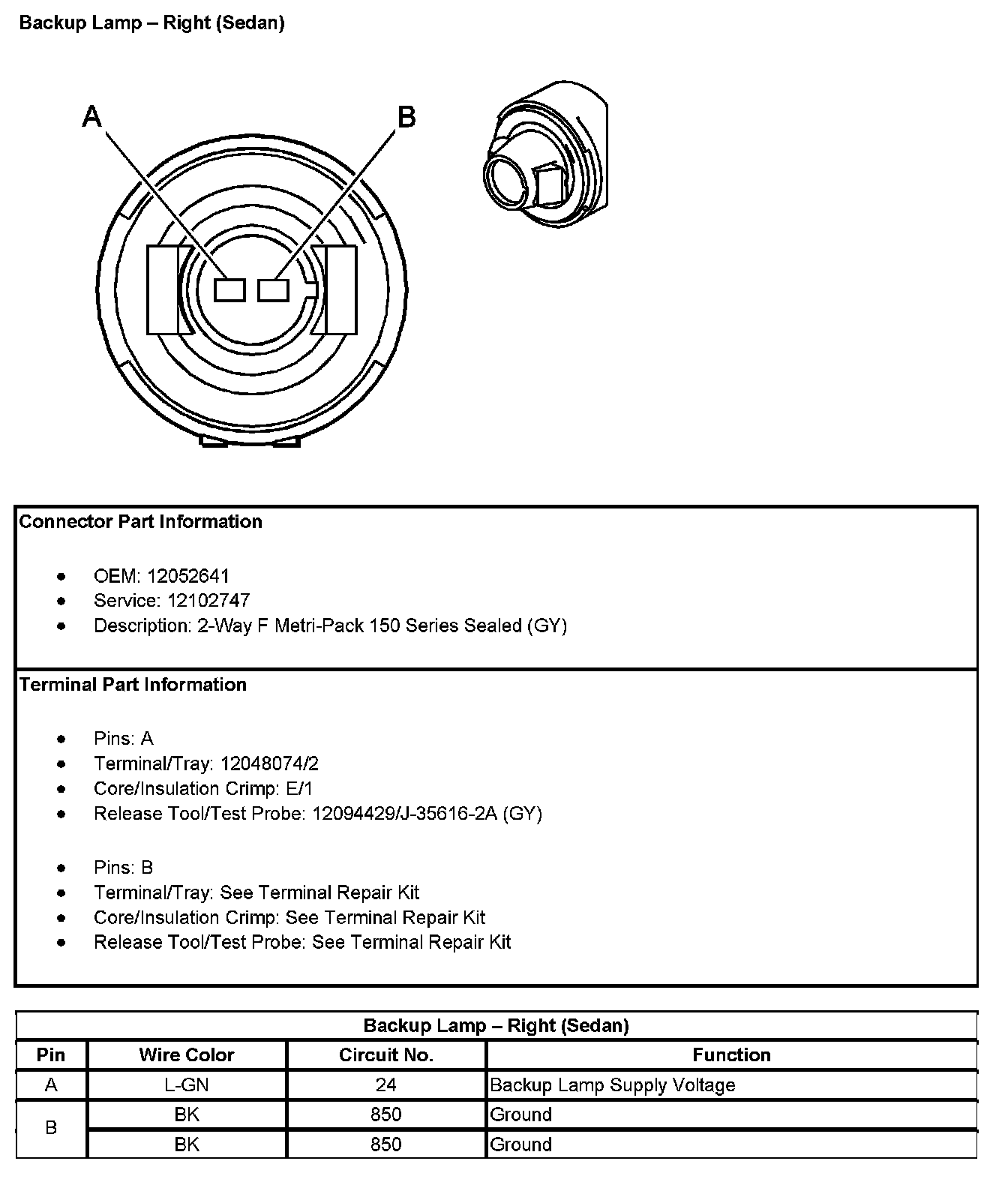

Backup Lamp - Right (Sedan):
