Power Door Lock Switch

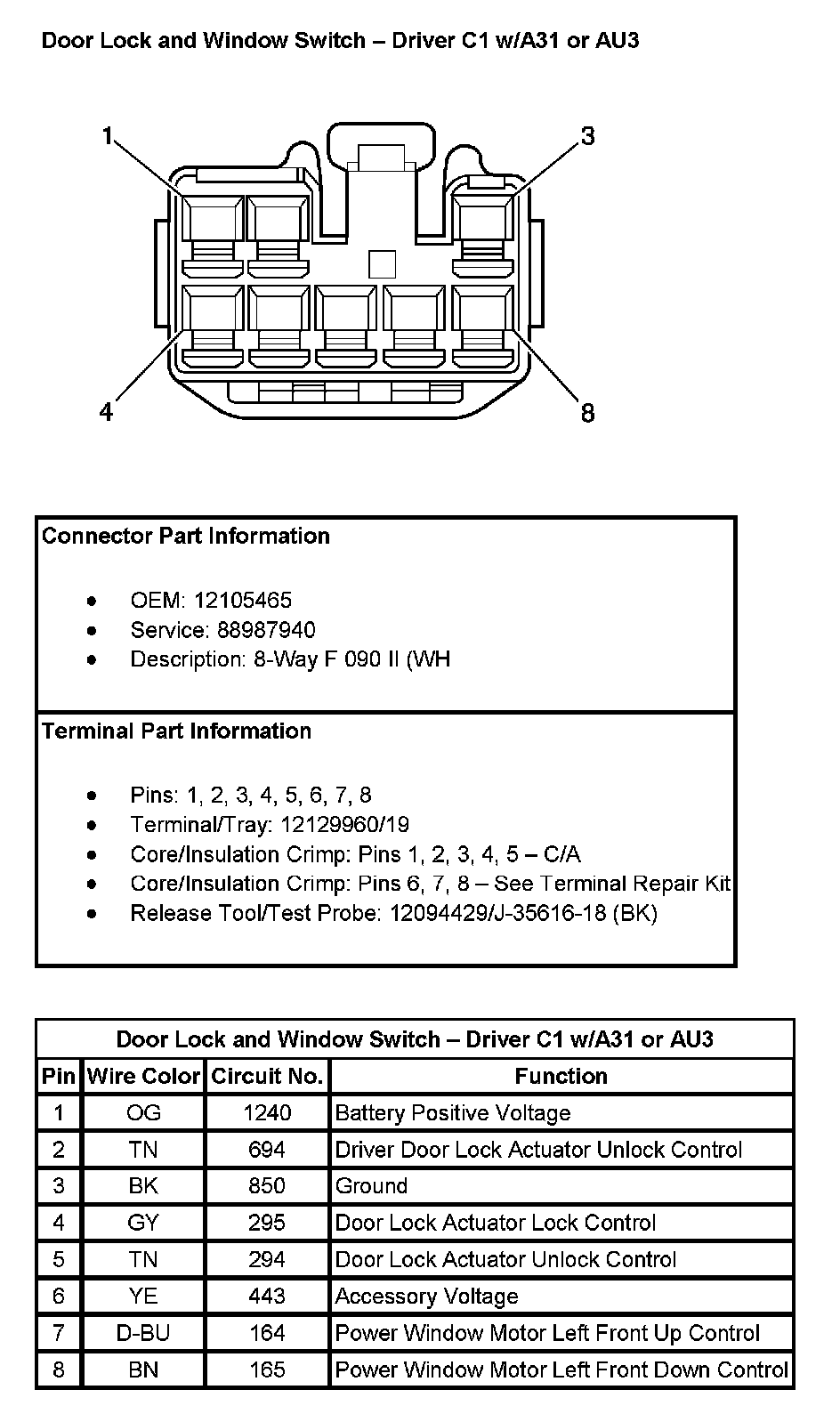

Door Lock And Window Switch - Driver C1 (With RPO Code A31 Or AU3):

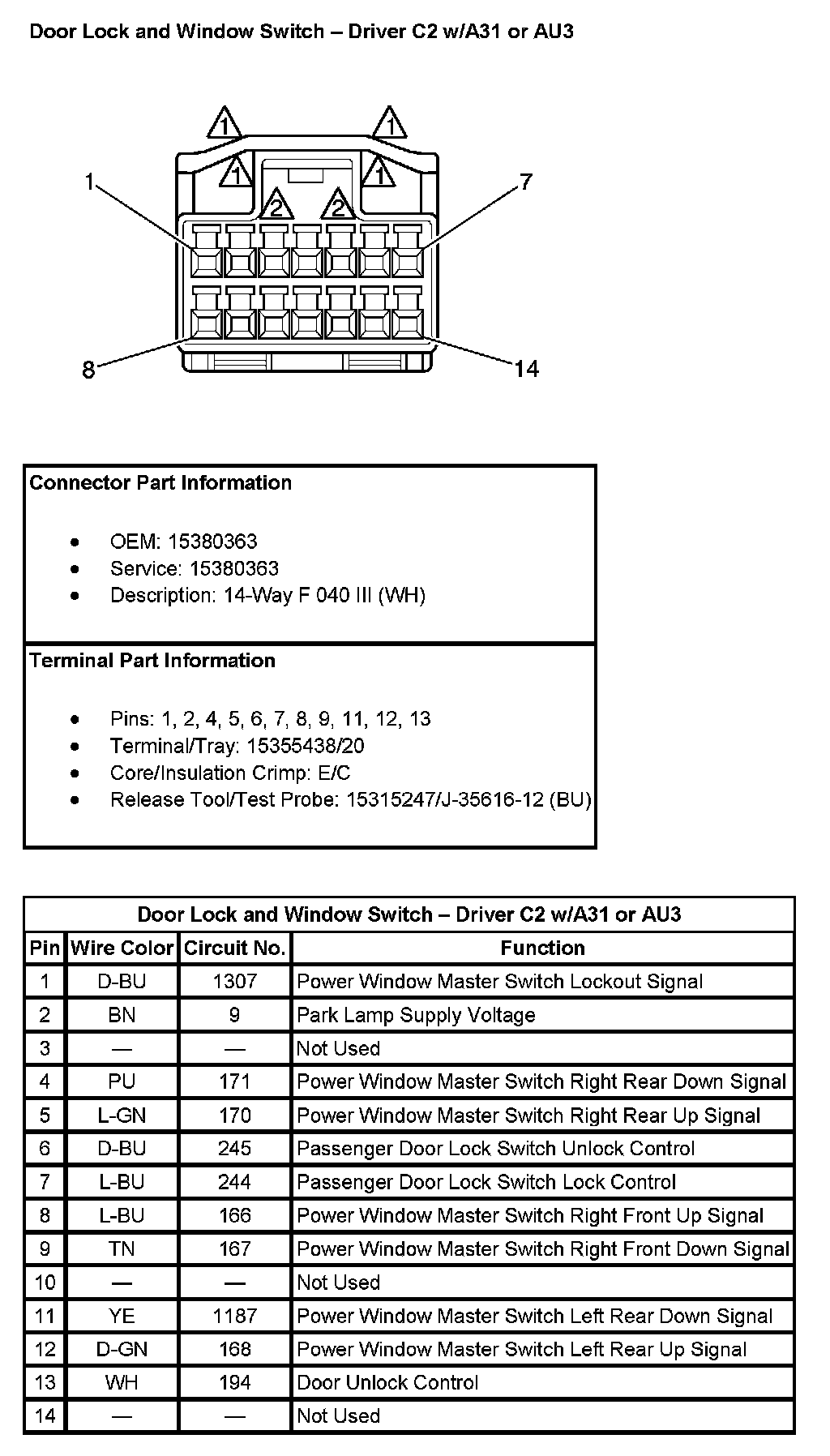

Door Lock And Window Switch - Driver C2 (With RPO Code A31 Or AU3):

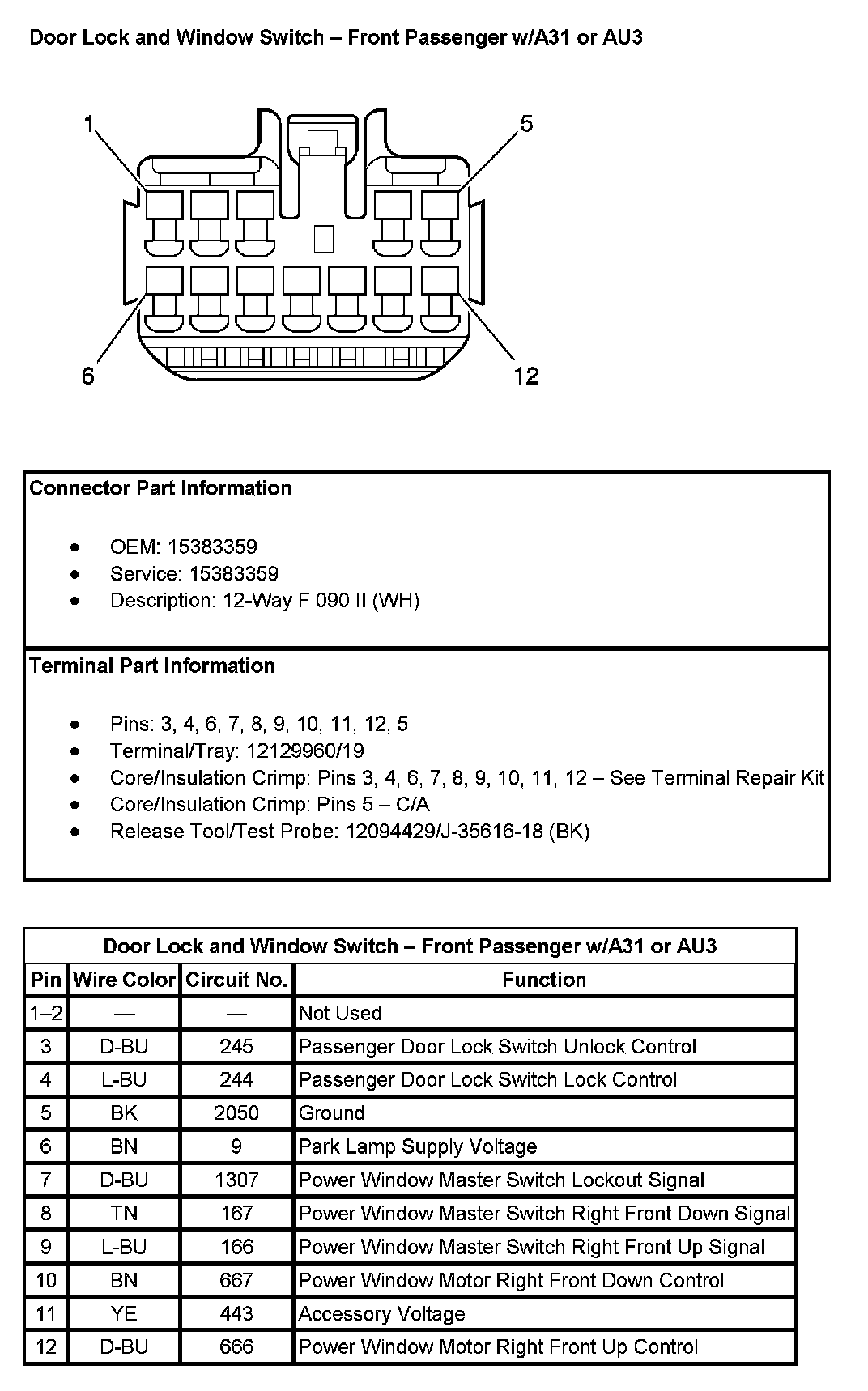

Door Lock And Window Switch - Front Passenger (With RPO Code A31 Or AU3):
