Turn Signal Lamp

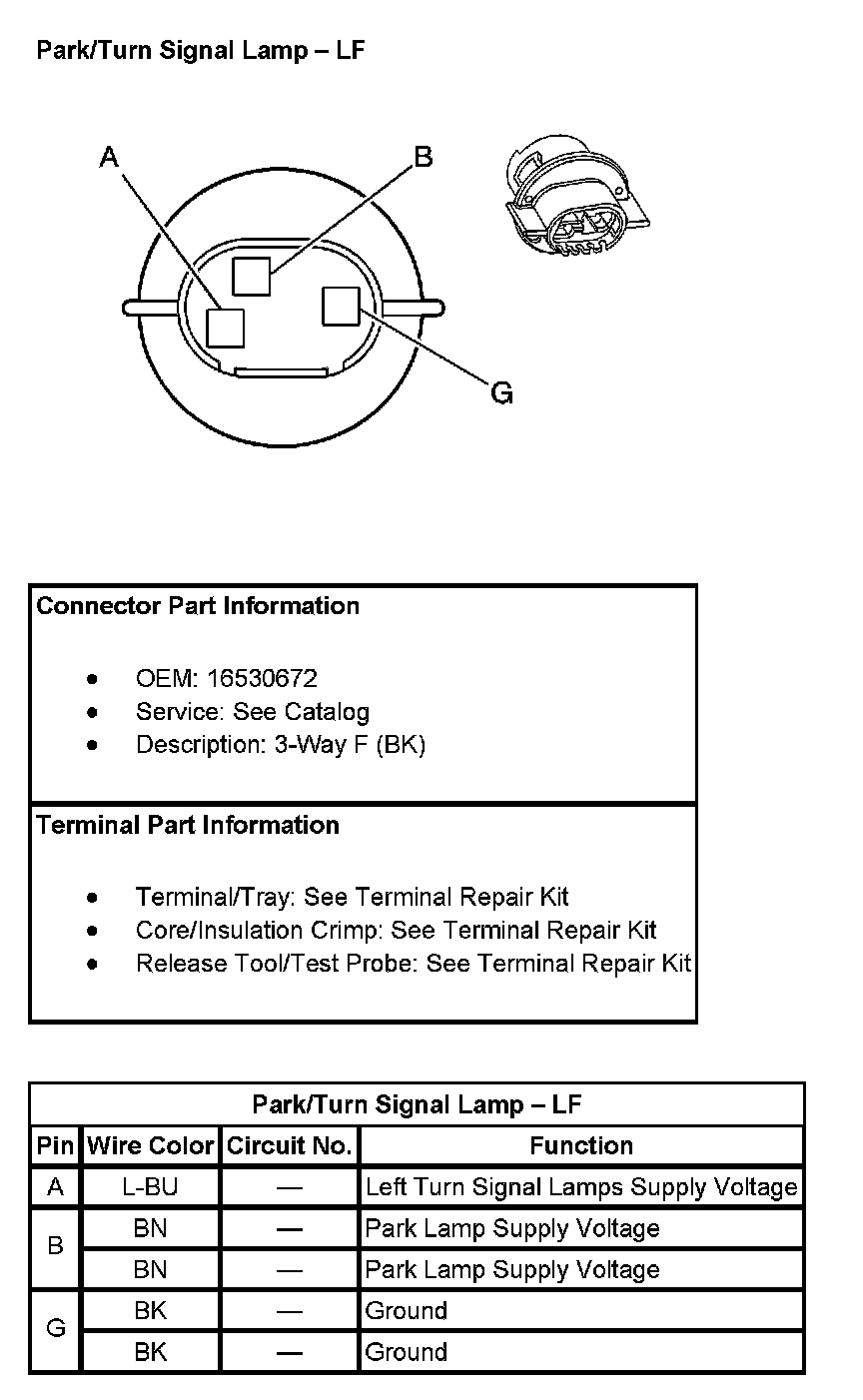

Park/Turn Signal Lamp - LF:

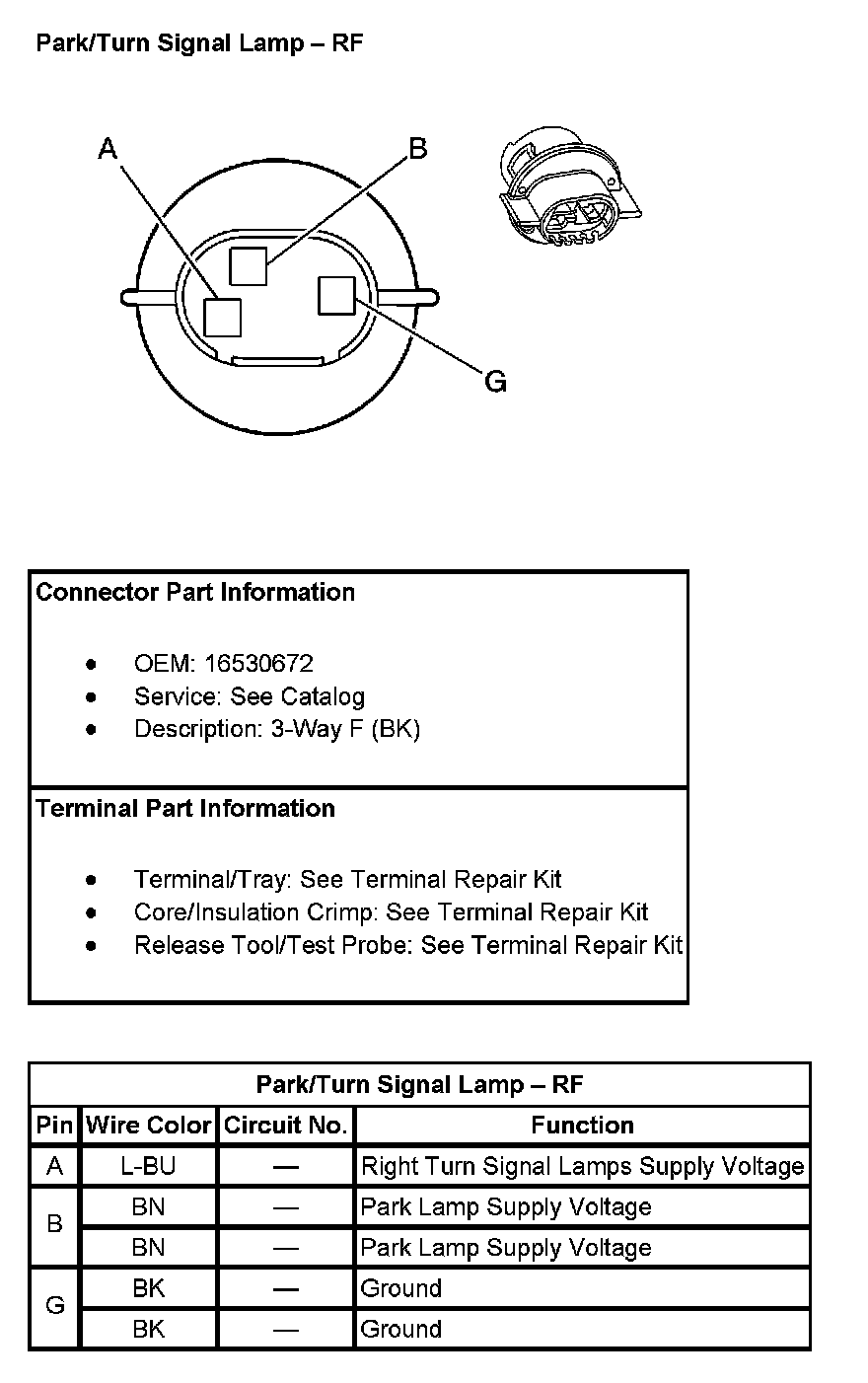

Park/Turn Signal Lamp - RF:

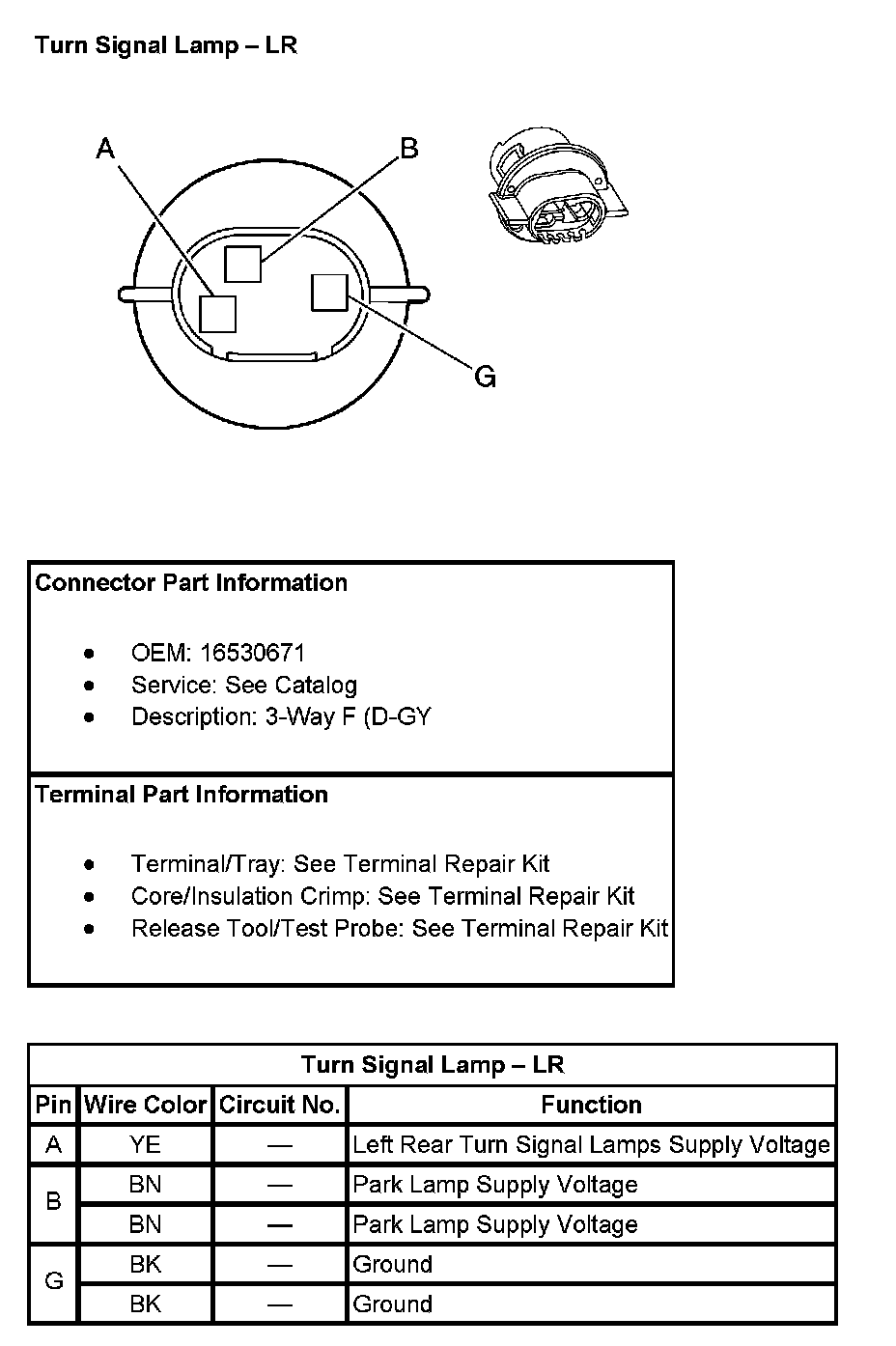

Turn Signal Lamp - LR:

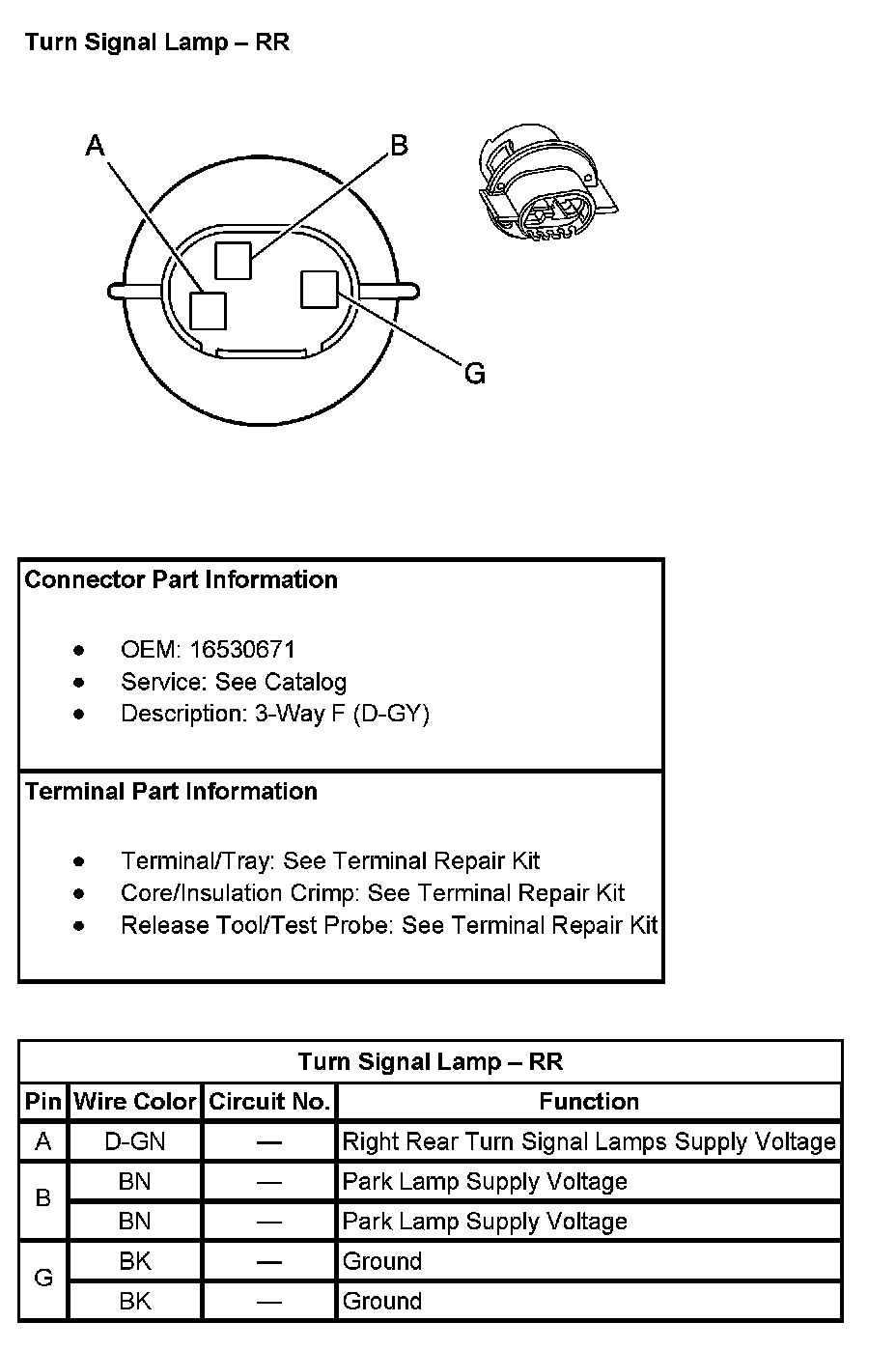

Turn Signal Lamp - RR:
