Power Steering Pump

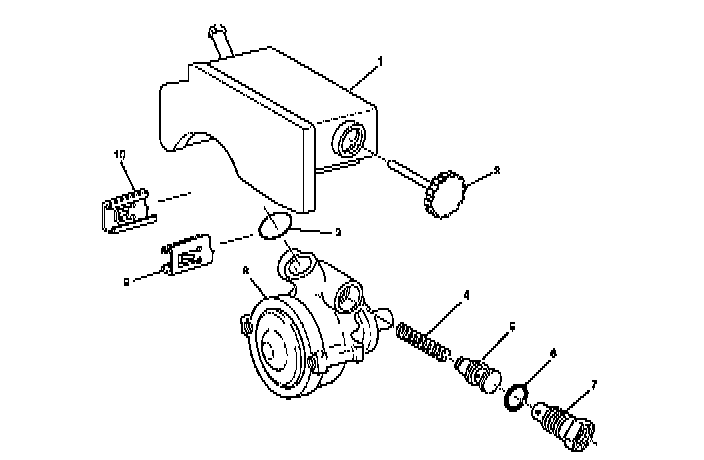

Power Steering Pump Disassembled View

Power Steering Pump:

1 - Hydraulic Pump Reservoir Assembly (Typical)
2 - Reservoir Capstick Assembly
3 - O-Ring Seal
4 - Flow Control Spring
5 - Control Valve Assembly
6 - O-Ring Seal
7 - O-Ring Union Fitting
8 - Hydraulic Pump Housing Assembly
9 - Reservoir Retaining Clip (RH)
10 - Reservoir Retaining Clip (LH)
