Air Flow Meter/Sensor: Locations

Engine Controls Component Views

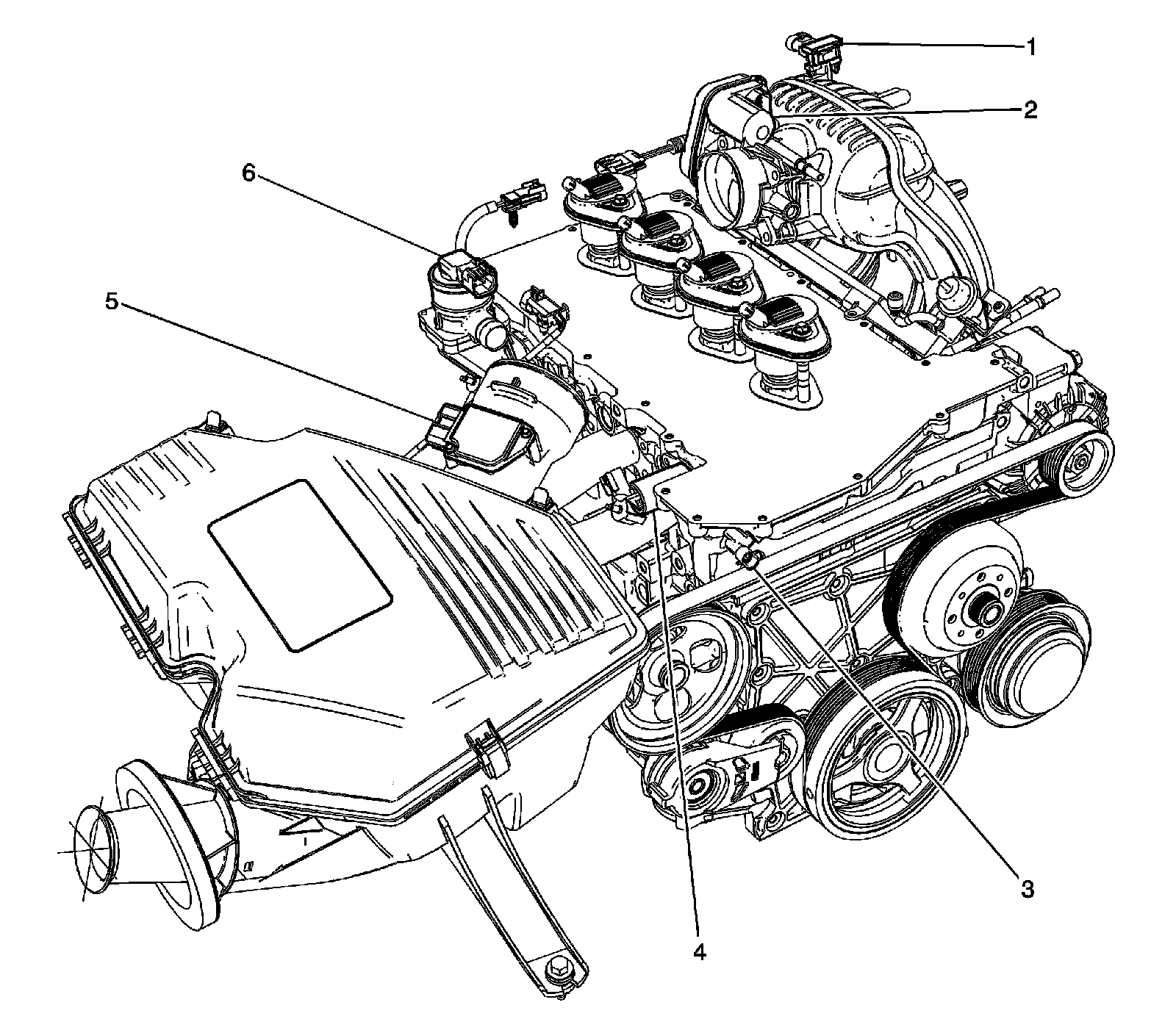

Engine Controls Components 3 of 5




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body
3 - Camshaft Position (CMP) Sensor
4 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust
5 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
6 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector
