Knock Sensor: Locations

Engine Controls Component Views

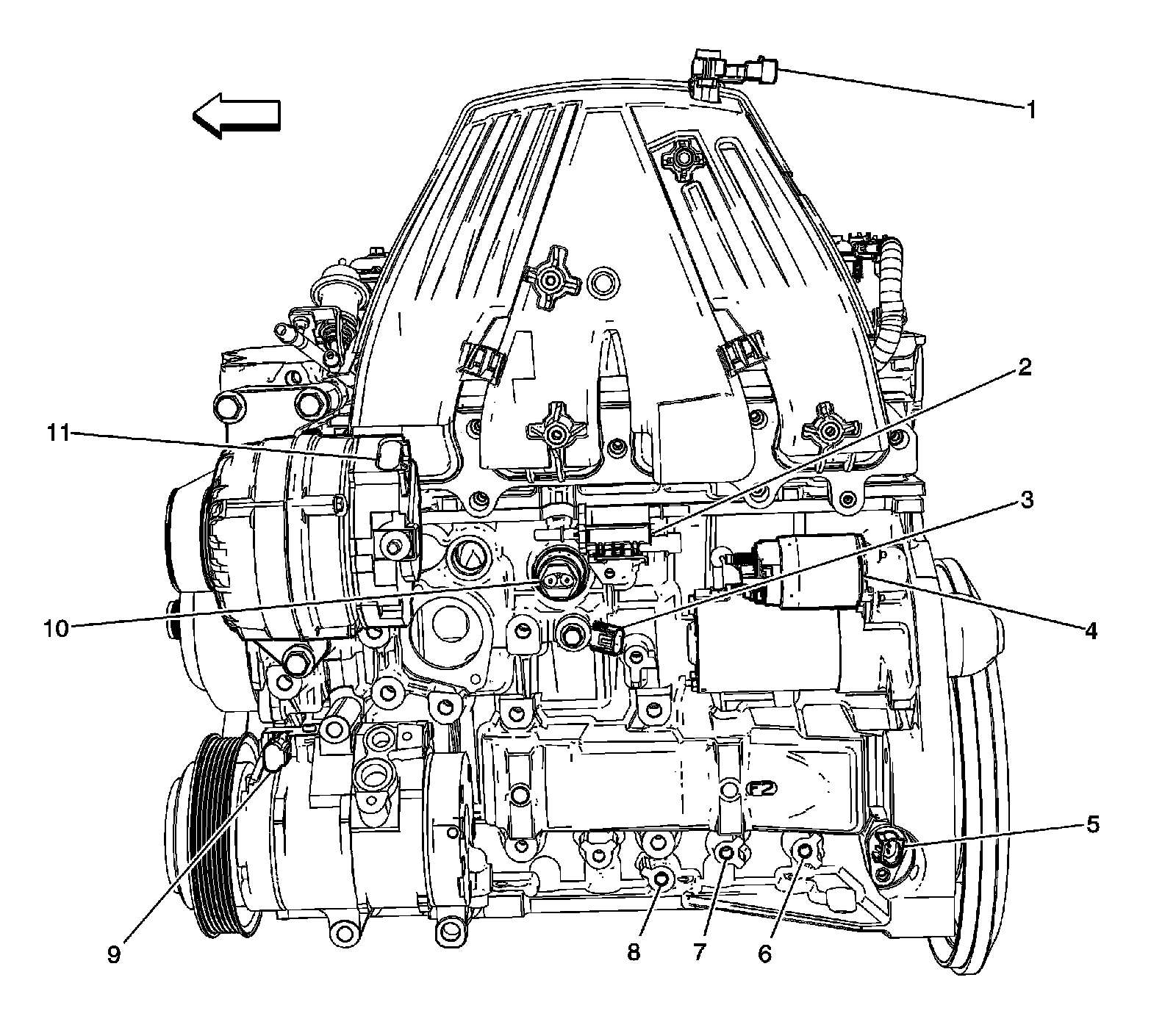

Engine Controls Components 2 of 5




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Knock Sensor
4 - Starter
5 - Crankshaft Position (CKP) Sensor
6 - G102
7 - G103
8 - G101
9 - A/C Compressor Clutch (C60)
10 - Engine Block Heater
11 - Generator
