Main Relay (Computer/Fuel System): Locations

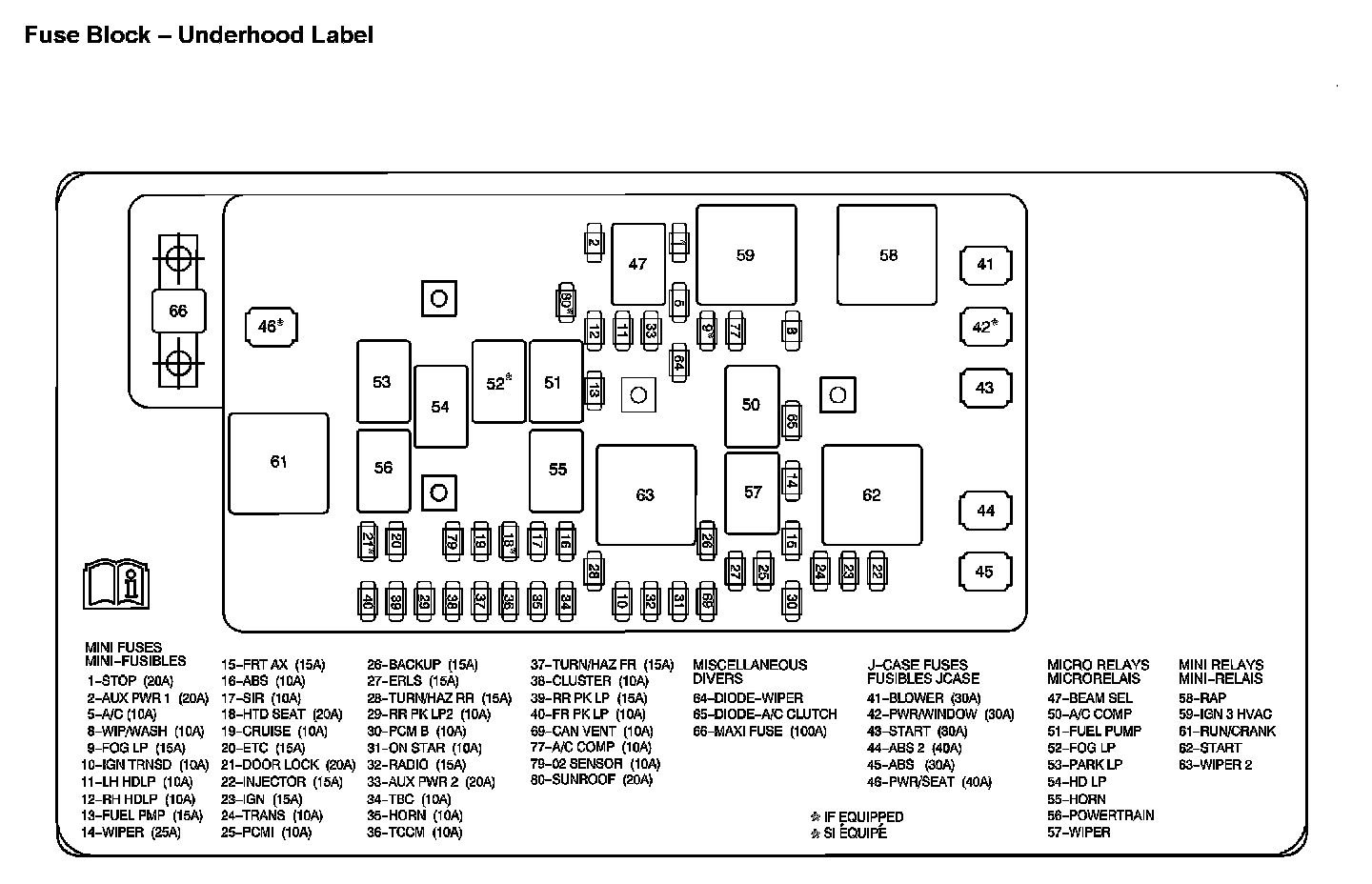

Fuse Block - Underhood Label:

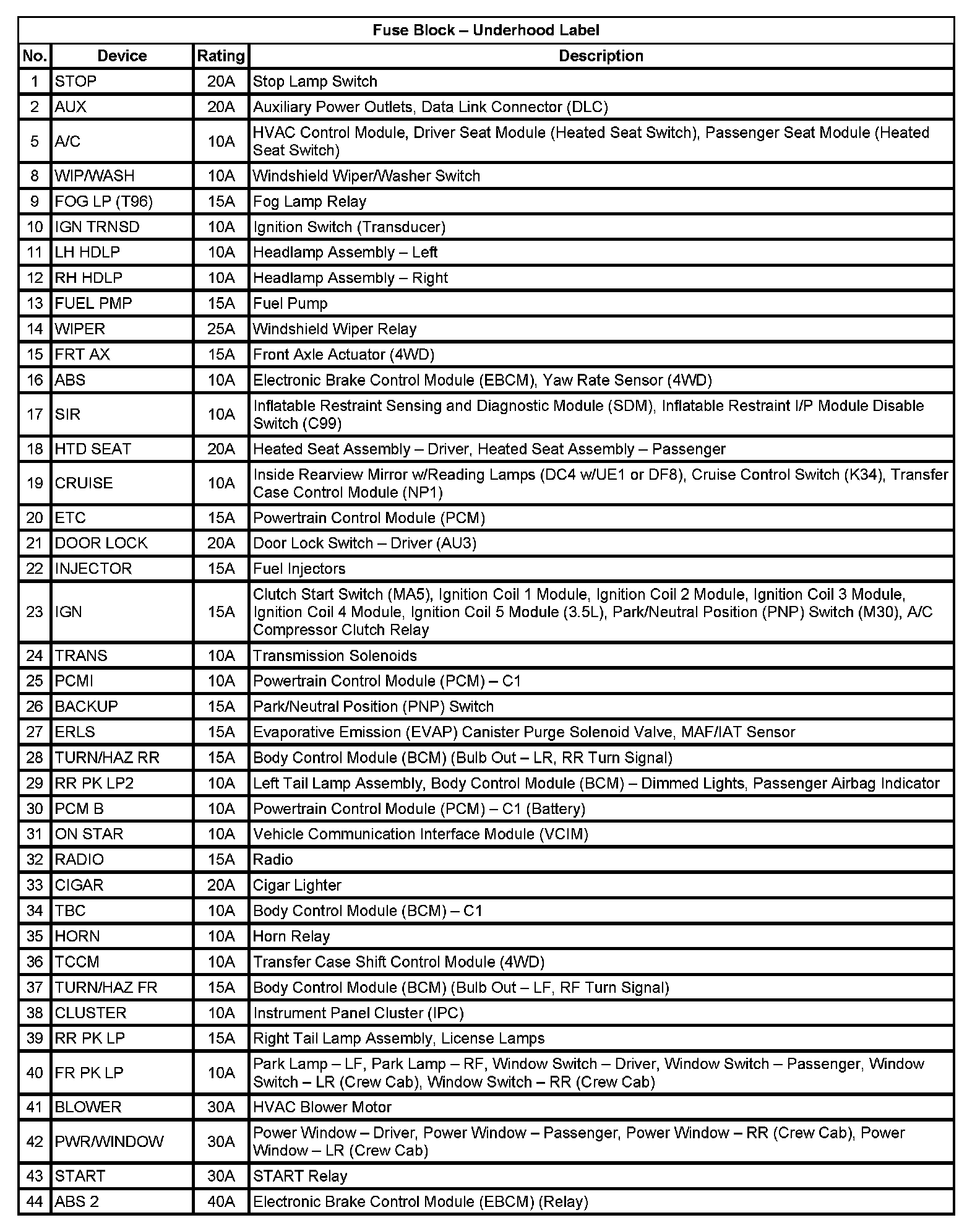

Fuse Block - Underhood Label (Part 1):

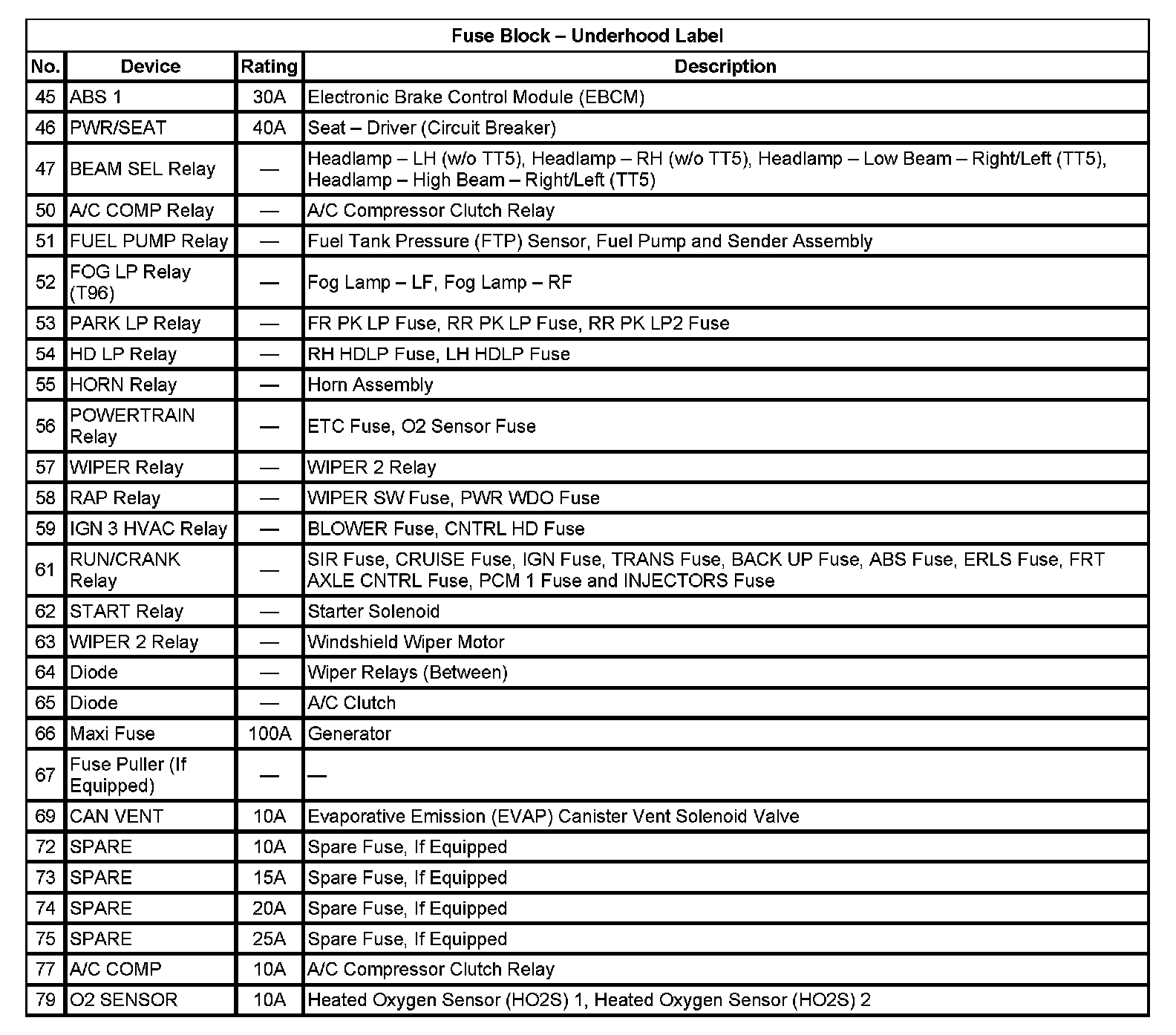

Fuse Block - Underhood Label (Part 2):
