Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.

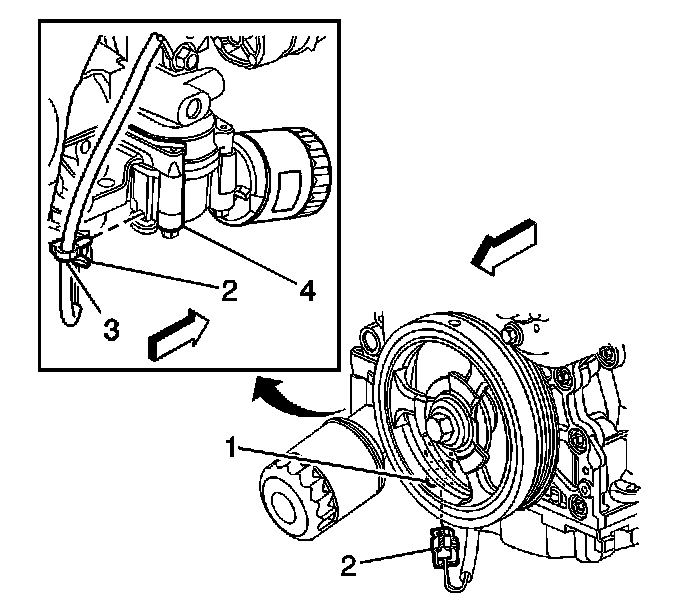

2. Disconnect the engine wiring harness electrical connector (2) from the oil pressure switch (1).




3. Remove the engine oil pressure switch.

Installation Procedure





Notice: Refer to Component Fastener Tightening Notice.

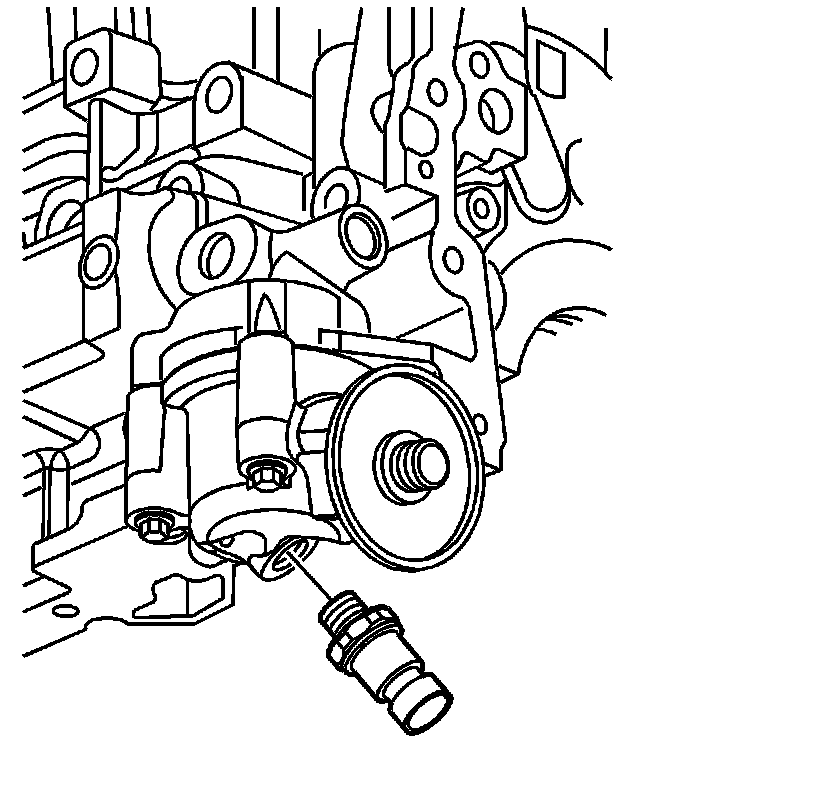

1. Install the engine oil pressure switch.

Tighten the switch to 20 N.m (15 lb ft).




2. Connect the engine wiring harness electrical connector (2) to the oil pressure switch (1).
3. Lower the vehicle.
