Axle Nut

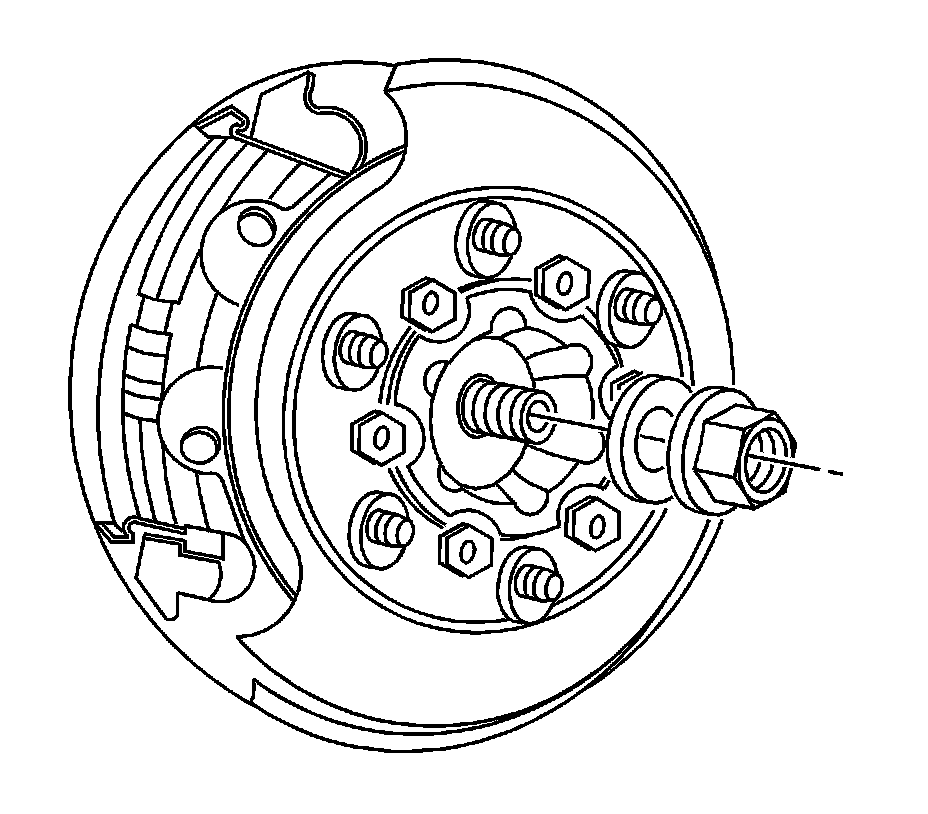

Wheel Drive Shaft Nut





New front wheel drive shaft nut and washer.
Tighten the front wheel drive shaft nut to 260 N.m (191 lb ft).
