Starting and Charging: Locations

Starting and Charging Component Views

Lower Left of the I/P




1 - Body Harness
2 - Clutch Switch (MA5)
3 - Clutch Switch Connector (MA5)
4 - TCC Brake/Cruise Release Switch Connector
5 - Stop Lamp Switch Connector
6 - Stop Lamp Switch
7 - TCC Brake/Cruise Release Switch
8 - Brake Pedal
9 - Clutch Pedal
10 - Clutch Start Switch Connector (MA5)
11 - Clutch Start Switch (MA5)

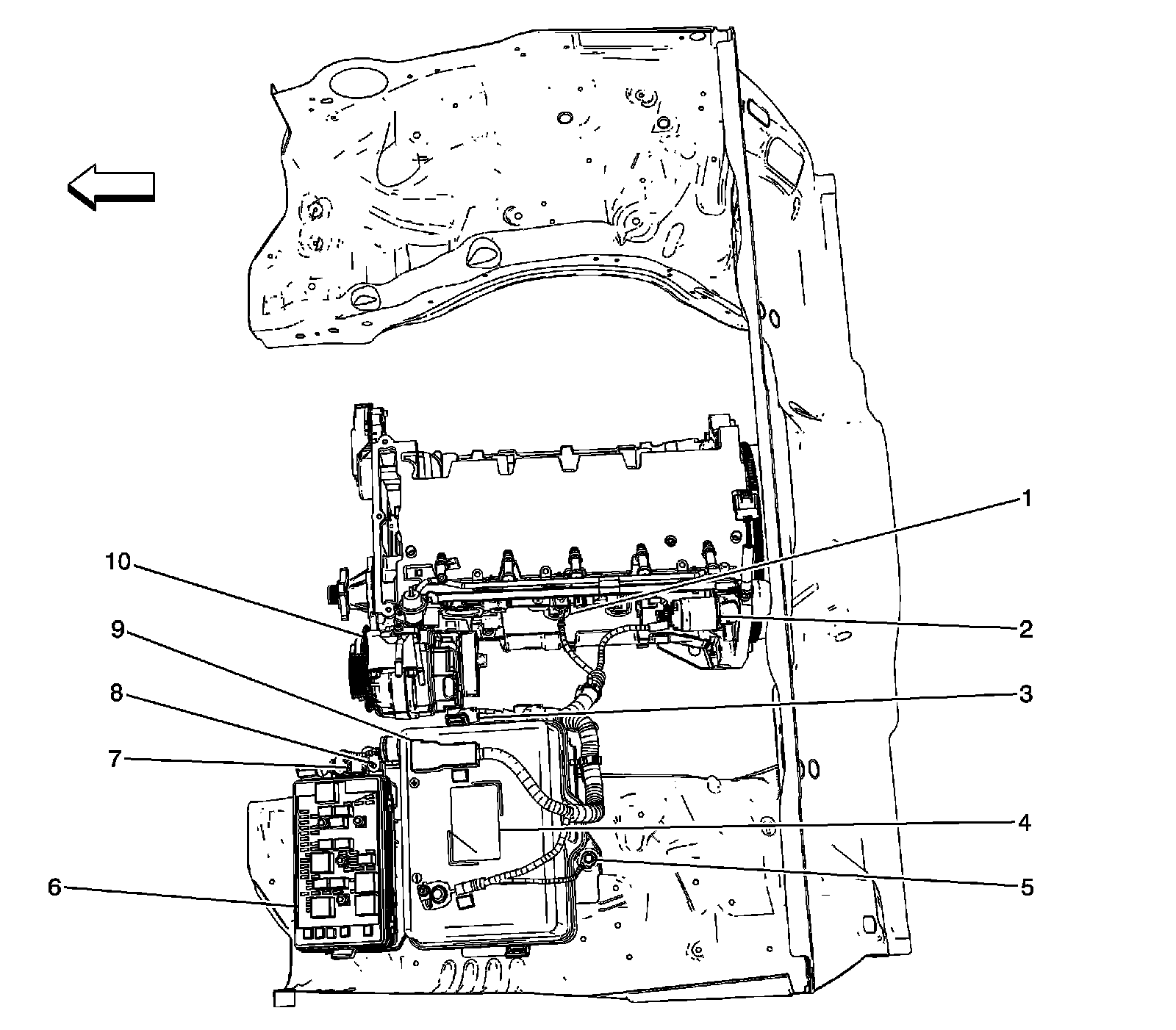

Engine Electrical Components




1 - G104
2 - Starter Solenoid
3 - Generator Positive Voltage Connector
4 - Battery
5 - G100
6 - Fuse Block - Underhood
7 - Ring Terminal Battery
8 - Ring Terminal Generator
9 - Battery Positive Terminal
10 - Generator
