Fuse Block

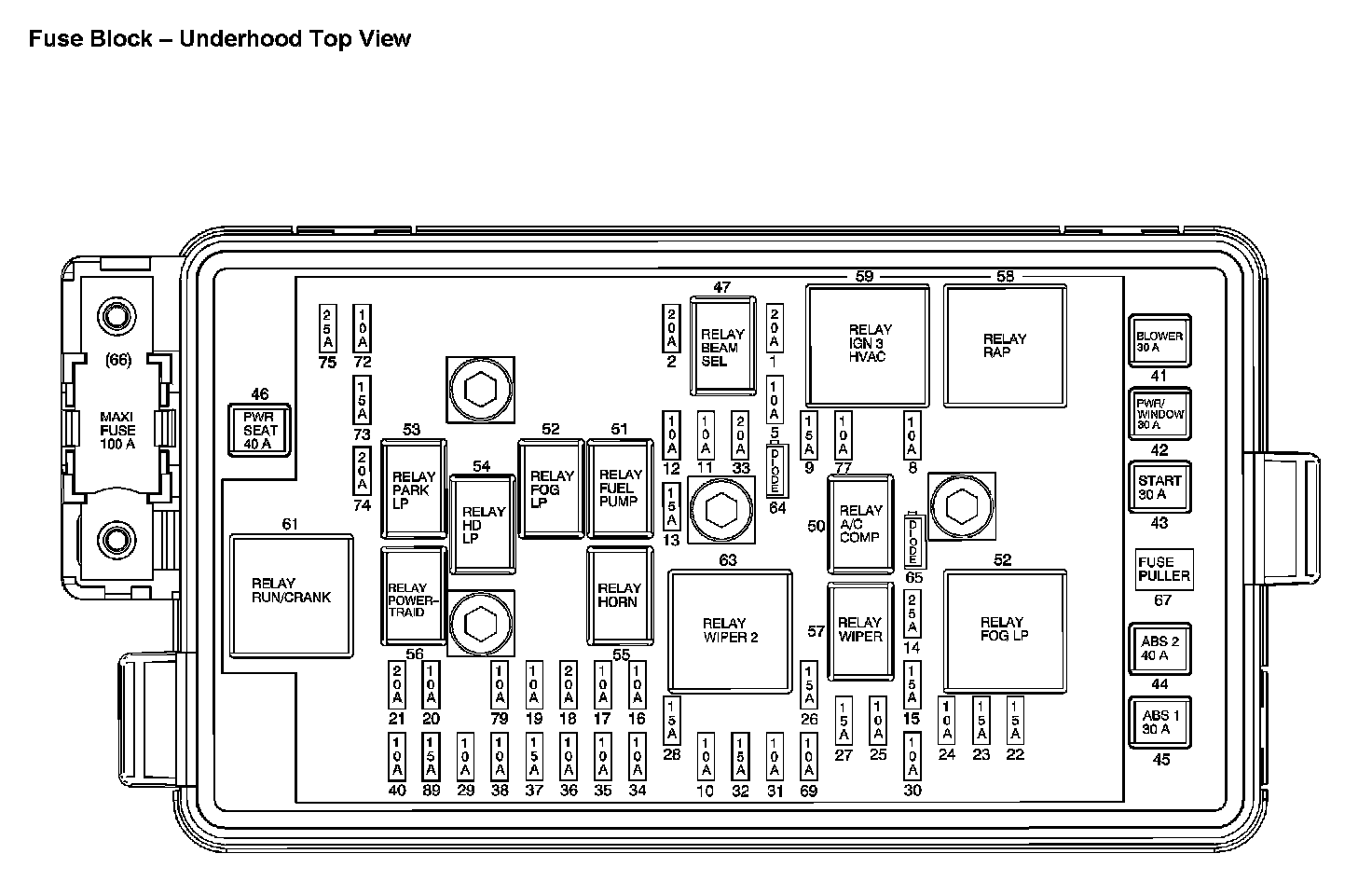

Fuse Block - Underhood Top View:

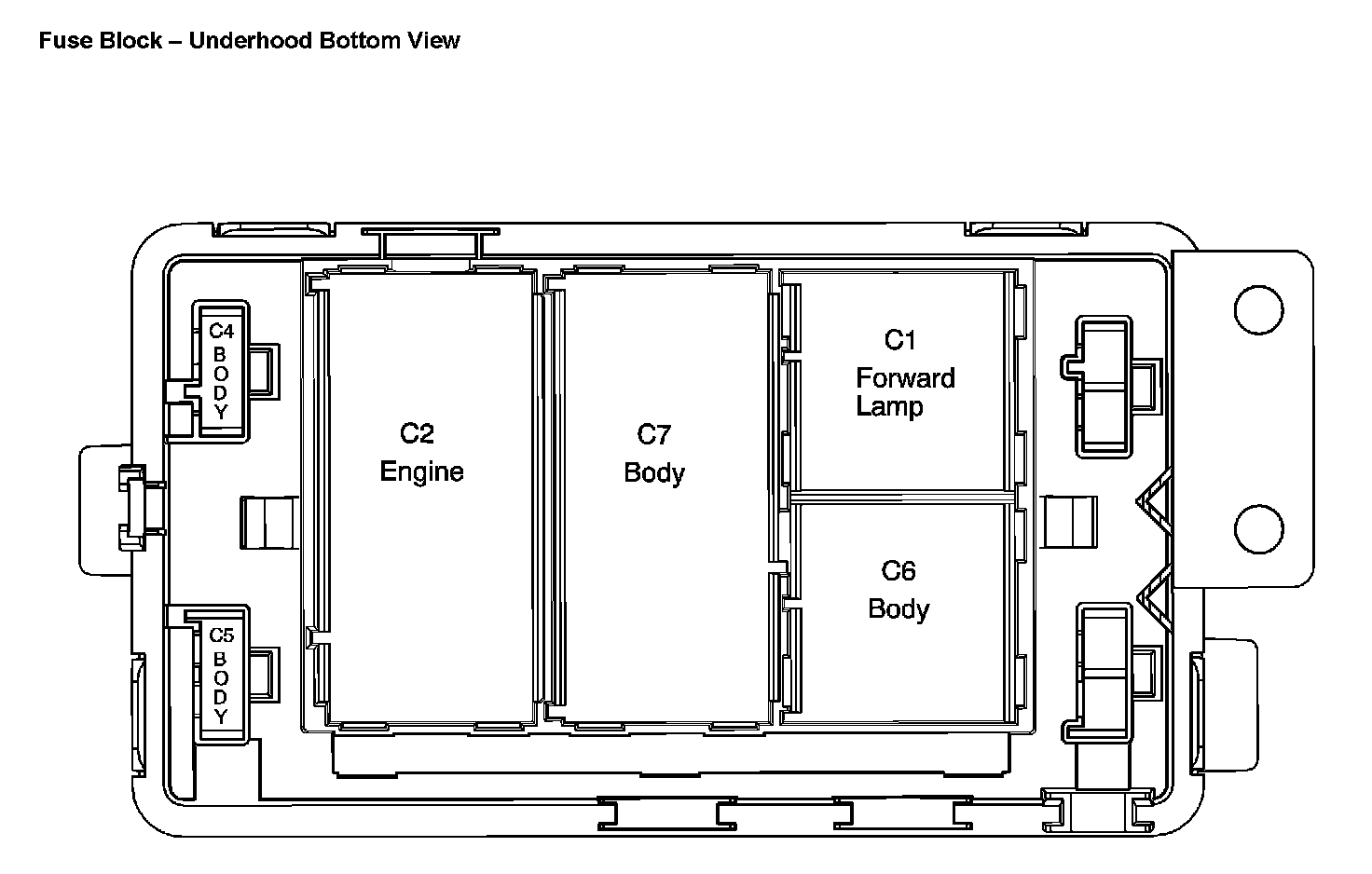

Fuse Block - Underhood Bottom View:

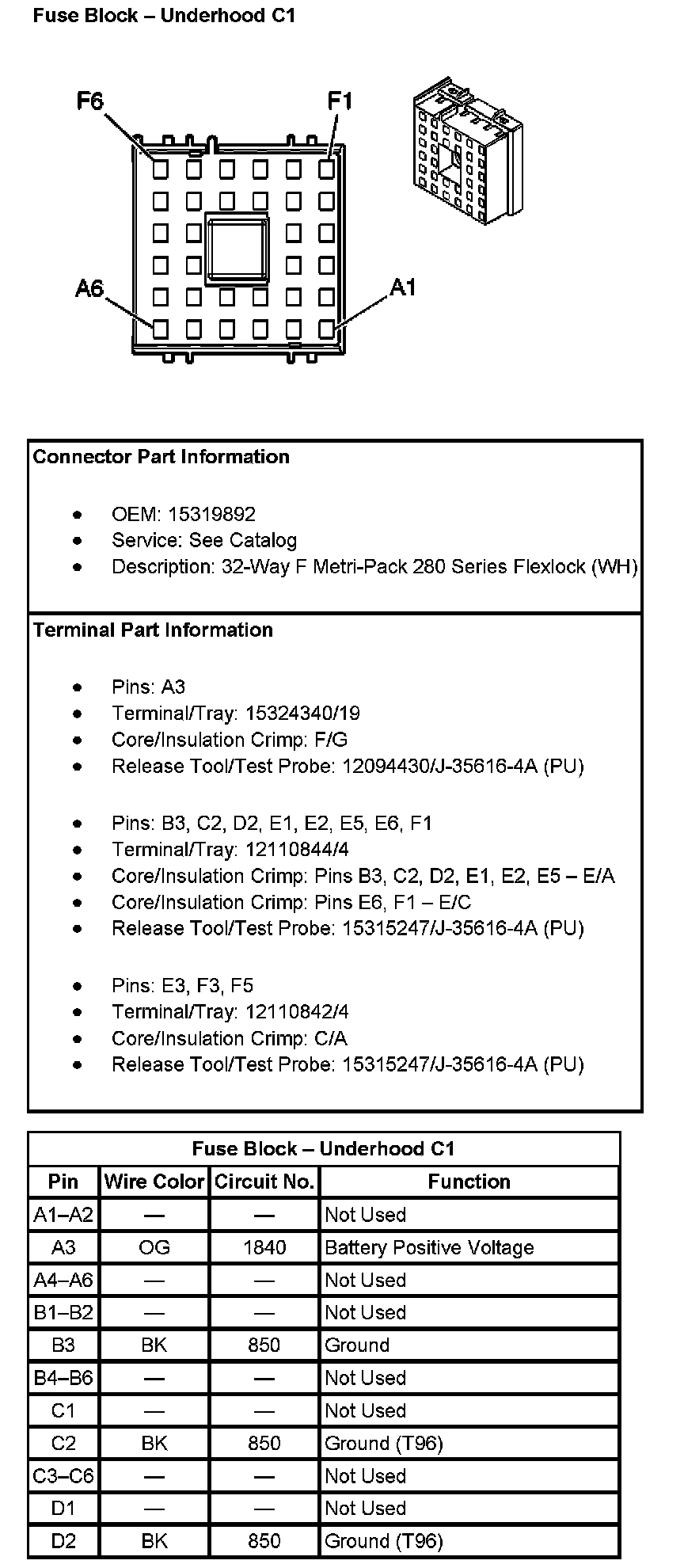

Fuse Block - Underhood C1 (Pin A1 To D2):

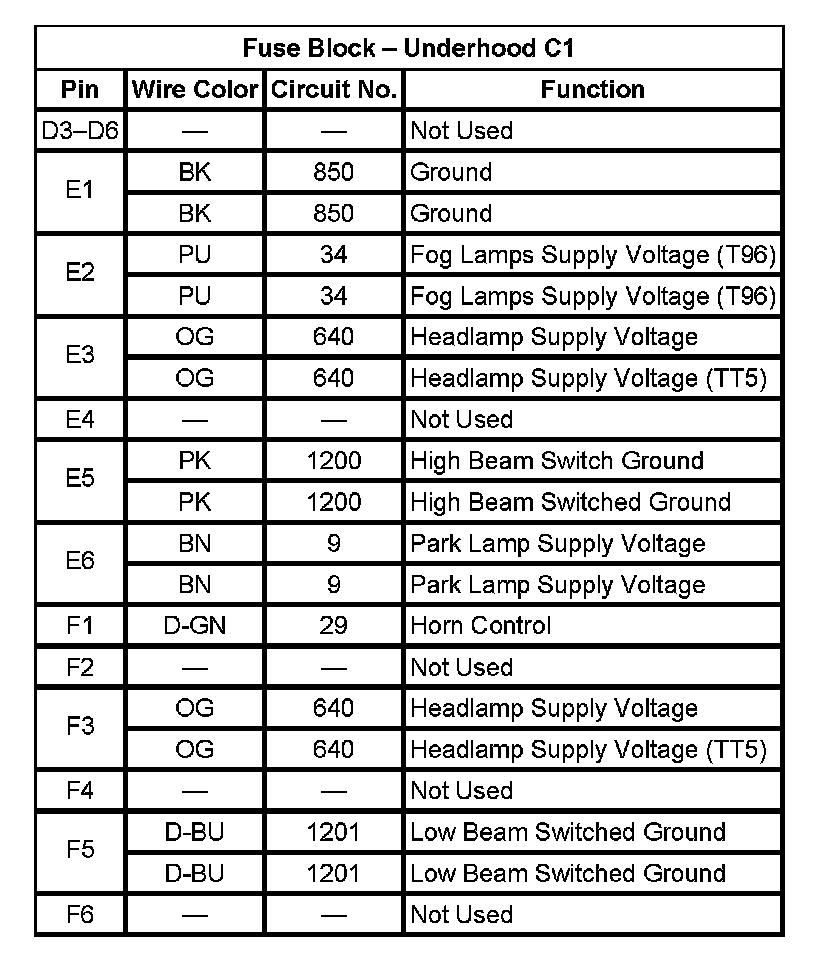

Fuse Block - Underhood C1 (Pin D3 To F6):

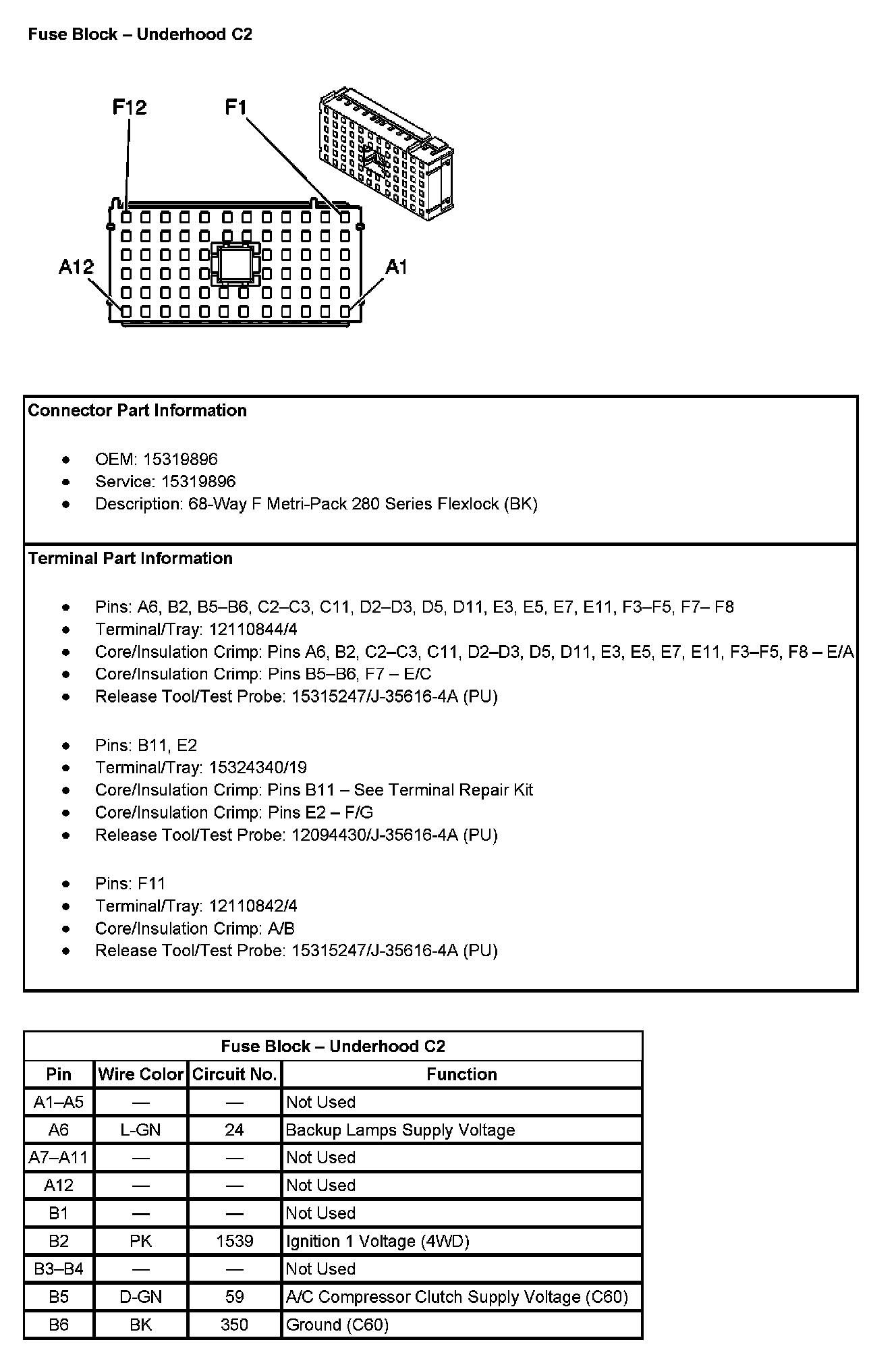

Fuse Block - Underhood C2 (Pin A1 To B6):

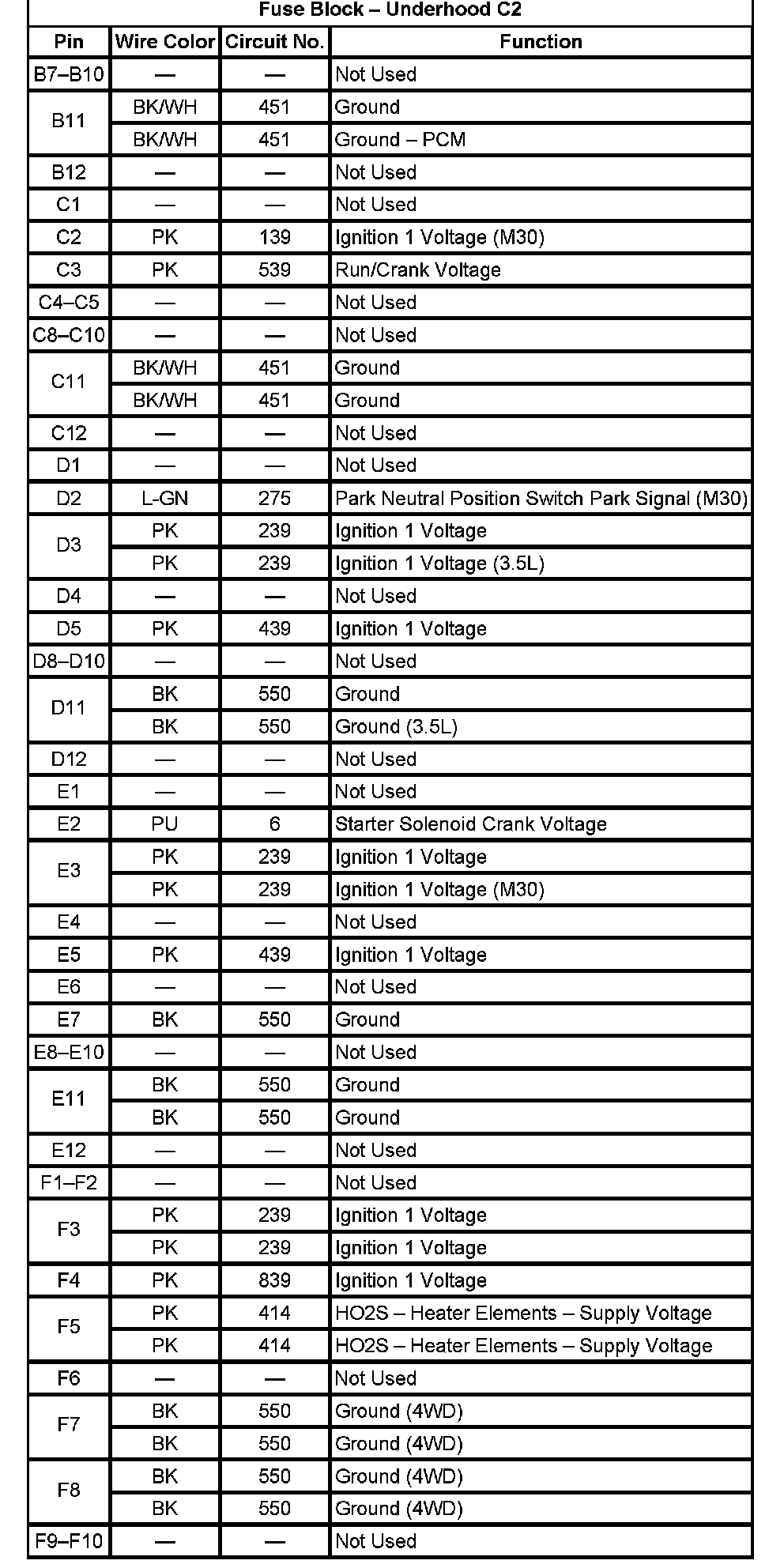

Fuse Block - Underhood C2 (Pin B7 To F10):

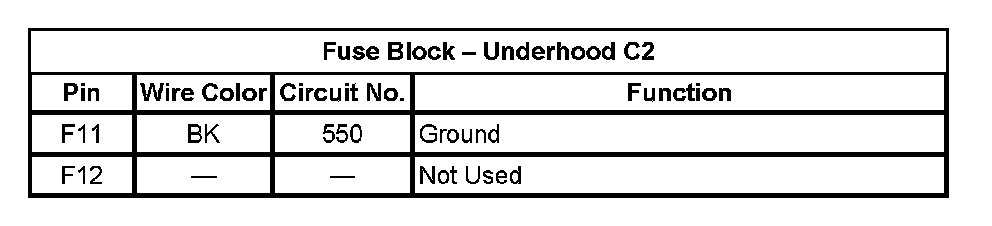

Fuse Block - Underhood C2 (Pin F11 To F12):

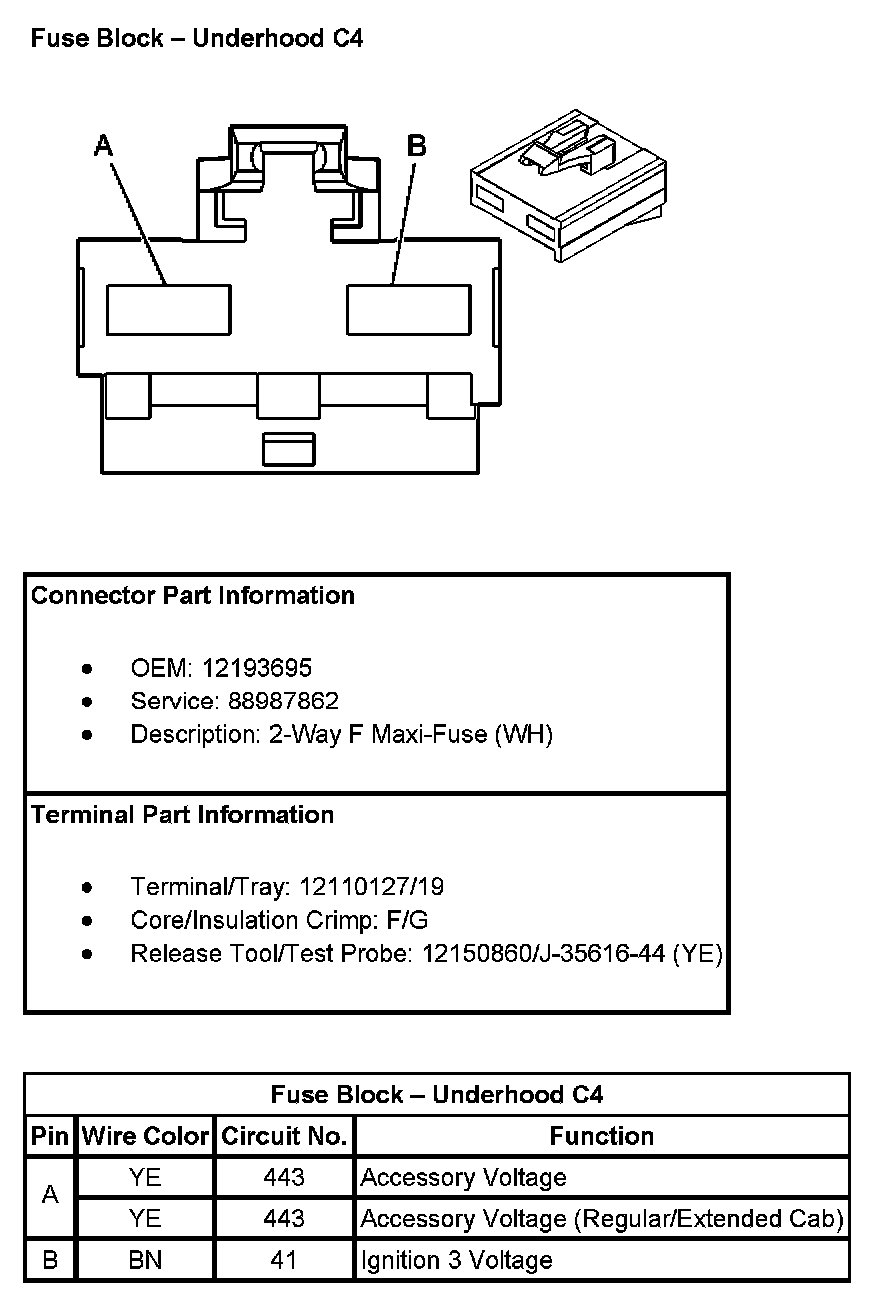

Fuse Block - Underhood C4:

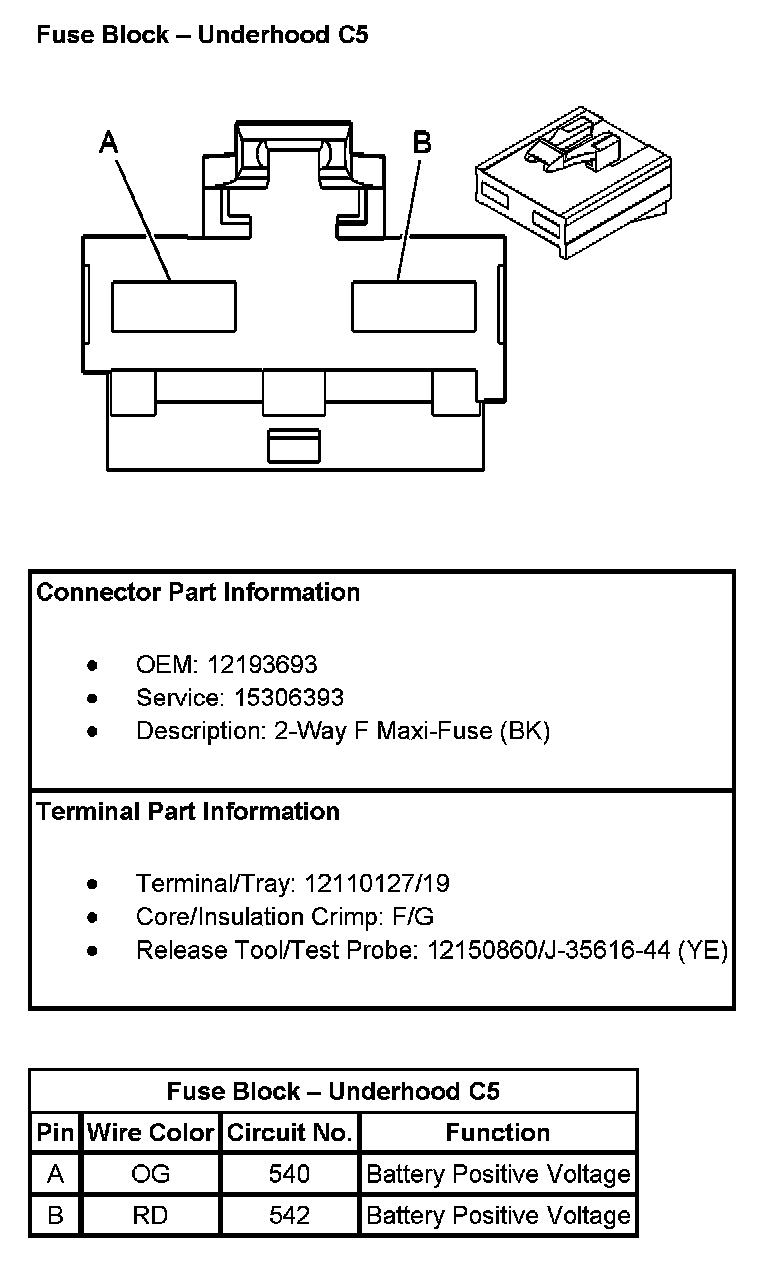

Fuse Block - Underhood C5:

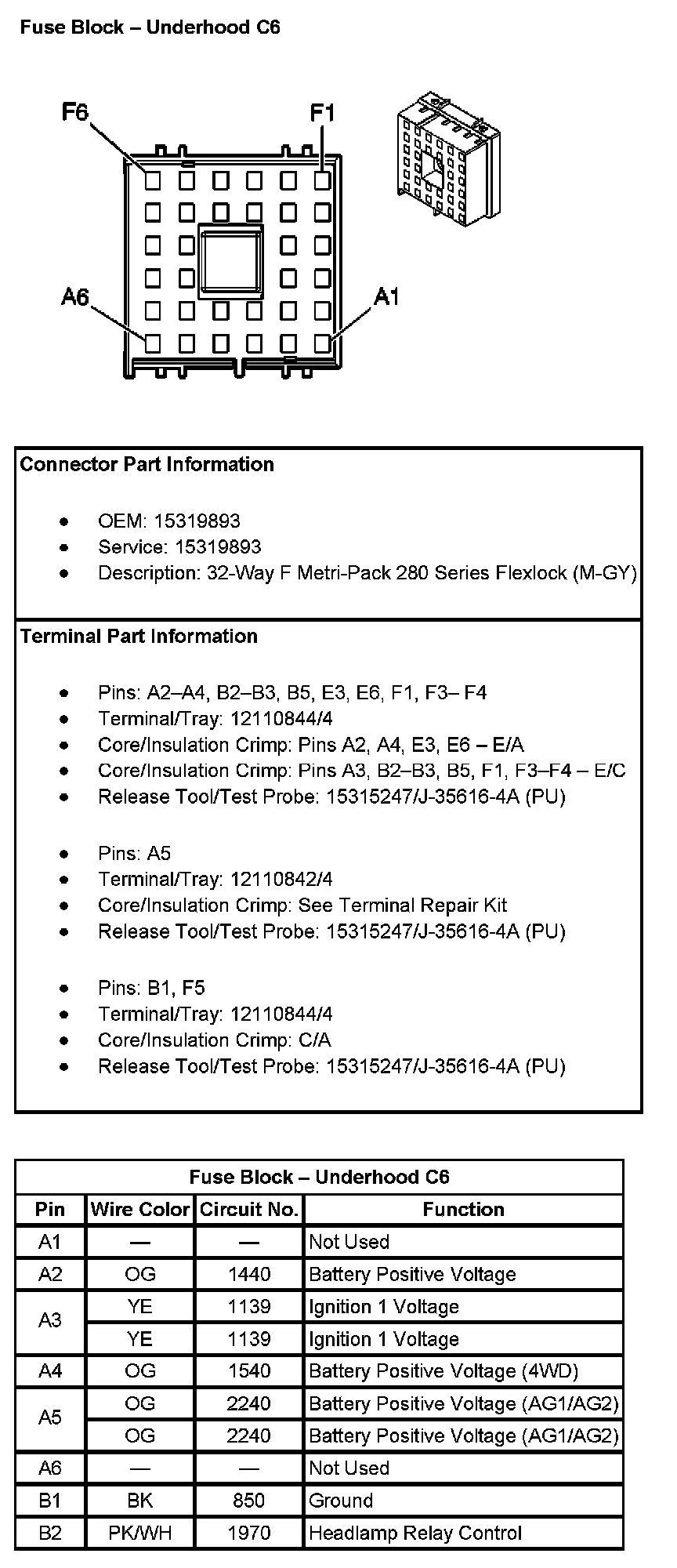

Fuse Block - Underhood C6 (Pin A1 To B2):

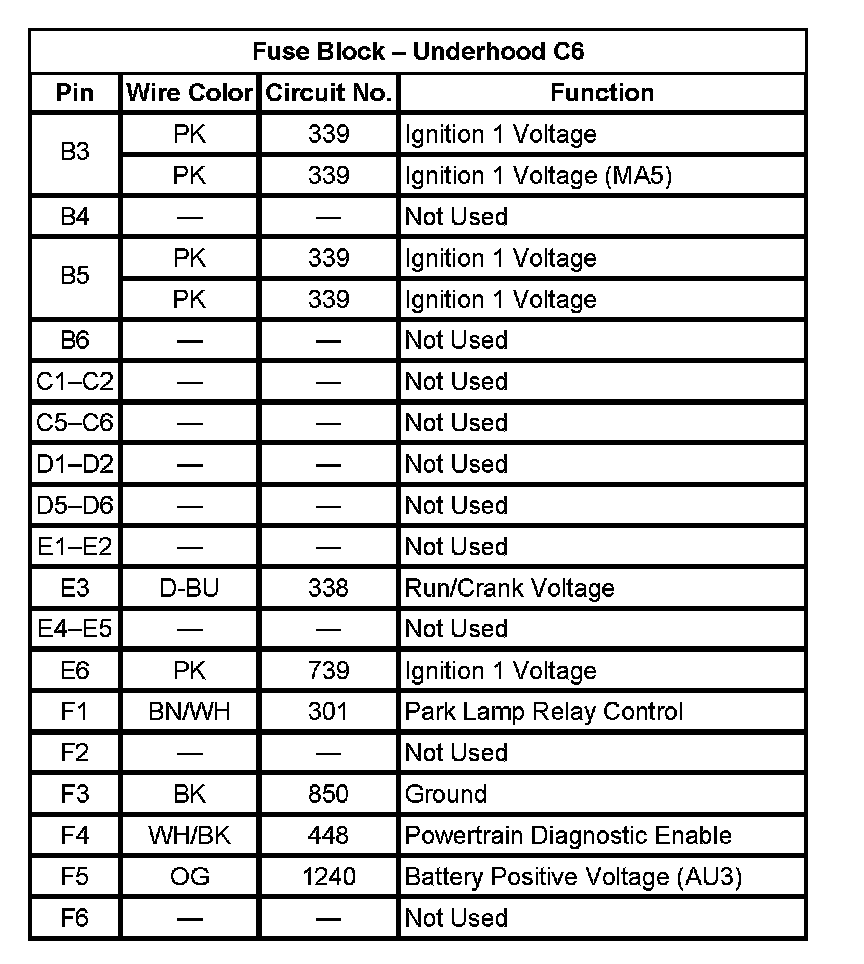

Fuse Block - Underhood C6 (Pin B3 To F6):

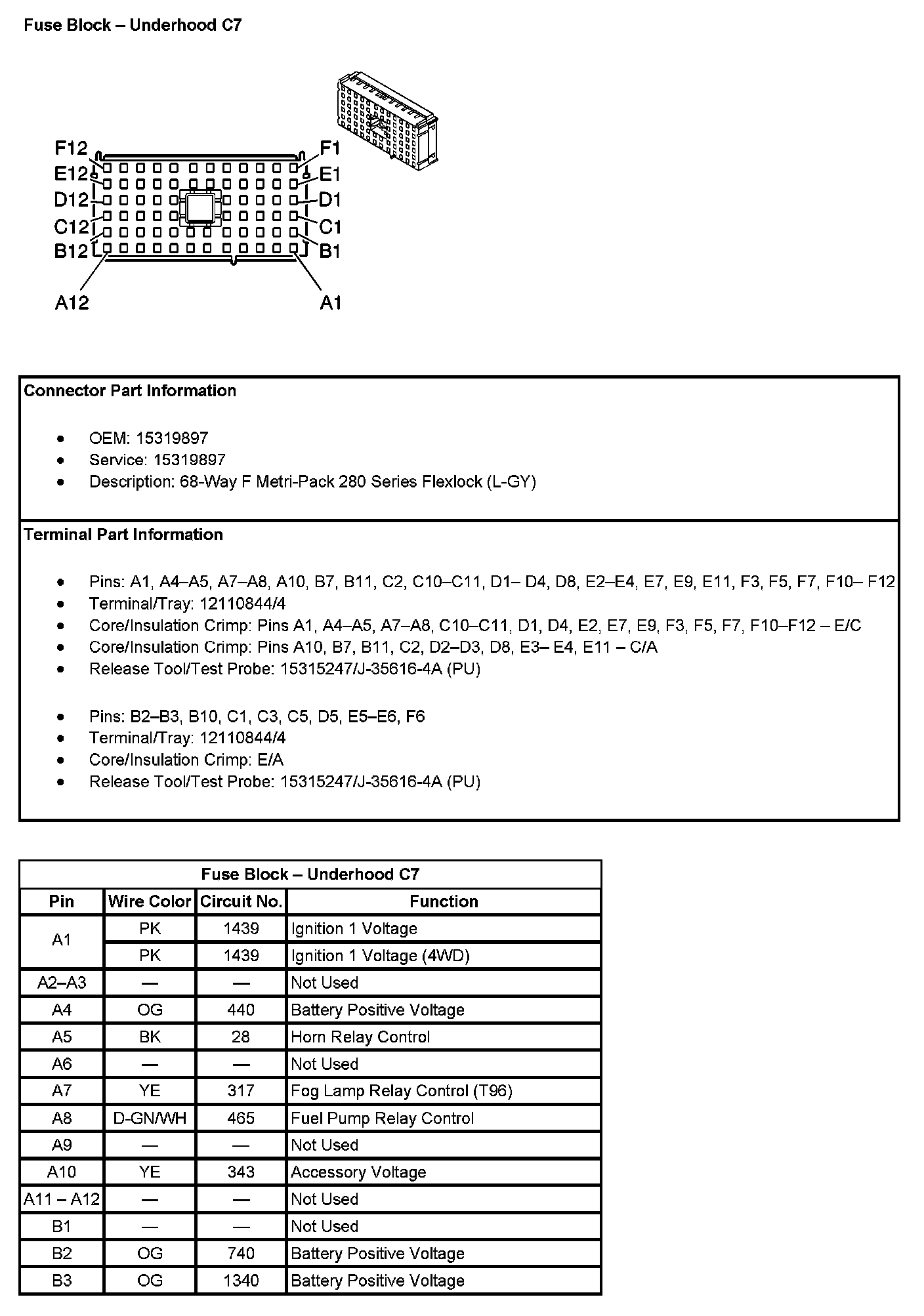

Fuse Block - Underhood C7 (Pin A1 To B3):

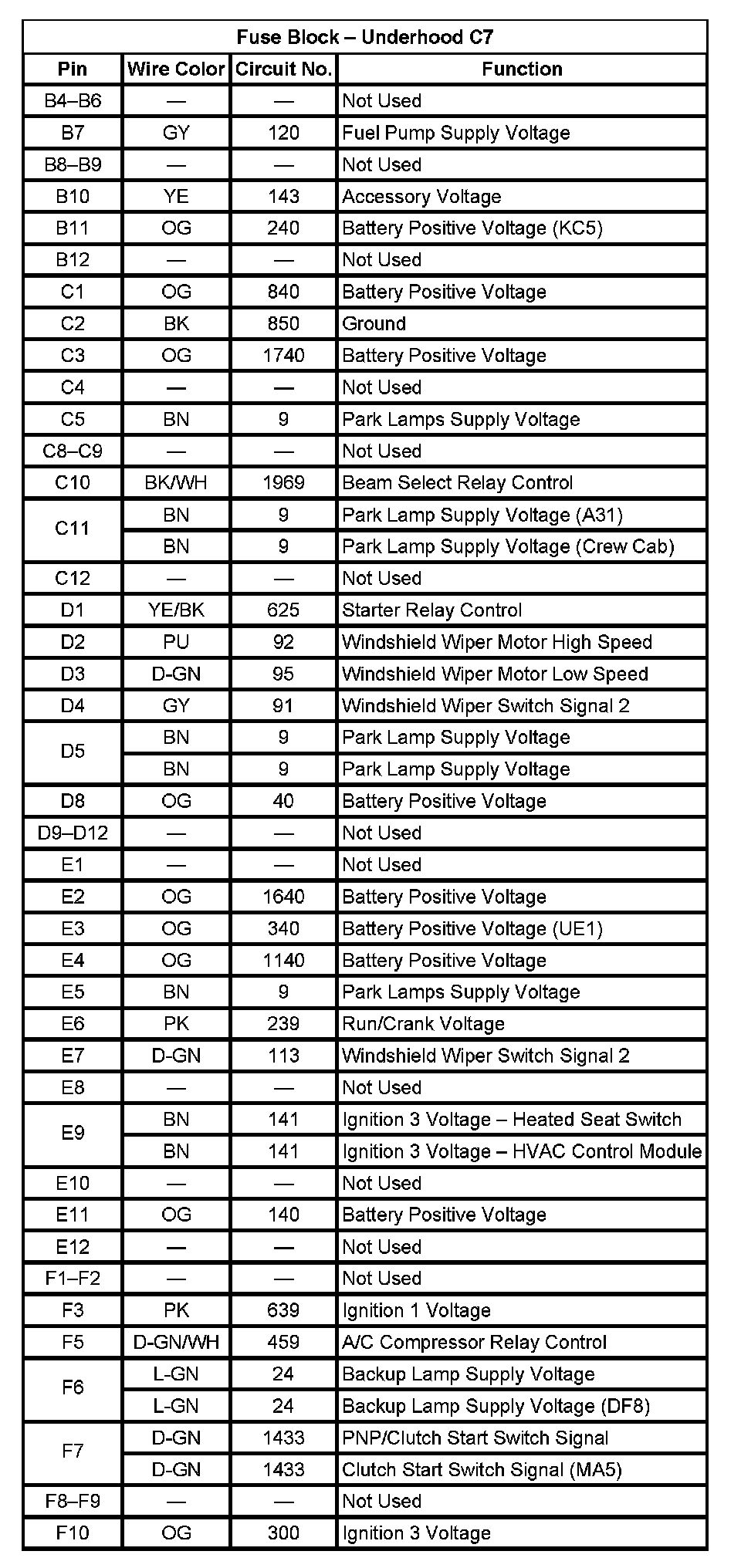

Fuse Block - Underhood C7 (Pin B4 To F10):

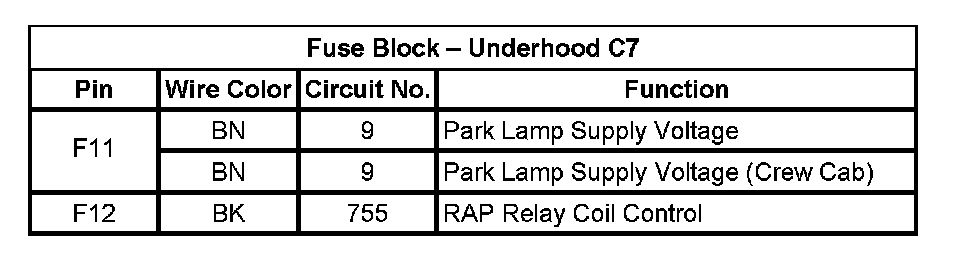

Fuse Block - Underhood C7 (Pin F11 To F12):
