Knock Sensor: Locations

Engine Controls Component Views

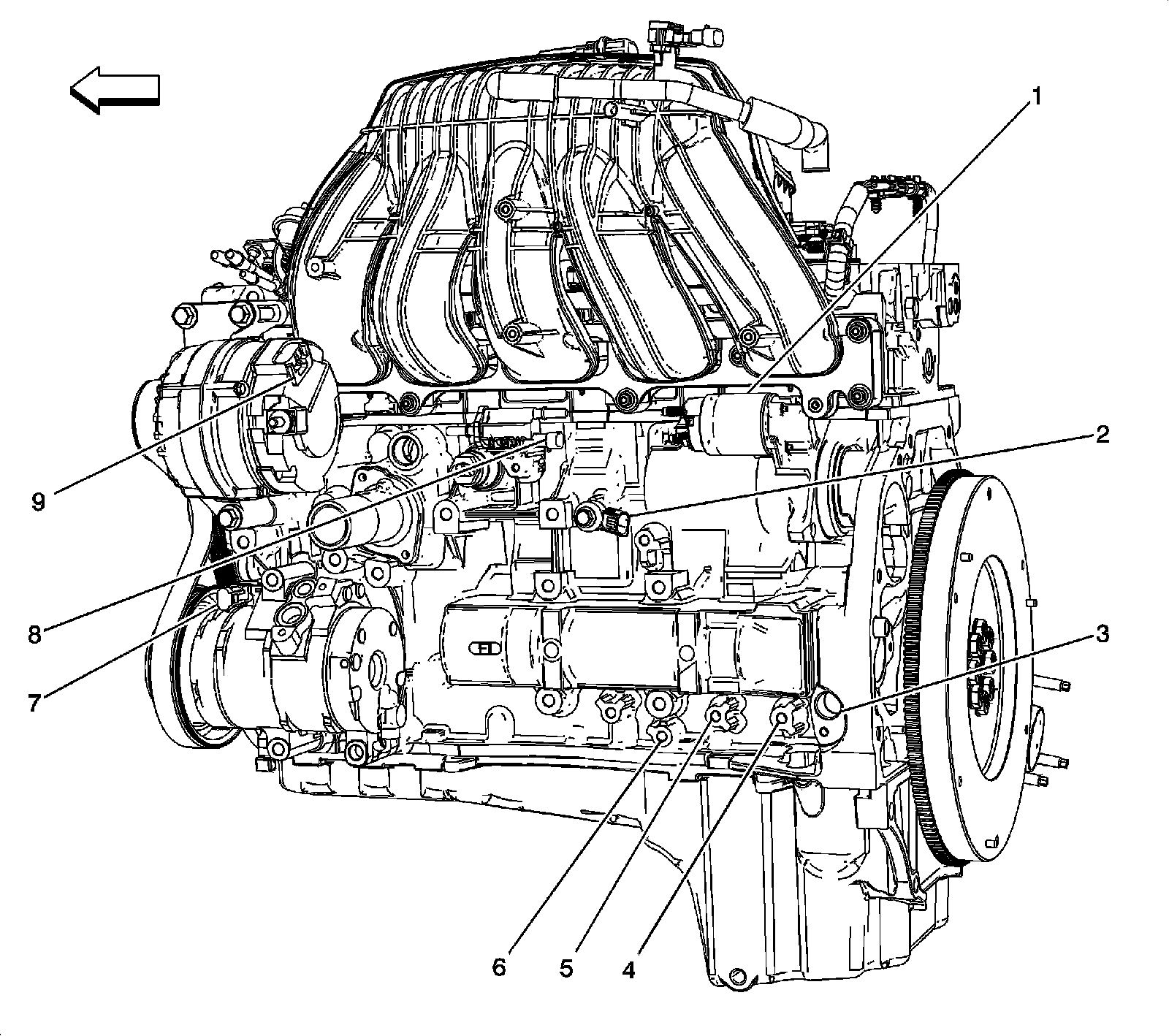

Engine Controls Components 2 of 5




1 - Starter Solenoid
2 - Knock Sensor (KS)
3 - Crankshaft Position (CKP) Sensor
4 - G102
5 - G103
6 - G101
7 - A/C Compressor Clutch (CJ2/CJ3)
8 - Evaporative Emission (EVAP) Canister Purge Solenoid
9 - Generator
Left Side of I/P
