Power Window Motor: Locations

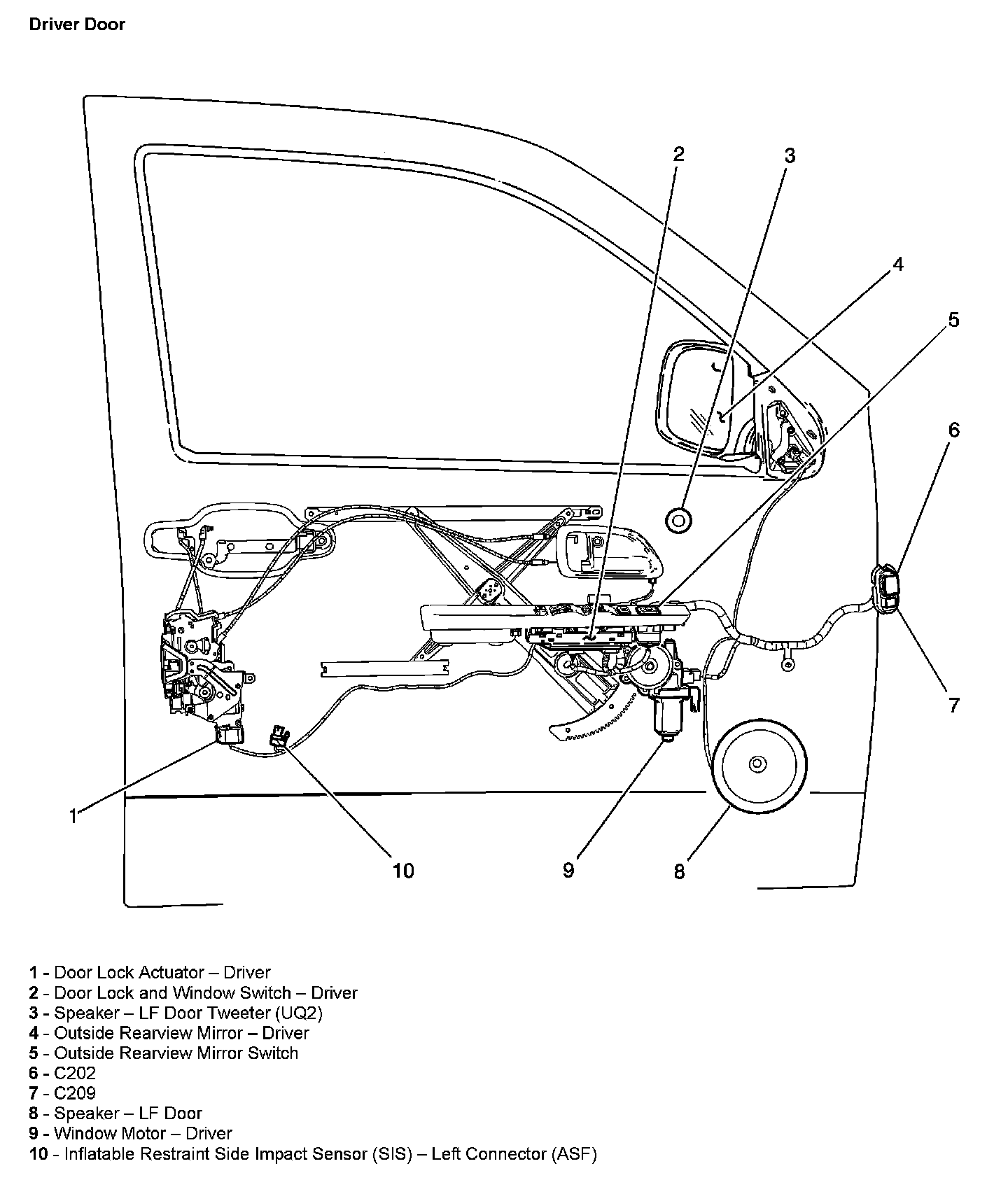

Driver Door:

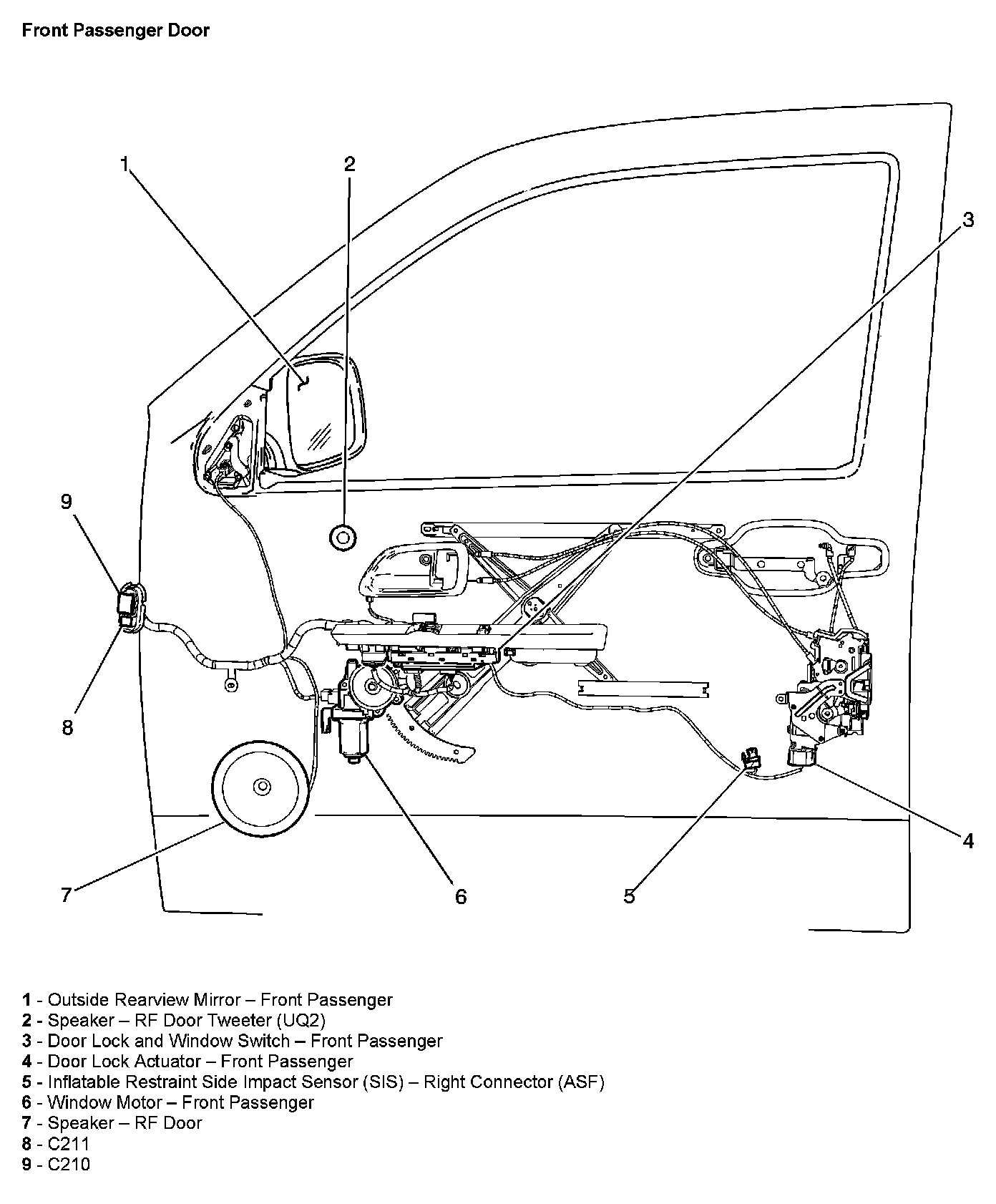

Front Passenger Door:

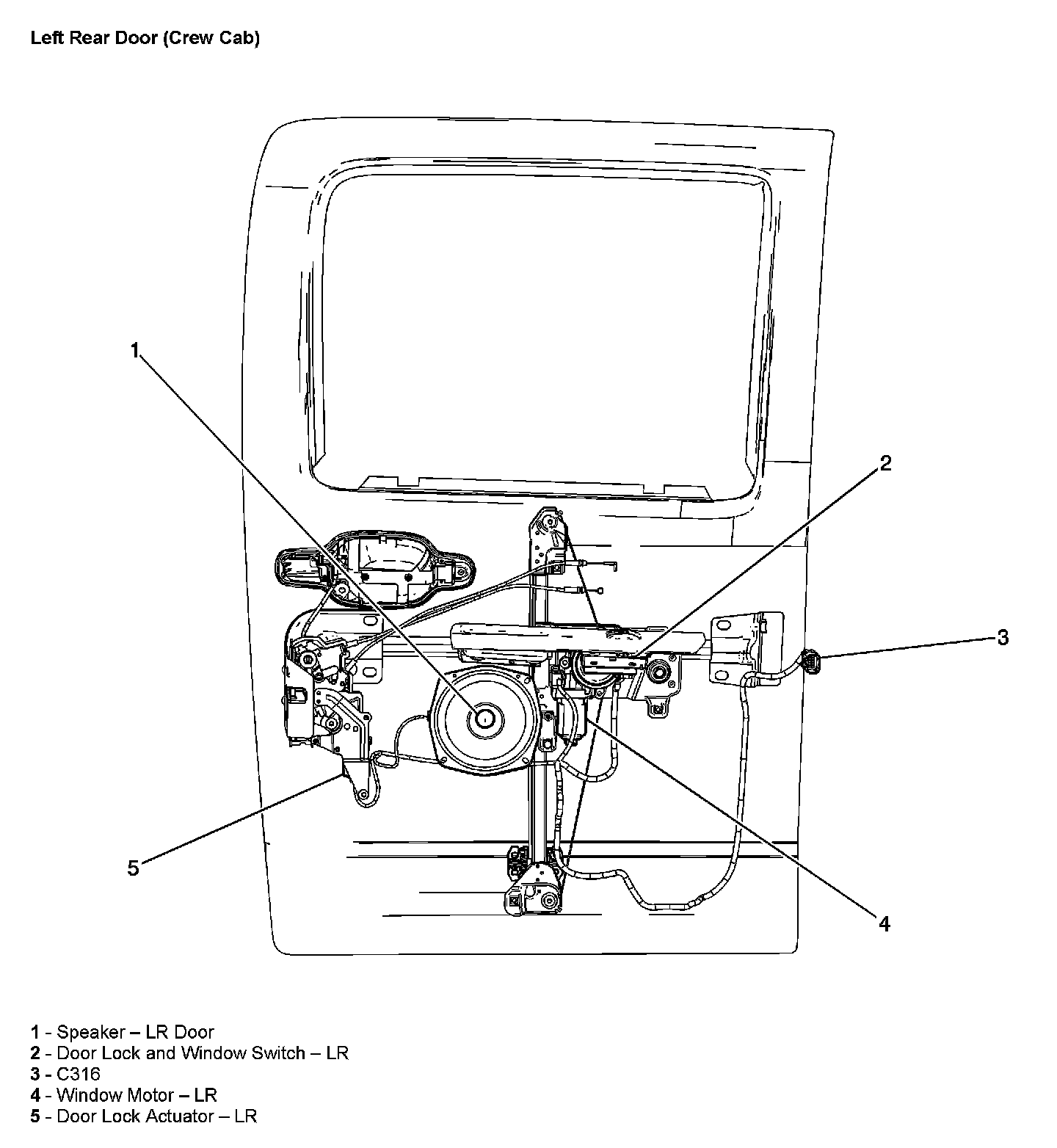

Left Rear Door (Crew Cab):

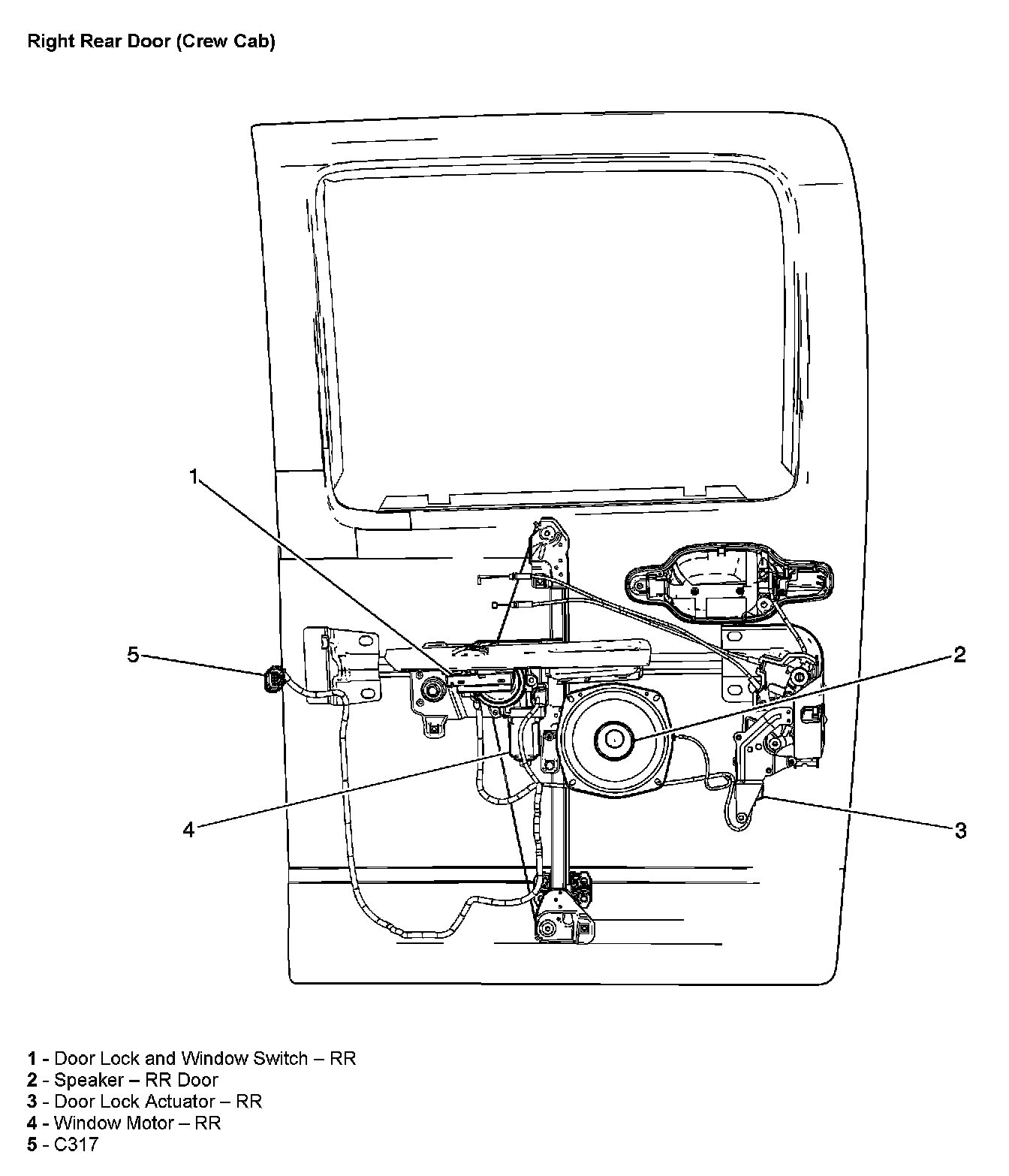

Right Rear Door (Crew Cab):
