Keyless Entry Module: Service and Repair

Remote Control Door Lock Receiver Replacement

Removal Procedure




1. Remove the instrument panel (I/P) upper trim panel.

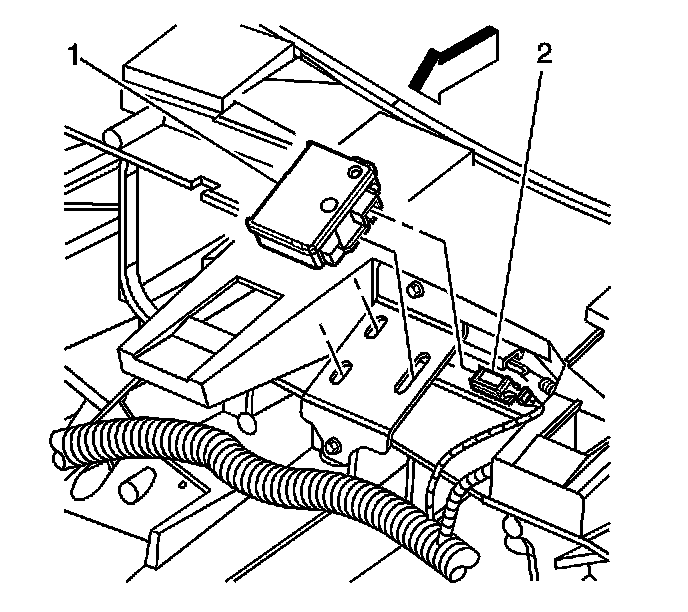

2. Disconnect the electrical connector (2) from the door lock receiver (1).
3. Disengage the remote control door lock receiver (1) from the door lock receiver bracket.
4. Remove the door lock receiver.

Installation Procedure




1. Perform the following to install the door lock receiver (1) to the door lock receiver bracket.
Slide the tab on door lock receiver (1) into the door lock receiver bracket and snap into place to secure.
2. Connect the electrical connector (1) to the door lock receiver (2).
3. Install the I/P trim panel.
4. Refer to Programming and Relearning Programming and Relearning.
