Auxiliary Cabin Heater Control Module



HVAC Connector End Views

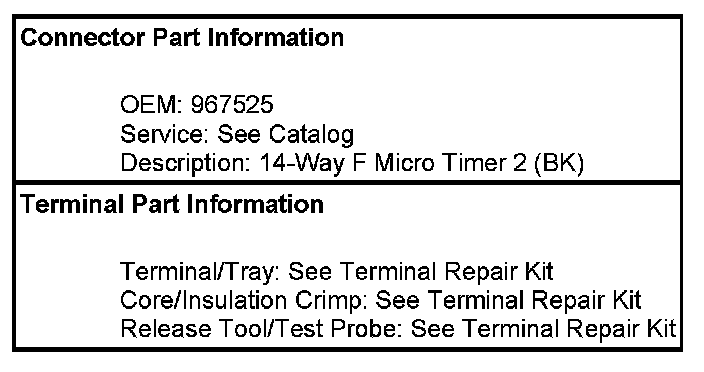

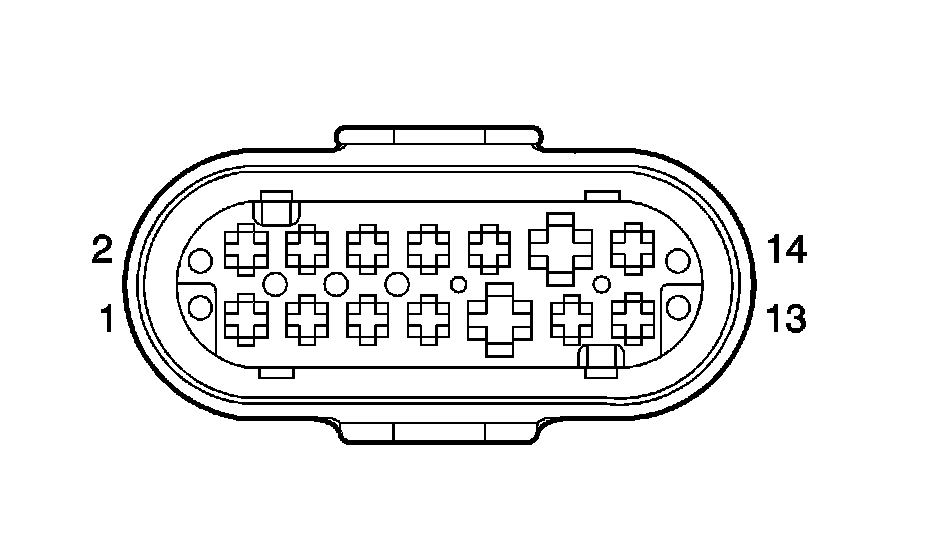

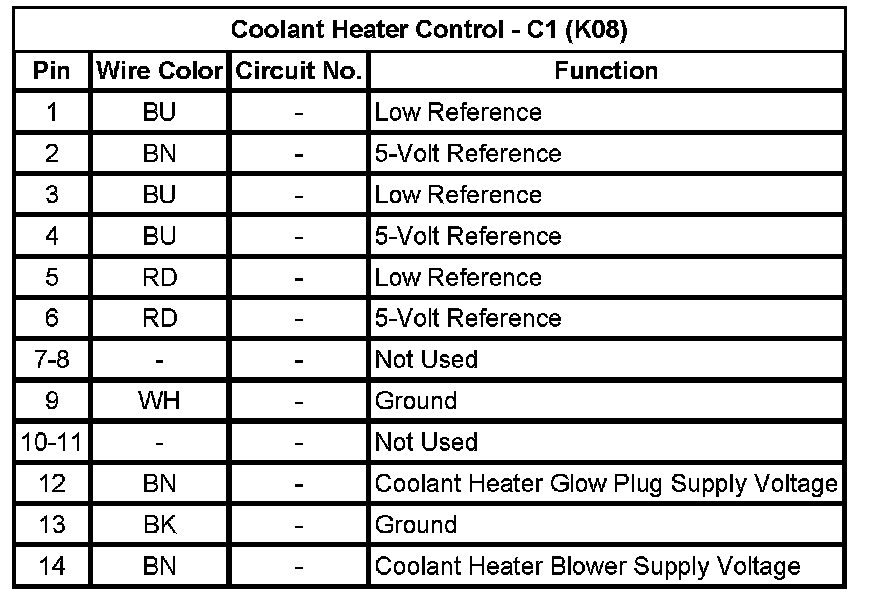

Coolant Heater Control - C1 (K08)

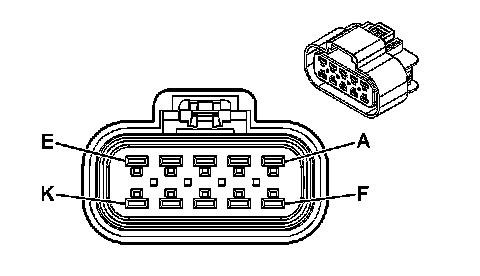

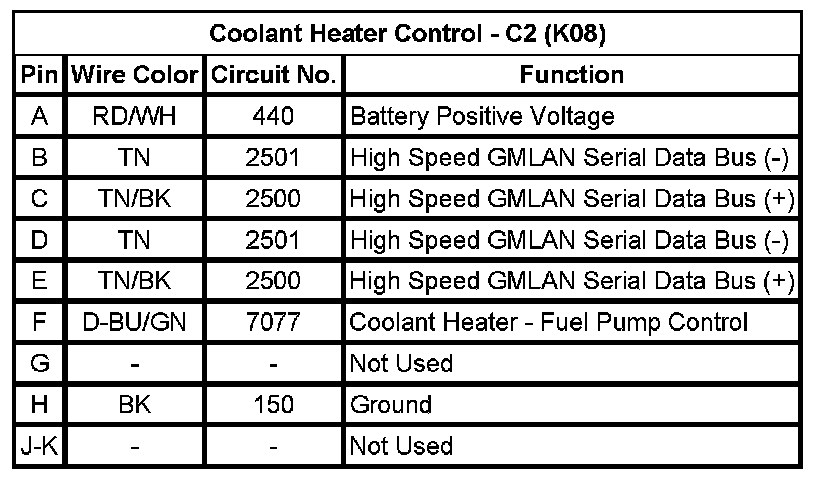

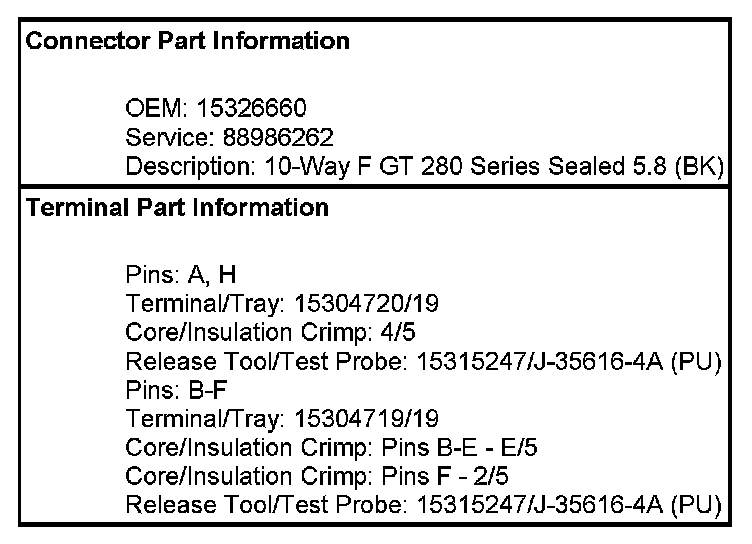

Coolant Heater Control - C2 (K08)
