Control Assembly, HVAC
HVAC Connector End Views

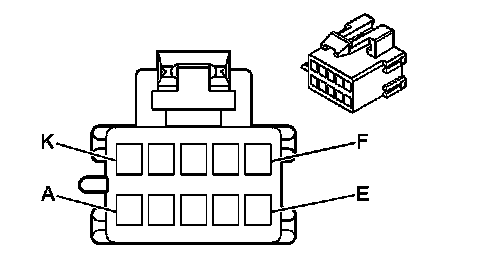

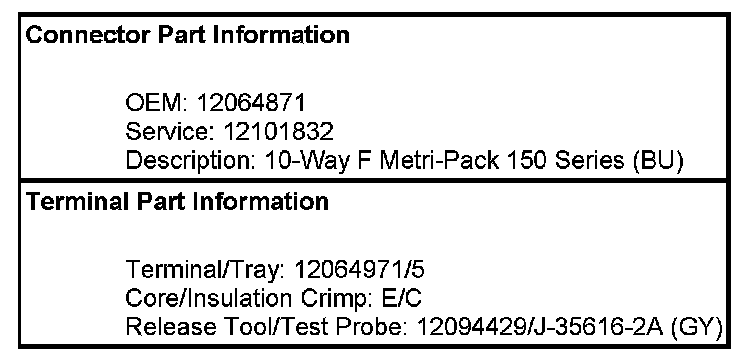

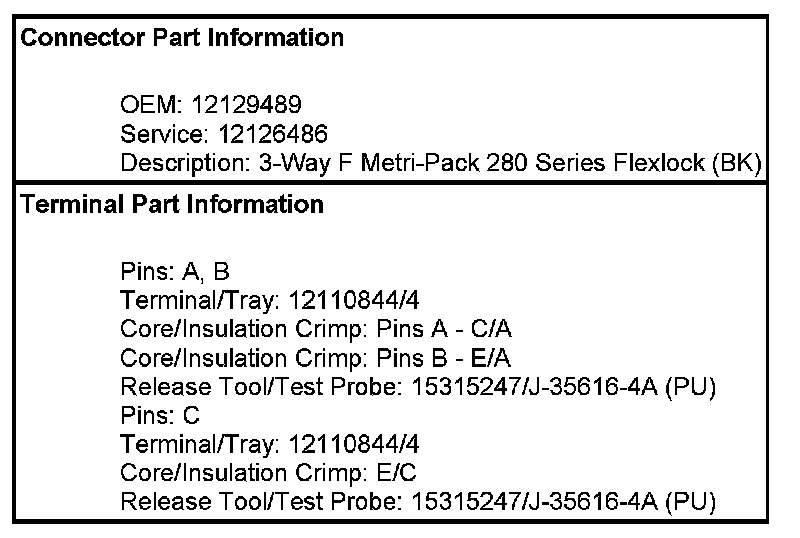

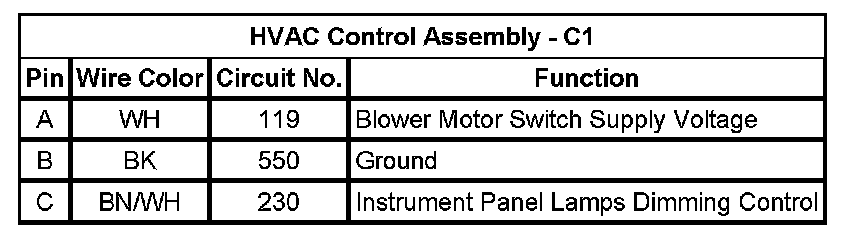

HVAC Control Assembly - C1

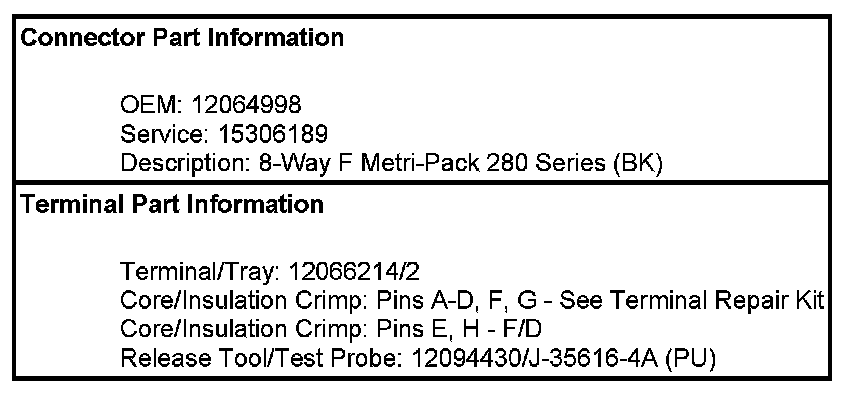

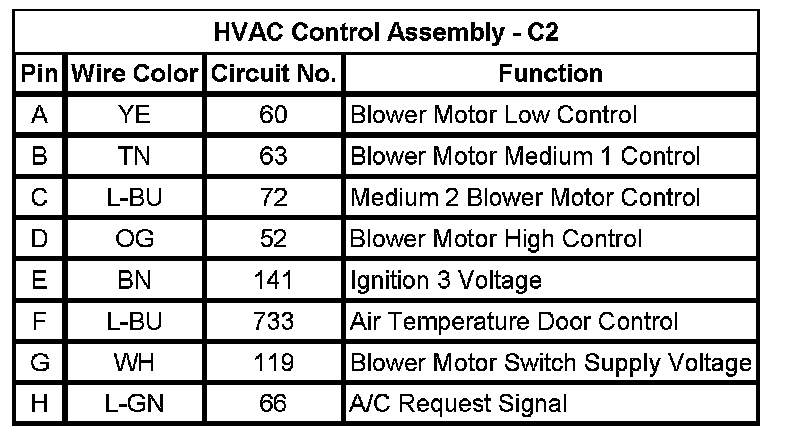

HVAC Control Assembly - C2

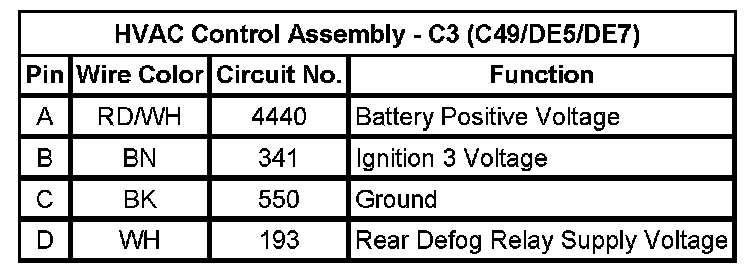

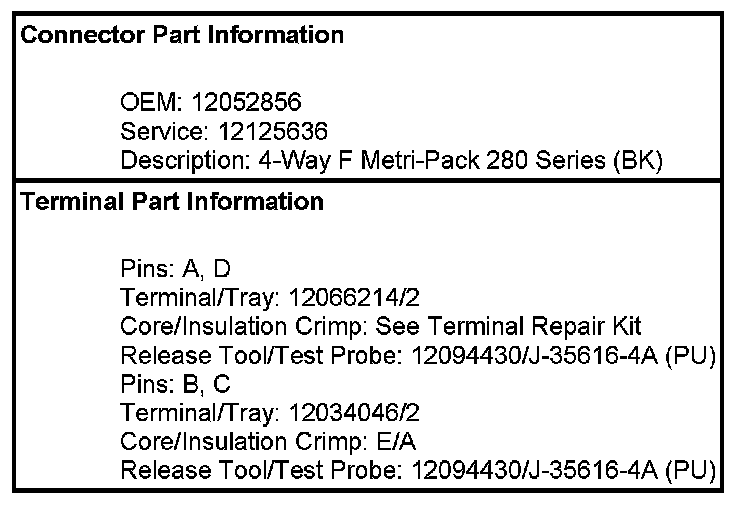

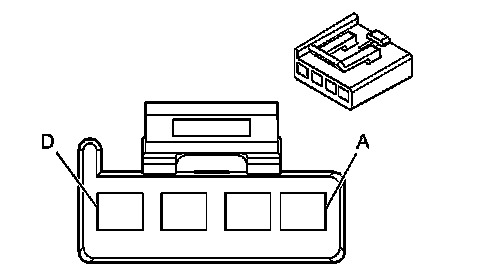

HVAC Control Assembly - C3 (C49/DE5/DE7)
Transfer Case Shift Control Module - C3:

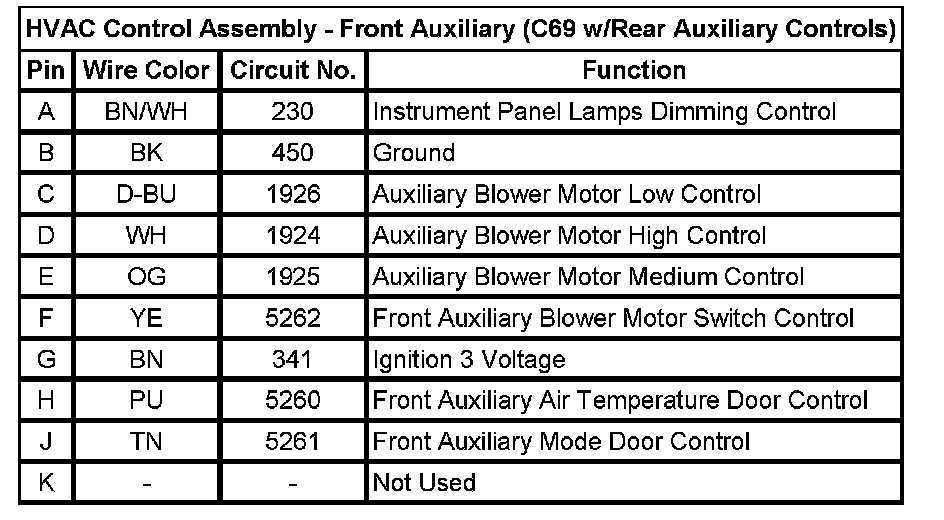

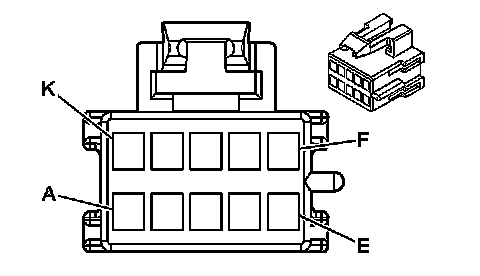

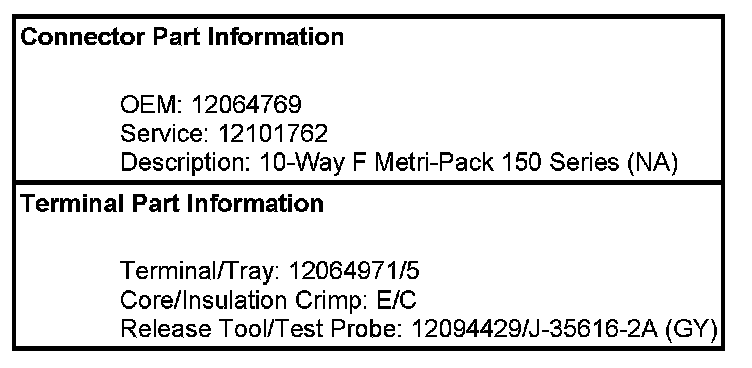

HVAC Control Assembly - Front Auxiliary (C69 w/Rear Auxiliary Controls)

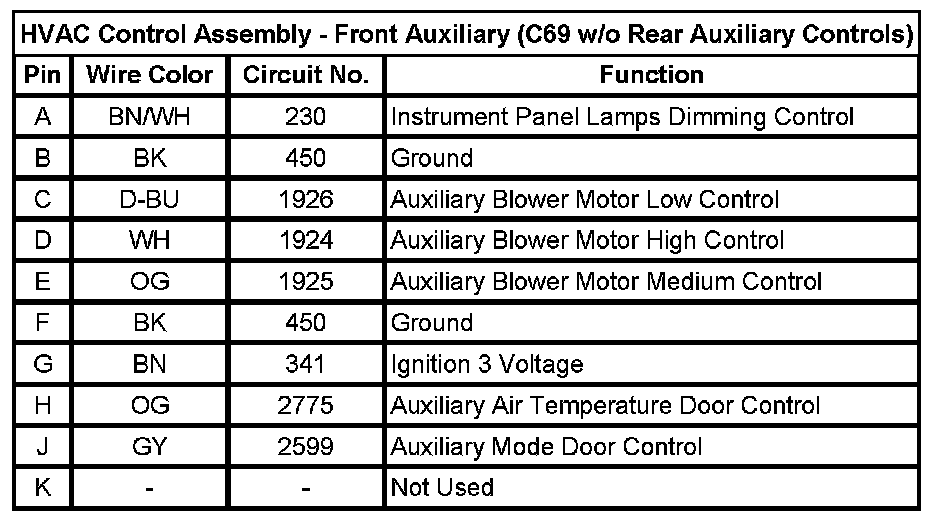

HVAC Control Assembly - Front Auxiliary (C69 w/o Rear Auxiliary Controls)

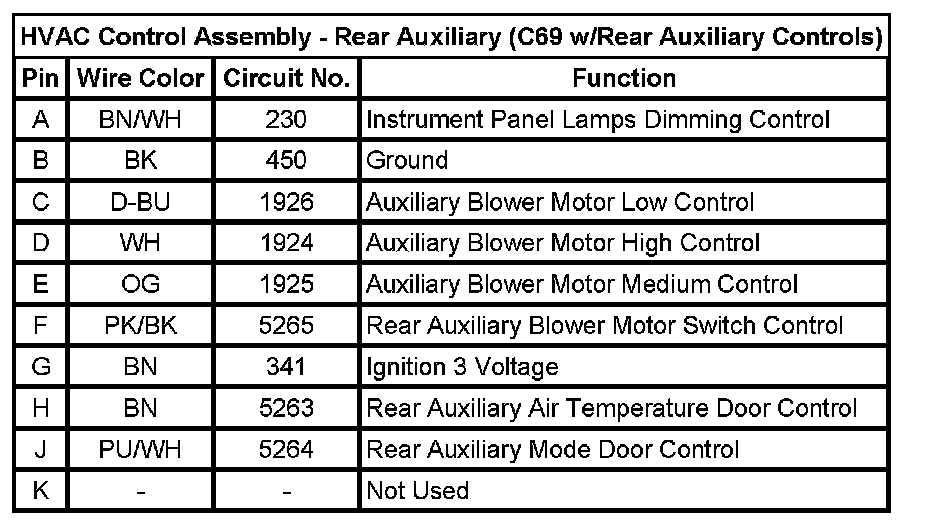

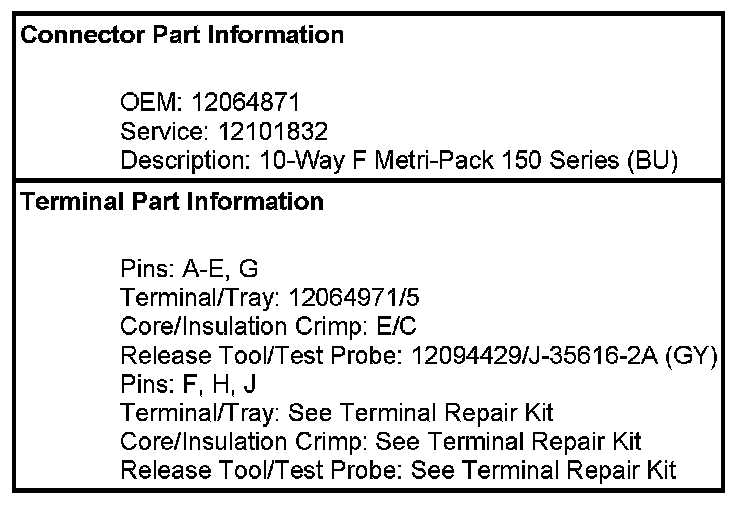

HVAC Control Assembly - Rear Auxiliary (C69 w/Rear Auxiliary Controls)
