Engine Control Module
Powertrain Control Module Connector End Views

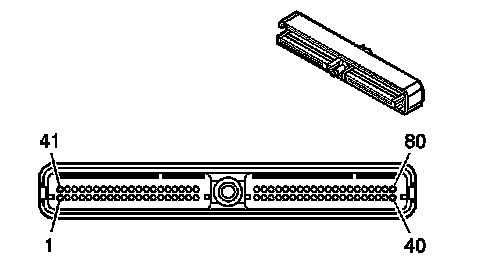

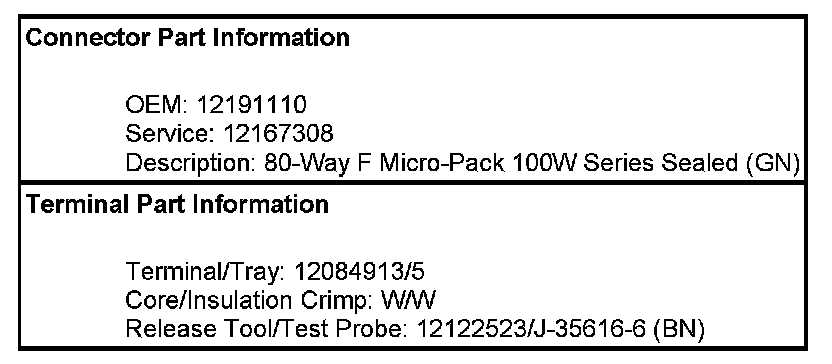

Powertrain Control Module (PCM) - C1

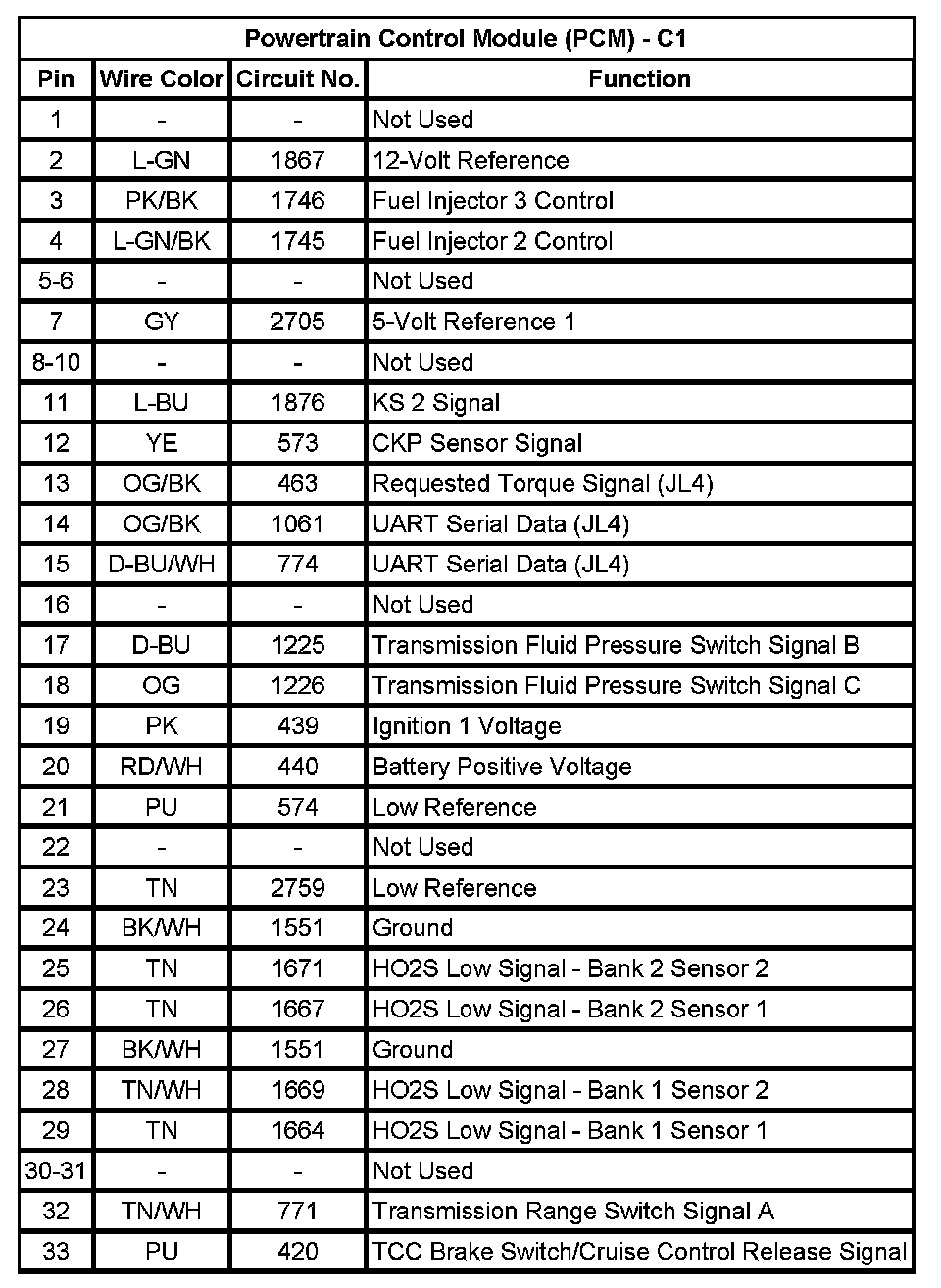

Powertrain Control Module (PCM) - C1 (Pin 1 To 33):

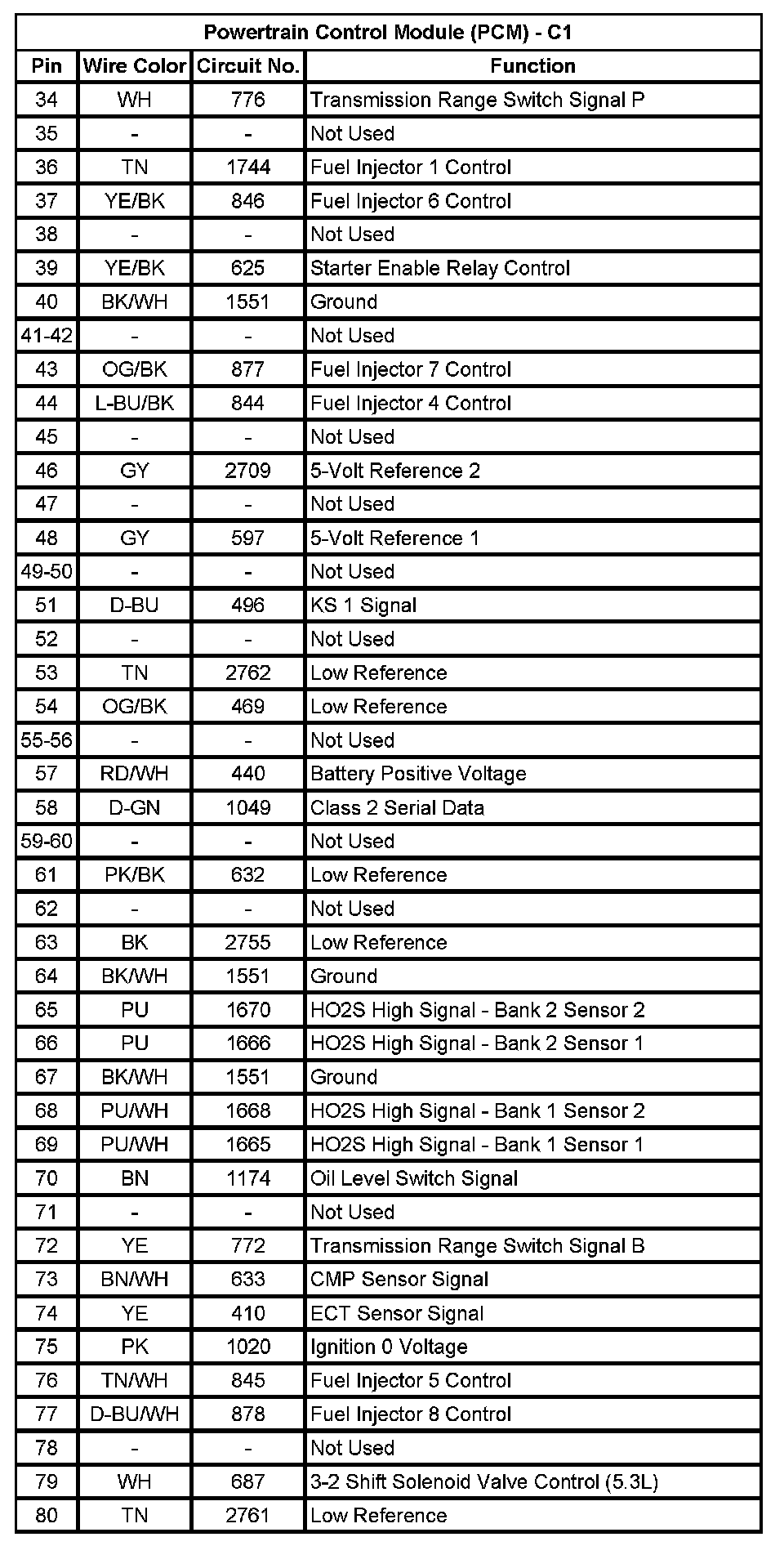

Powertrain Control Module (PCM) - C1 (Pin 34 To 80):

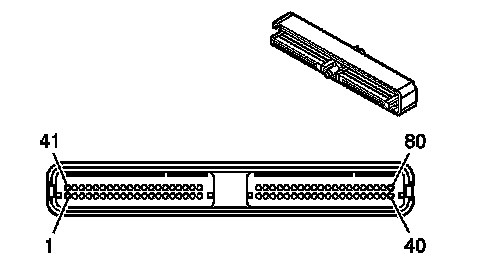

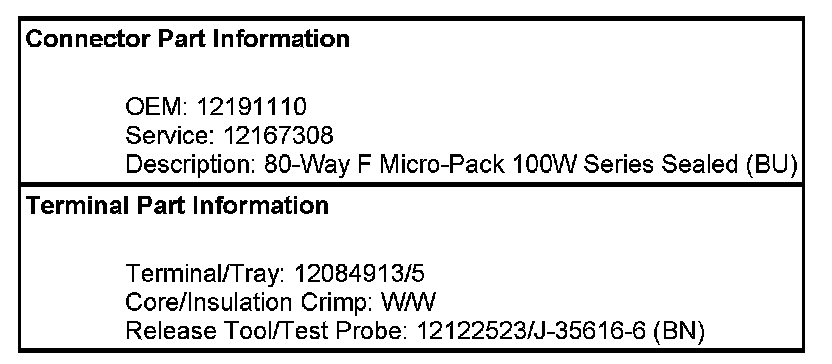

Powertrain Control Module (PCM) - C2

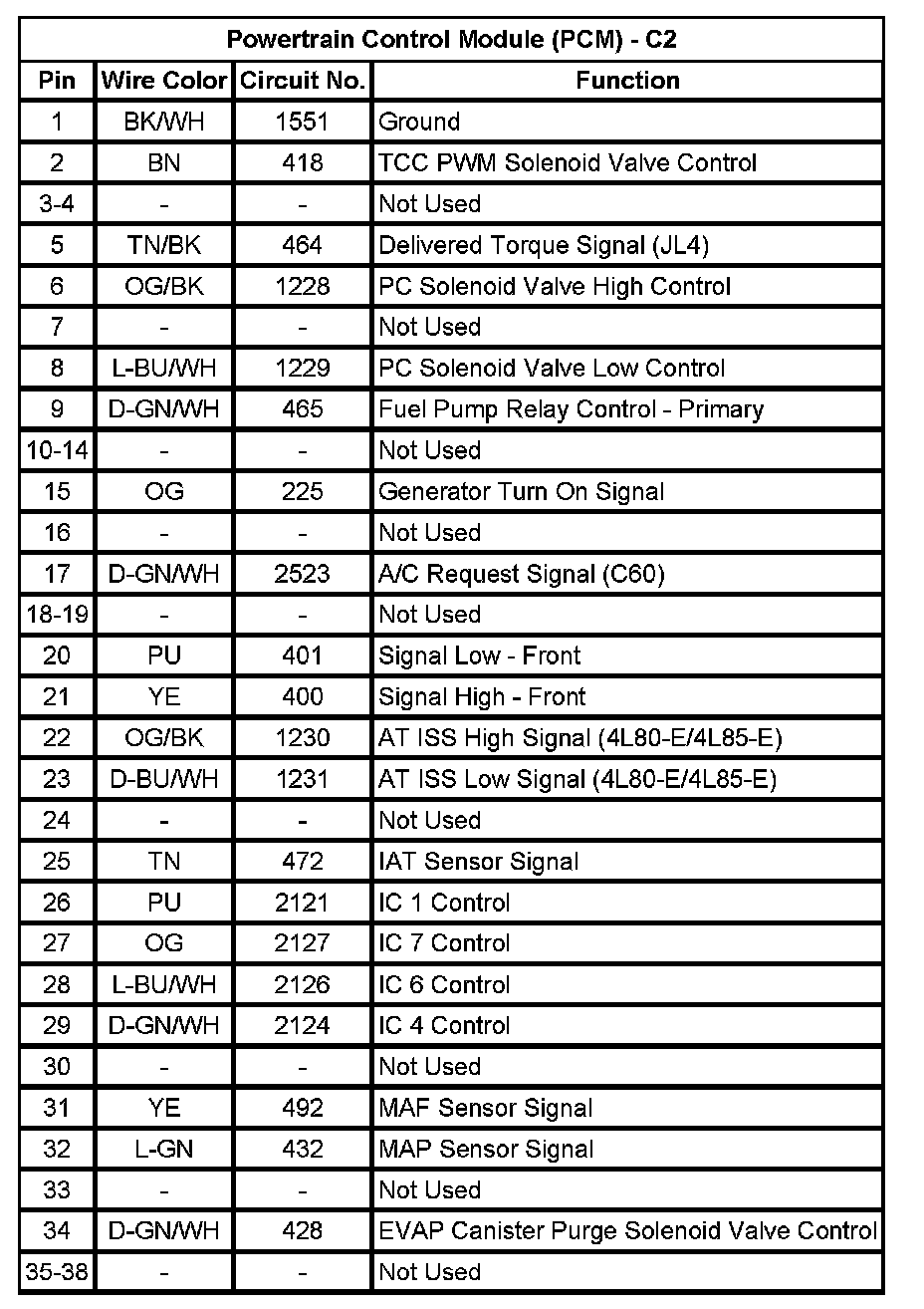

Powertrain Control Module (PCM) - C2 (Pin 1 To 38):

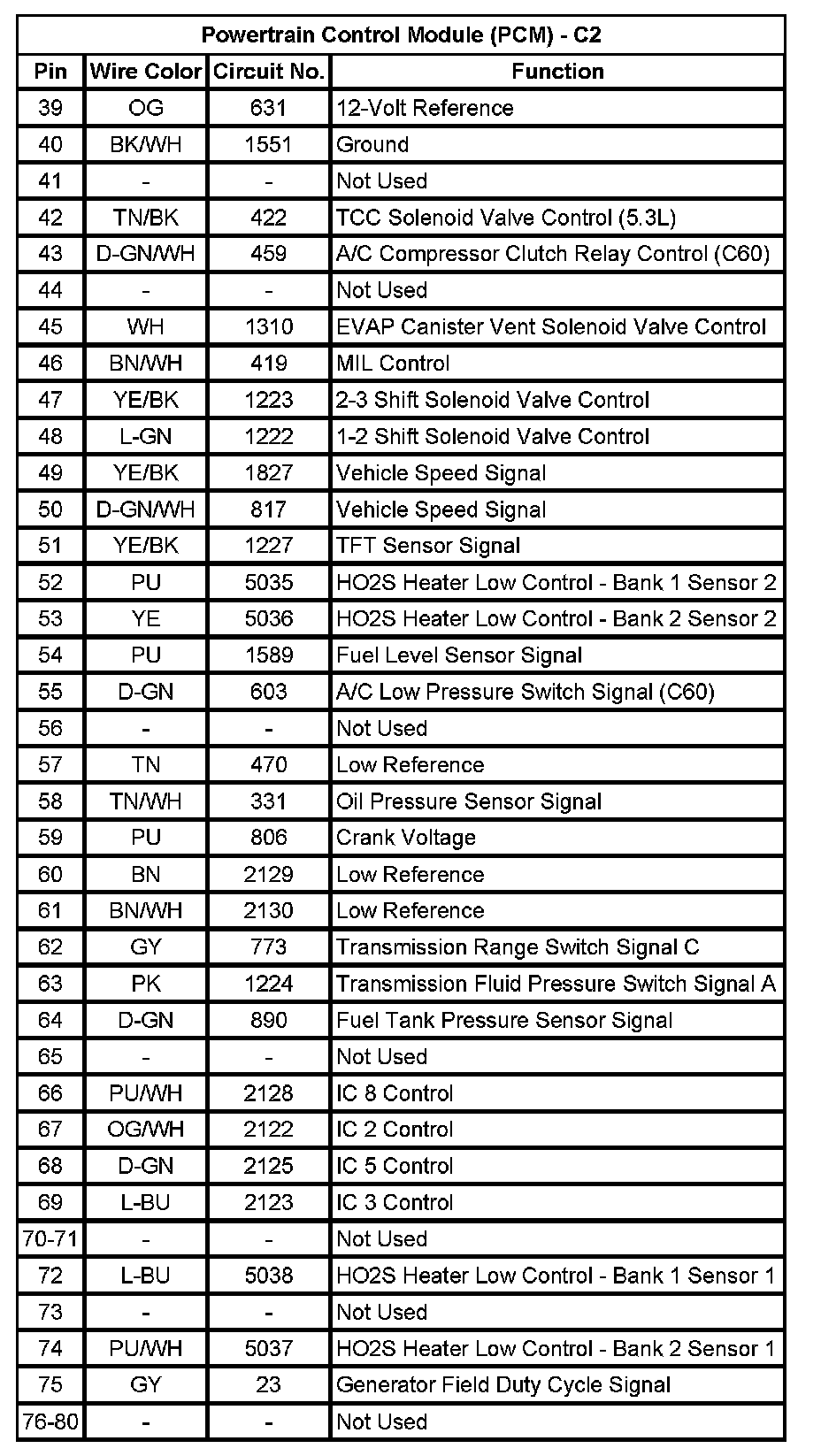

Powertrain Control Module (PCM) - C2 (Pin 39 To 80):
