System Diagram

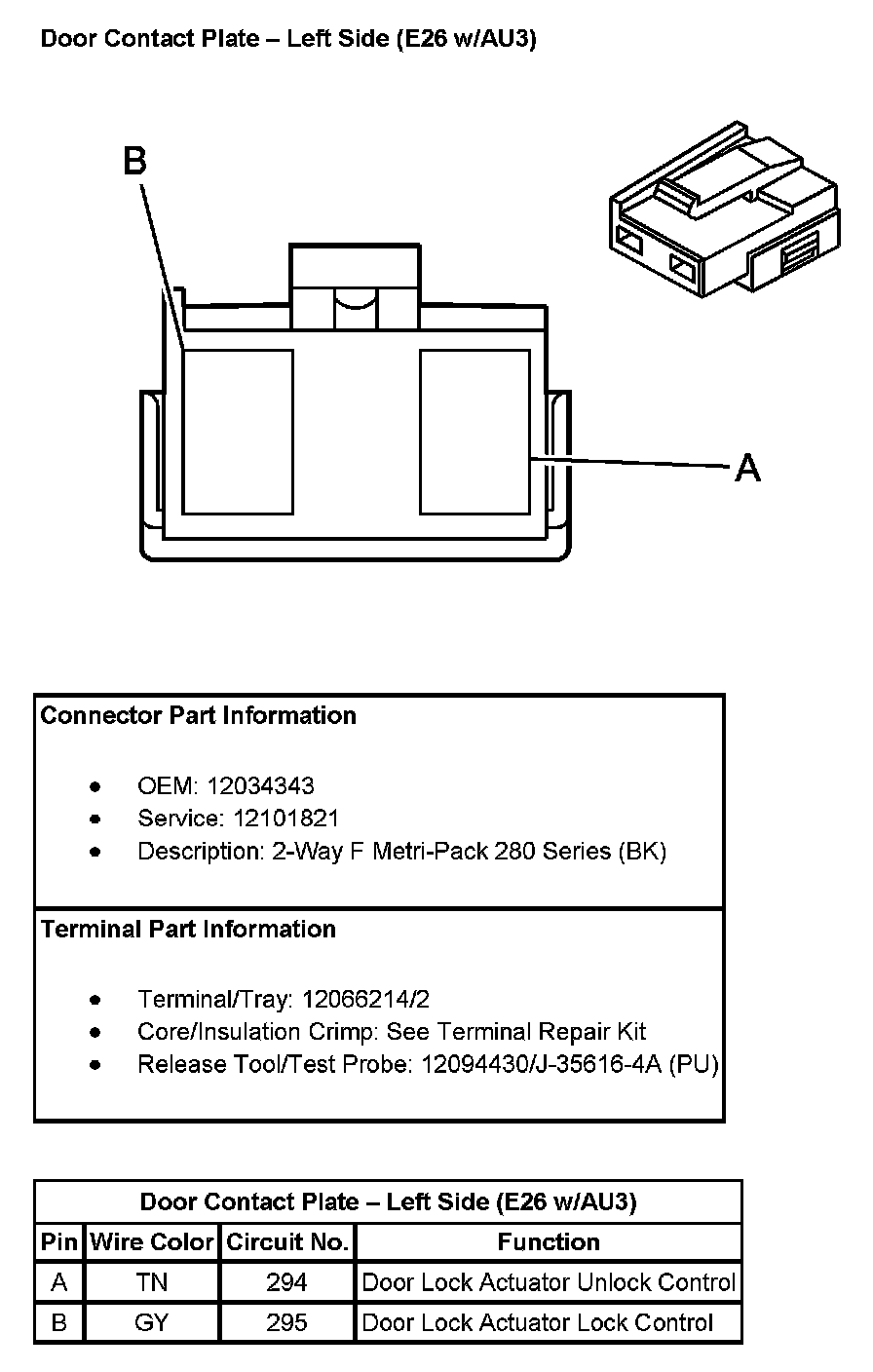

Door Contact Plate - Left Side (With RPO Codes E26/AU3):

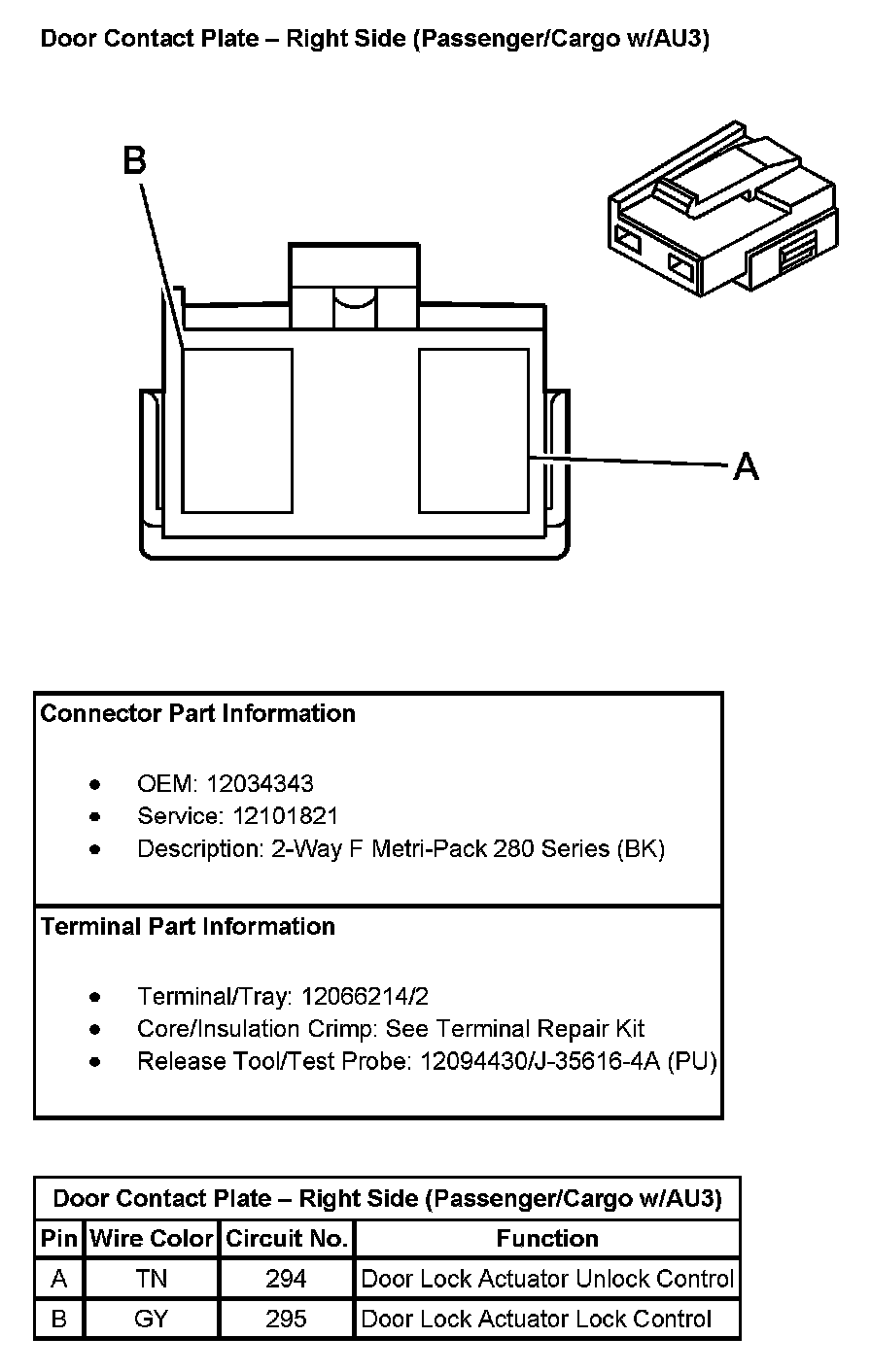

Door Contact Plate - Right Side (Passenger/Cargo With RPO Code AU3):
