Body Fuse Block

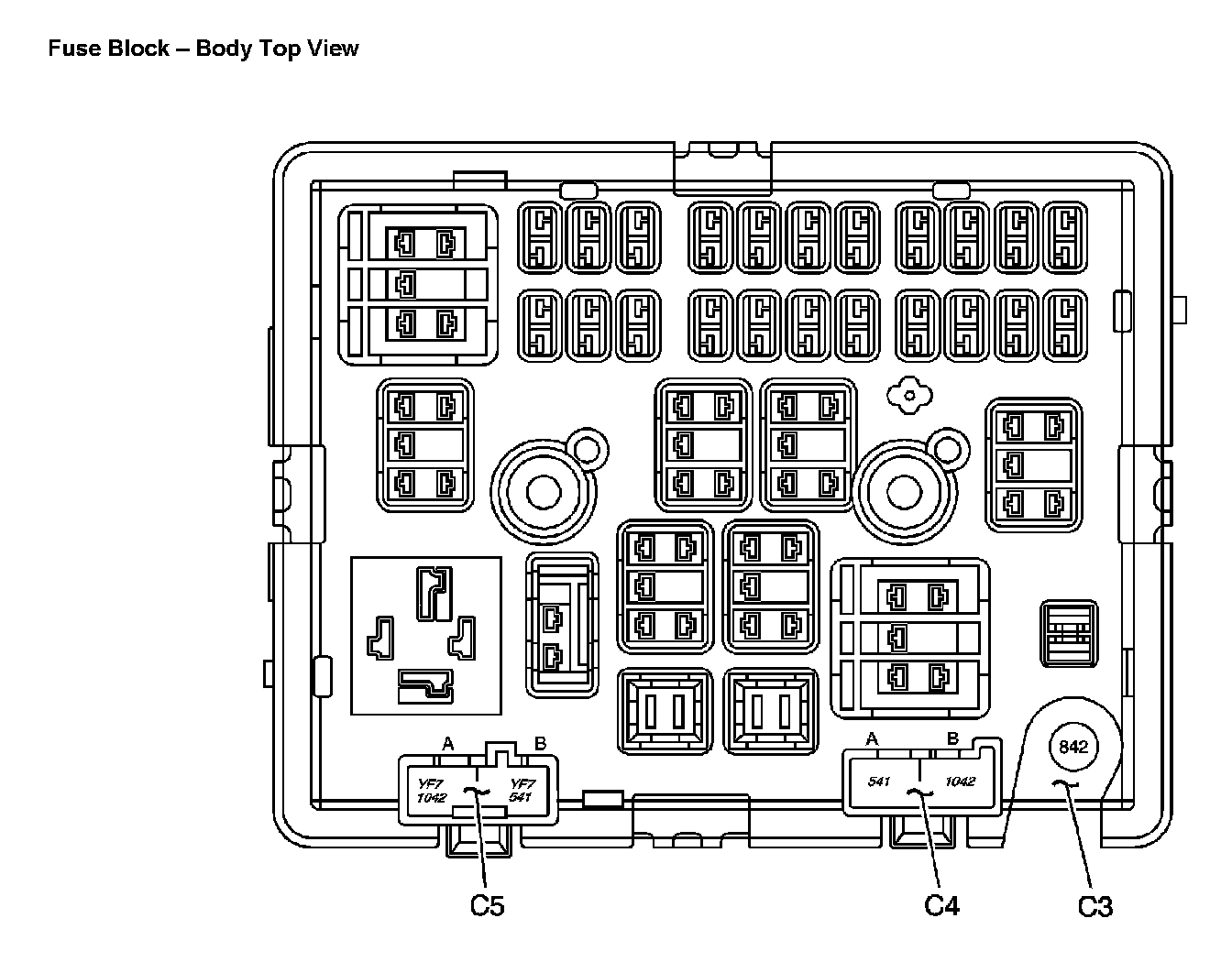

Fuse Block - Body Top View:

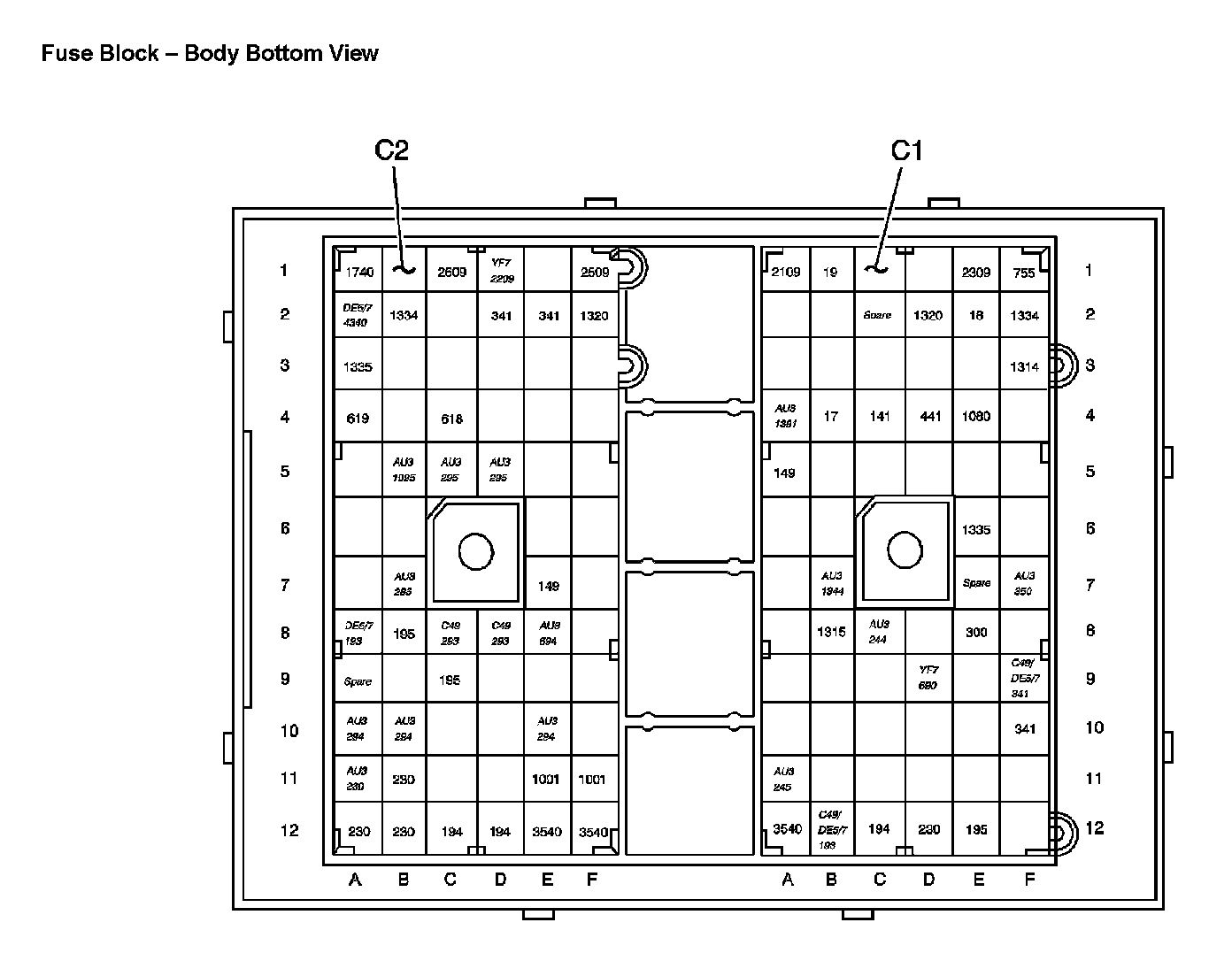

Fuse Block - Body Bottom View:

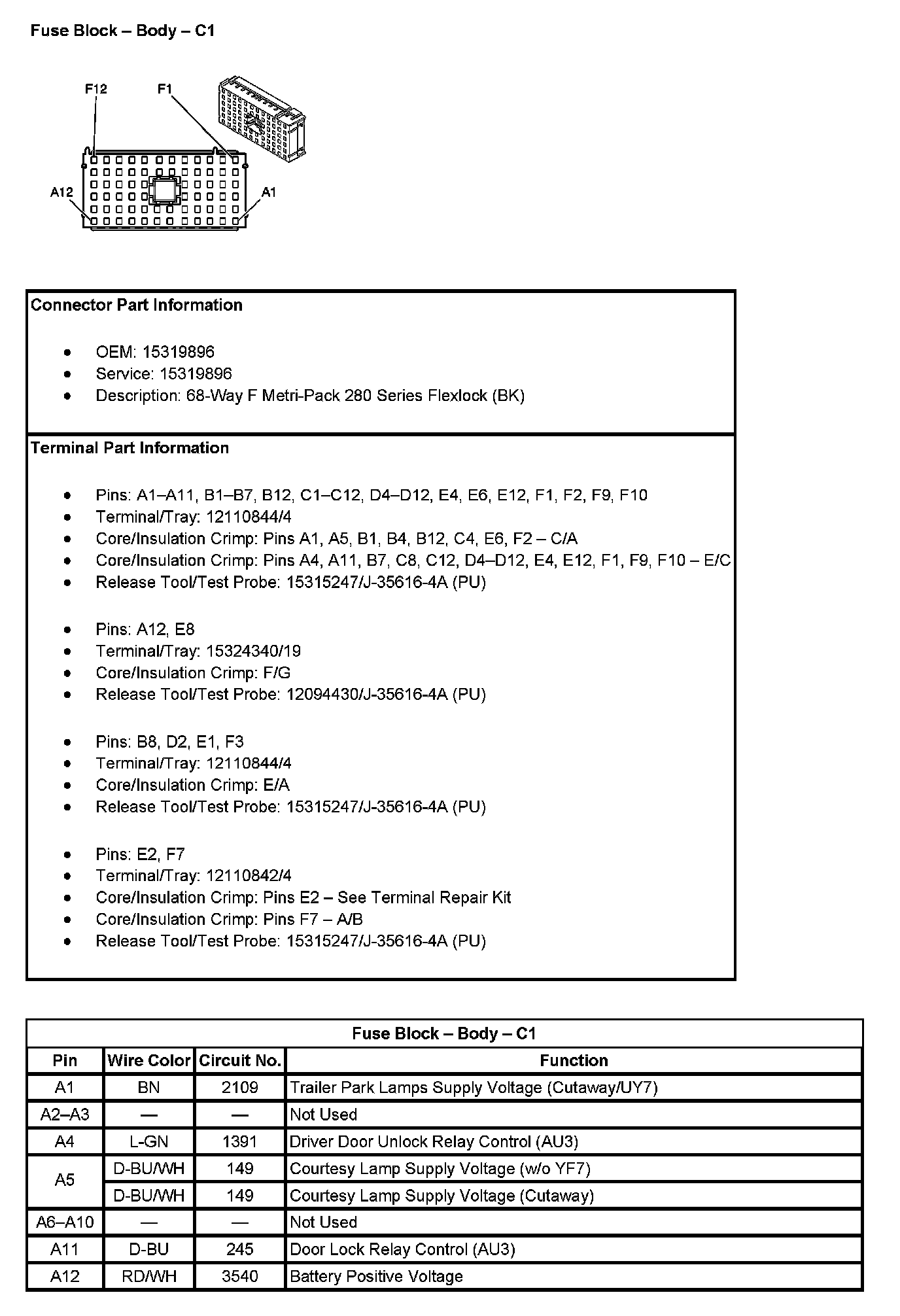

Fuse Block - Body - C1 (Pin A1 To A12):

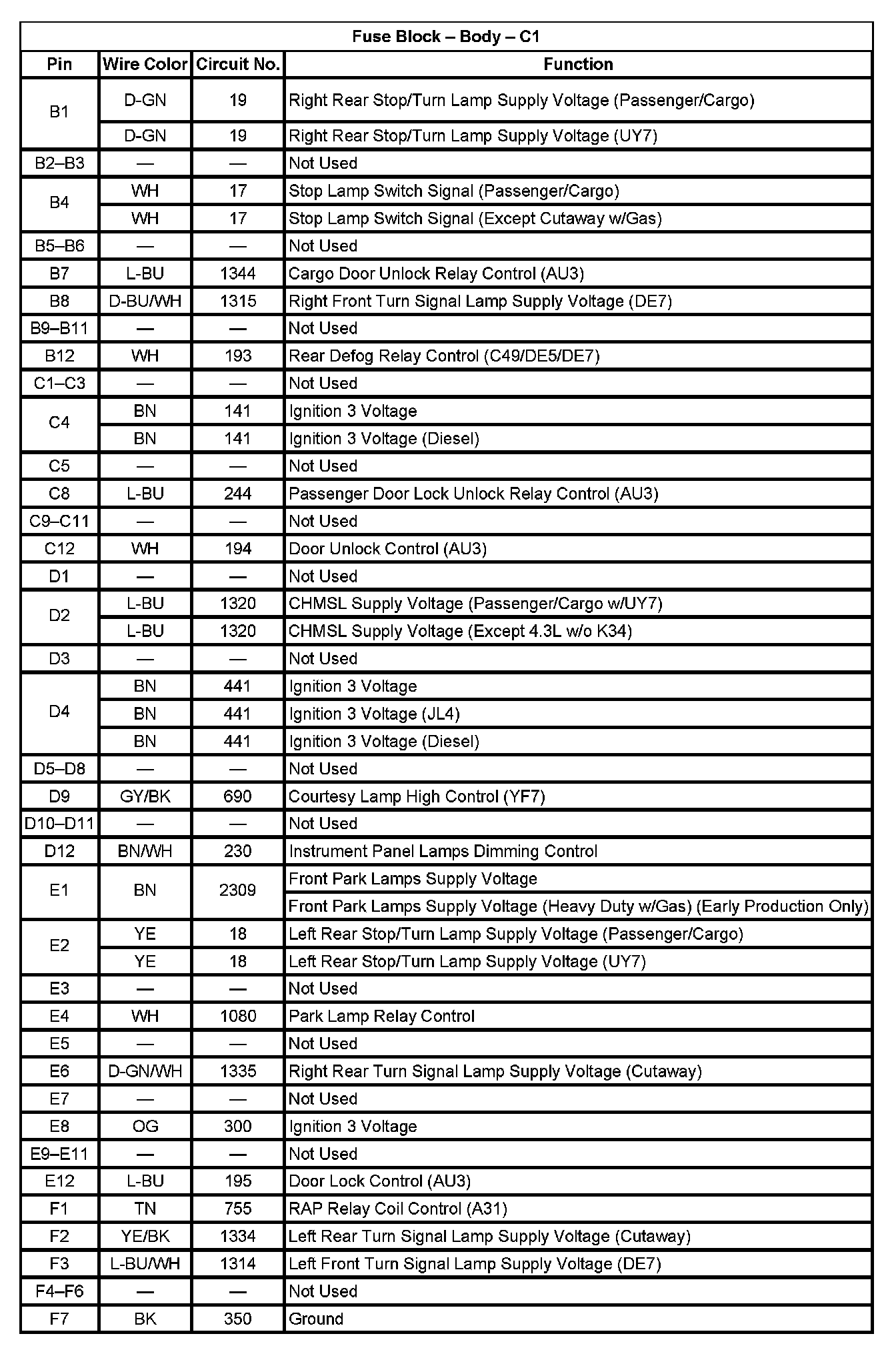

Fuse Block - Body - C1 (Pin B1 To F7):

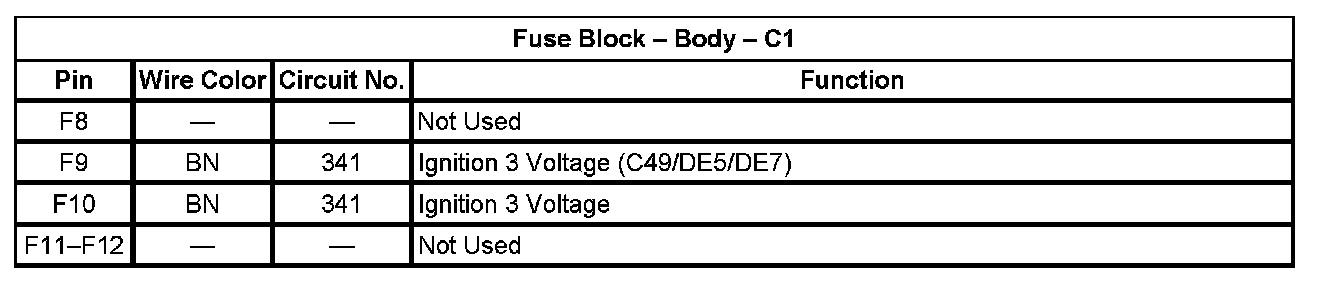

Fuse Block - Body - C1 (Pin F8 To F12):

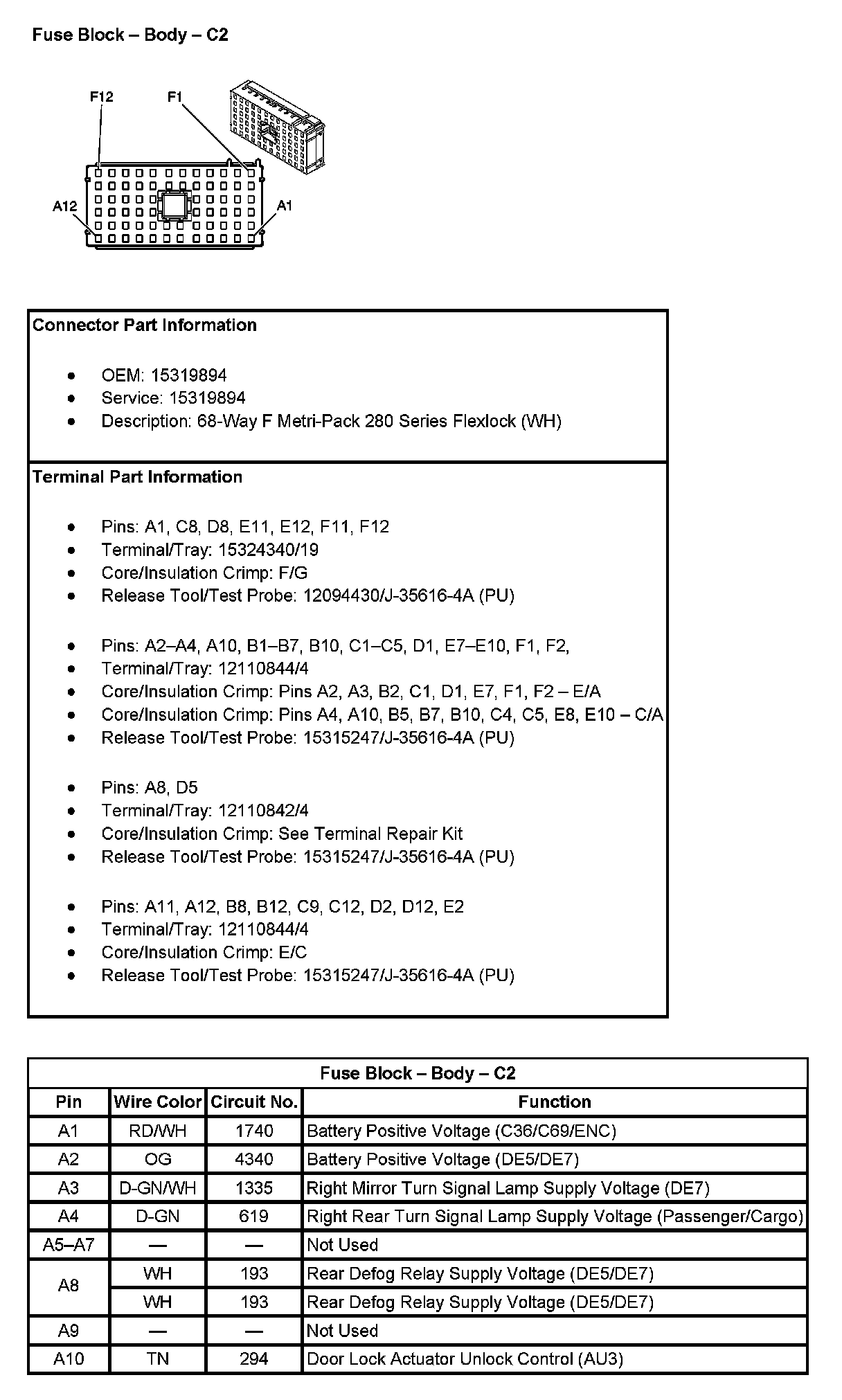

Fuse Block - Body - C2 (Pin A1 To A10):

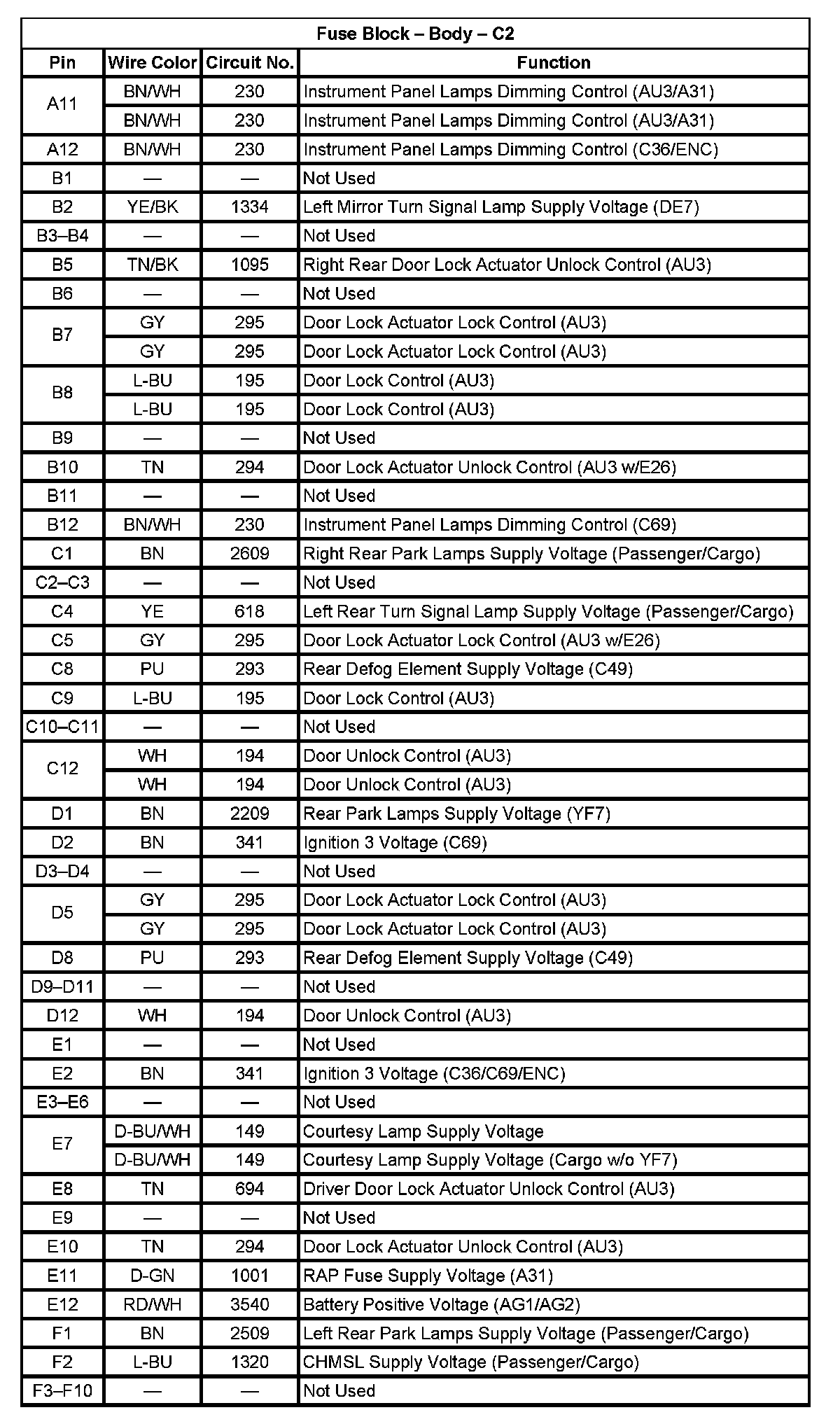

Fuse Block - Body - C2 (Pin A11 To F10):

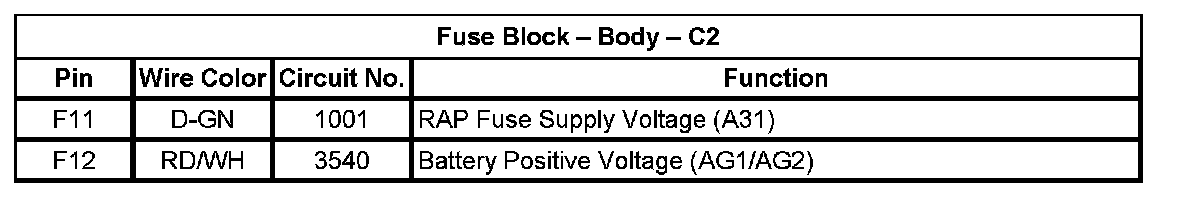

Fuse Block - Body - C2 (Pin F11 To F12):

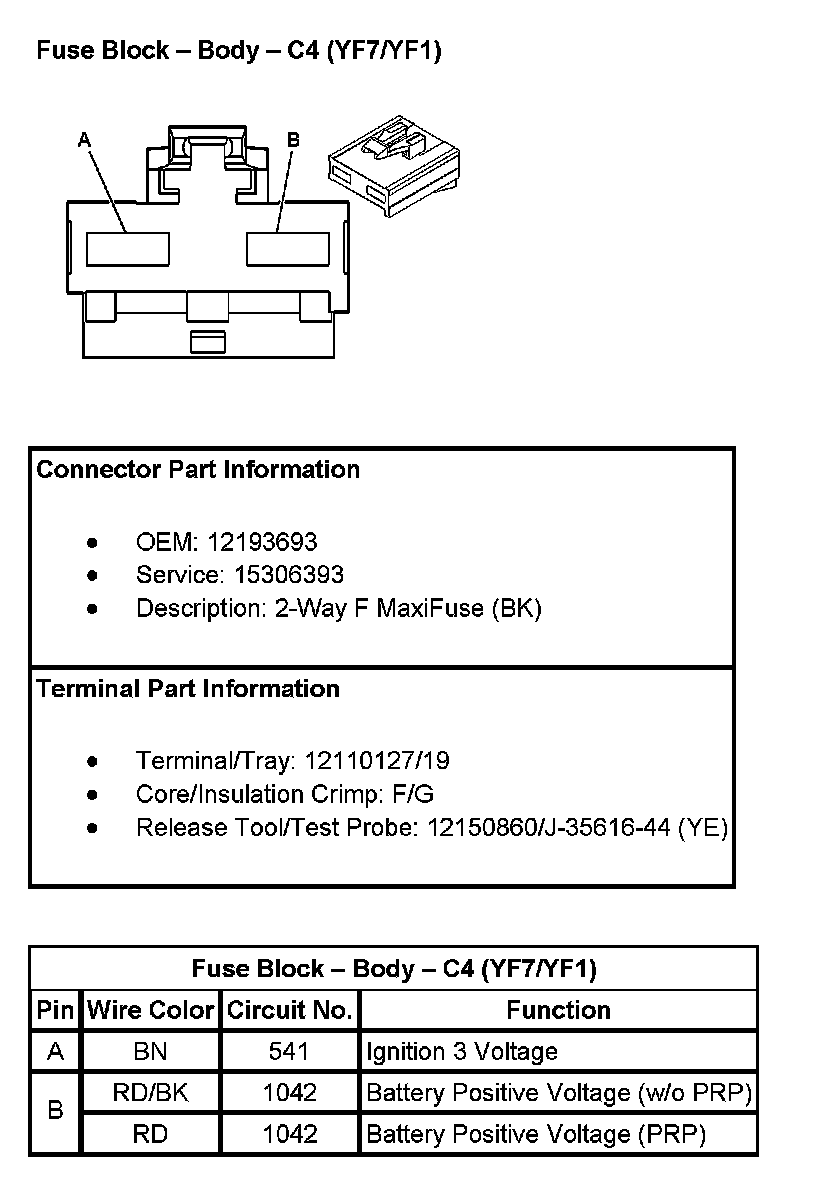

Fuse Block - Body - C4 (With RPO Codes YF7/YF1):

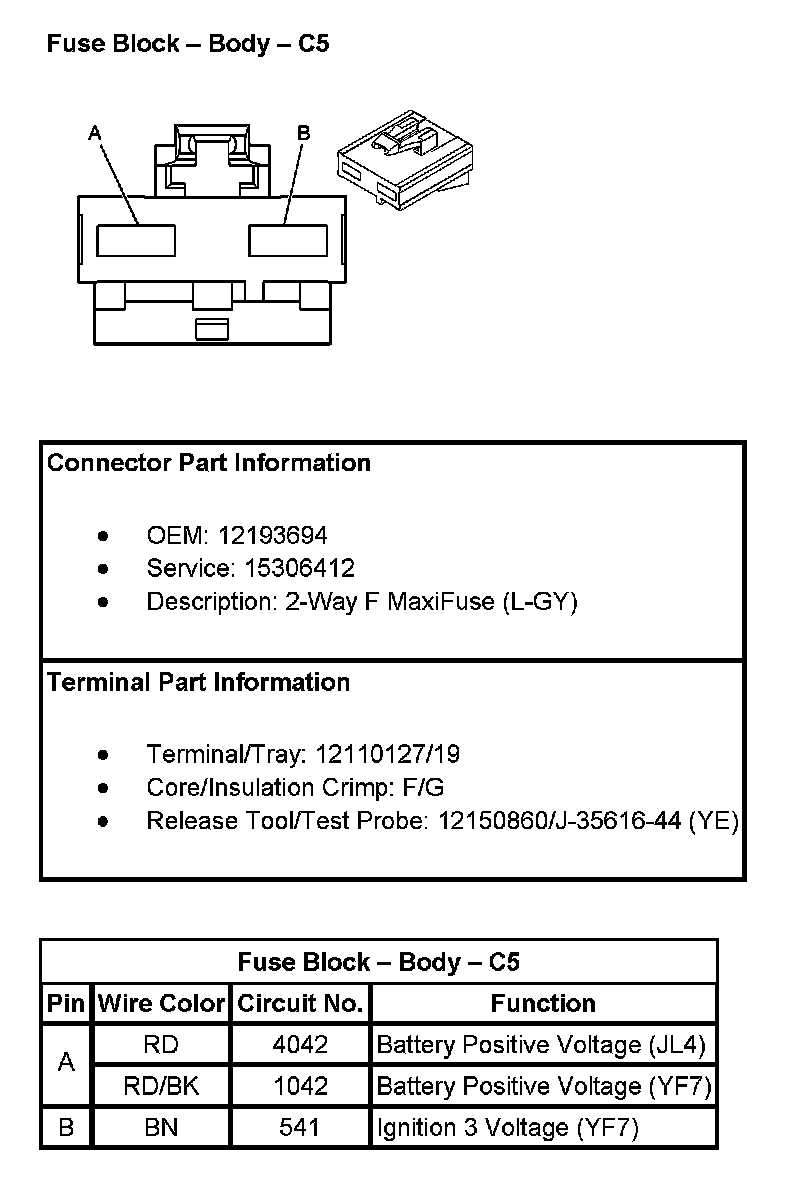

Fuse Block - Body - C5:
