Removal Procedure

1. Remove the fuel sender assembly.
2. Remove the two wire fuel level sensor connectors from the fuel sender assembly.

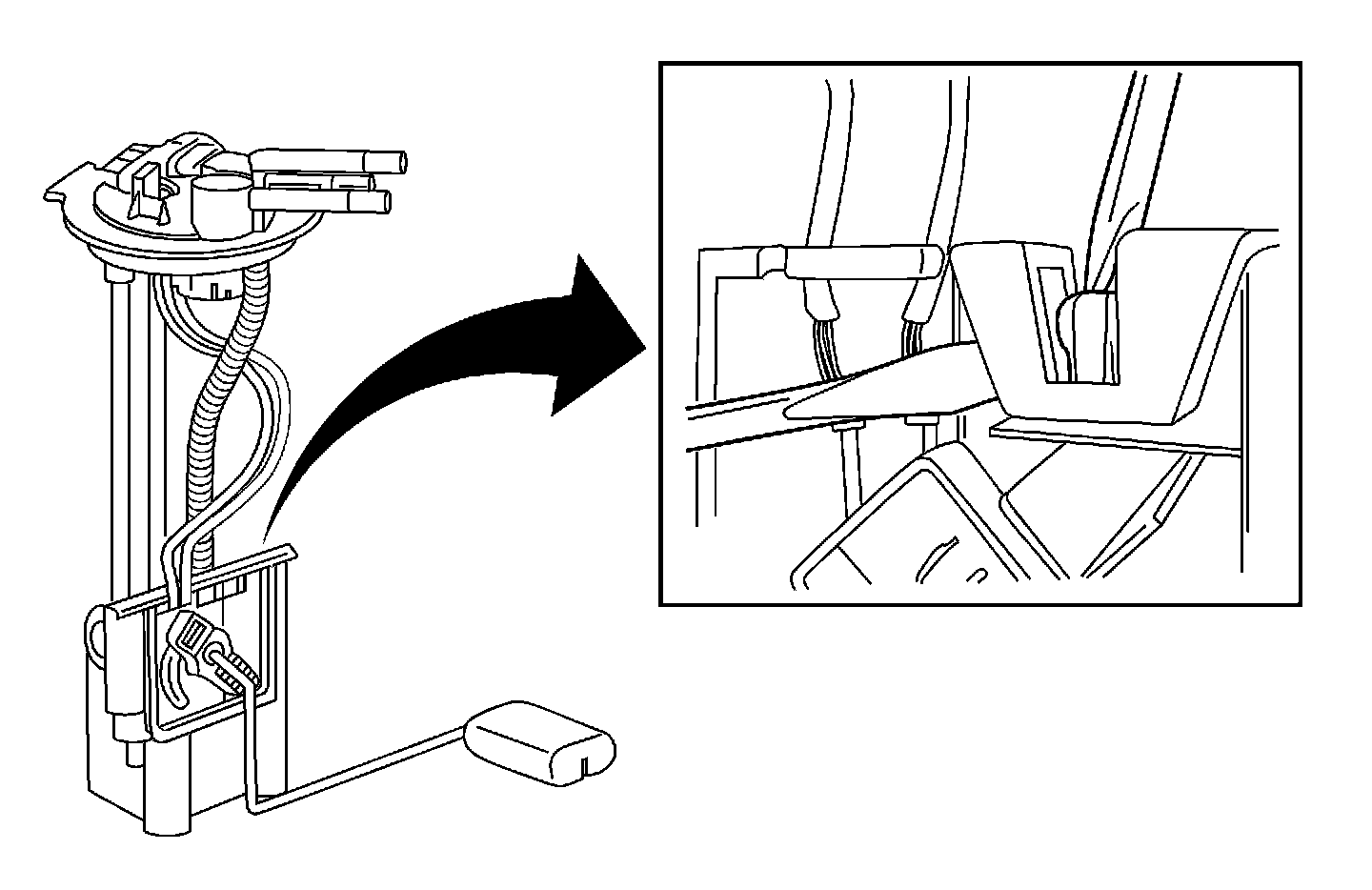

3. Using one of two pocket screwdrivers, pull the front retaining tab away from the front of the fuel level sensor while with the second pocket screwdriver push the fuel level sensor away and down from the fuel sender assembly.
4. Remove the fuel level sensor from the fuel sender assembly.

Installation Procedure

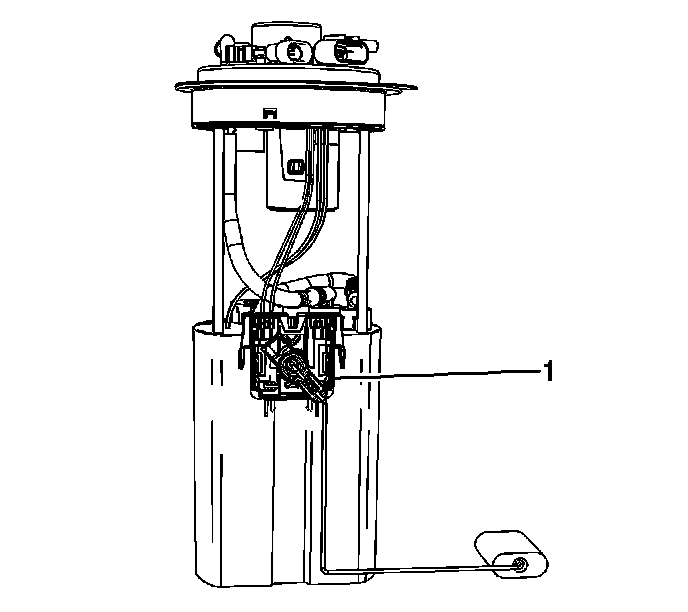

1. Install the fuel level sensor (1).
2. Connect the electrical connector to the fuel tank sender.
3. Install the fuel sender assembly.
