Transmission Position Sensor/Switch: Locations



Park Neutral Position (PNP) Switch

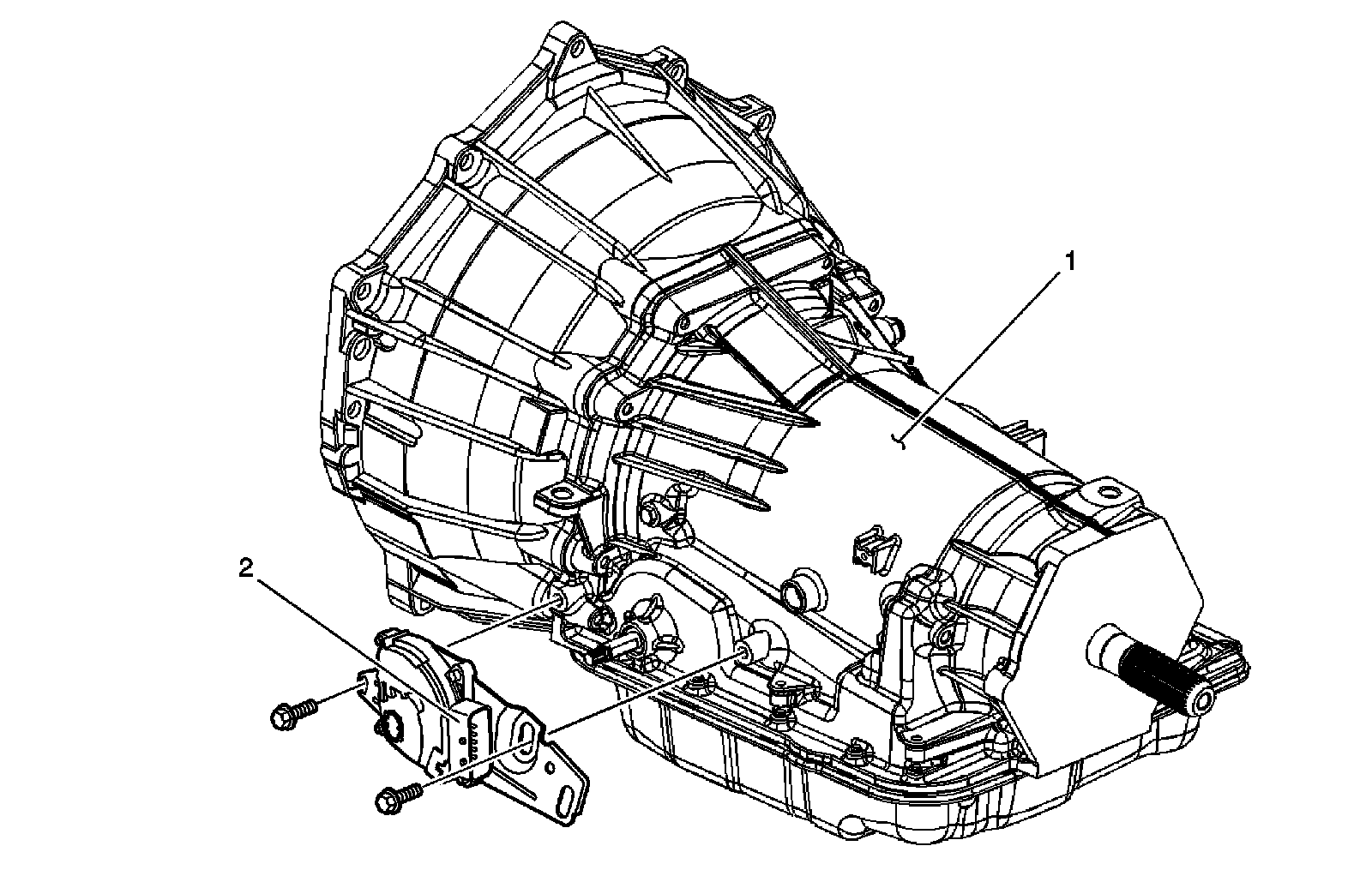

Park Neutral Position (PNP) Switch:




1 - Automatic Transmission 4L60-E/4L65-E/4L70-E
2 - Park/Neutral Position (PNP) Switch
