Knock Sensor: Service and Repair

Knock Sensor Replacement

Removal Procedure




1. Remove the intake manifold.

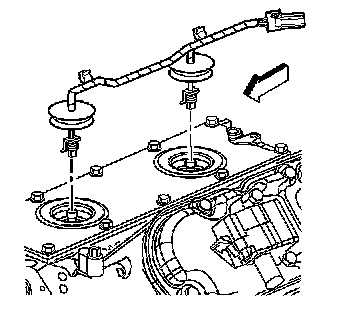

2. Remove the KS wiring harness assembly.

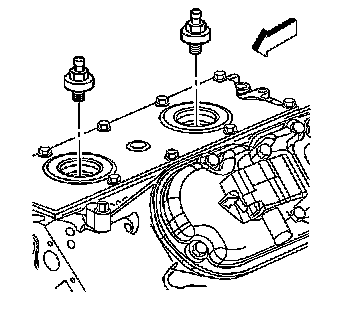

3. Remove the KS.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the KS.

Torque the sensor to 20 N.m (15 lb ft).




2. Install the KS wiring harness assembly.
3. Install the intake manifold.
