Scan Tool Output Controls



Scan Tool Output Controls

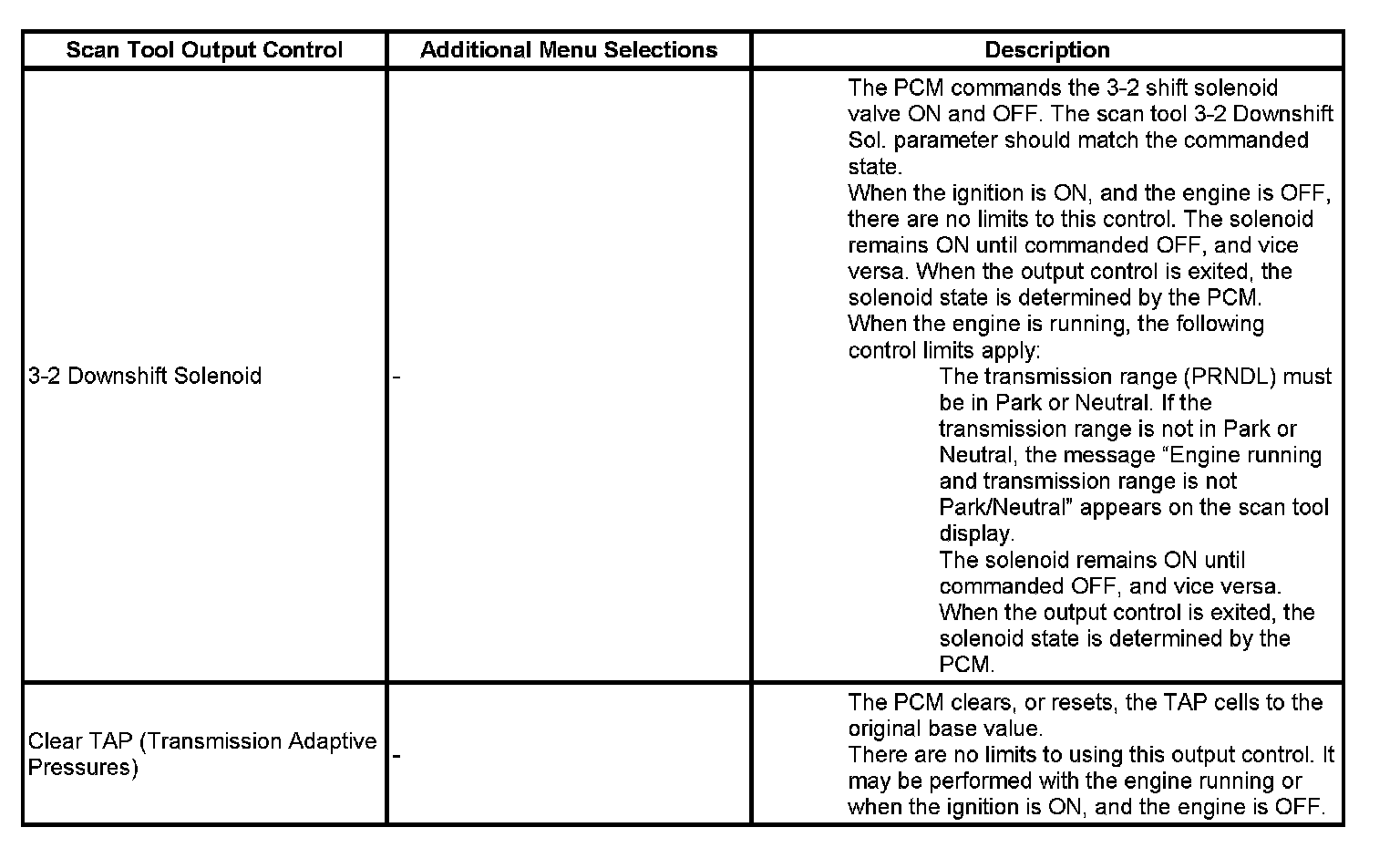

Scan Tool Output Control (Part 1):

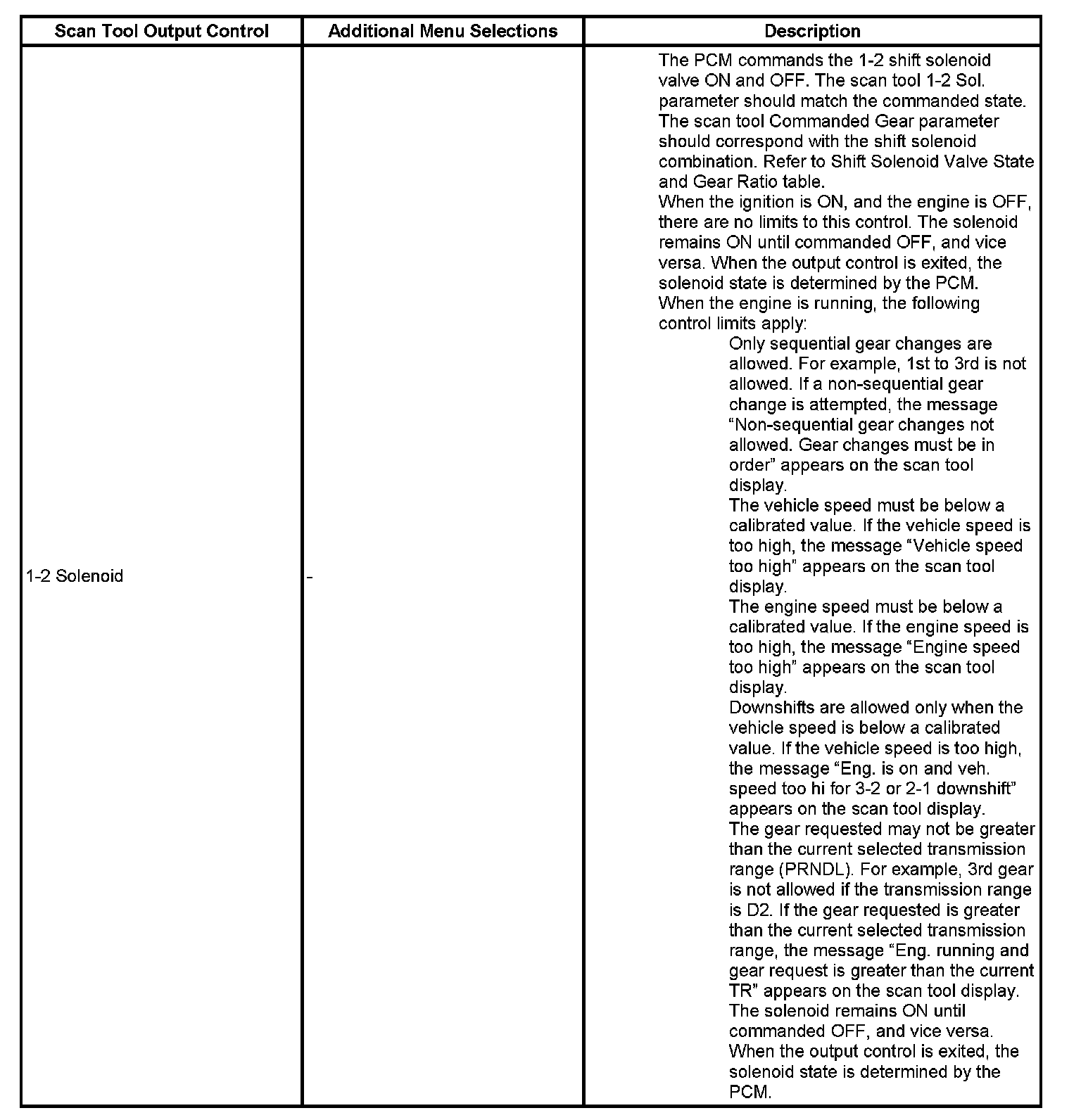

Scan Tool Output Control (Part 2):

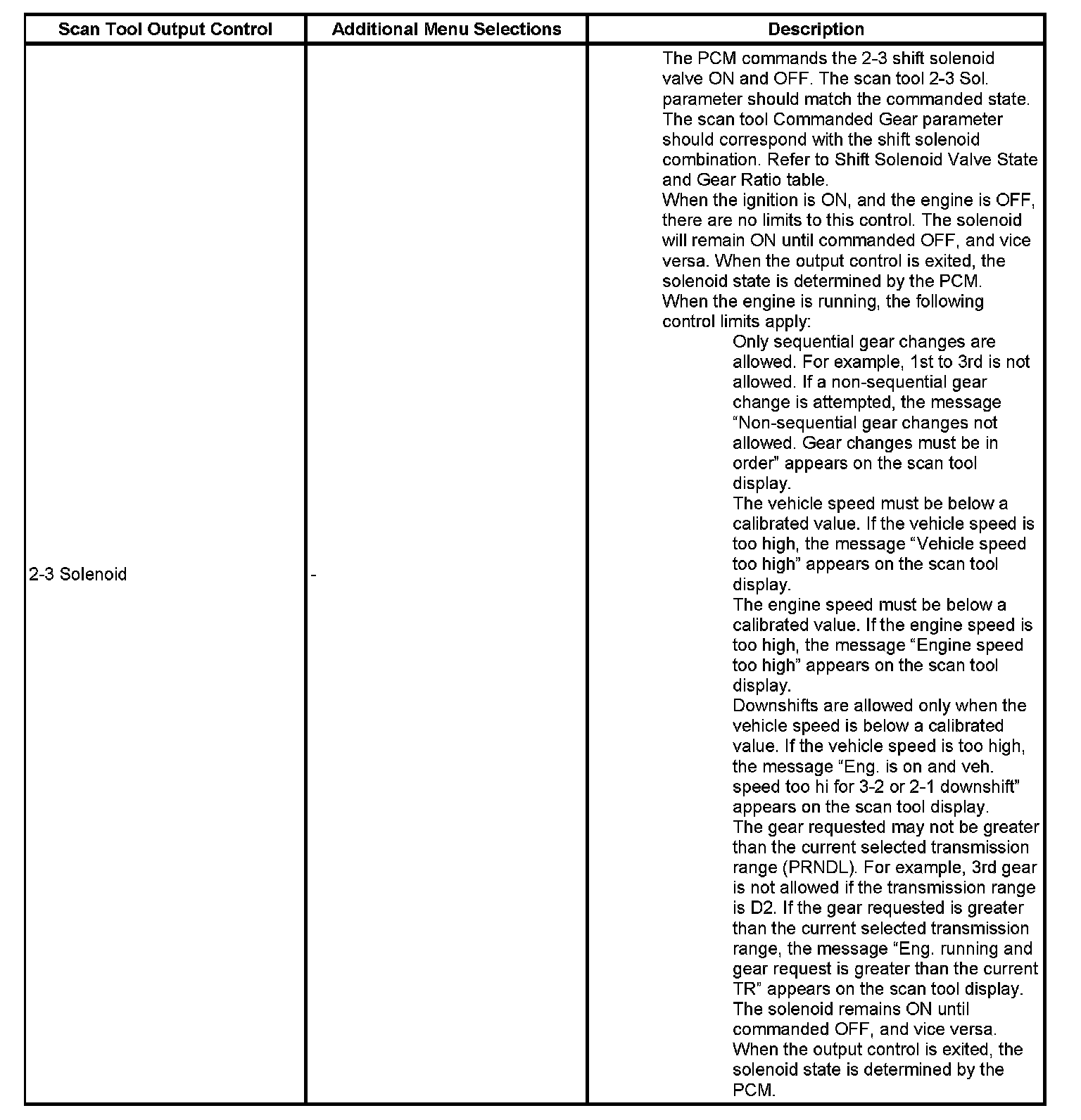

Scan Tool Output Control (Part 3):
