Engine General Specifications & Service Limits

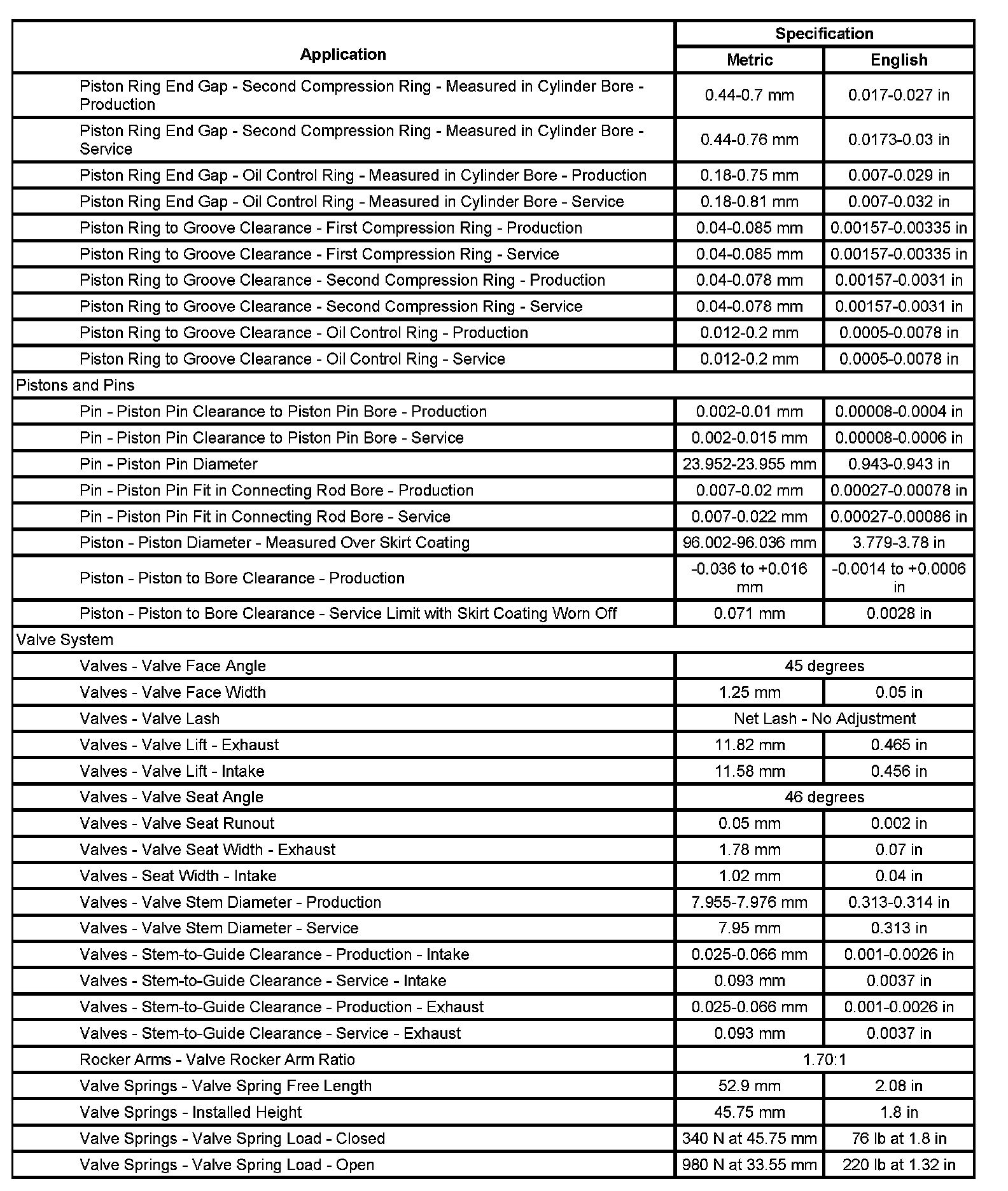

Engine Mechanical Specifications (LR4 VIN V)

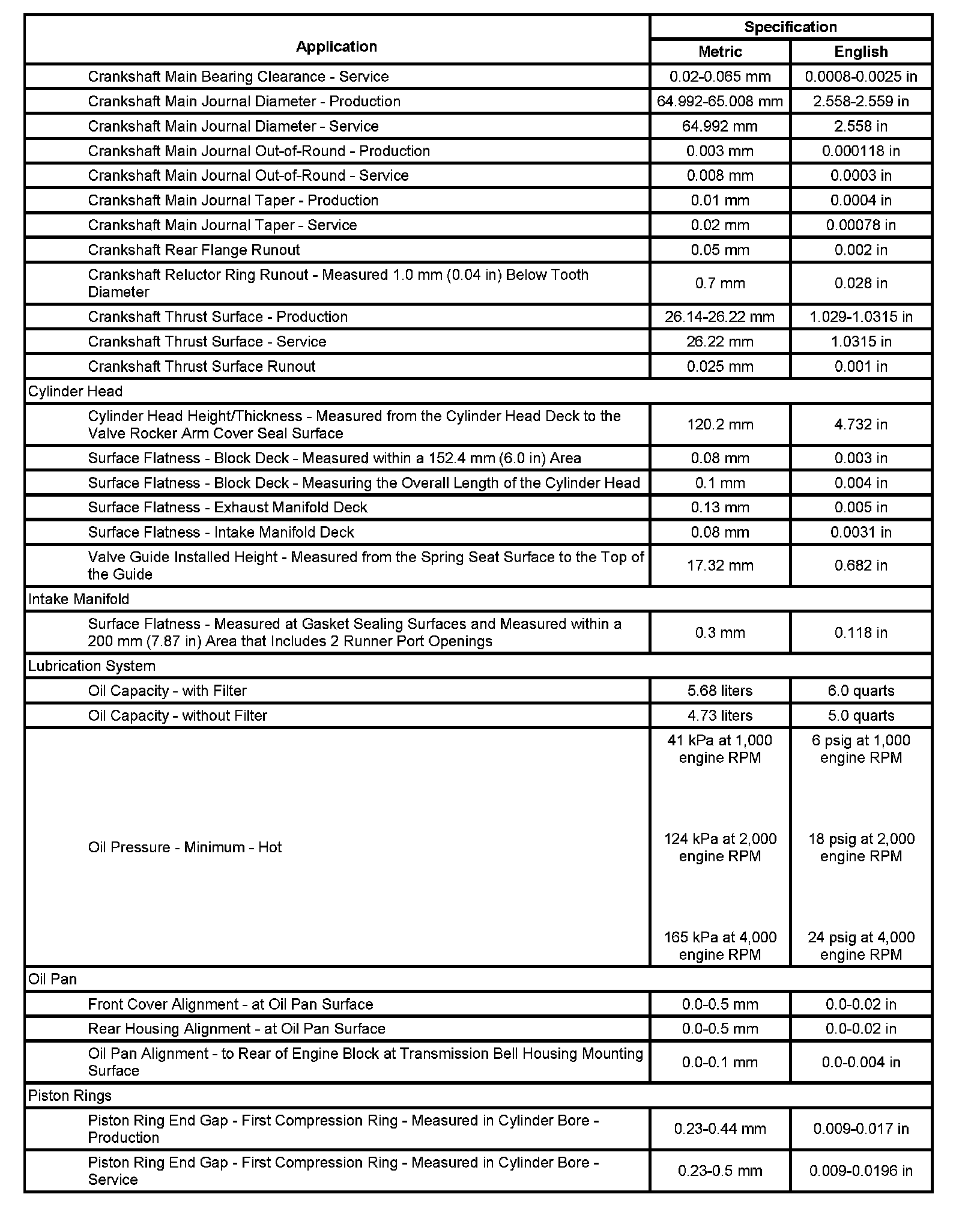

Engine Mechanical Specifications (LR4 VIN V):

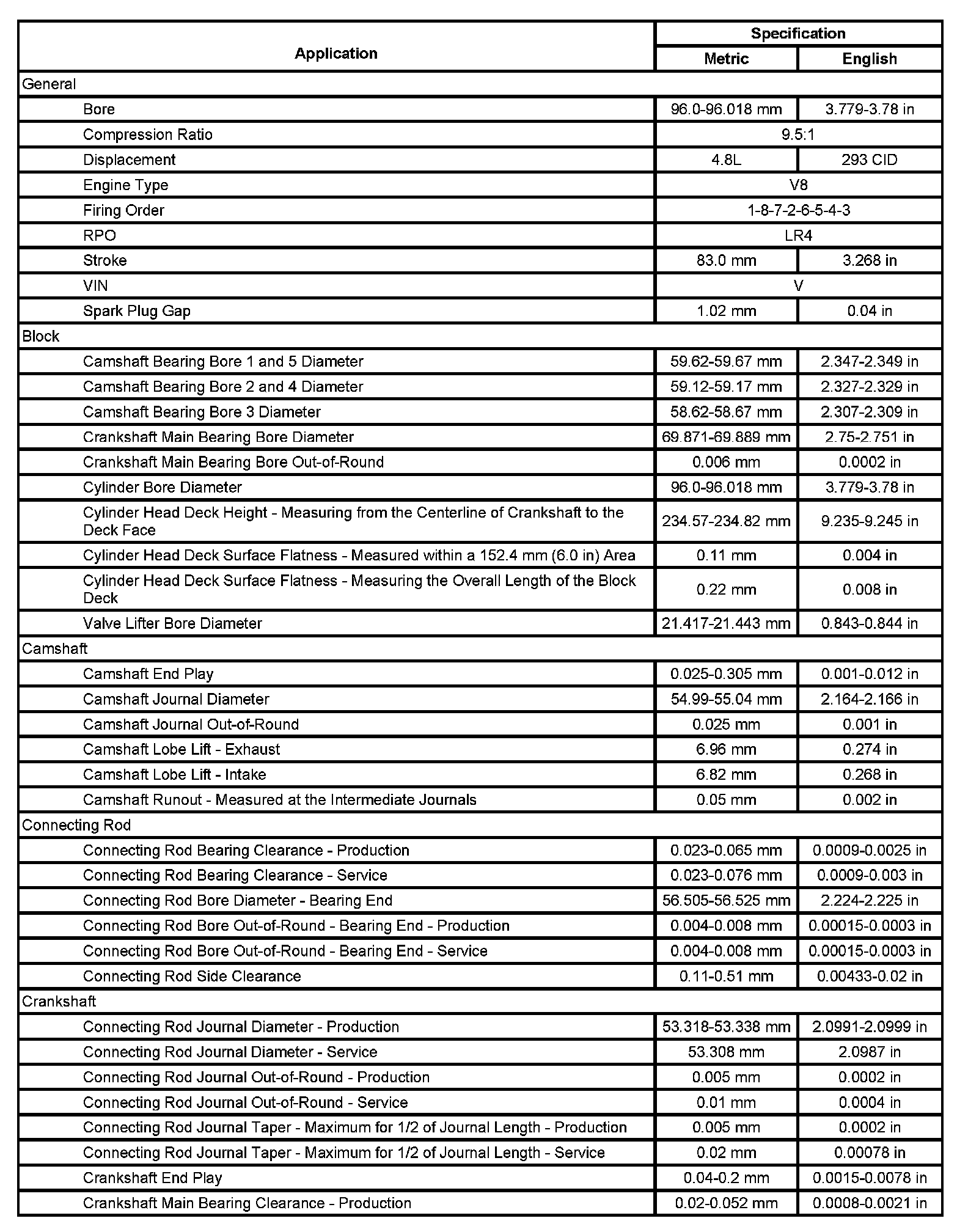

Engine Mechanical Specifications (LR4 VIN V):




Engine Mechanical Specifications (LR4 VIN V):
