Coolant Level Sensor

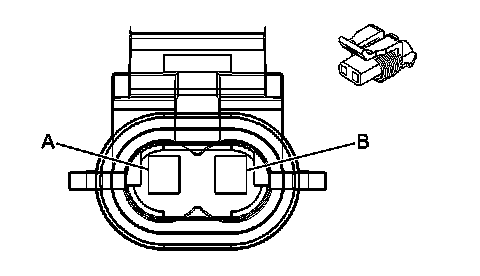

Cooling System Connector End Views

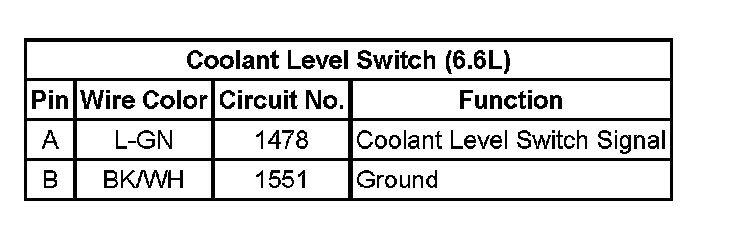

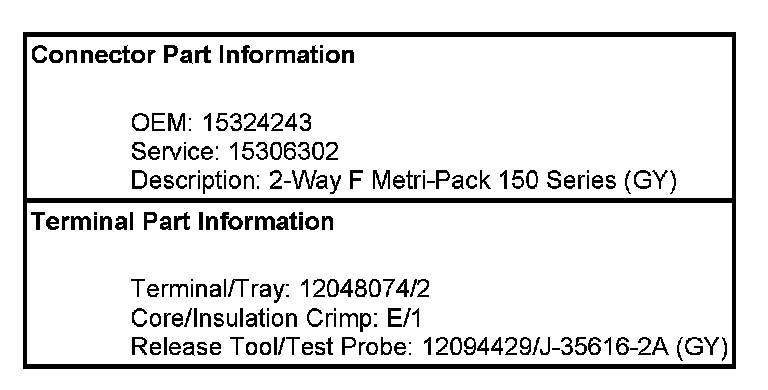

Coolant Level Switch (6.6L)
Coolant Level Switch (6.6L):
