Outside Temperature Display Sensor



Displays and Gages Connector End Views

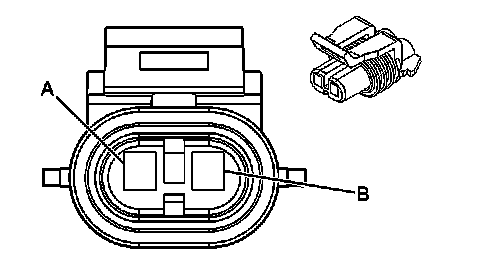

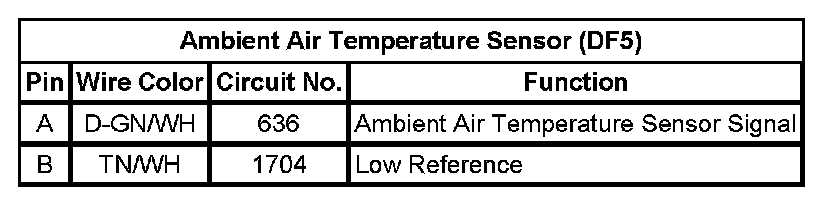

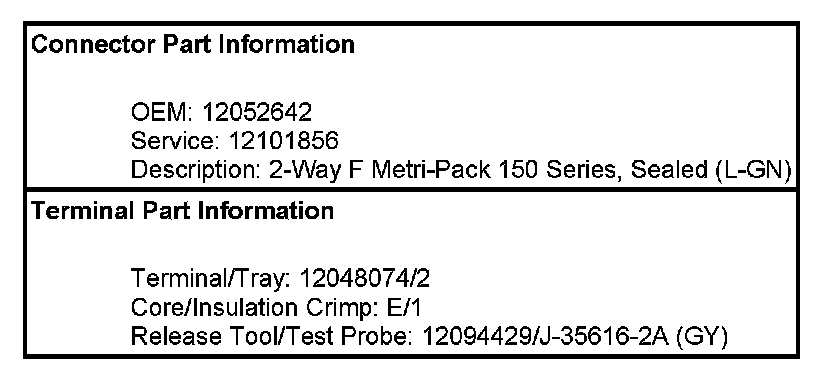

Ambient Air Temperature Sensor (DF5)
